IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

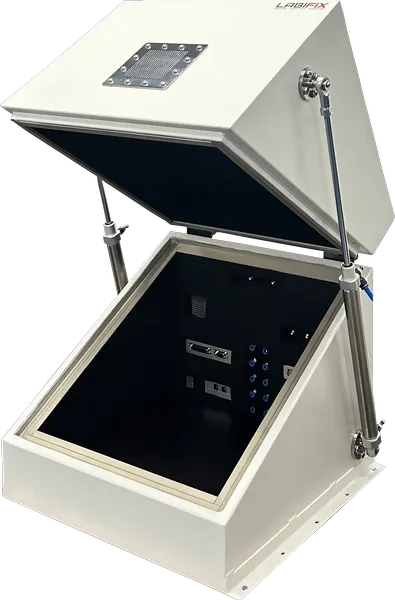

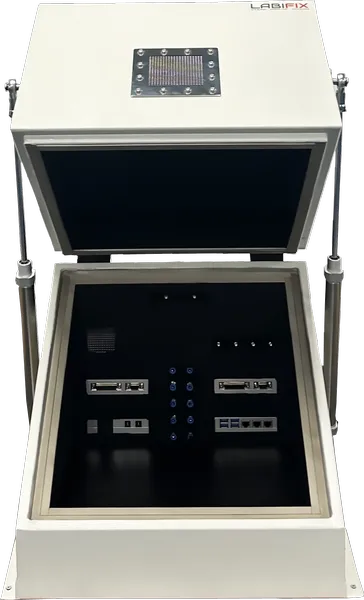

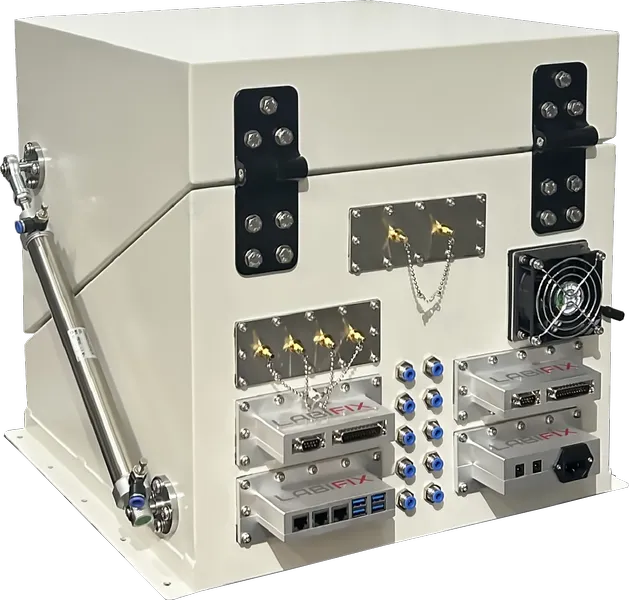

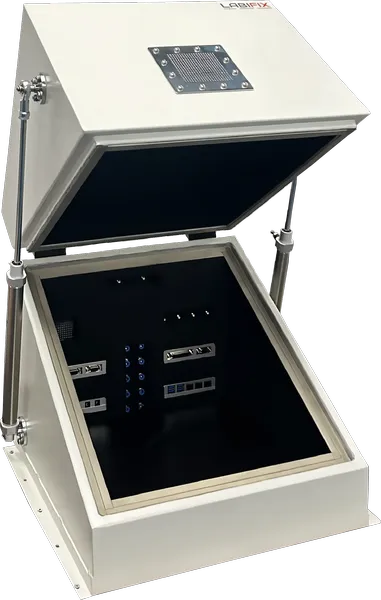

LBX3900 P RF Shield Box
The LabiFix LBX3900 P is a pneumatic RF shield box designed for automated and rack-mountable RF testing environments. Engineered to streamline high-throughput wireless device validation, this pneumatic unit delivers consistent isolation against external electromagnetic interference while facilitating automated lid actuation for production and R&D setups.As a RF test enclosure, LBX3900 can be configured around the DUT and the way it needs to be tested. RF Isolation box for device throughput testing.
Dimensions
Exterior (H x W x D)
18" (H) x 18" (W) x 18" (D)
Interior (H x W x D)
16" (H) x 16" (W) x 16" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
