RF SHIELD BOX

LBX3100 RF Shield Box

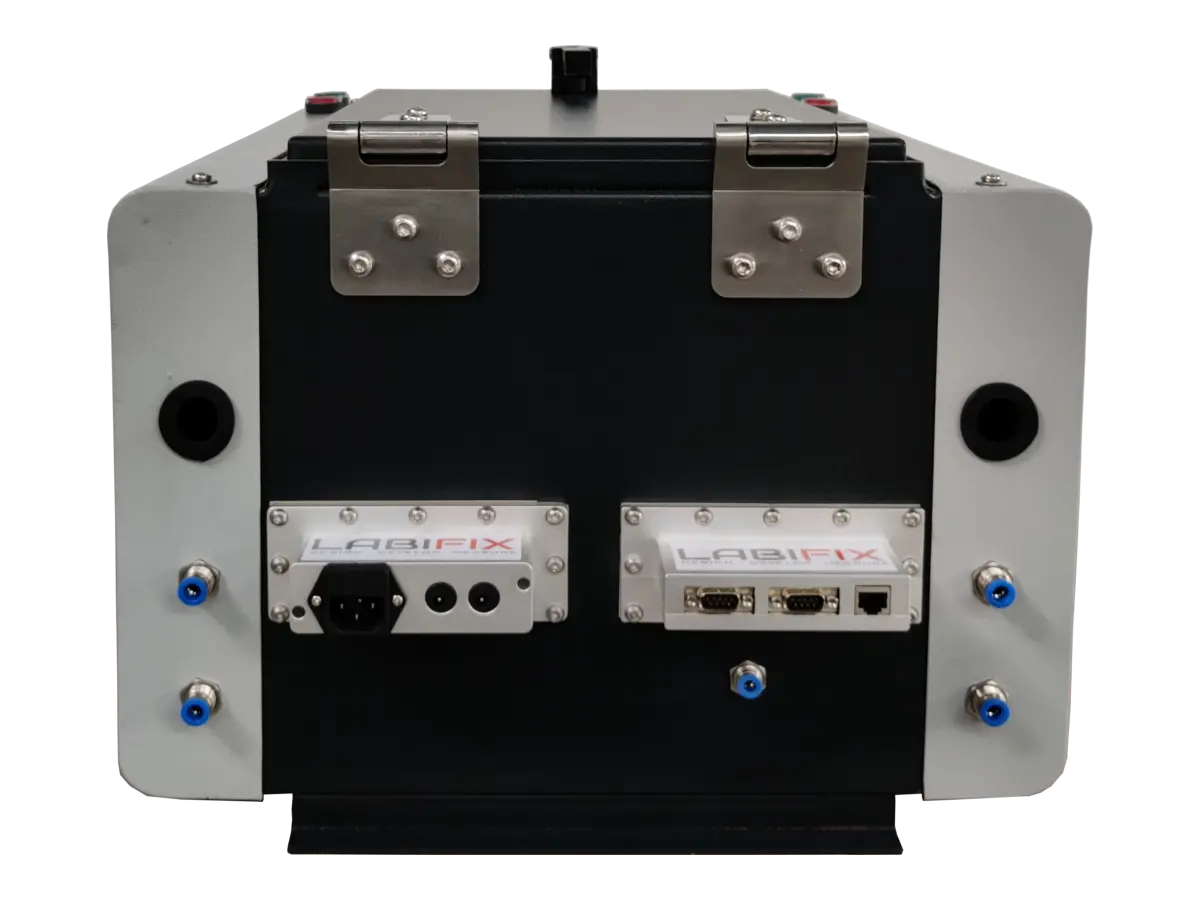

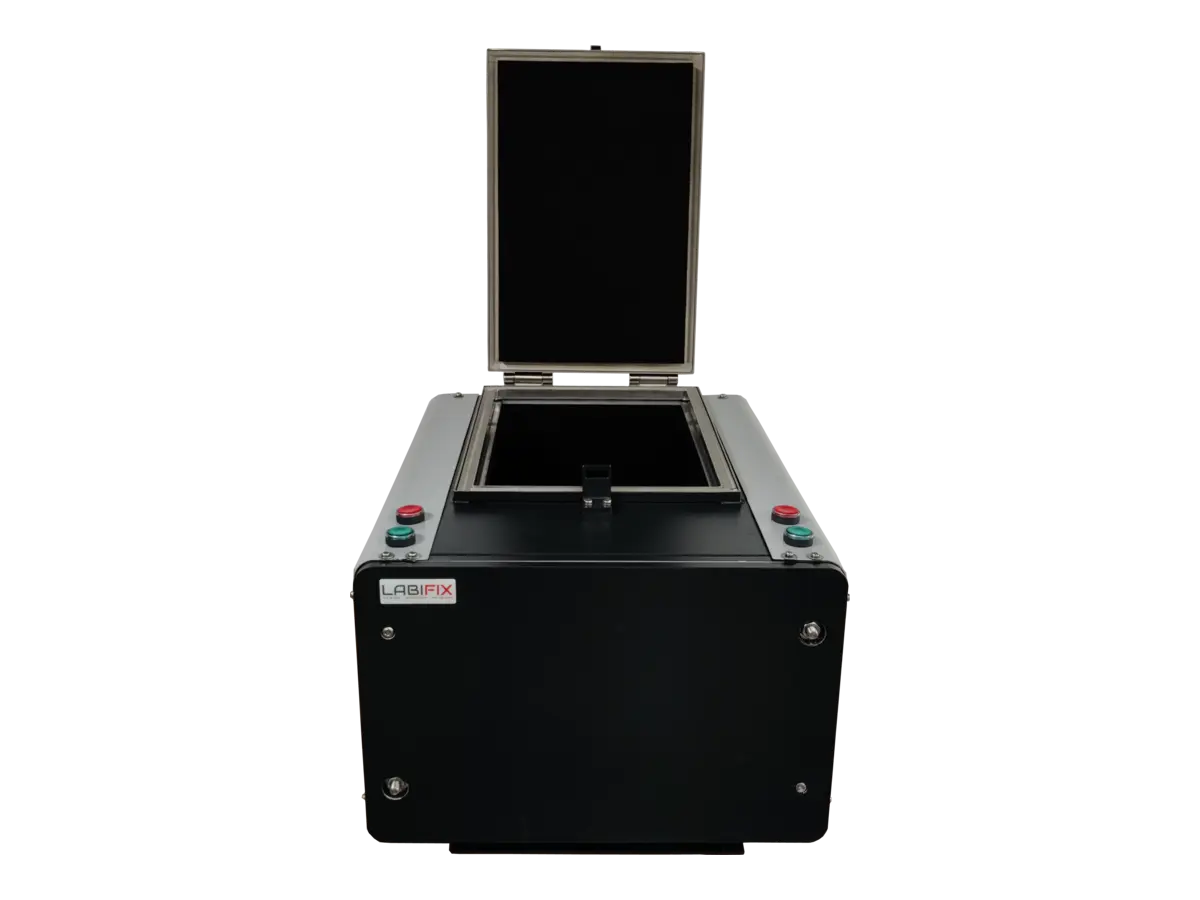

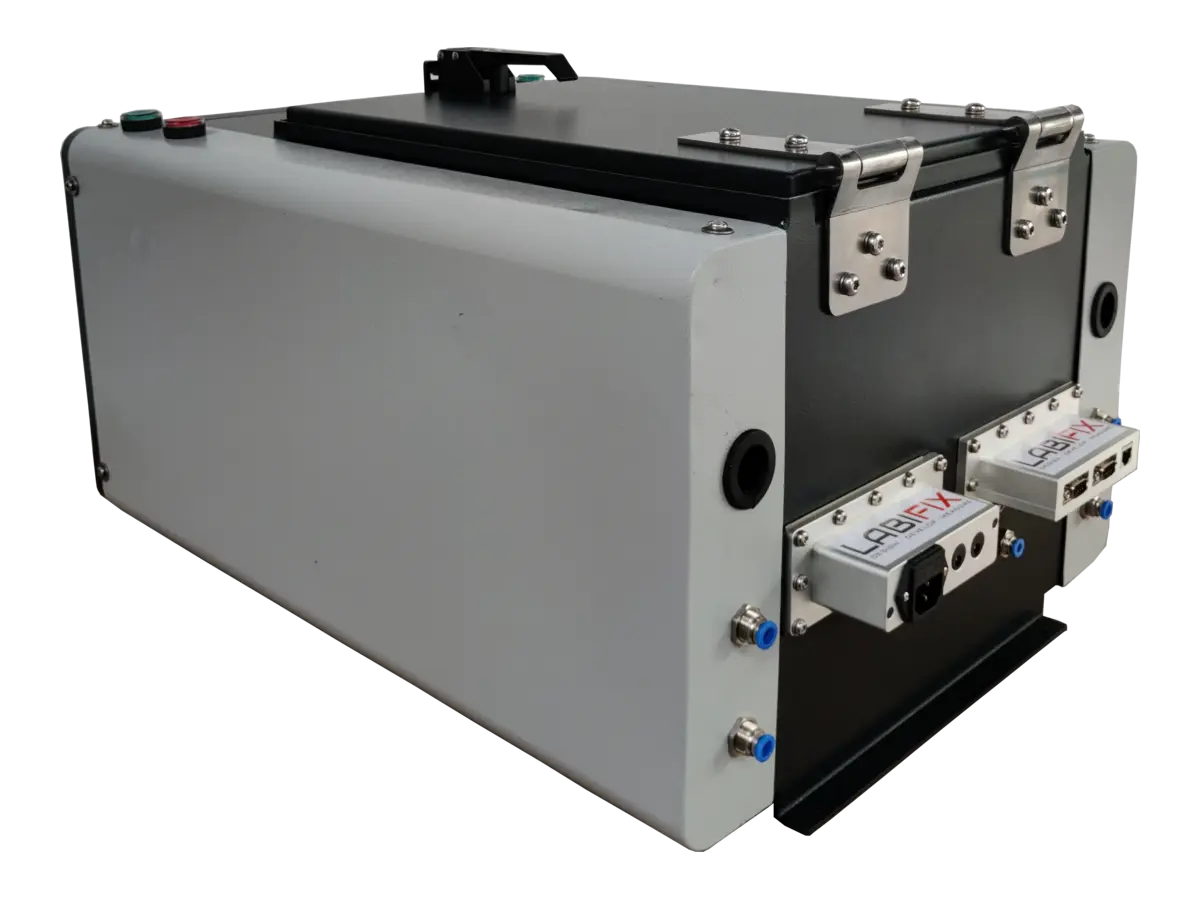

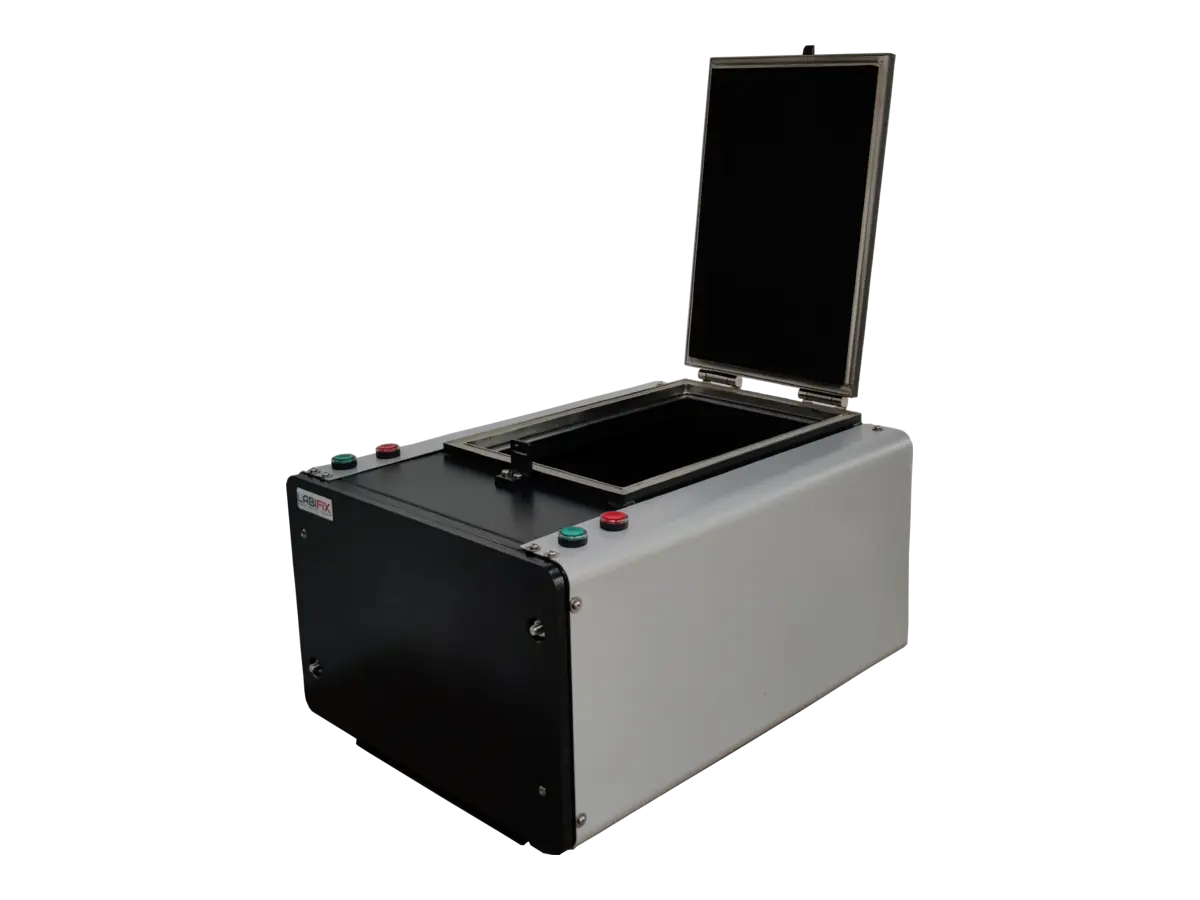

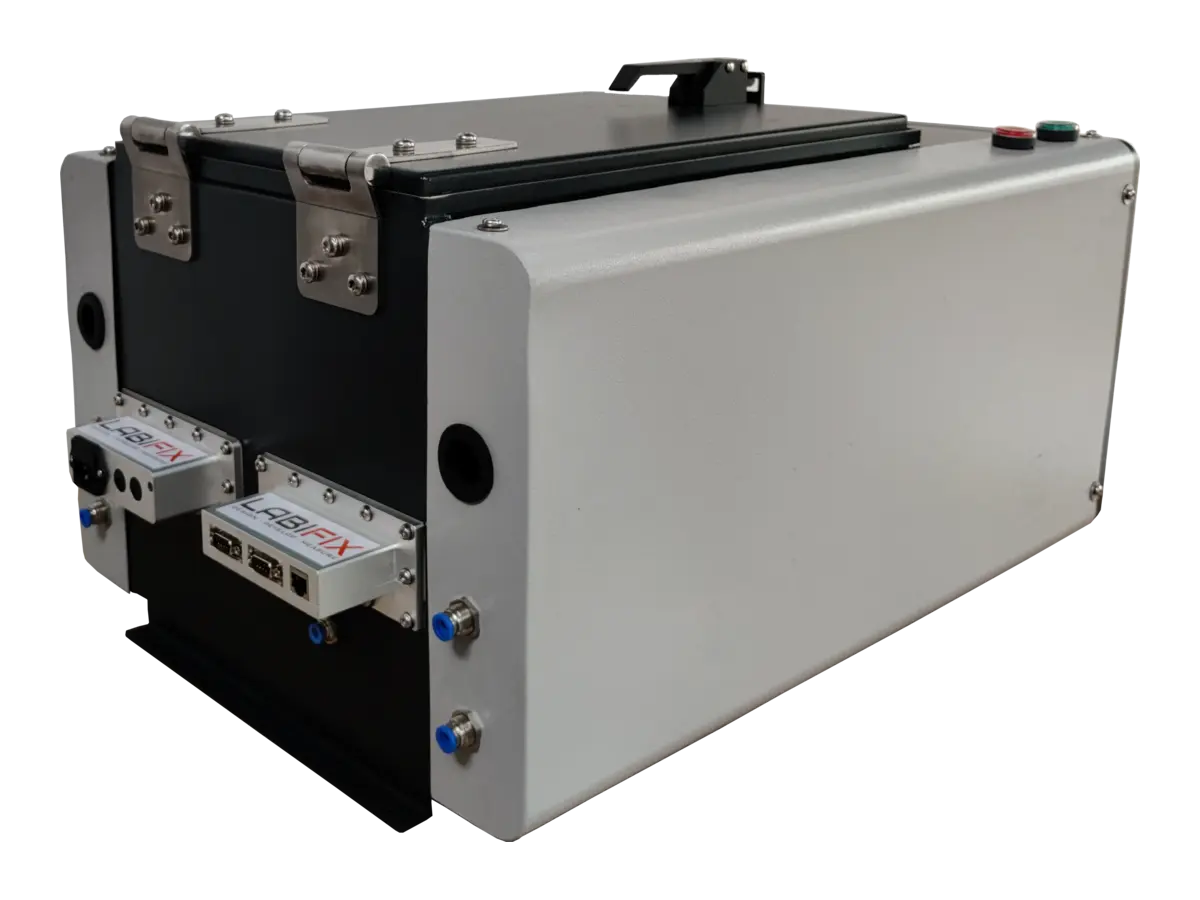

LBX3100 Pneumatic rf shield Box with drawer designed for use in production environments and a wide range of industrial applications. There's a wide range of IO RF connectors, data ports, and power options, plus high grade RF absorbers that dampen the signal inside the RF chamber, The pneumatic enclosure can be fully customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules. Feel free to contact us for more details and we will be happy to provide you with a tailor-made testing solution that best suits your testing requirements

Dimensions
Exterior (H x W x D)
12" (H) x 20" (W) x 24" (D)
Interior (H x W x D)
08" (H) x 18" (W) x 22" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX3100 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
20"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW24"(EXTERIOR DEPTH)SIDE VIEW20"(EXTERIOR WIDTH)24"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 20" (W) × 12" (H) × 24" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX3100 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
18"(INTERIOR WIDTH)8"(INTERIORHEIGHT)INTERIOR FRONT VIEW22"(INTERIOR DEPTH)INTERIOR SIDE VIEW18"(INTERIOR WIDTH)22"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 18" (W) × 8" (H) × 22" (D)RF Pyramidal Microwave Absorber Lining Boundary
LABIFIX RF PRODUCT PORTFOLIO

Related RF Shielding Enclosures

Explore complementary RF test boxes and isolation enclosures engineered for precision testing

LBX3000 PNEUMATIC WITH DRAWER RF SHIELDED CHAMBER

LBX3000 PNEUMATIC WITH DRAWER RF SHIELDED CHAMBER - LabiFix RF Shield Box, front viewLBX3000 PNEUMATIC WITH DRAWER RF SHIELDED CHAMBER - LabiFix RF Shield Box, rear view

The LBX3000 is a high-performance pneumatic RF shielded enclosure with drawer designed for use in production environments

View Details

LBX3012 PNEUMATIC RF SHIELDING BOX

LBX3012 PNEUMATIC RF SHIELDING BOX - LabiFix RF Shield Box, front viewLBX3012 PNEUMATIC RF SHIELDING BOX - LabiFix RF Shield Box, rear view

LBX3012 Pneumatic RF Shielding box is designed to automatically and programmable control, making

View Details

LBX3080 PNEUMATIC RF SHIELDED TEST ENCLOSURE

LBX3080 PNEUMATIC RF SHIELDED TEST ENCLOSURE - LabiFix RF Shield Box, front viewLBX3080 PNEUMATIC RF SHIELDED TEST ENCLOSURE - LabiFix RF Shield Box, rear view

This LBX3080 Pneumatic RF Shield Box provides high isolation of >80dB for a wide range of frequency 0.8GHz-8GHz,

View Details

Get in Touch with Engineering

Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
