IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

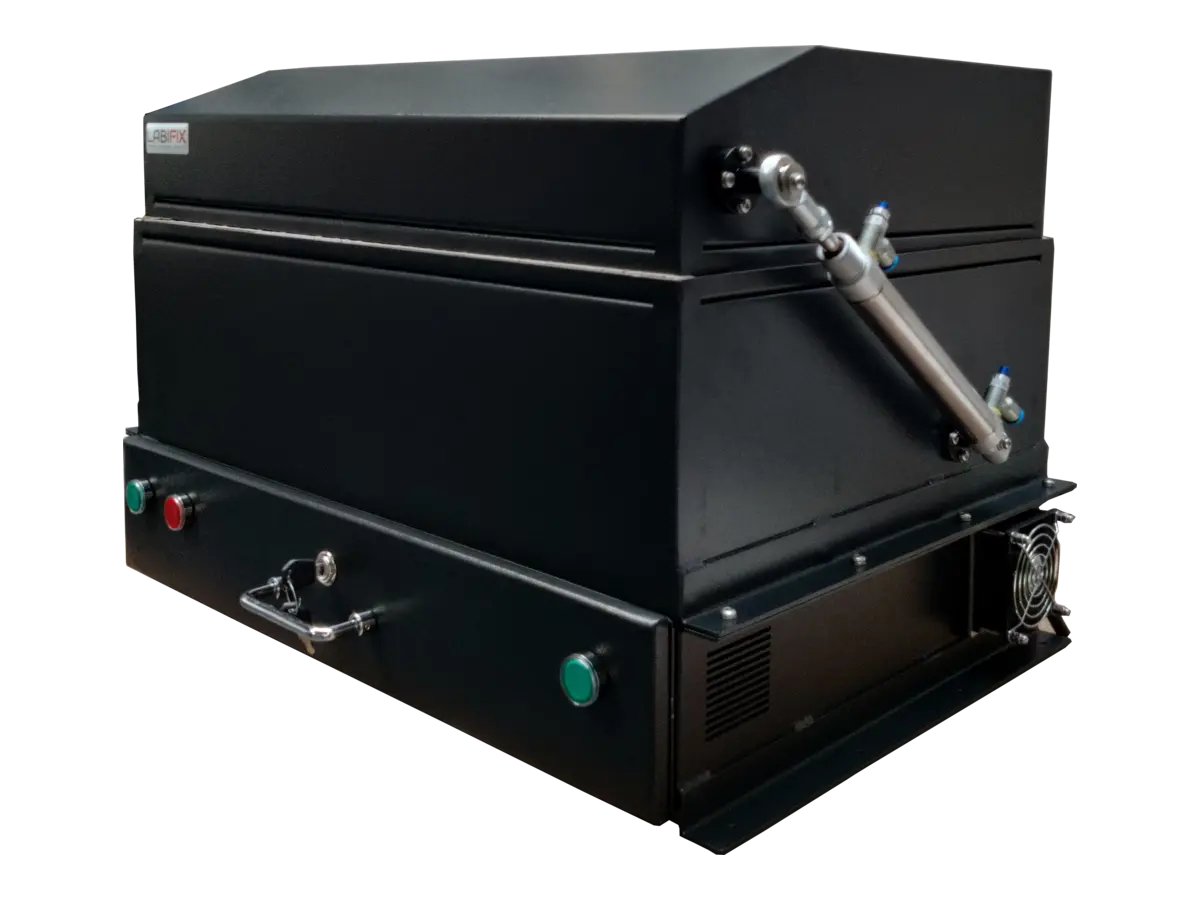

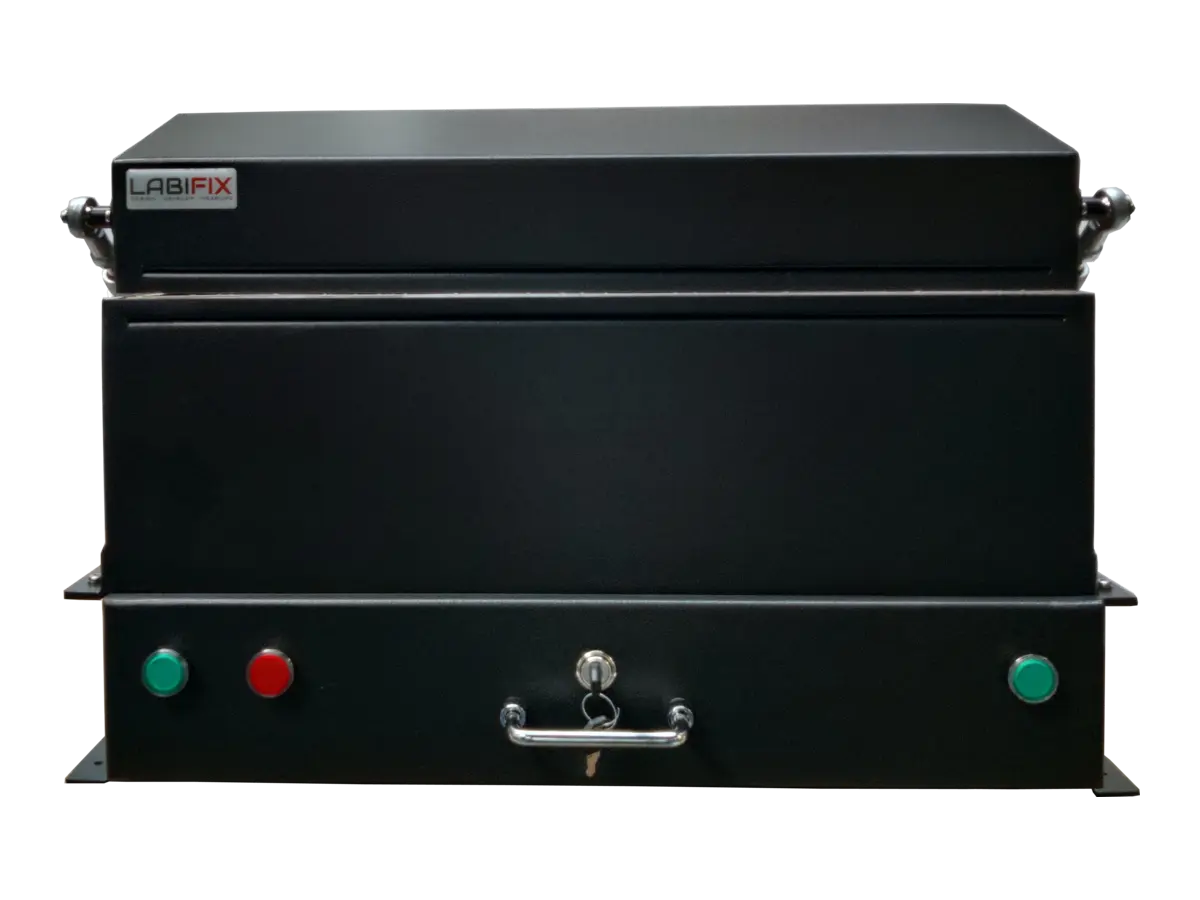

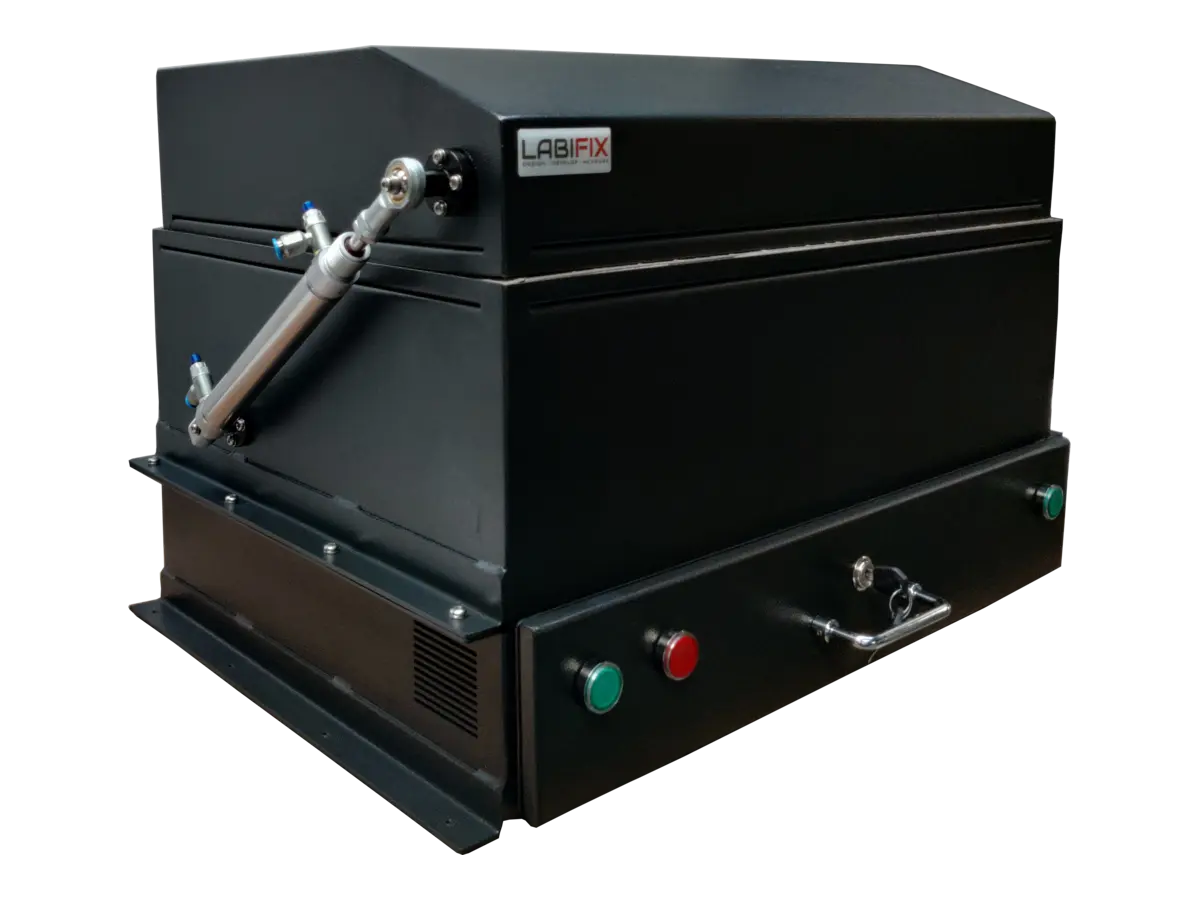

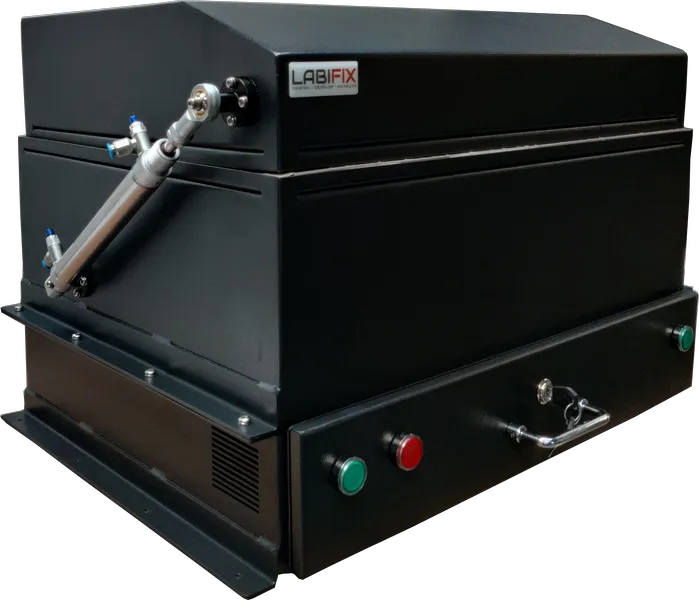

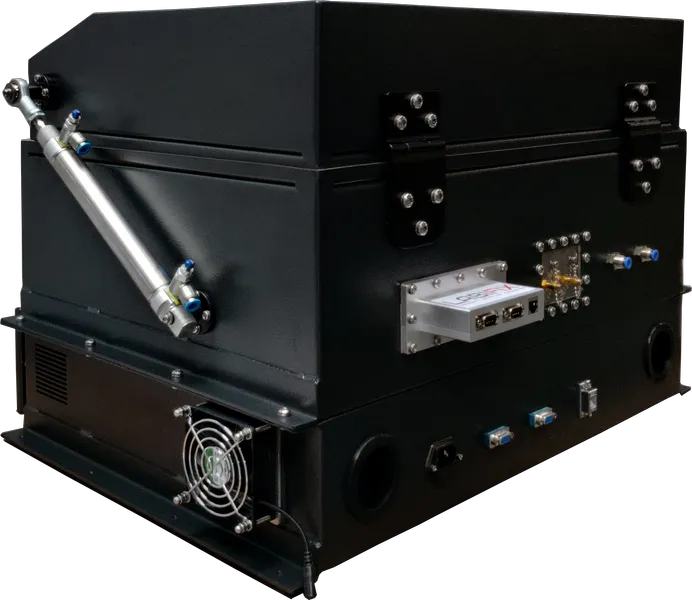

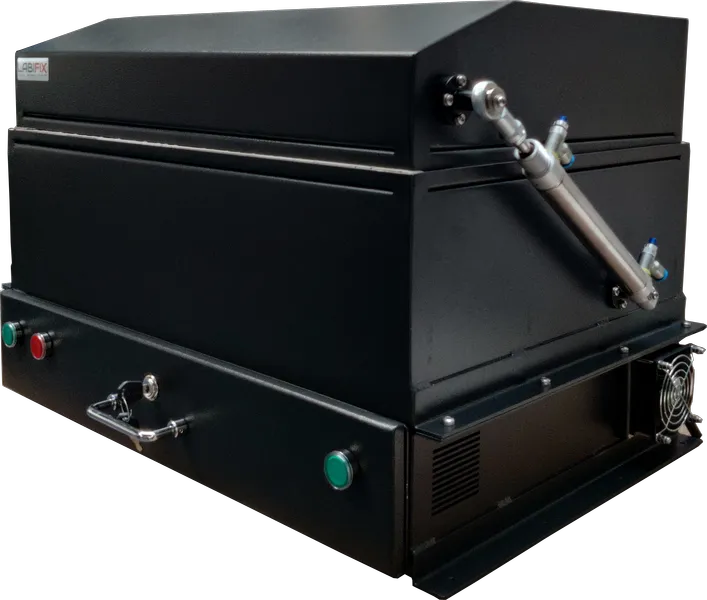

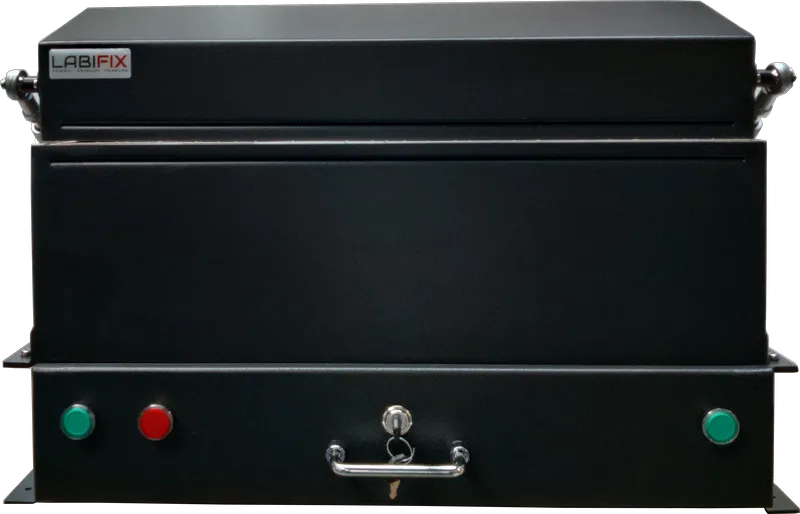

LBX3000 RF Shield Box
The LBX3000 is a high-performance pneumatic RF shielded enclosure with drawer designed for use in production environments and a wide range of industrial applications. There's a wide range of IO RF connectors, data ports, and power options, plus high grade RF absorbers that dampen the signal inside the RF chamber, so the LBX3200 RF Shield box can be customized for your needs. Engineers can use this RF box to create an inexpensive programmed test environment to isolate their device from outside interference during validation.
Dimensions
Exterior (H x W x D)
12" (H) x 17" (W) x 24" (D)
Interior (H x W x D)
10" (H) x 15" (W) x 22" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

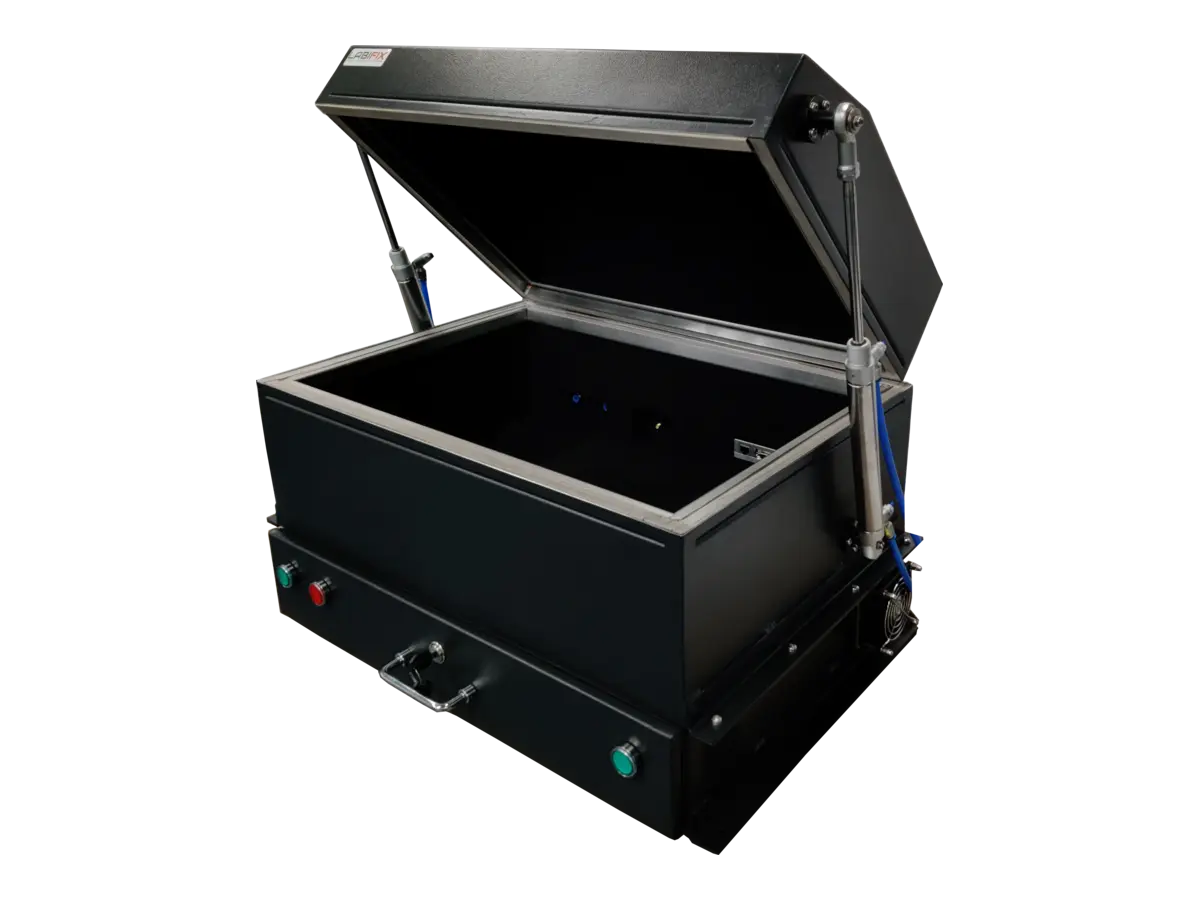

High Performance Pyramidal RF Microwave Absorber lining

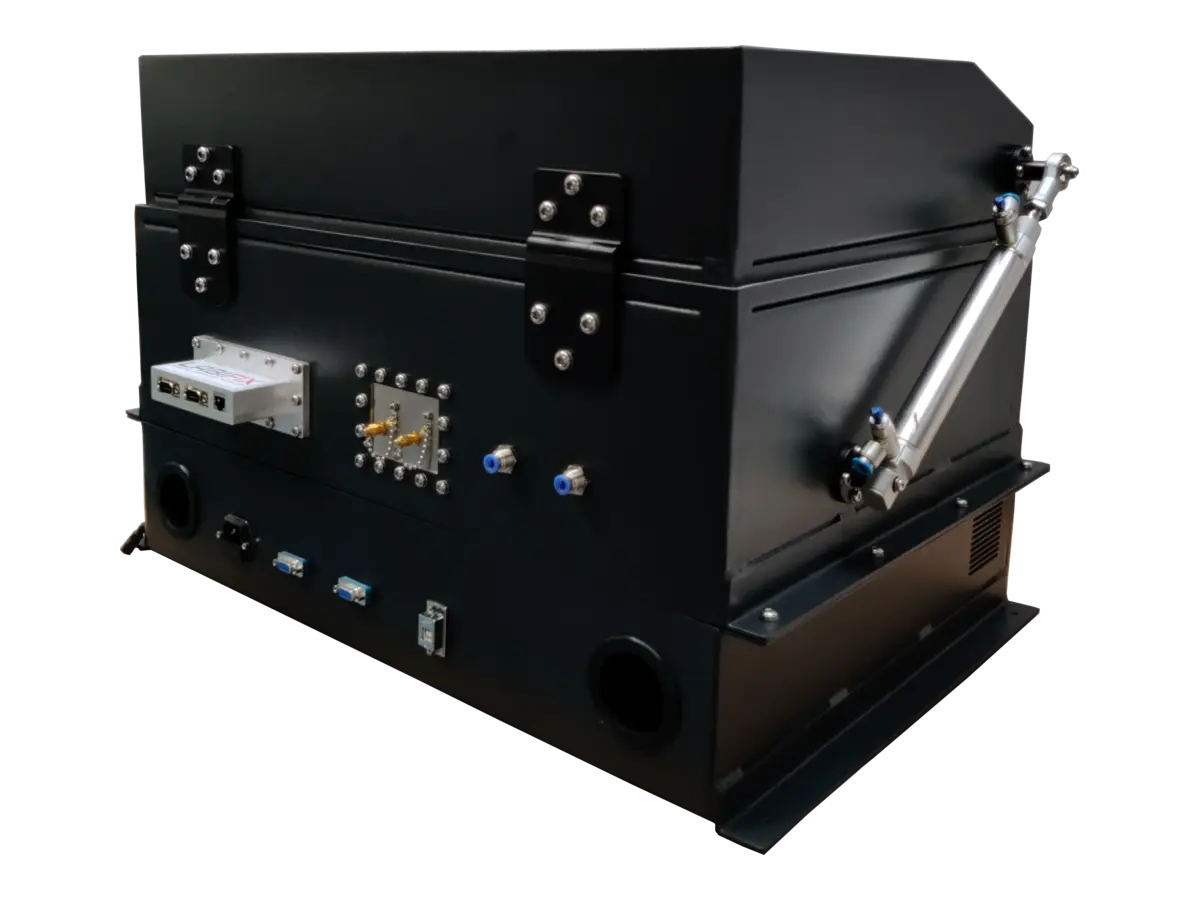

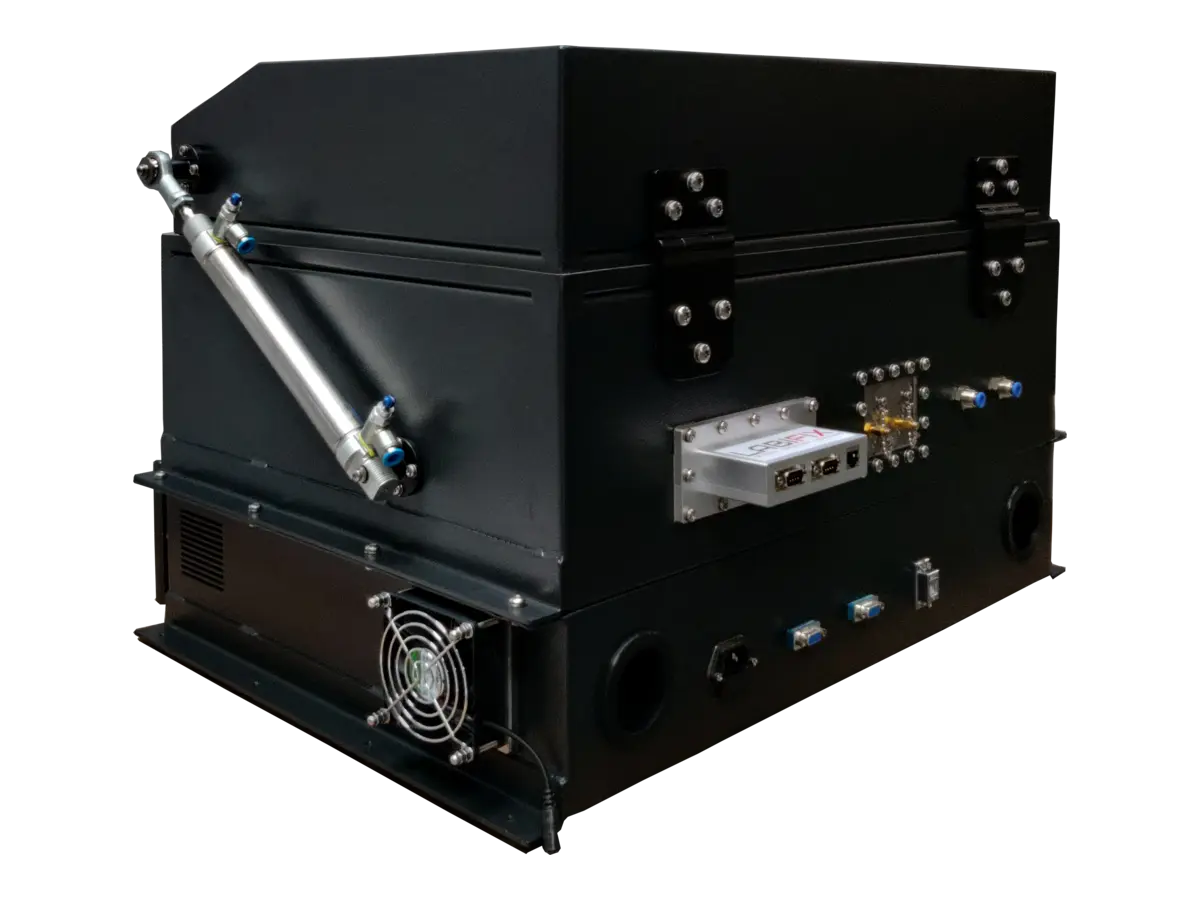

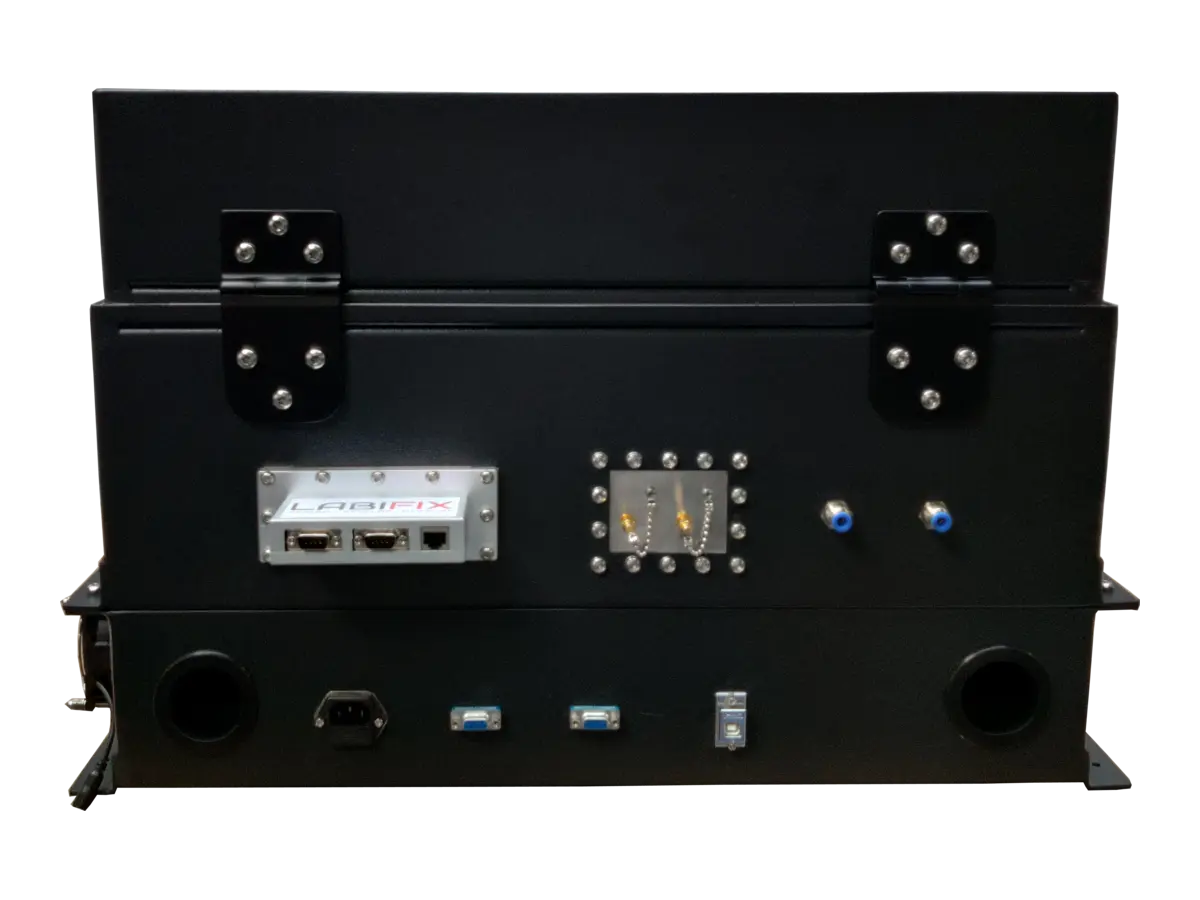

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
