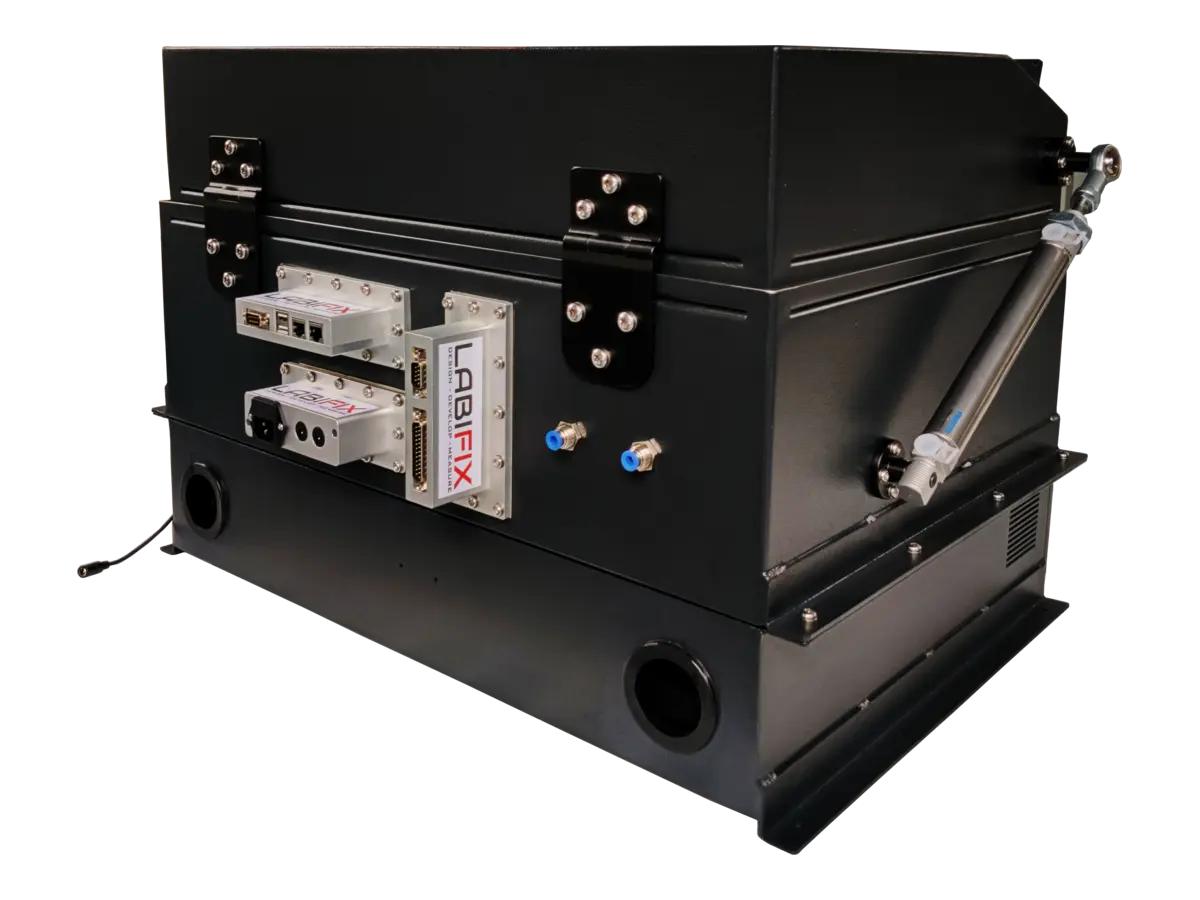

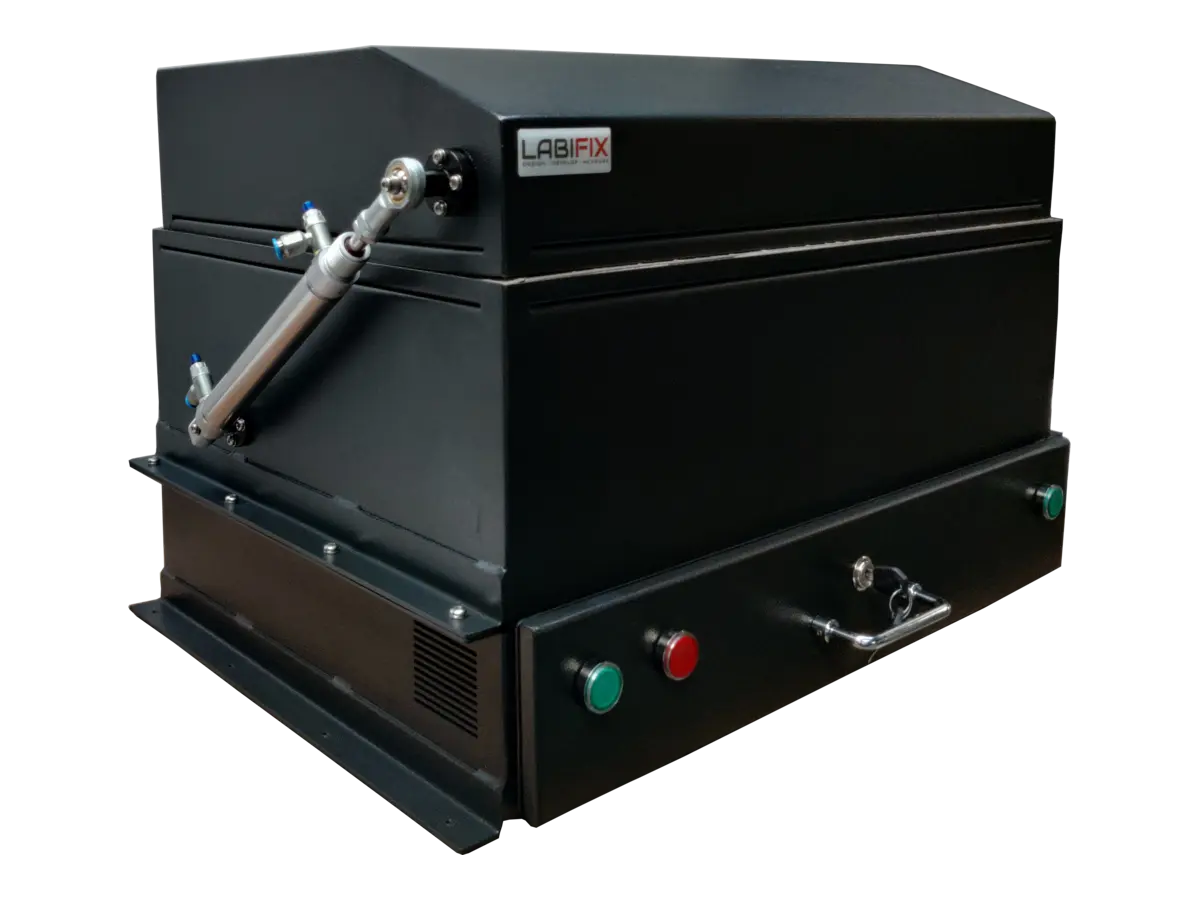

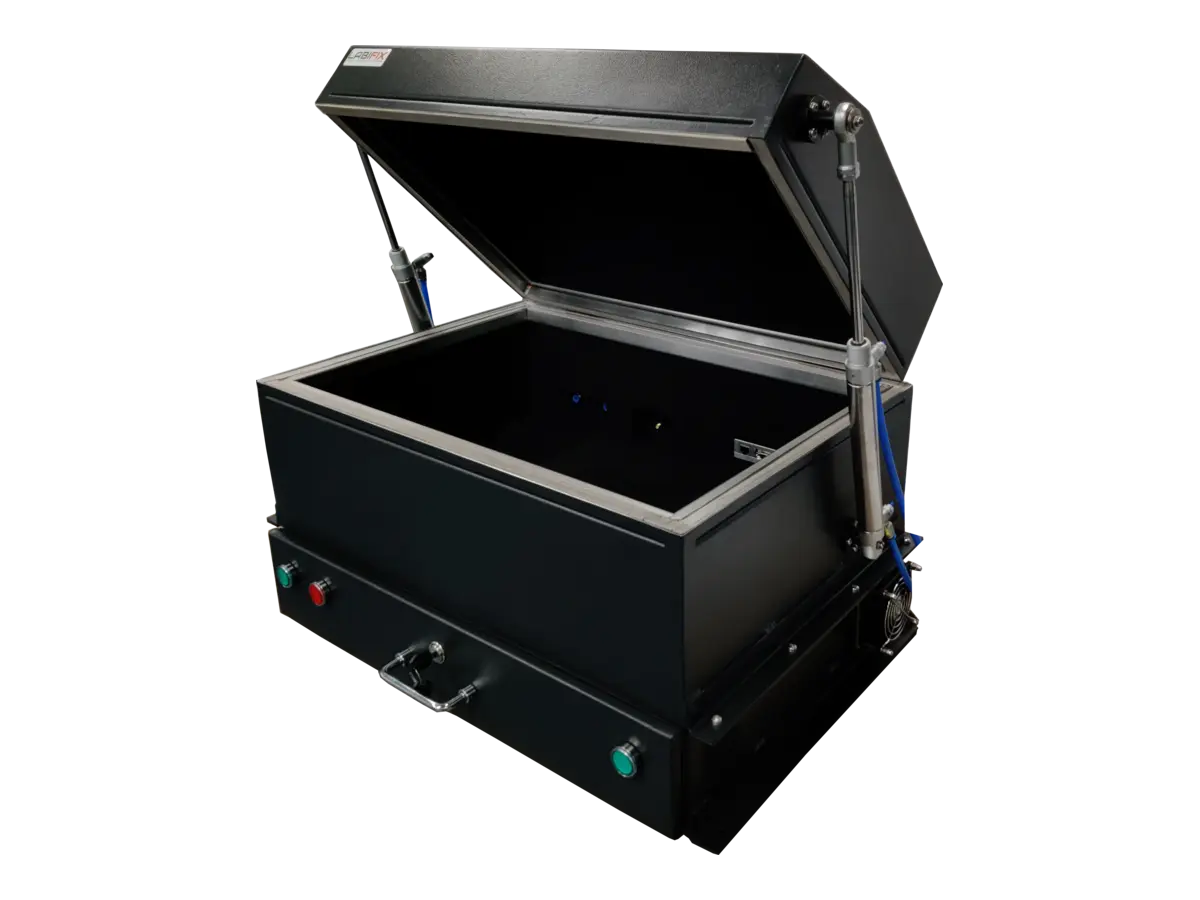

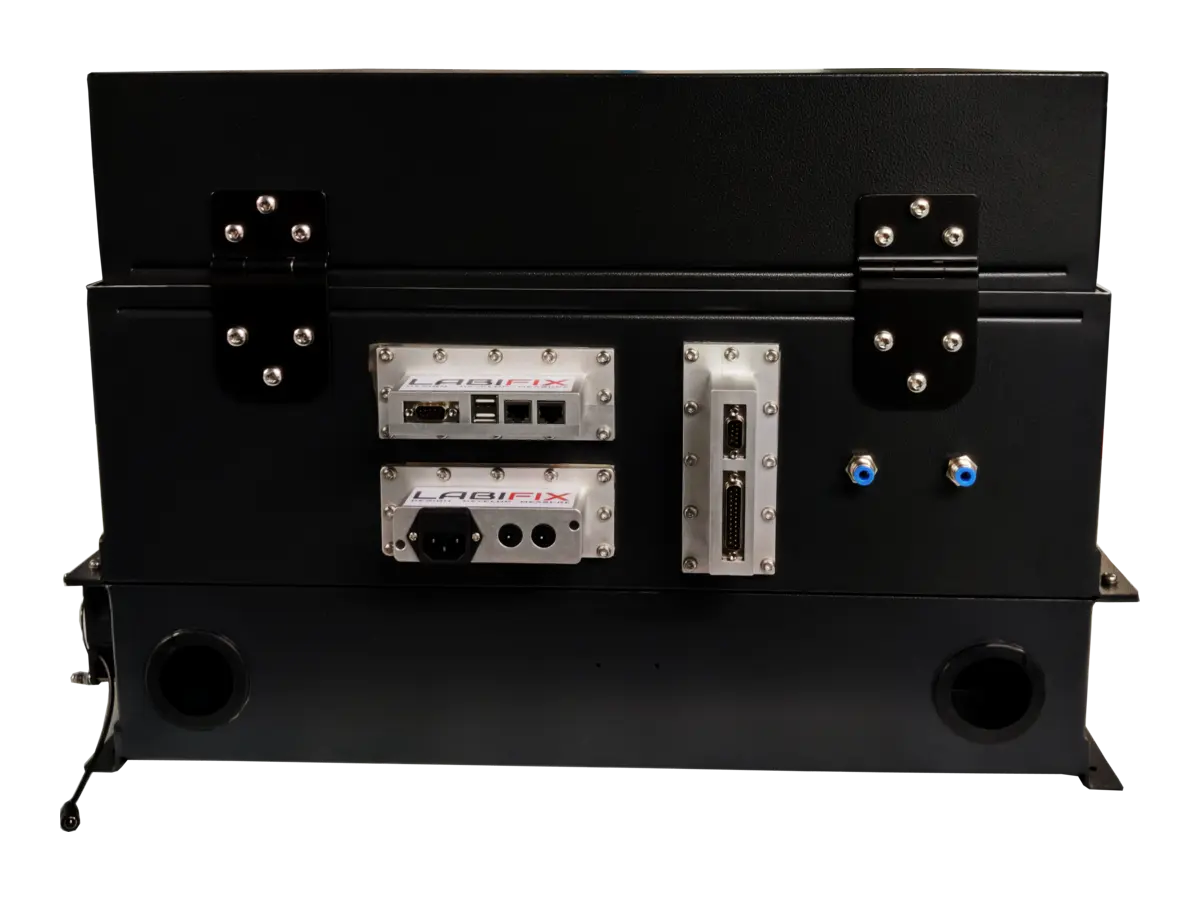

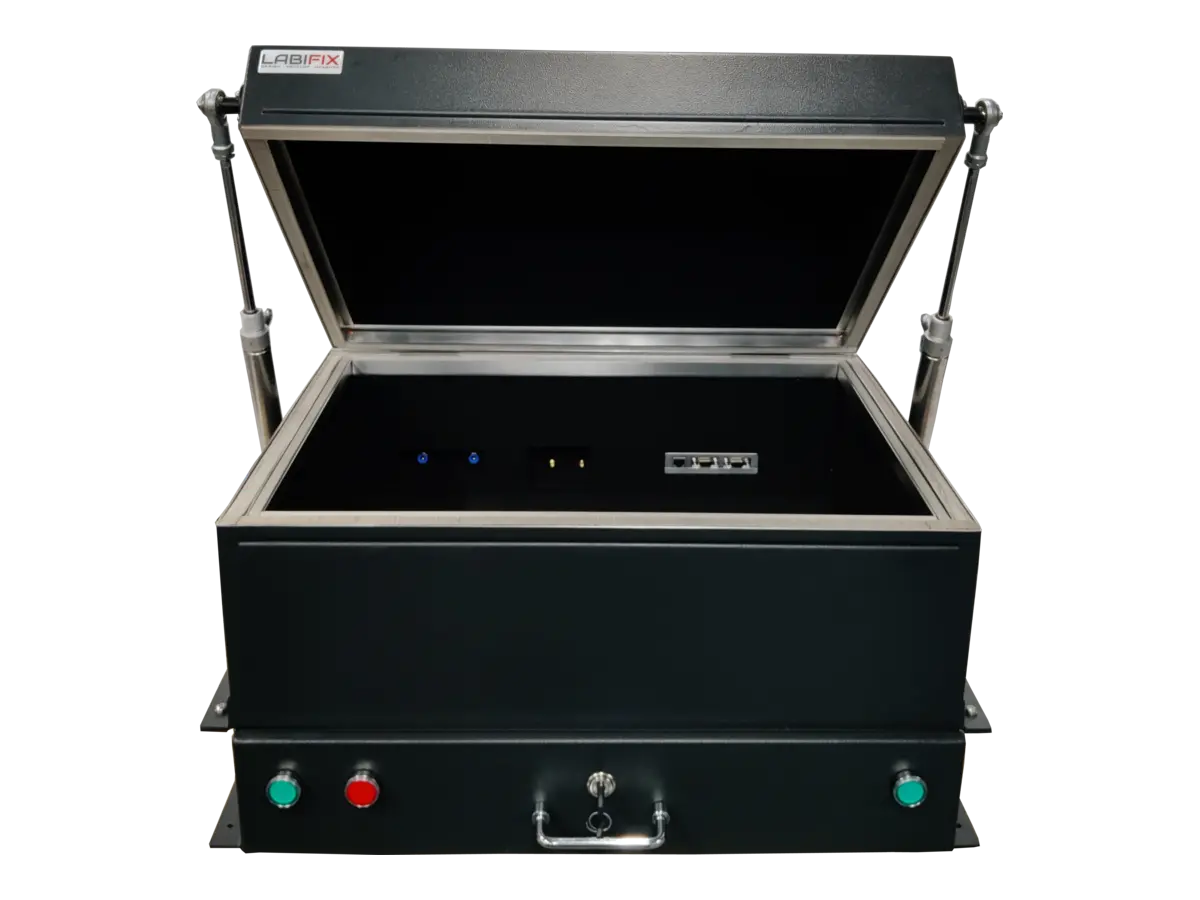

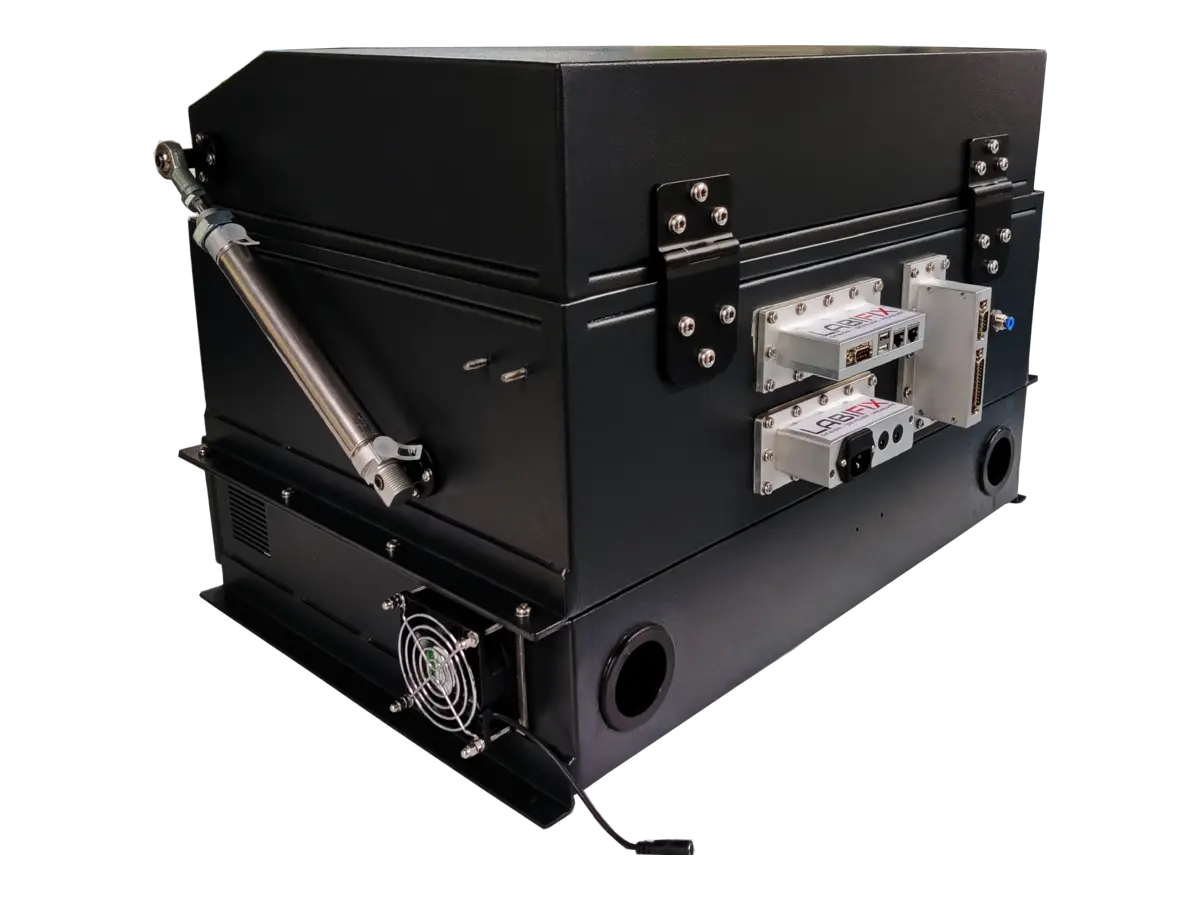

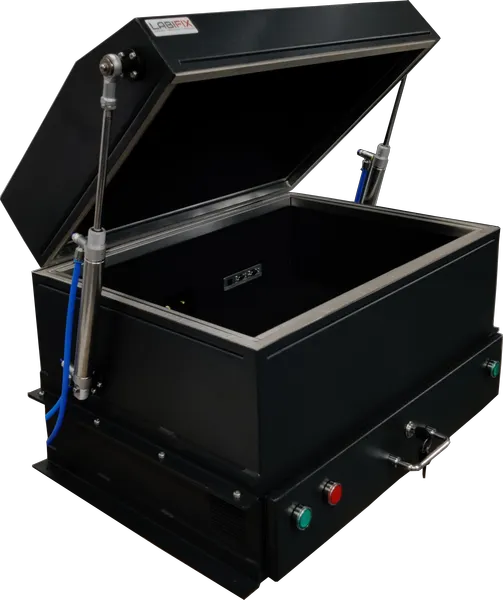

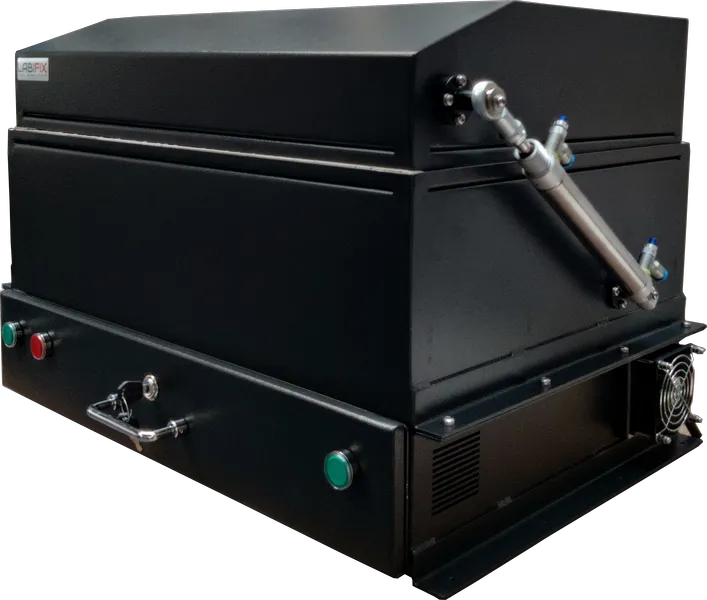

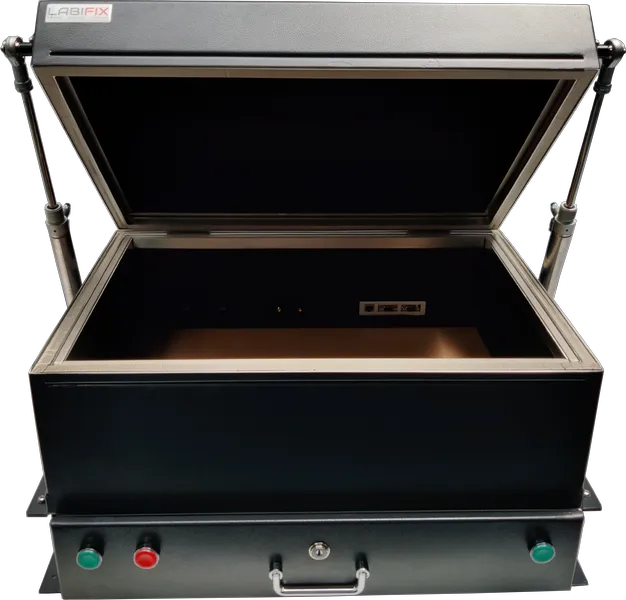

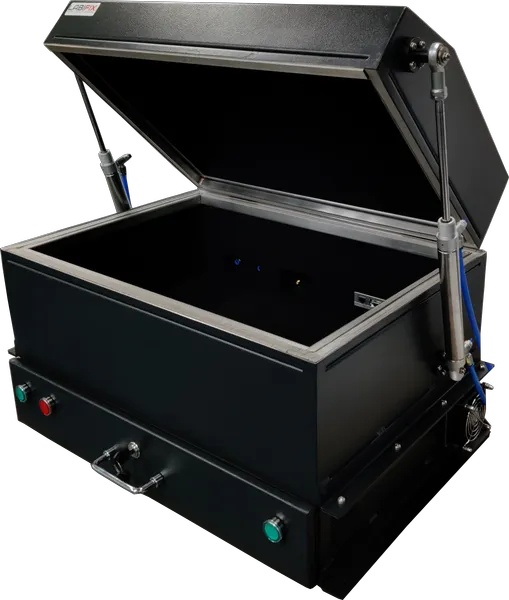

LBX3080 Pneumatic RF Shield Box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX3080 RF Shield Box

This LBX3080 Pneumatic RF Shield Box provides high isolation of >80dB for a wide range of frequency 0.8GHz-8GHz, making it ideal for shielding cellular or utility devices from interference. Its stable and effective shielding performance in all frequency bands makes it perfect for use with WIFI products, smart meters. The LBX30850 Pneumatic RF Shield Box is the right fit for your test requirements, whether it’s Wi-Fi or Wimax. Our Shielding system provides a stable test environment with ample ventilation and also can be powered by AC/DC, 12V DC or 230VAC power line filters.

Dimensions
Exterior (H x W x D)
12" (H) x 17" (W) x 24" (D)
Interior (H x W x D)
10" (H) x 15" (W) x 22" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX3080 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW24"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)24"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 12" (H) × 24" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX3080 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW22"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)22"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 10" (H) × 22" (D)RF Pyramidal Microwave Absorber Lining Boundary
