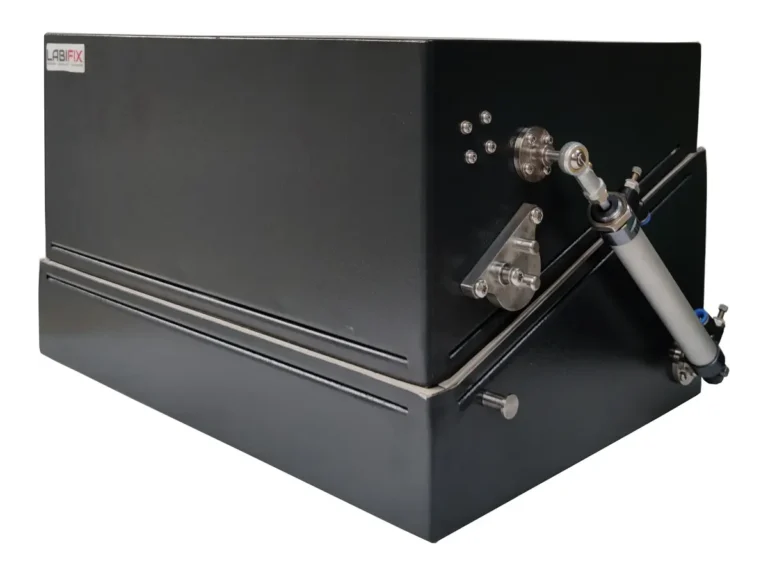

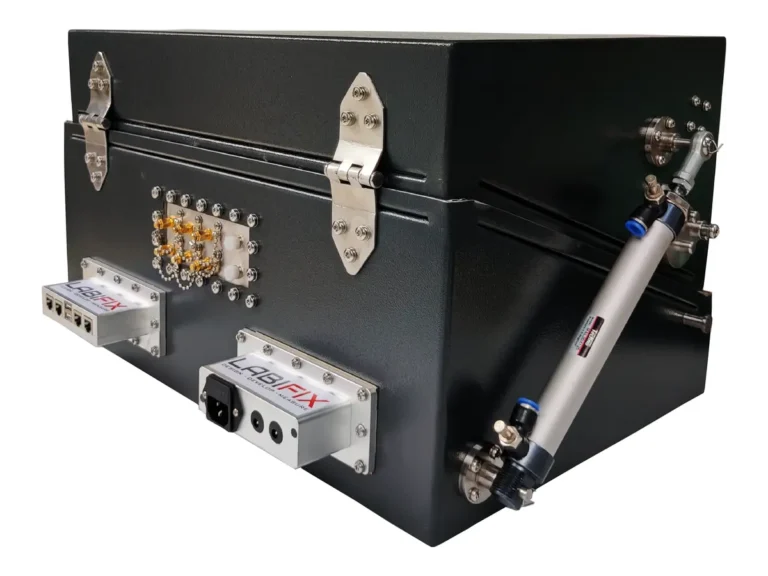

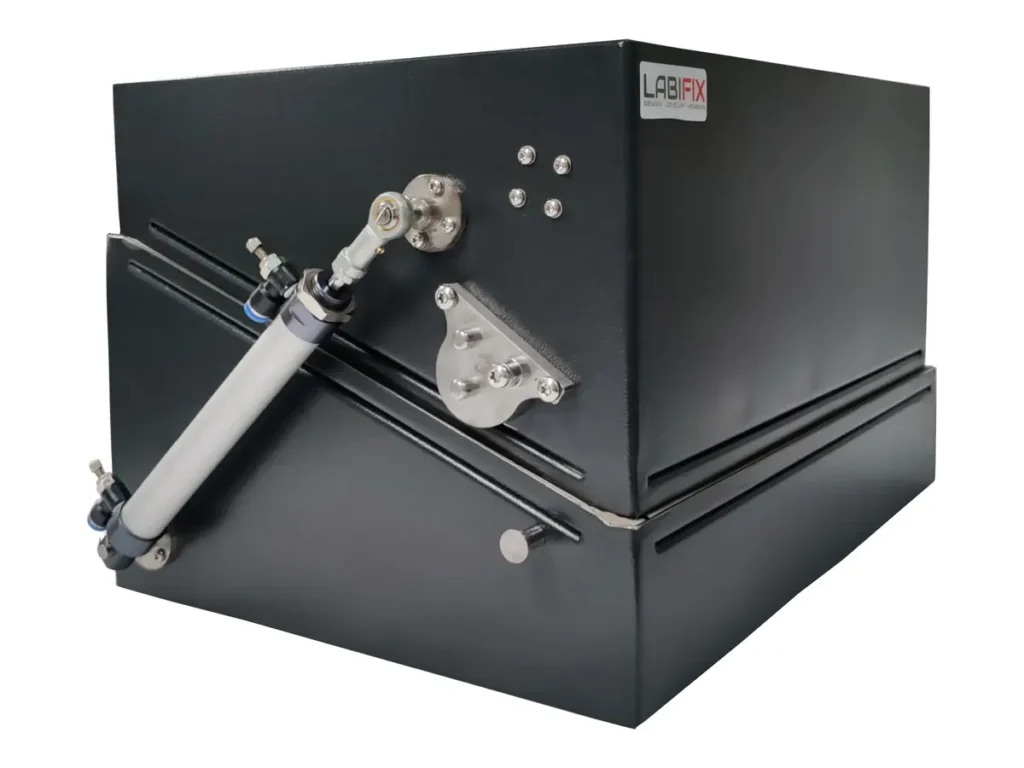

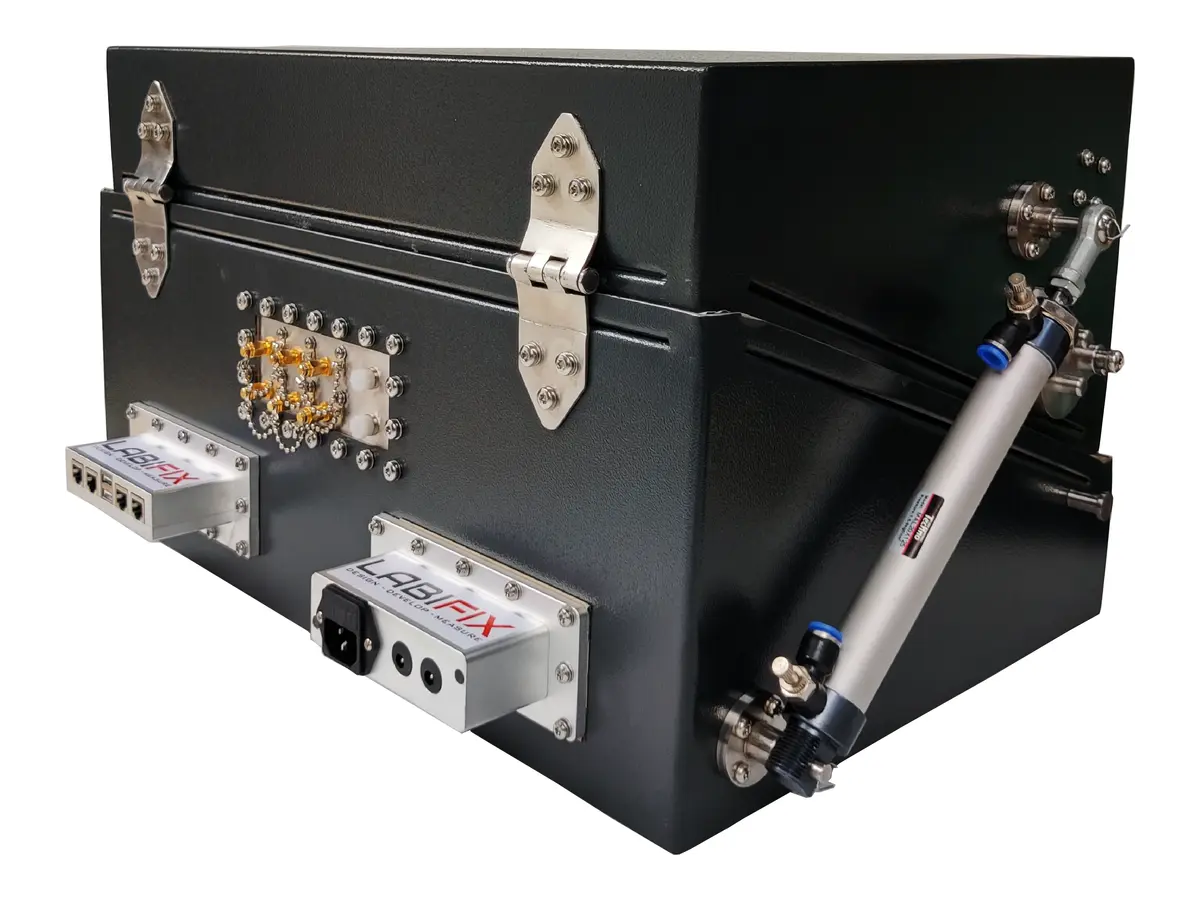

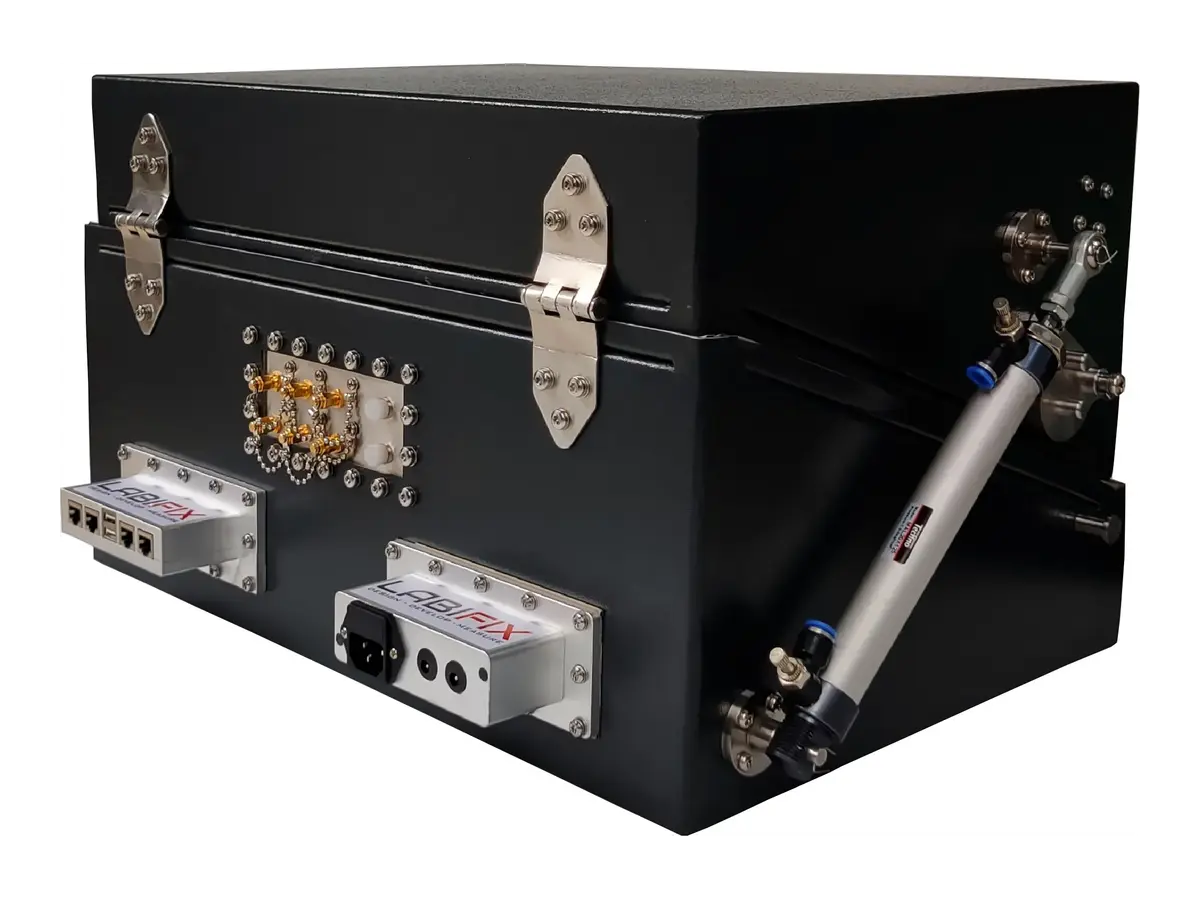

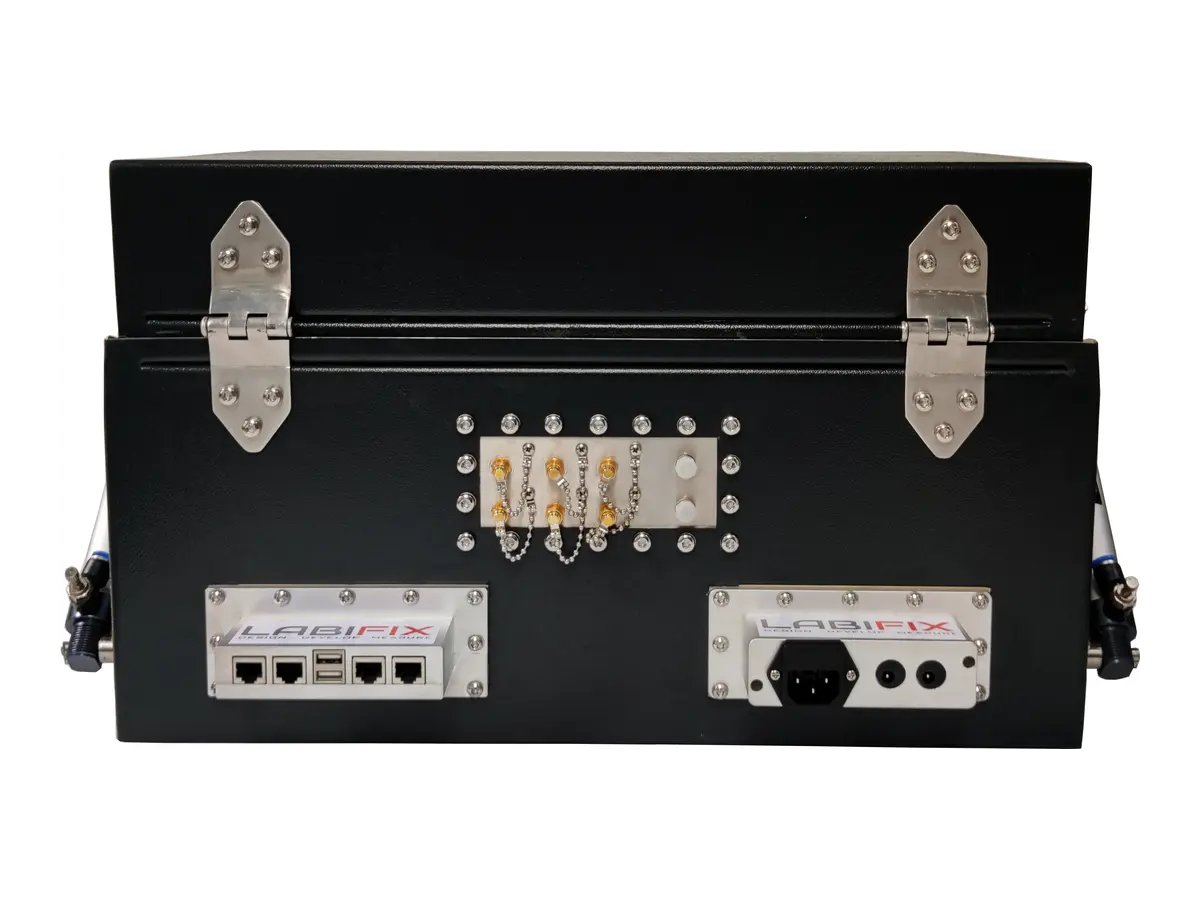

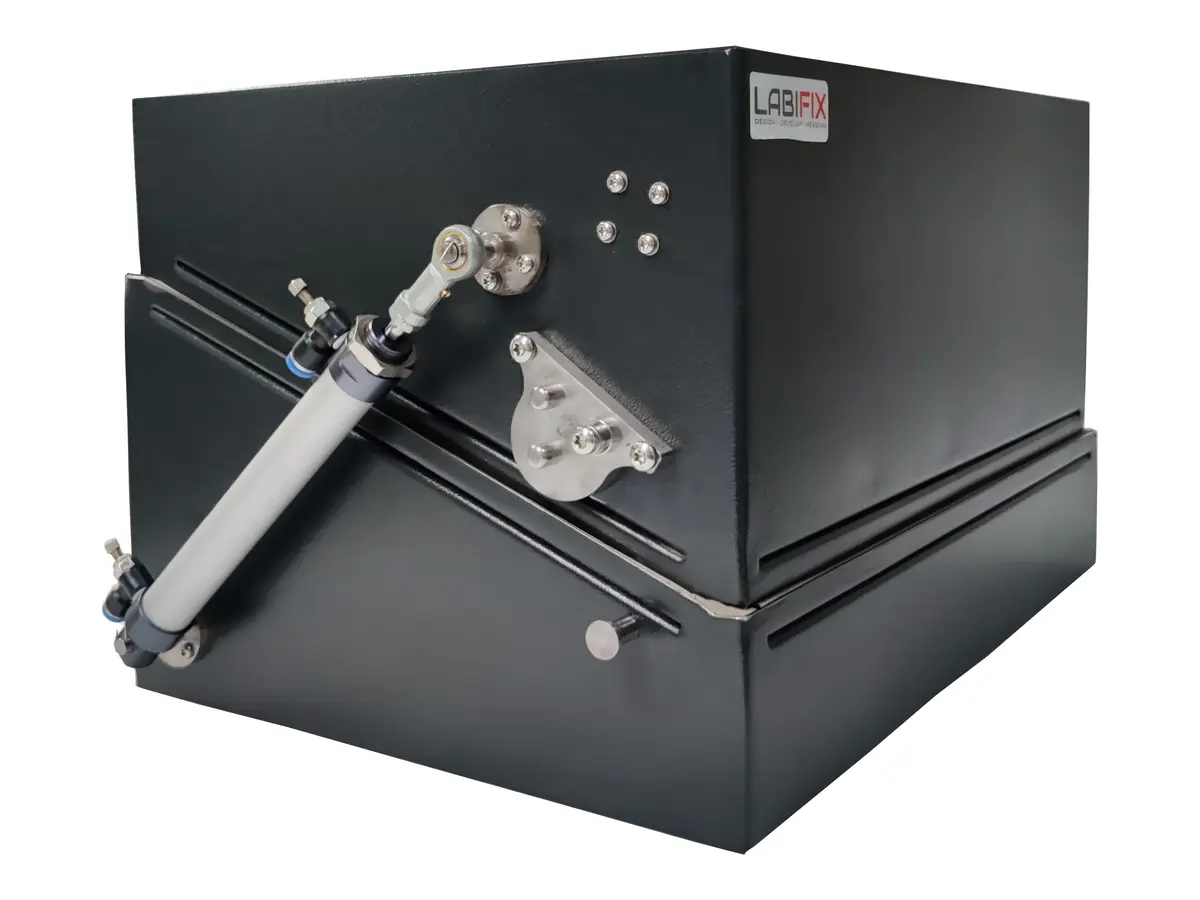

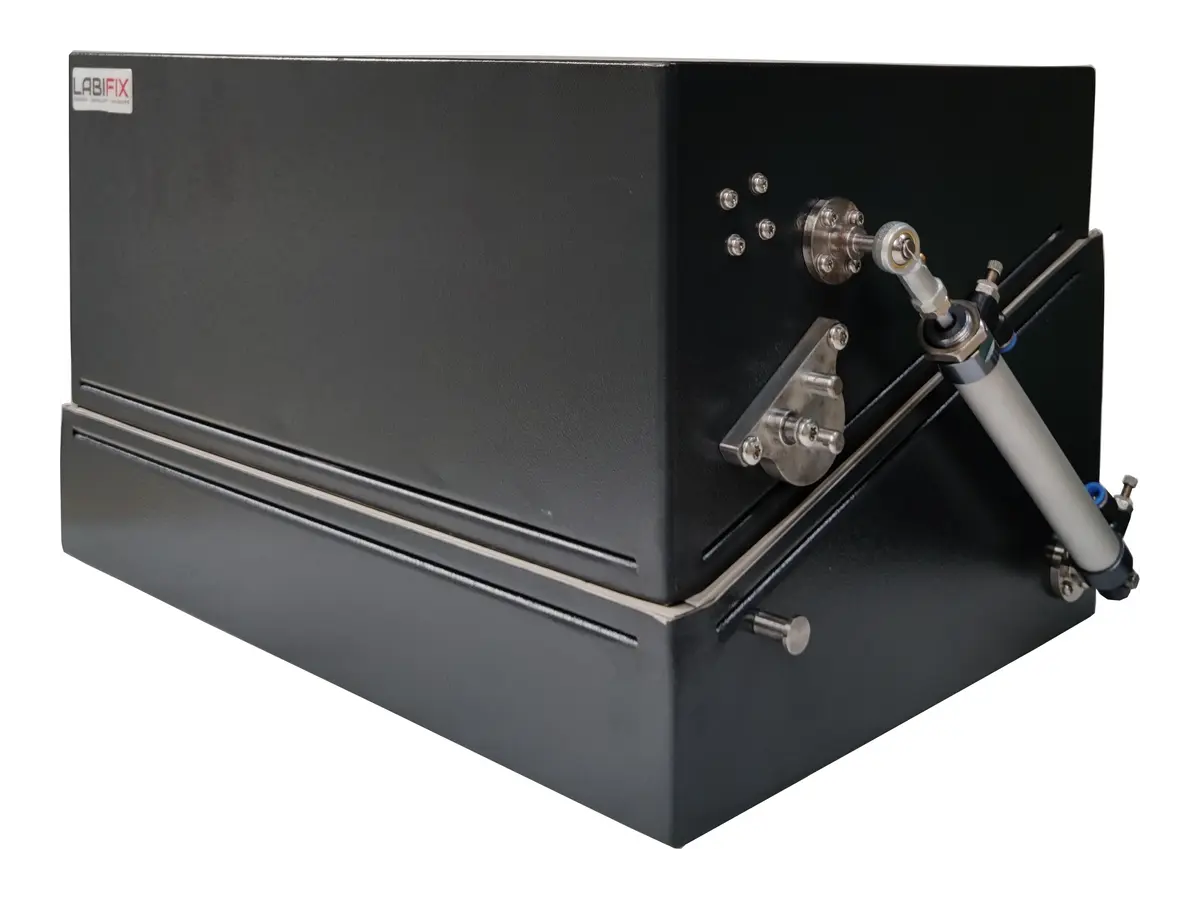

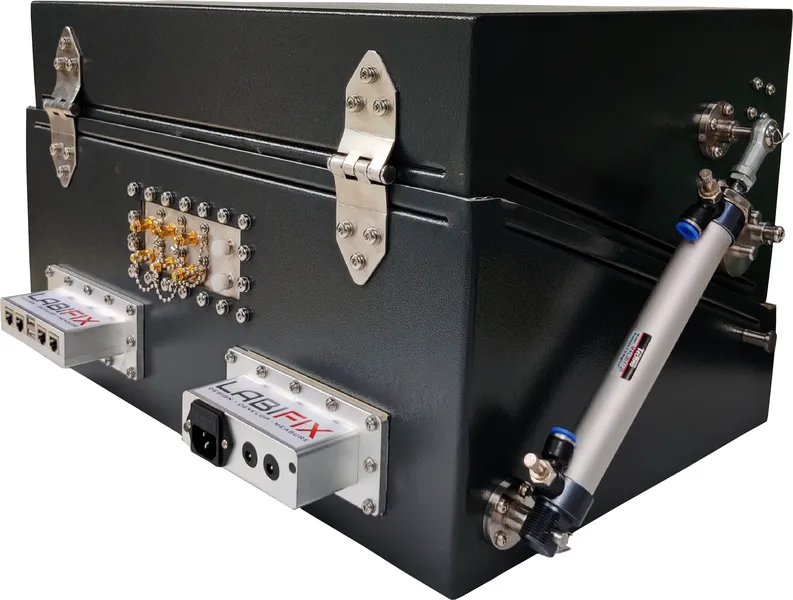

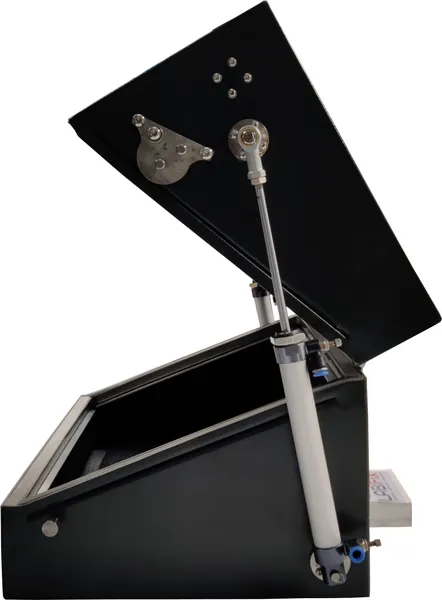

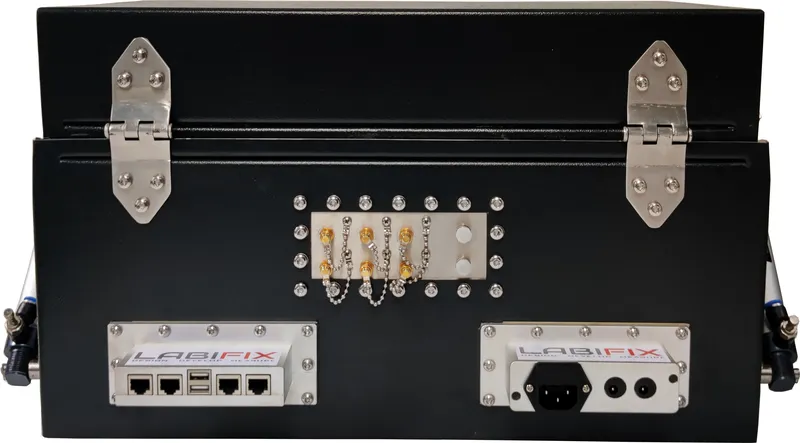

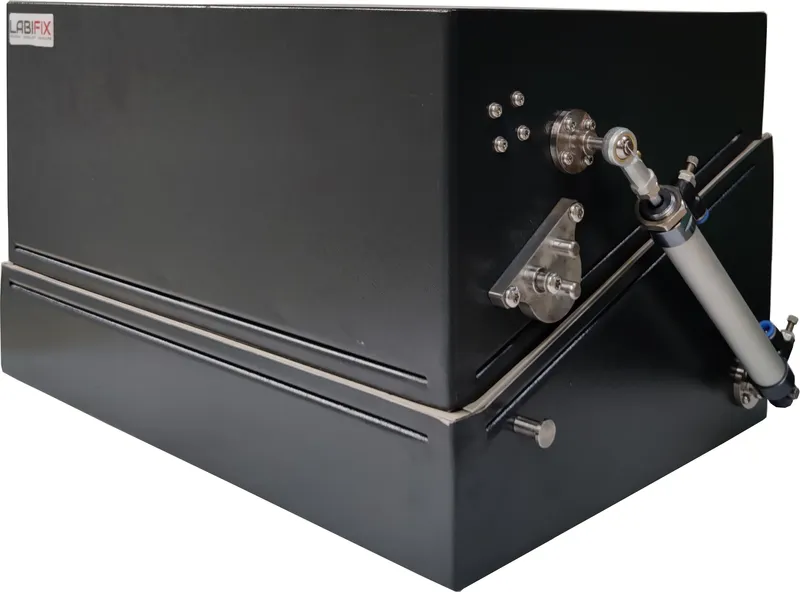

LBX3500 Pneumatic RF Shielding Box LabiFix RF Shield Box - View 1 of 6
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX3500 RF Shield Box

LBX3500 Pneumatic RF Shield enclosure is designed to automatically and programmable control, making them perfect for production environments. Additionally RF wireless device testing can all be automated thanks to the pneumatic mechanisms built into the shielding box. The pneumatic RF shielding box also comes equipped with buttons to open and close the door or lid, making it even easier to use. So if you are looking for the best way to Shield your electronics from RF interference, be sure to check out a pneumatic RF shielding box

Dimensions
Exterior (H x W x D)
12" (H) x 20" (W) x 14" (D)
Interior (H x W x D)
10" (H) x 18" (W) x 12" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

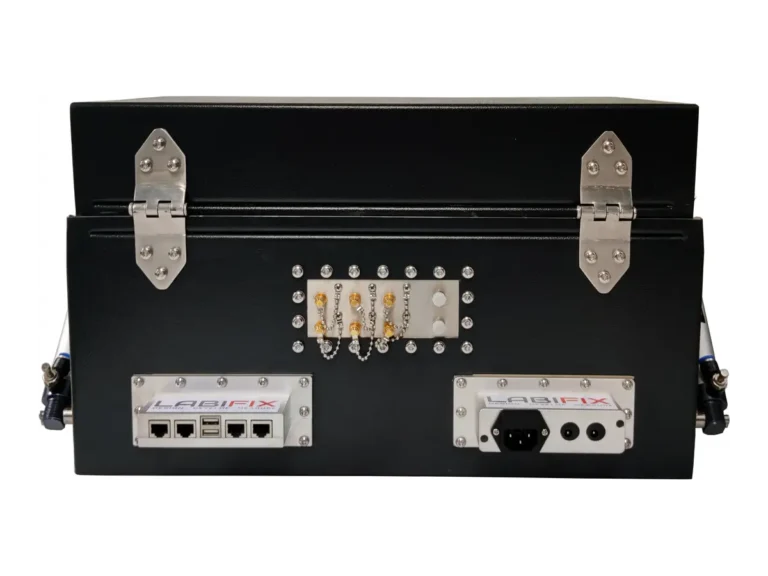

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX3500 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
20"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW14"(EXTERIOR DEPTH)SIDE VIEW20"(EXTERIOR WIDTH)14"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 20" (W) × 12" (H) × 14" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

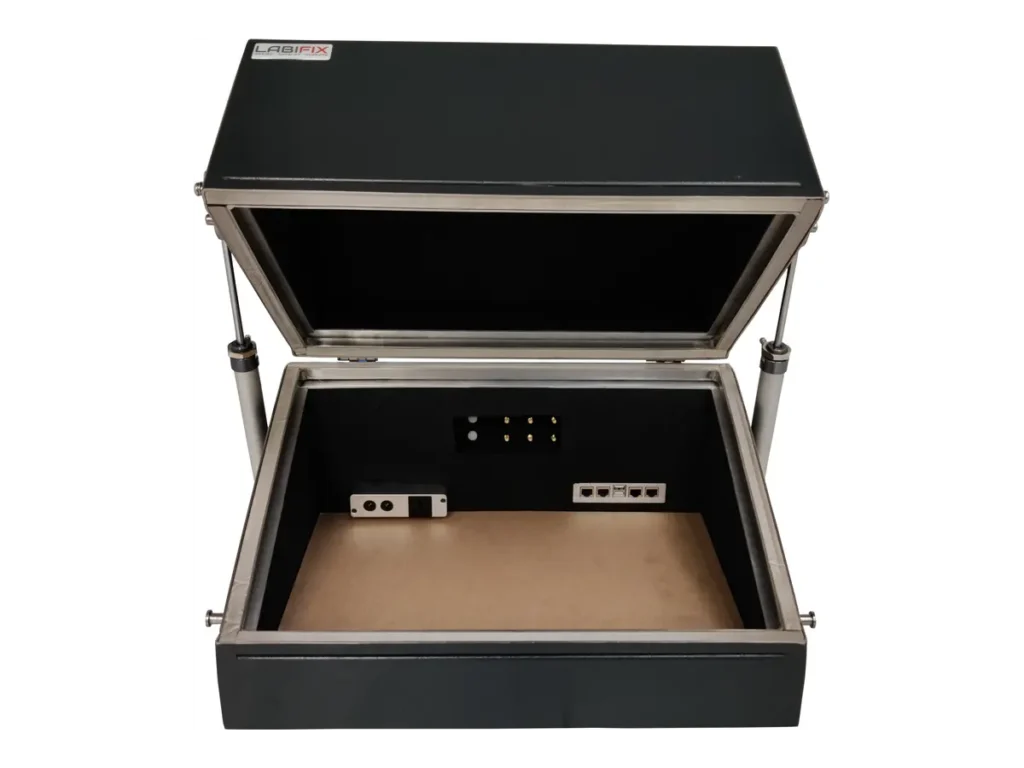

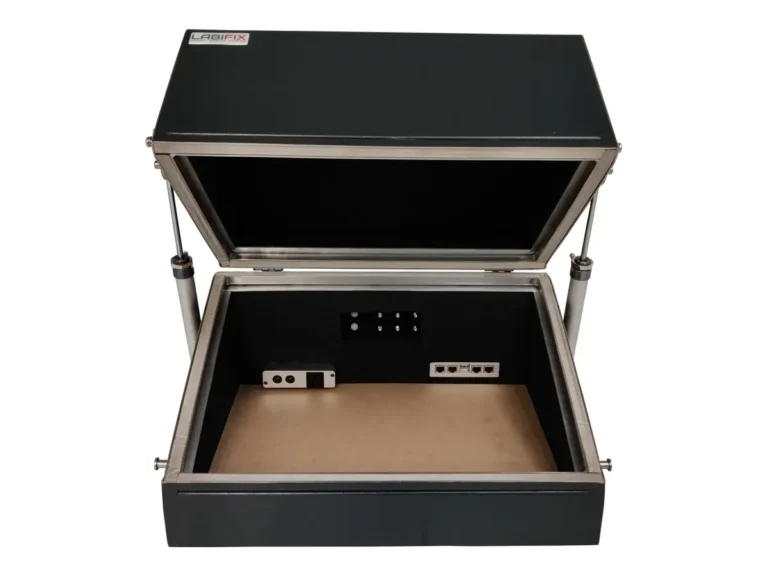

LBX3500 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
18"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW12"(INTERIOR DEPTH)INTERIOR SIDE VIEW18"(INTERIOR WIDTH)12"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 18" (W) × 10" (H) × 12" (D)RF Pyramidal Microwave Absorber Lining Boundary
