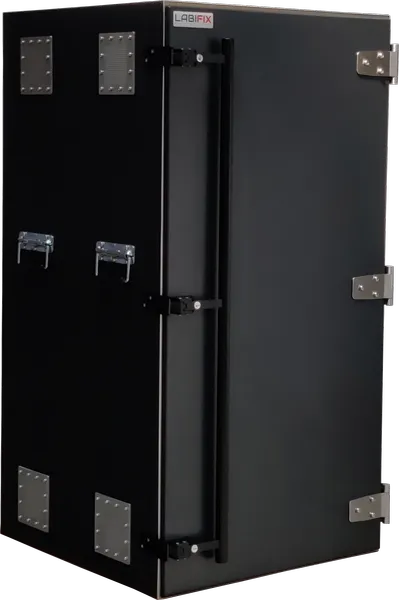

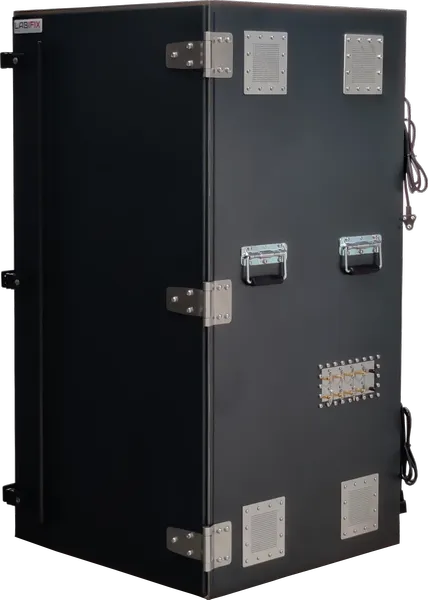

LBX7100 RF Shield Box
LBX7100 RF Shielded Test Enclosure is the perfect solution to your EMI, RFI and communication testing requirements. This shielded cabinet provides high EMC/RFI shielding against RF interferences, even in sensitive RF environments, allowing you to complete your wireless device testing in an industry relevant environment. Choose from the endless possibilities of design variations to suit your specific needs. The interior space of shielded enclosure allows for larger devices to be tested while still providing high shielding effectiveness. Enabling engineers to analyze and achieve various wireless device testing objectives in the R&D, Development and production environment. They can be customized to any sizes and configurations to accommodate various testing requirements which indeed effectively shield against unwanted RF interference.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

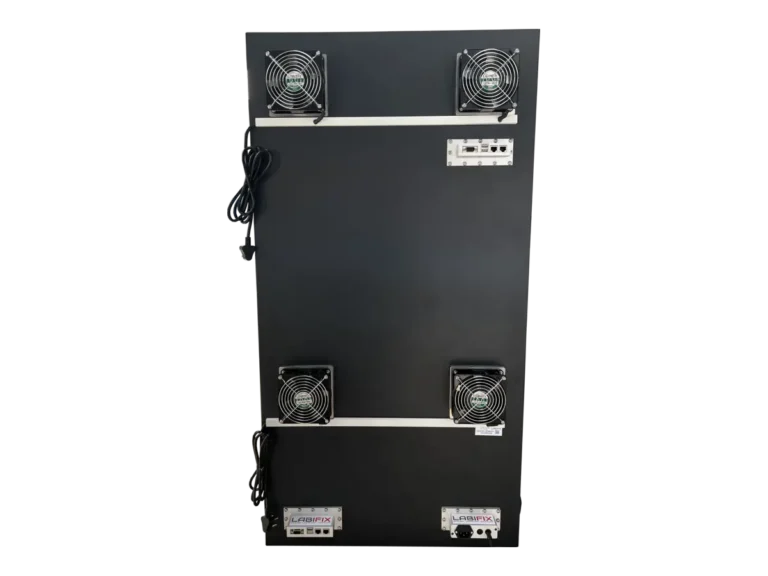

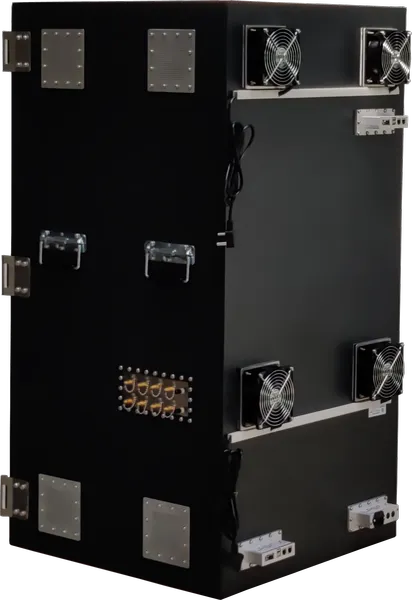

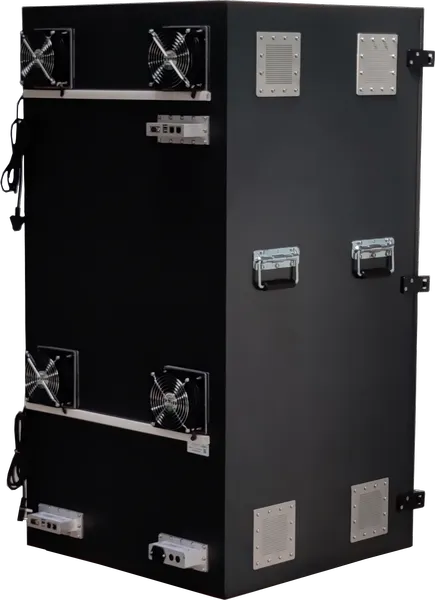

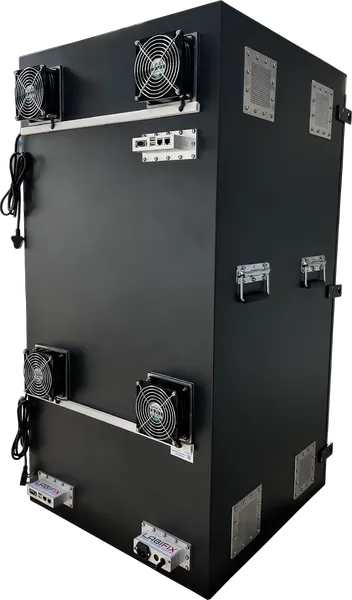

High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
