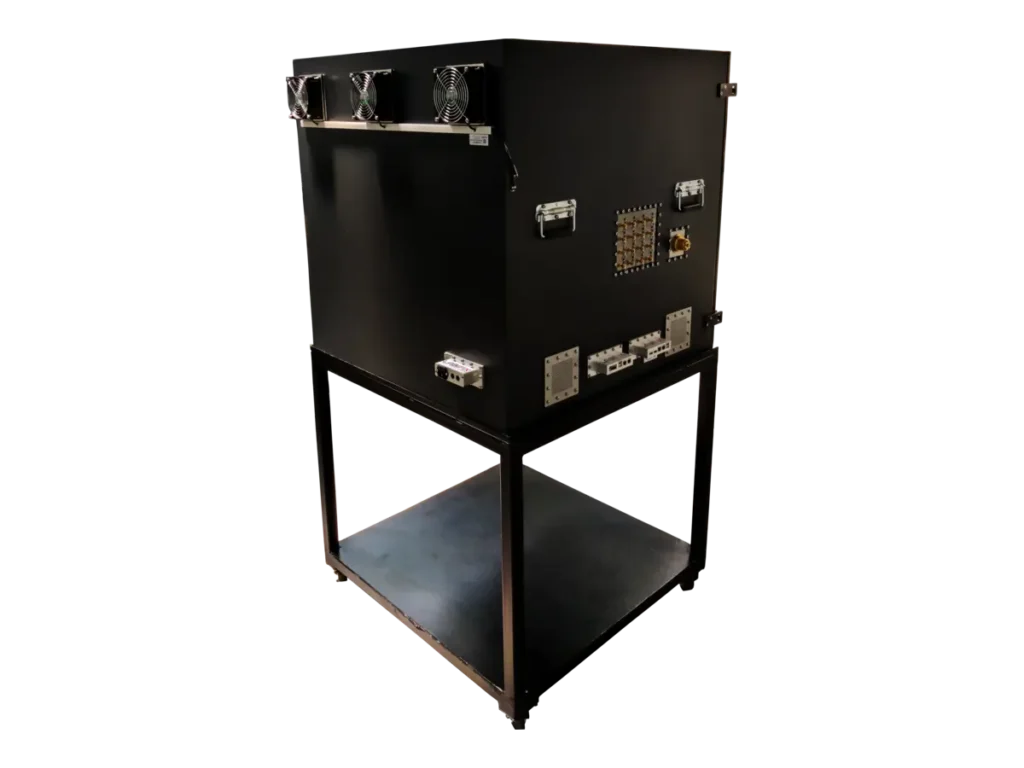

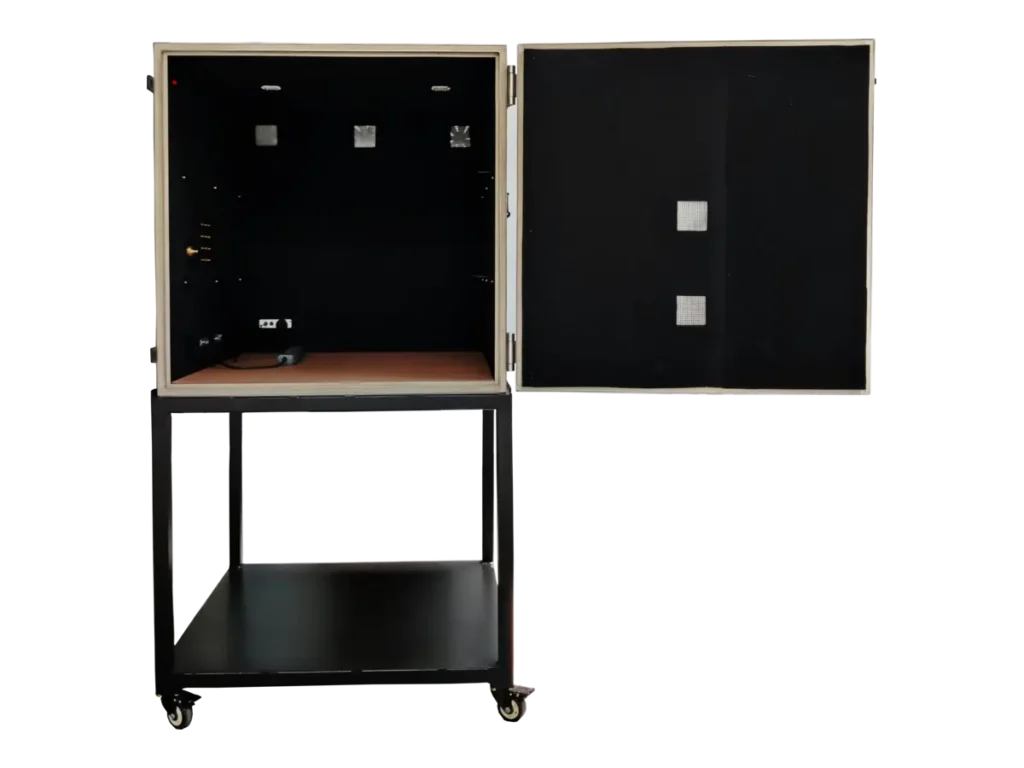

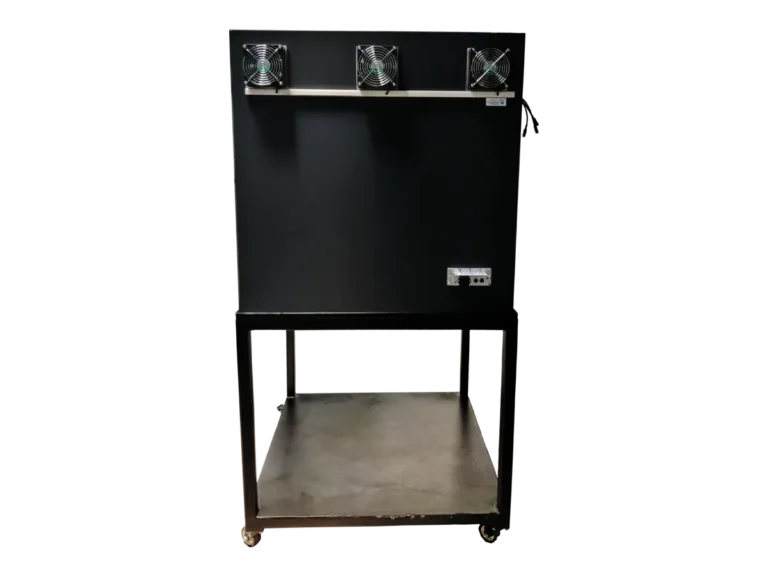

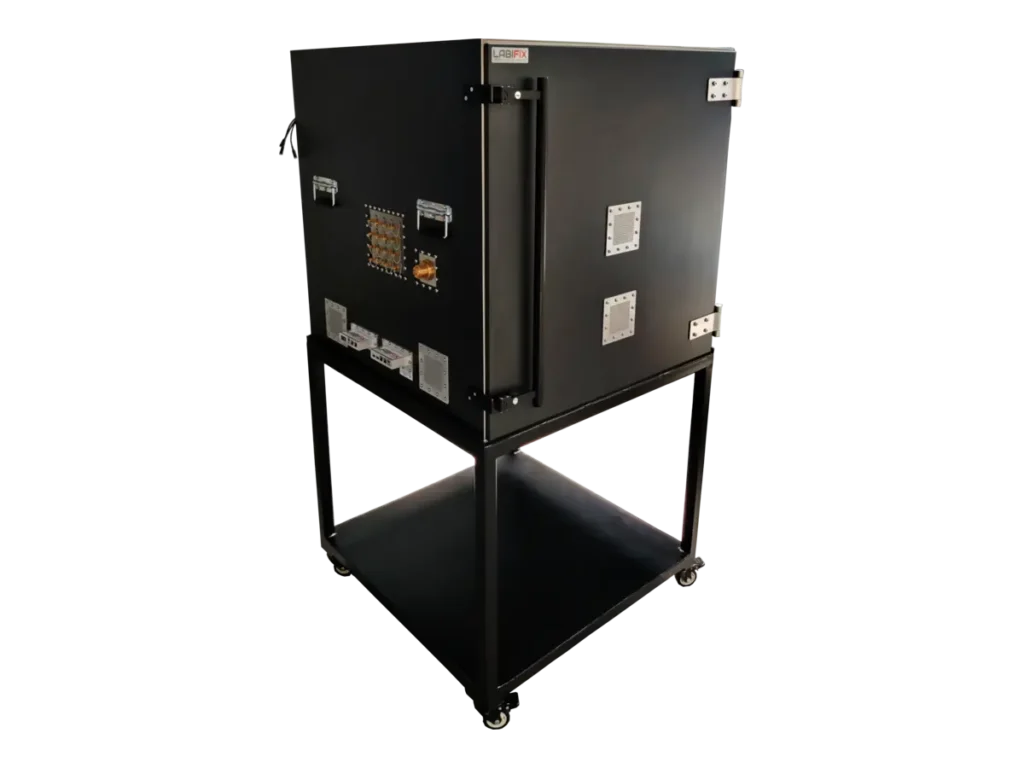

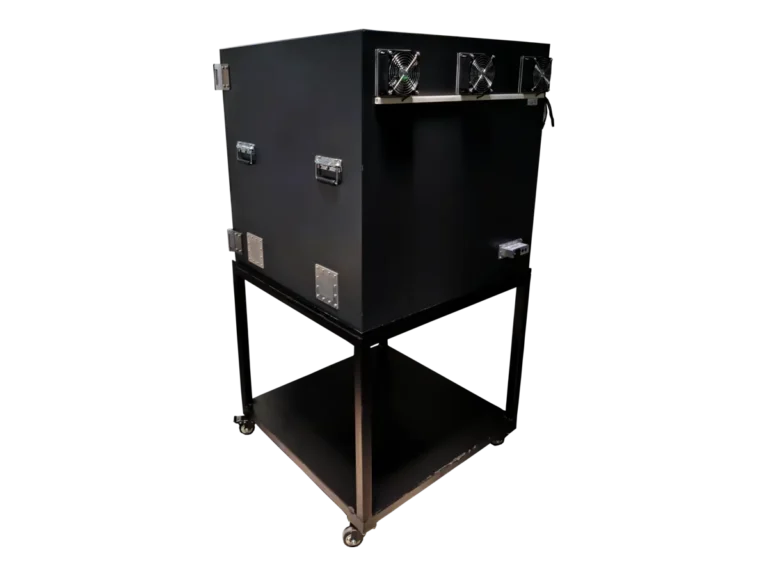

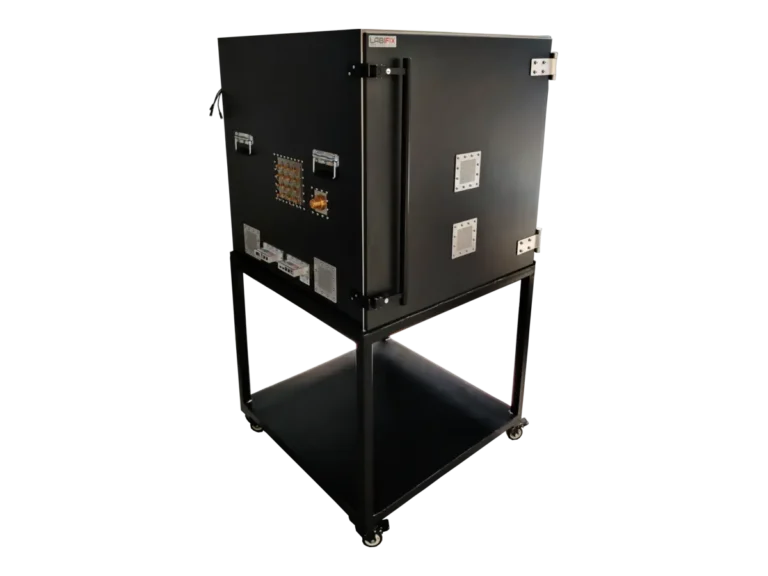

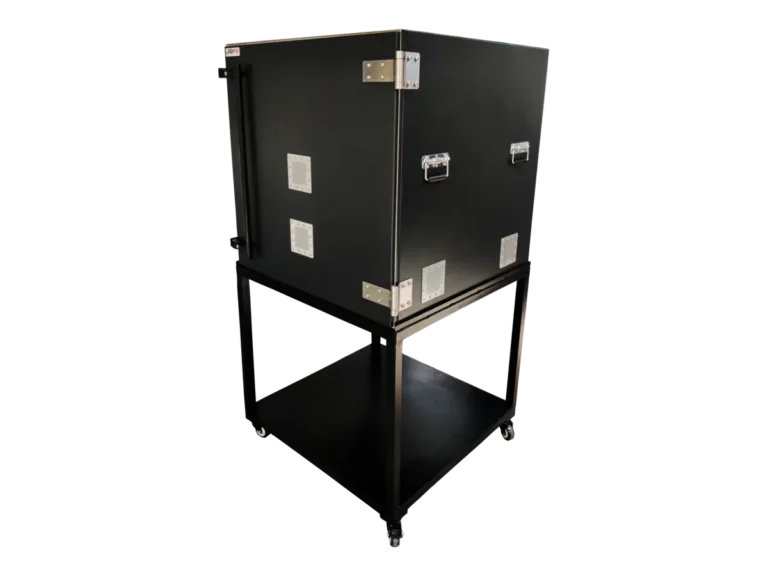

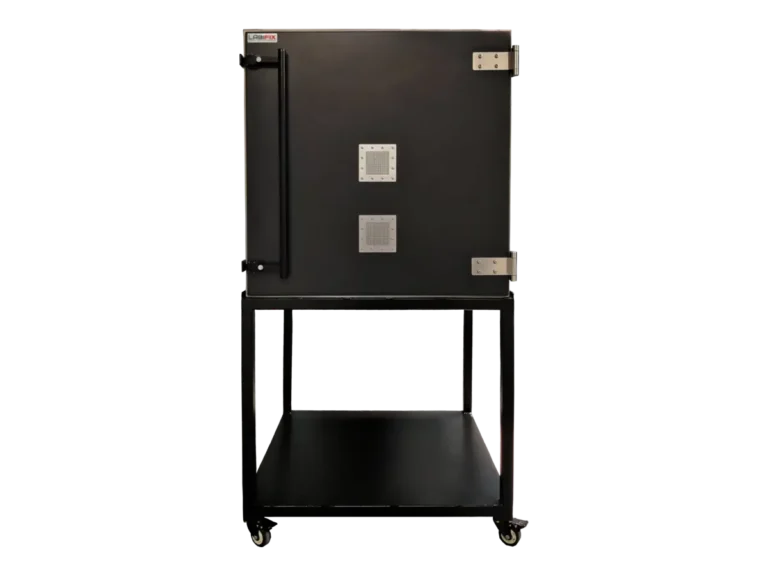

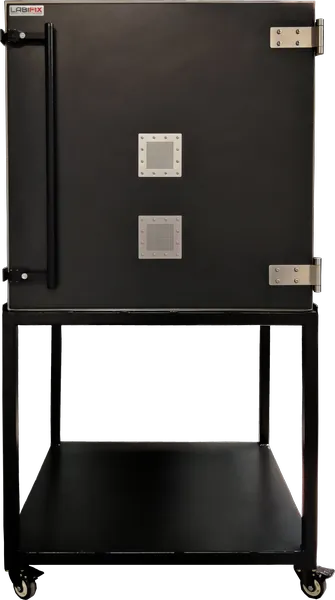

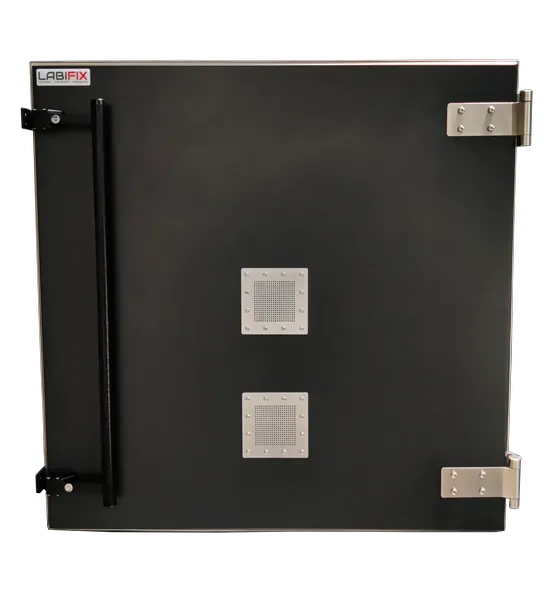

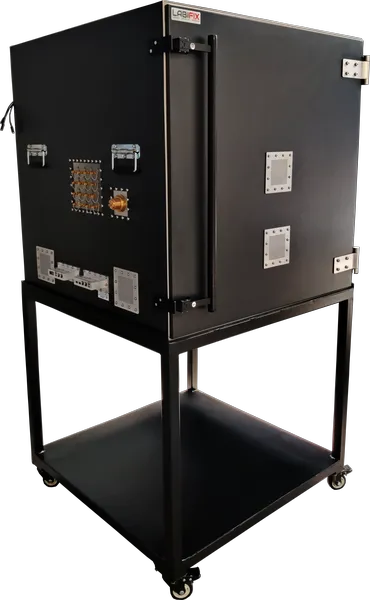

LBX7050 RF Shielding box for Smart Wearables LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX7050 RF Shield Box

LBX7050 RF Shielded Enclosure, ideal for large DUT Testing .LabiFix shielding enclosures are made specifically to test and measure any kind of electronics or wireless device that needs to be shielded from unwanted RF signals. Our shield boxes are built with high quality materials and design, ensuring long-lasting performance. The interior space inside the unit allows for larger devices to be tested while still providing high shielding effectiveness of >100dB. They can be customized to any sizes and configurations to accommodate various testing requirements which indeed effectively shield against unwanted RF interference.

Dimensions
Exterior (H x W x D)
36" (H) x 36" (W) x 36" (D)
Interior (H x W x D)
34" (H) x 34" (W) x 34" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

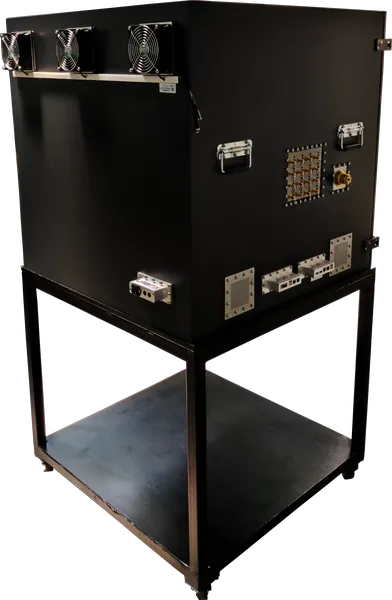

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX7050 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
36"(EXTERIOR WIDTH)36"(EXTERIORHEIGHT)FRONT VIEW36"(EXTERIOR DEPTH)SIDE VIEW36"(EXTERIOR WIDTH)36"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 36" (W) × 36" (H) × 36" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

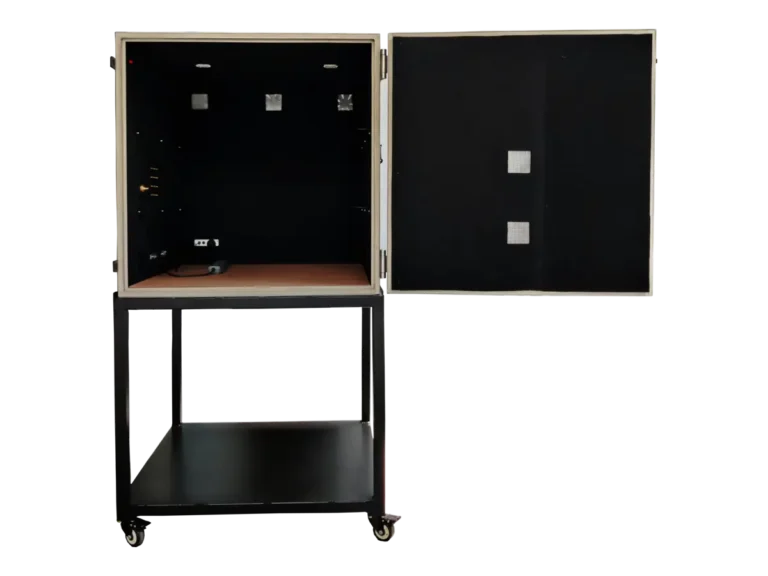

LBX7050 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
34"(INTERIOR WIDTH)34"(INTERIORHEIGHT)INTERIOR FRONT VIEW34"(INTERIOR DEPTH)INTERIOR SIDE VIEW34"(INTERIOR WIDTH)34"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 34" (W) × 34" (H) × 34" (D)RF Pyramidal Microwave Absorber Lining Boundary
