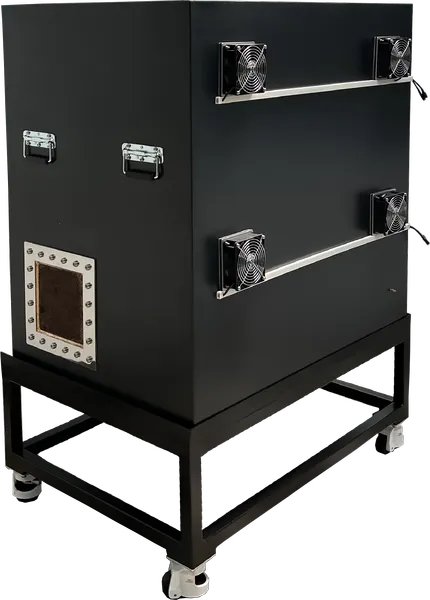

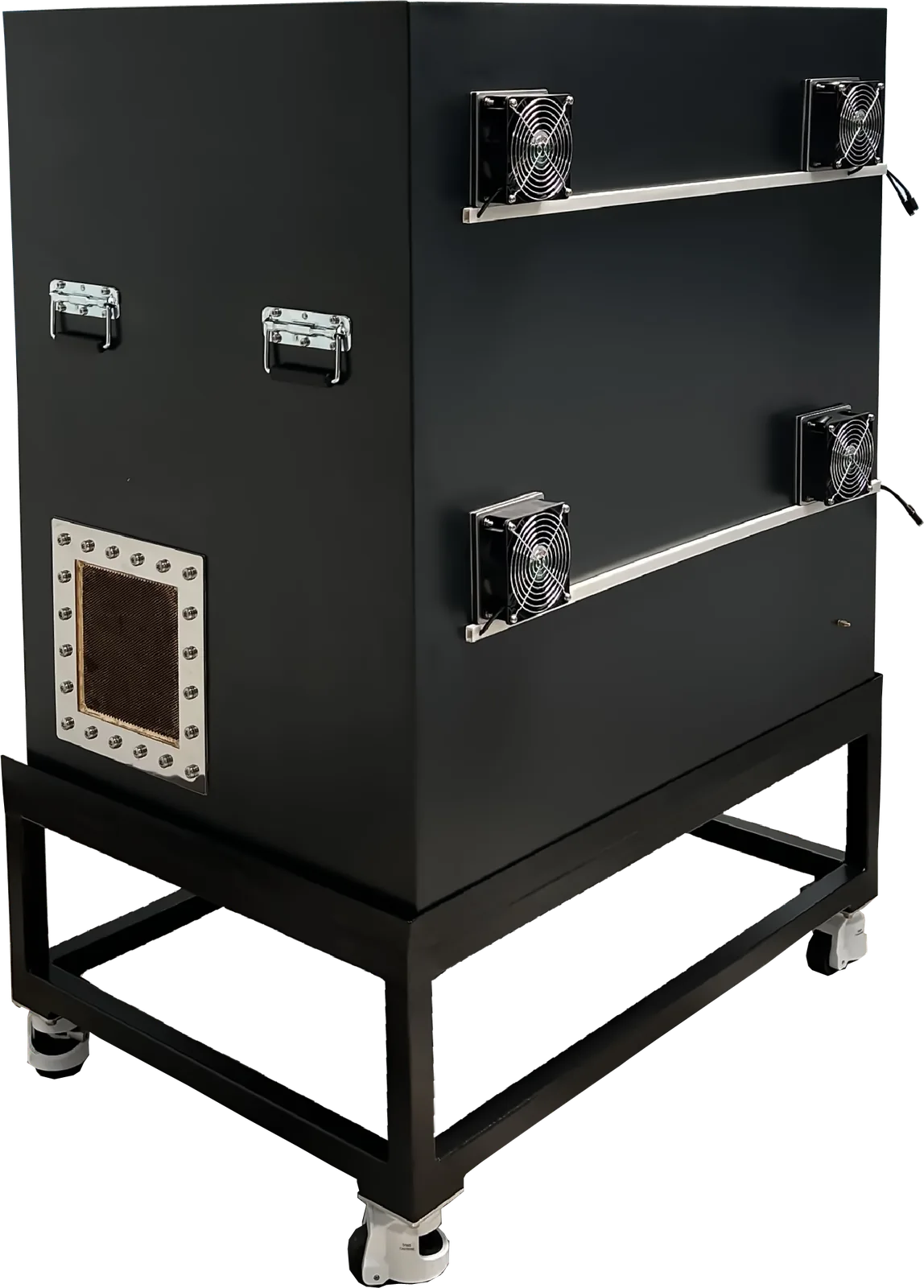

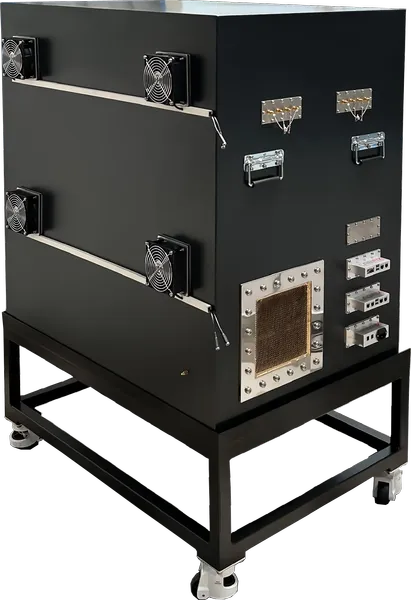

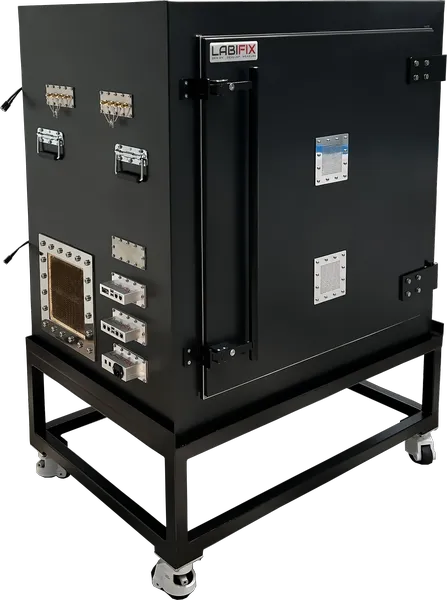

LBX7010 Connection Stability Testing in RF Isolation Box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX7010 RF Shield Box

The LBX7010 sets a new standard for high-performance RF shielding. Supporting frequencies from 800MHz to 12GHz, this enclosure accommodates an extensive range of wireless testing applications—from Wi-Max and GNSS to Bluetooth and beyond. Complete customization means you specify exactly what you need. The welded steel construction delivers superior RF isolation exceeding 90dB, creating a truly controlled test environment. Waveguide ports for fiber insertion provide additional flexibility for optical testing. Data port options include filtered USB 2.0, USB 3.0, HDMI, audio, and video connections, ensuring comprehensive device compatibility. It's the high-performance enclosure that adapts to your requirements.

Dimensions
Exterior (H x W x D)
41" (H) x 41" (W) x 29" (D)
Interior (H x W x D)
39" (H) x 39" (W) x 27" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX7010 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
41"(EXTERIOR WIDTH)41"(EXTERIORHEIGHT)FRONT VIEW29"(EXTERIOR DEPTH)SIDE VIEW41"(EXTERIOR WIDTH)29"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 41" (W) × 41" (H) × 29" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX7010 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
39"(INTERIOR WIDTH)39"(INTERIORHEIGHT)INTERIOR FRONT VIEW27"(INTERIOR DEPTH)INTERIOR SIDE VIEW39"(INTERIOR WIDTH)27"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 39" (W) × 39" (H) × 27" (D)RF Pyramidal Microwave Absorber Lining Boundary
