HomeProductsLBX7150

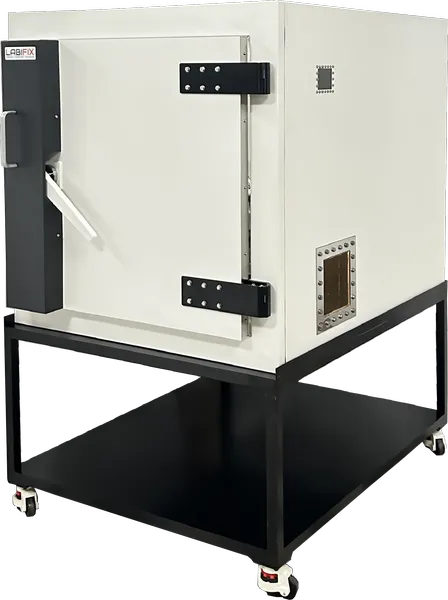

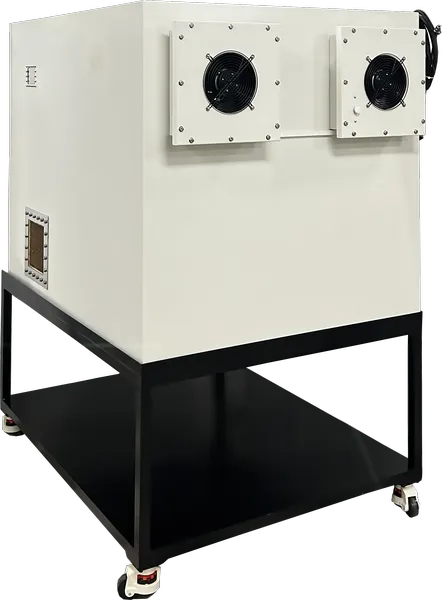

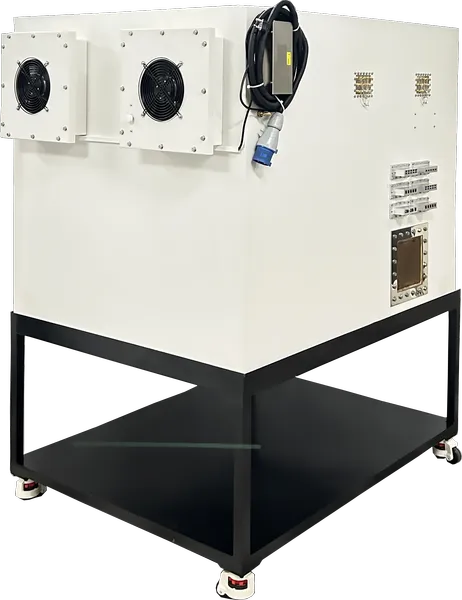

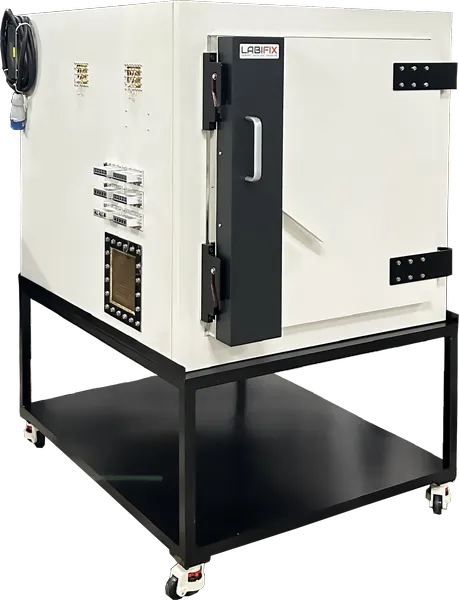

LBX7150 RF Shield box for physics and engineering labs LabiFix RF Shield Box - View 1 of 6
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX7150 RF Shield Box

The LBX7150 proves that great shielding can also be portable. This compact enclosure provides >90dB isolation against a comprehensive range of wireless signals, creating a controlled test environment wherever you set it up. The product can be fully customized to your requirements through interchangeable plug-in RF modules and flexible I/O connections. Need a rack-mounted configuration? Done. Prefer a standalone benchtop unit? Also available. The portability means you're not tethered to a single test station—move the enclosure between labs, take it to field test locations, or deploy multiple units across your facility. It's the versatile shielding solution for dynamic testing environments.

Dimensions
Exterior (H x W x D)
48" (H) x 48" (W) x 60" (D)
Interior (H x W x D)
44.6" (H) x 44.6" (W) x 56.6" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX7150 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
48"(EXTERIOR WIDTH)48"(EXTERIORHEIGHT)FRONT VIEW60"(EXTERIOR DEPTH)SIDE VIEW48"(EXTERIOR WIDTH)60"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 48" (W) × 48" (H) × 60" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX7150 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
44.6"(INTERIOR WIDTH)44.6"(INTERIORHEIGHT)INTERIOR FRONT VIEW56.6"(INTERIOR DEPTH)INTERIOR SIDE VIEW44.6"(INTERIOR WIDTH)56.6"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 44.6" (W) × 44.6" (H) × 56.6" (D)RF Pyramidal Microwave Absorber Lining Boundary
