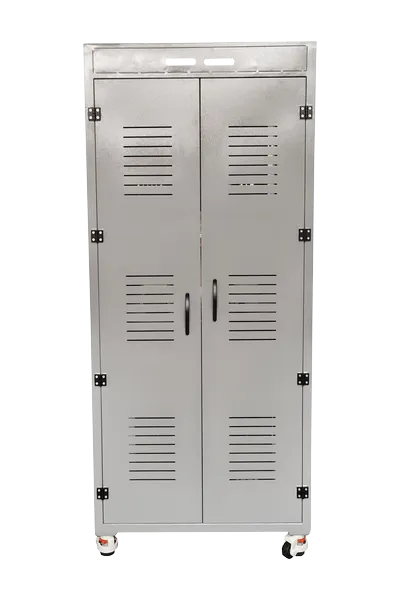

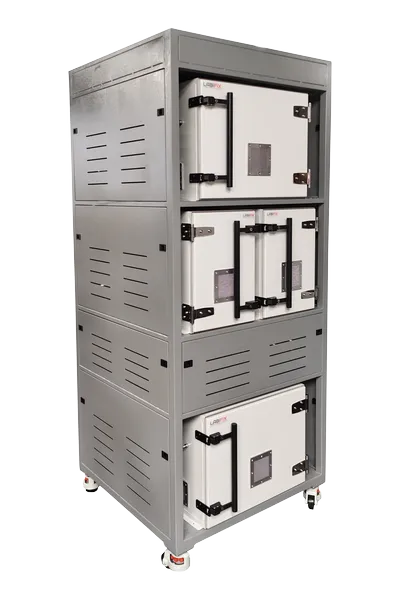

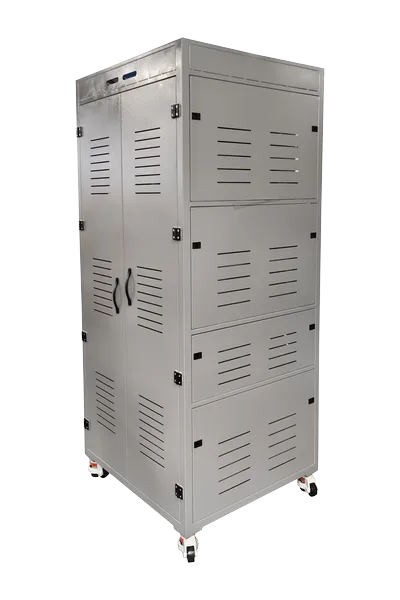

LBX8120 EMI pre-compliance chamber LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX8120 RF Shield Box

LBX8120 RF Shielded Cabinet provides a robust controlled environment for demanding wireless testing applications. Its heavy-duty steel construction helps contain internal RF emissions while limiting external interference. Integrated cooling fans, honeycomb vents, and RF absorber materials support thermal management and reduced internal reflections. Modular I/O connector plates can be configured for power, USB, SMA, and other interfaces. The cabinet is suitable for 5G, Wi-Fi, automotive electronics, wearables, pre-compliance evaluations, engineering development, and high-volume production testing requiring dependable isolation. It helps engineers create controlled, repeatable RF testing environments for troubleshooting, characterization, and repeatable results

Dimensions
Exterior (H x W x D)
87" (H) x 38" (W) x 36" (D)
Interior (H x W x D)

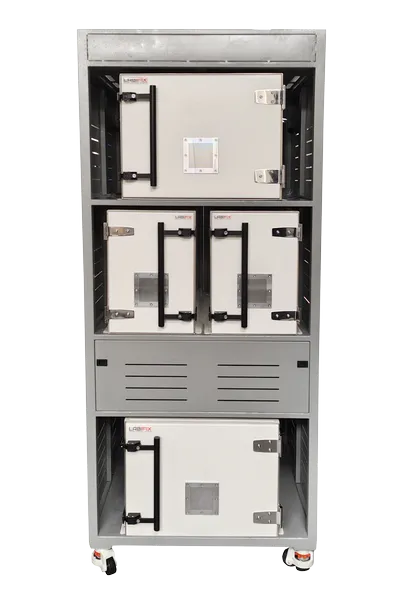

Customized Multiple boxes
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX8120 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
38"(EXTERIOR WIDTH)87"(EXTERIORHEIGHT)FRONT VIEW36"(EXTERIOR DEPTH)SIDE VIEW38"(EXTERIOR WIDTH)36"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 38" (W) × 87" (H) × 36" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX8120 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
32"(INTERIOR WIDTH)22"(INTERIORHEIGHT)INTERIOR FRONT VIEW28"(INTERIOR DEPTH)INTERIOR SIDE VIEW32"(INTERIOR WIDTH)28"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 32" (W) × 22" (H) × 28" (D)RF Pyramidal Microwave Absorber Lining Boundary
