HomeProductsLBX8150

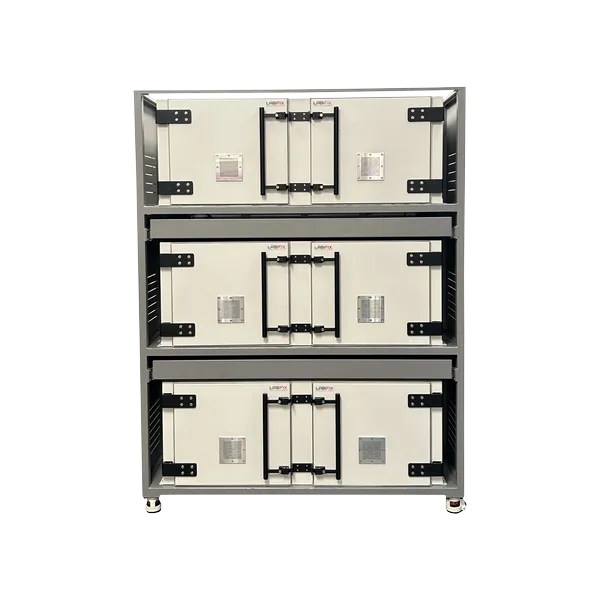

LBX8150 Zigbee and Z-Wave smart home mesh Testing LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX8150 RF Shield Box

LBX8150 RF Shielded Cabinet delivers a rugged, configurable environment for wireless device testing and RF validation. Its heavy-duty steel construction provides mechanical durability while shielding helps reduce unwanted external signals and contain internal emissions. RF absorber materials and honeycomb ventilation support a stable, low-reflection test environment with effective cooling. Modular I/O connector plates can accommodate filtered power, USB, SMA, and other interfaces. The cabinet is suitable for 5G, Wi-Fi, automotive, wearable, IoT, pre-compliance, development, and high-volume production testing applications. It helps engineers create controlled, repeatable RF testing environments for wireless validation, product development, troubleshooting, laboratory workflows, quality assurance, and repeatable results.

Dimensions
Exterior (H x W x D)
22" (H) x 59" (W) x 35" (D)
Interior (H x W x D)
20" (H) x 57" (W) x 33" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX8150 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
59"(EXTERIOR WIDTH)22"(EXTERIORHEIGHT)FRONT VIEW35"(EXTERIOR DEPTH)SIDE VIEW59"(EXTERIOR WIDTH)35"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 59" (W) × 22" (H) × 35" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX8150 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
57"(INTERIOR WIDTH)20"(INTERIORHEIGHT)INTERIOR FRONT VIEW33"(INTERIOR DEPTH)INTERIOR SIDE VIEW57"(INTERIOR WIDTH)33"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 57" (W) × 20" (H) × 33" (D)RF Pyramidal Microwave Absorber Lining Boundary
