RF SHIELD BOX

LBX8040 RF Shield Box

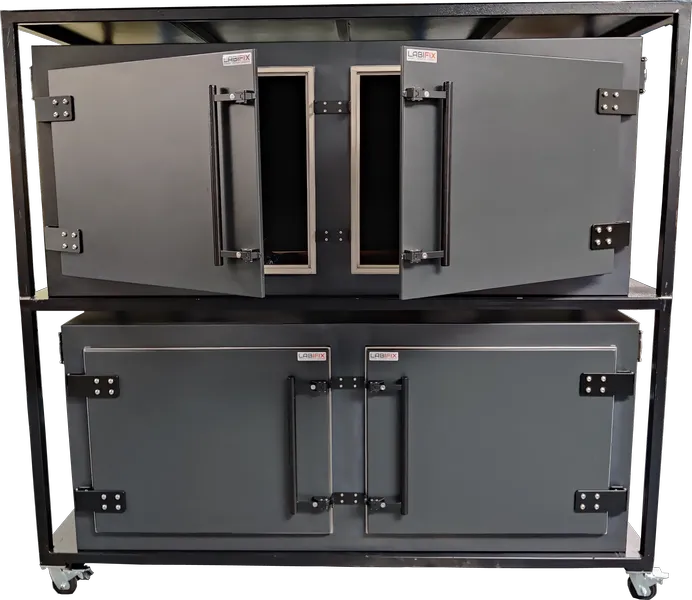

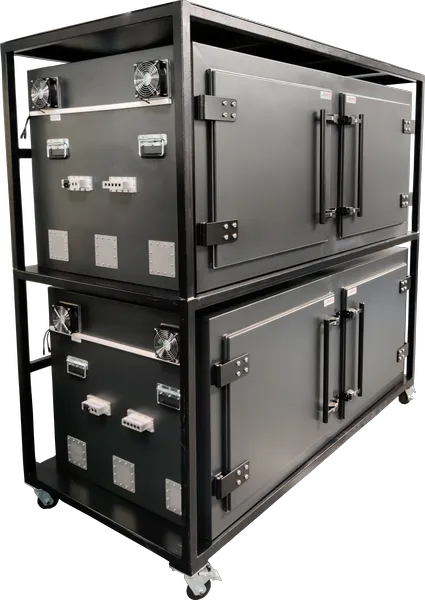

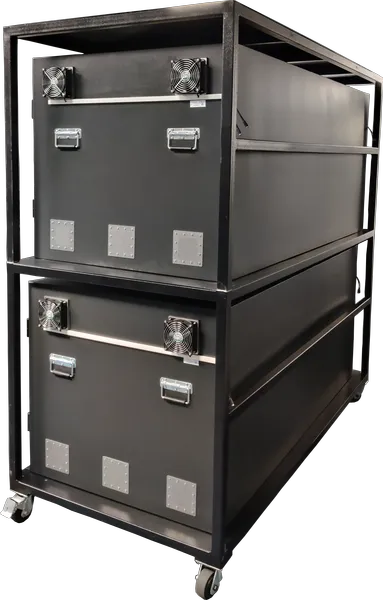

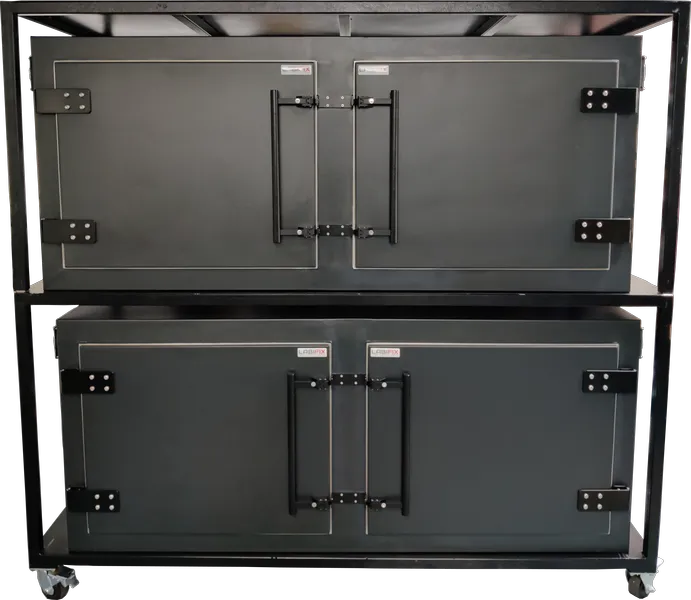

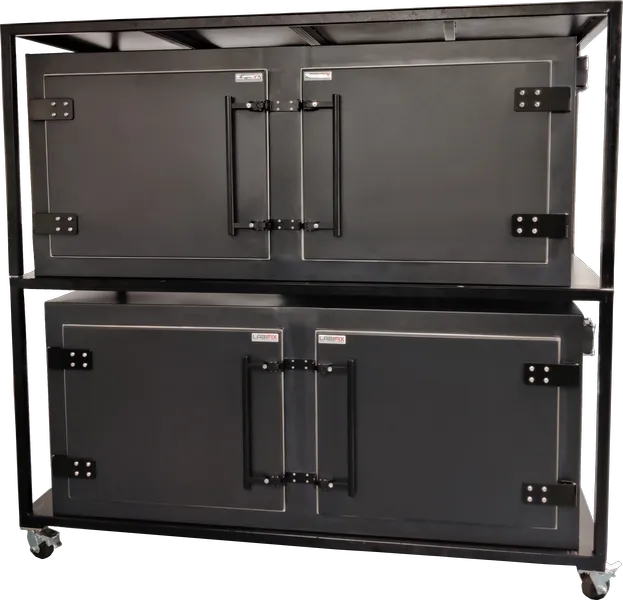

The LBX8040 is a large RF shielded enclosure with double front opening swing doors. Spacious to house multiple devices like laptops and desktop computers, it features optional compartments for easy placement of devices under test. Designed to meet a wide range of testing requirements, the LBX8040 is extra durable and reliable thanks to its rugged welded construction. Superior shielding effectiveness against RF interference is ensured by filtered AC & DC power lines, filtered data lines & RF connectors.

Dimensions
Exterior (H x W x D)
34" (H) x 80" (W) x 37" (D)
Interior (H x W x D)
32" (H) x 78" (W) x 35" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX8040 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
80"(EXTERIOR WIDTH)34"(EXTERIORHEIGHT)FRONT VIEW37"(EXTERIOR DEPTH)SIDE VIEW80"(EXTERIOR WIDTH)37"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 80" (W) × 34" (H) × 37" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX8040 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
78"(INTERIOR WIDTH)32"(INTERIORHEIGHT)INTERIOR FRONT VIEW35"(INTERIOR DEPTH)INTERIOR SIDE VIEW78"(INTERIOR WIDTH)35"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 78" (W) × 32" (H) × 35" (D)RF Pyramidal Microwave Absorber Lining Boundary
