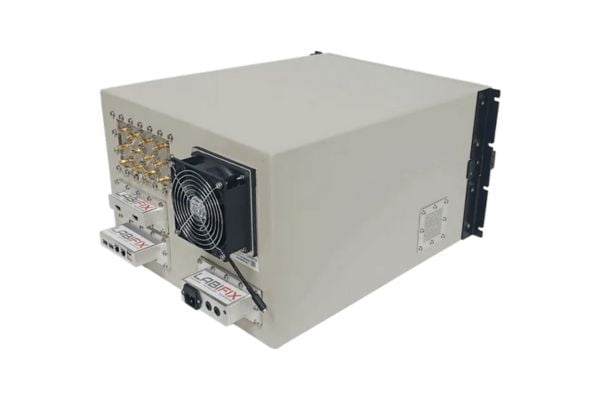

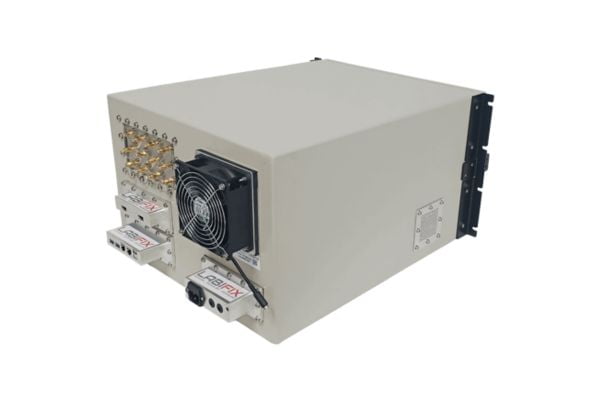

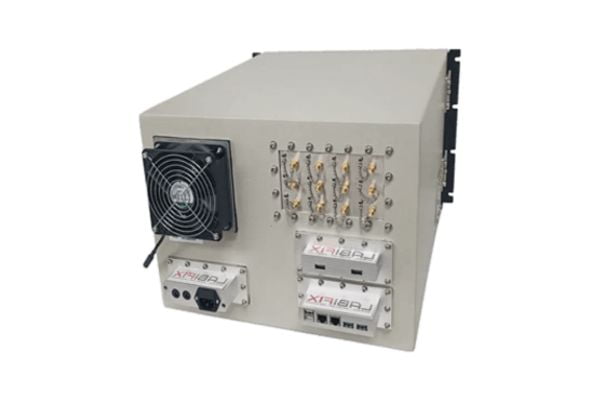

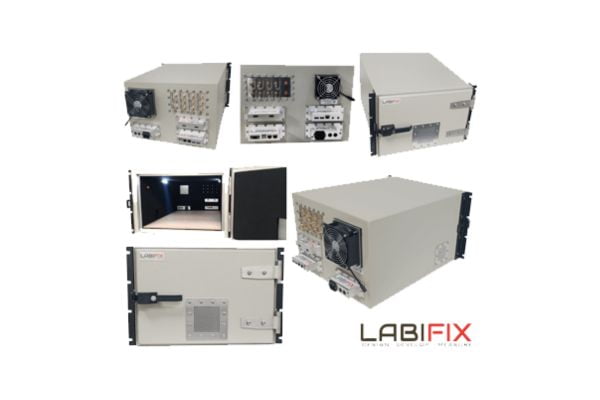

LBX2000 RF Shield Box
The LBX2000 RF Enclosure is a rack-mountable RF shield box designed for testing wireless devices like Bluetooth, Wi-Fi, Zigbee, and cellular applications from 1 to 12 GHz. It delivers strong shielding effectiveness over 90 dB, with filtered AC/DC power lines, filtered data lines, RF connectors, and a high-performance RF absorber lining inside. Engineers use it to verify device connectivity and network performance without interference. You can also configure it with options like the interchangeable I/O connectors. That makes it a great fit for LTE, 4G, and 5G testing, where consistent isolation and reliable connections are key for repeatable results.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

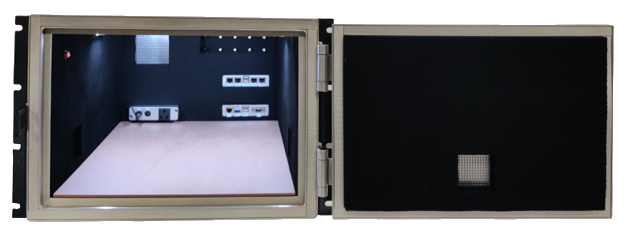

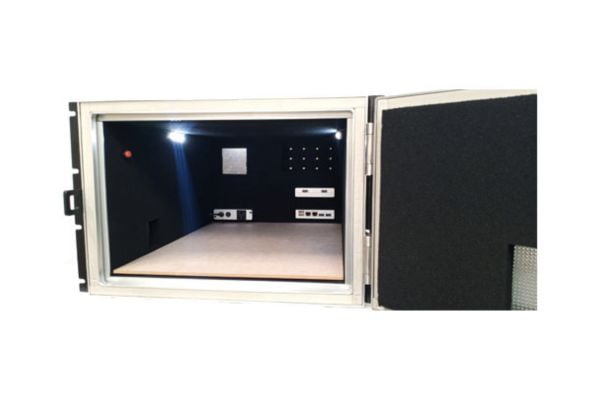

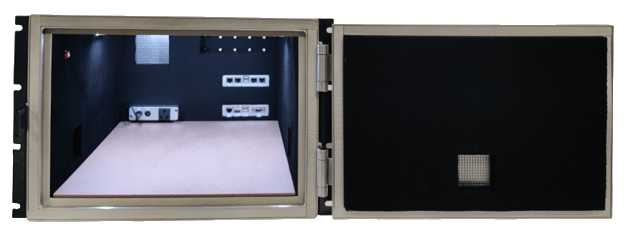

High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
