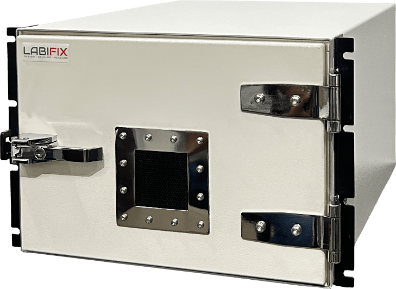

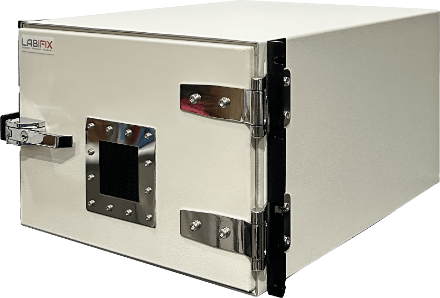

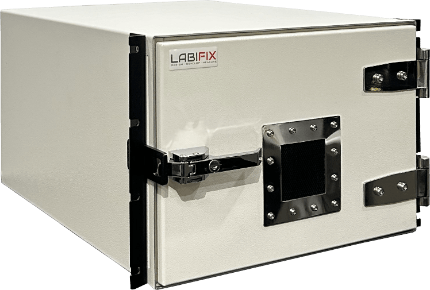

LBX2004 Shielded Test Box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX2004 RF Shield Box

LBX2004 RF Box serves as a practical solution for engineers needing consistent RF testing with configurations specific to their applications. Based on the requirements, it can be configured with a fully customizable shielded enclosure and user-defined interchangeable I/O connector options. This design keeps the enclosure functional for everyday engineering tasks while ensuring a controlled environment around the setup.

Dimensions
Exterior (H x W x D)
12" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
10" (H) x 15" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

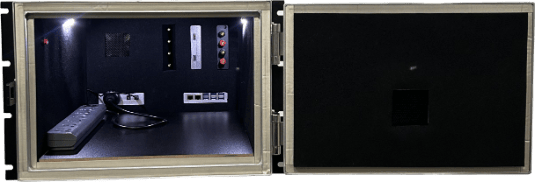

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

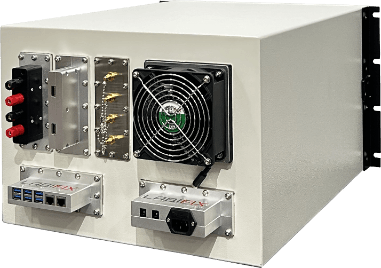

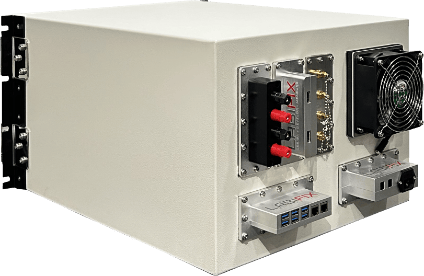

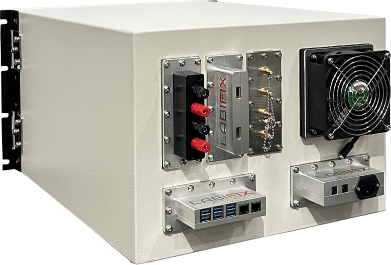

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX2004 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 12" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX2004 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 10" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
