RF Shielded Test Enclosure | Enhanced Device Throughput Testing | LabiFix

LBX1900

RF SHEILDED TEST ENCLOSURE

LBX2070 RF SHIELDED TEST ENCLOSURE

RF SHIELDED TEST ENCLOSURE

The LBX2070 RF Shield Box is a versatile, manual front-loading bench top shielding box that supports excellent shielding performance for a wide range of testing requirements and frequency ranges. Engineers can customize I/O connectors, EMI filter data ports and power line filters according to their specific testing needs, making it an ideal solution for a variety of RF testing applications.

Labifix offers a wide range of custom-made RF-shielded enclosures enabling engineers to analyze and achieve various wireless device testing objectives in the R&D,Development and production environment.

Description

Features
  • High Performance RF Absorber lining
  • EMI filters on Data Ports and Power lines
  • User Defined & Interchangeable I/O Connector options
  • Design and Develop for Wireless Device Testing
  • Completely Customizable Shielded Enclosure
  • Rugged Welded Construction
  • RF Gasket System
  • High performance shielded Air Vents for adequate air flow
Applications
  • Cellular 4G,5G,LTE, Wimax
  • Bluetooth and Zigbee
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Forensics and Security
  • Wireless Device Testing
  • Wireless Medical Device
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 19"H x 14"W x 28"D
  • Interior : 16"H x 12"W x 26"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

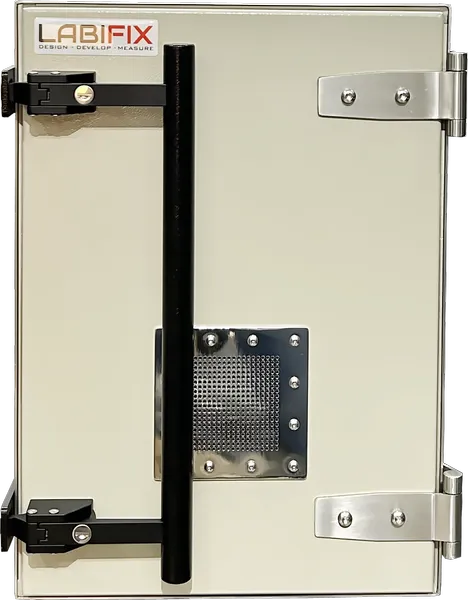

RF Shielded Box 1.1
RF Shielded Box 1.2
RF Shielded Box 1.3
RF Shielded Box 1.4
RF Shielded Box 1.5
RF Shielded Box 1.6
RF Shielded Box 1.7
RF Shielded Box 1.8
RF Shielded Box 1.9
LBX2070 Shielded Enclosure comes with the following

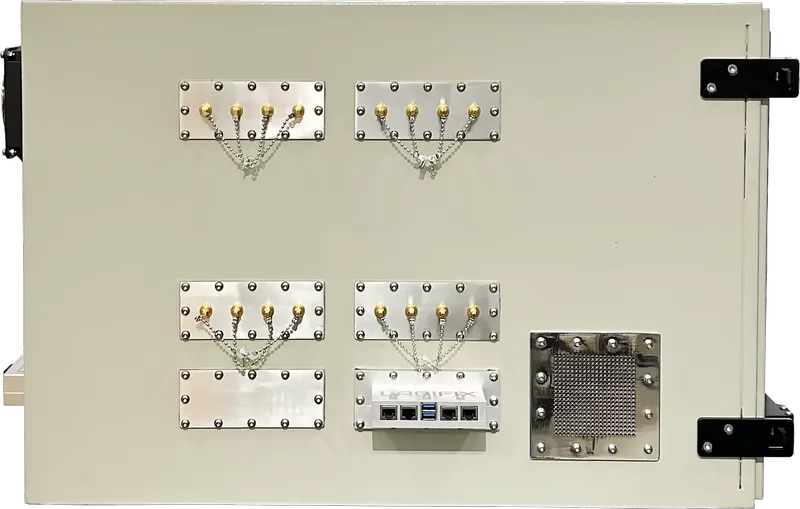

  • RF Ports : SMA Bulkhead Connector
  • Filtered USB 3.0
  • Filtered RJ24
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector

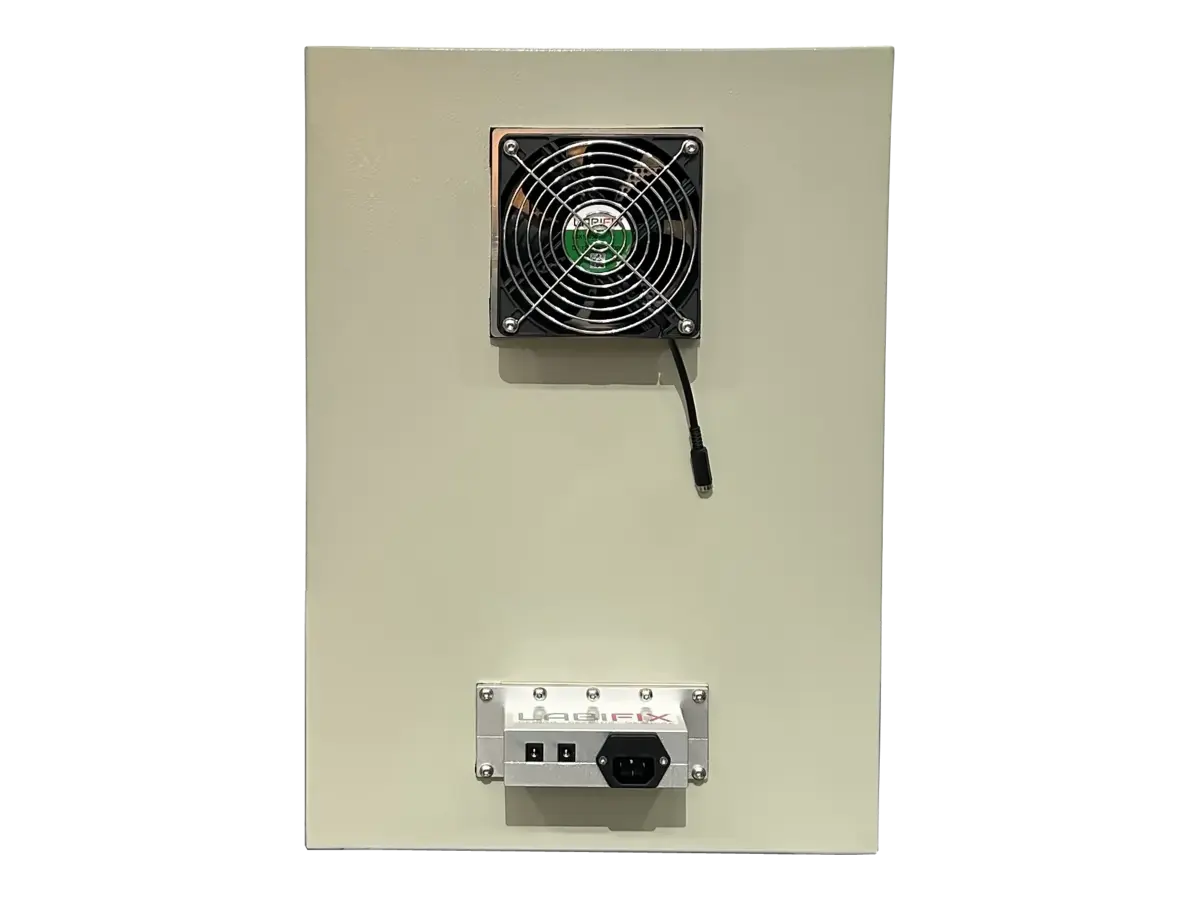

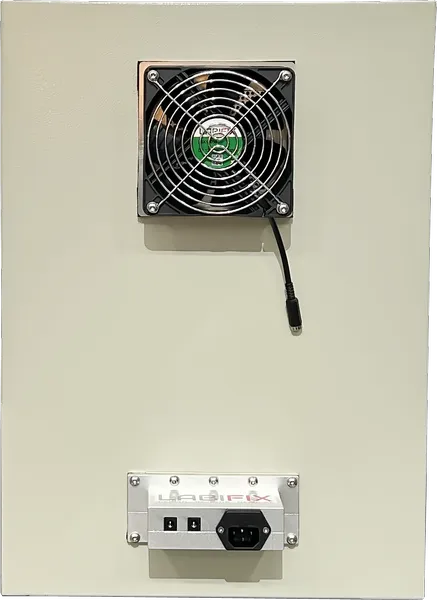

  • Honeycomb Air Vents 120 mm x 120 mm

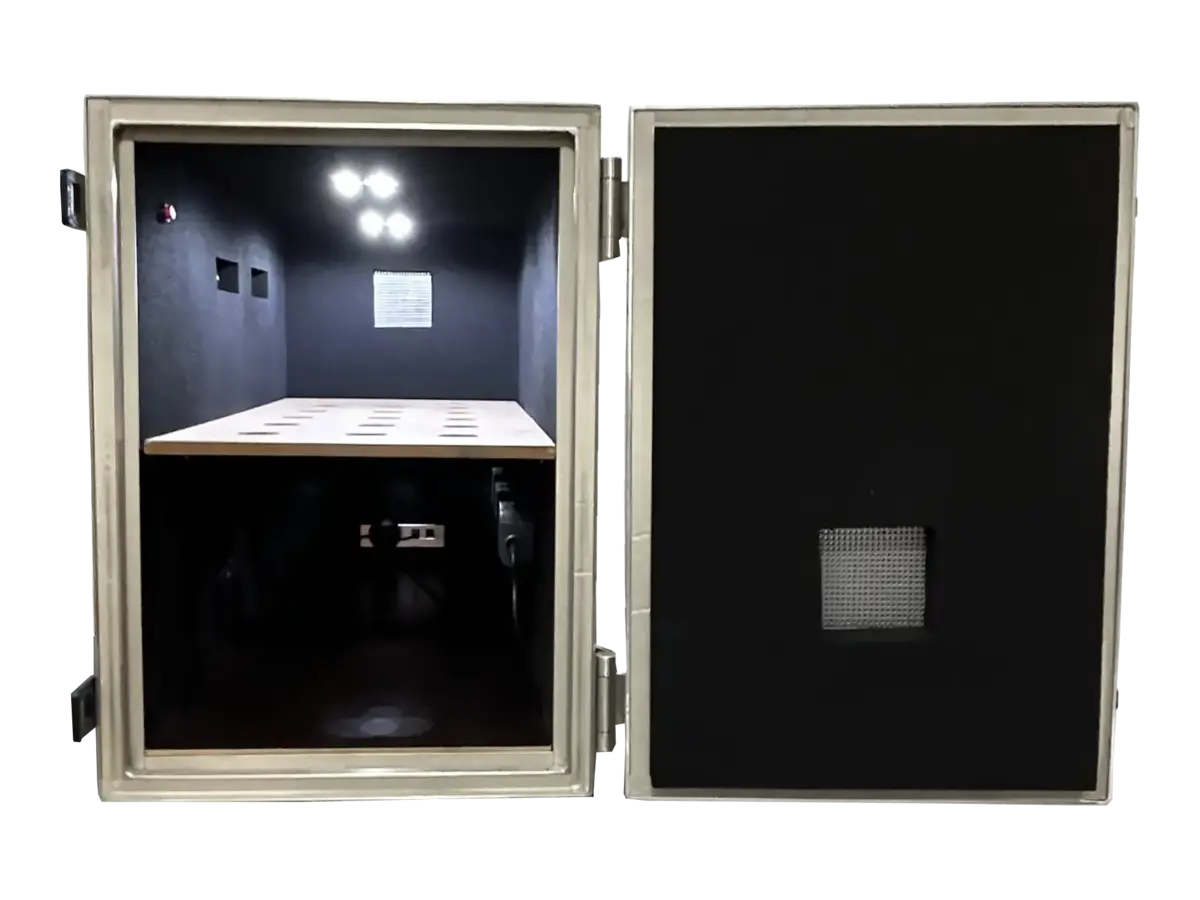

  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
