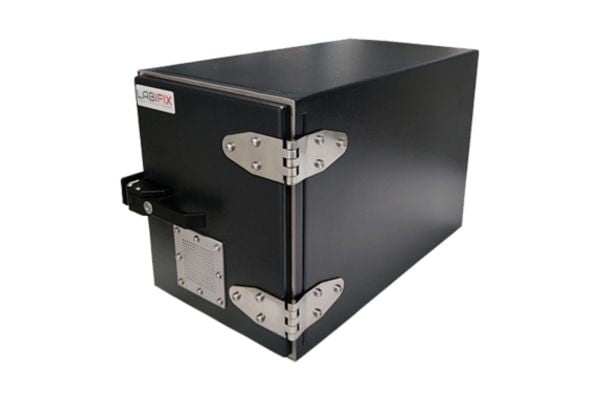

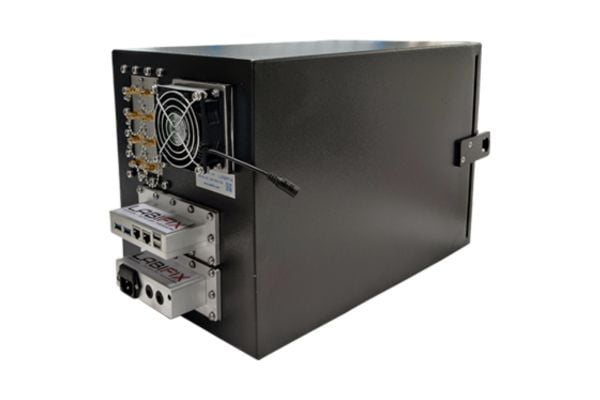

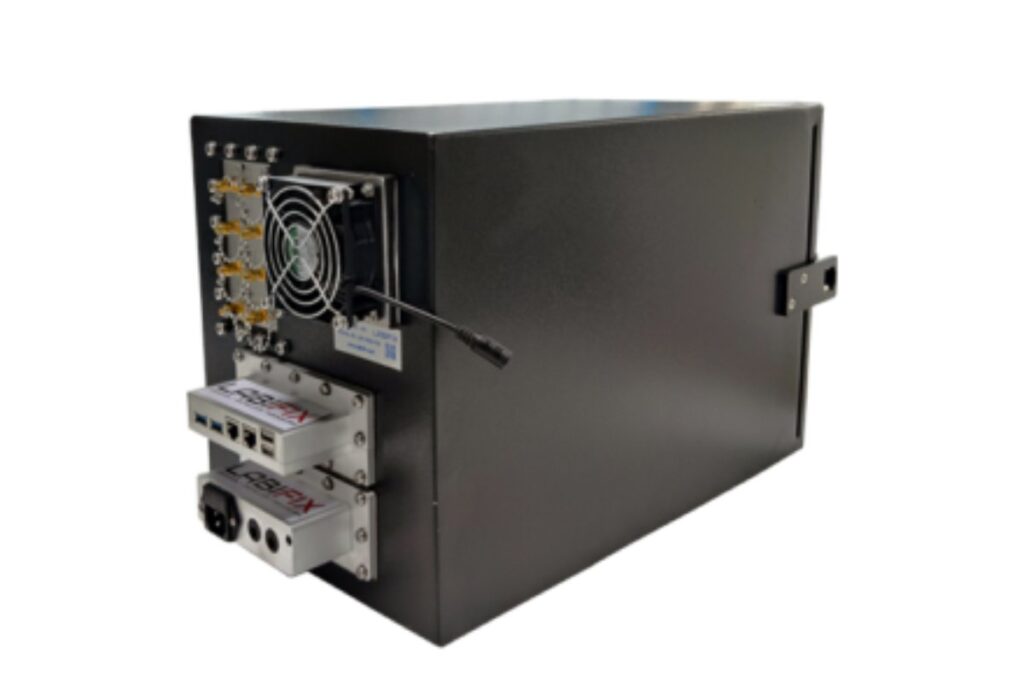

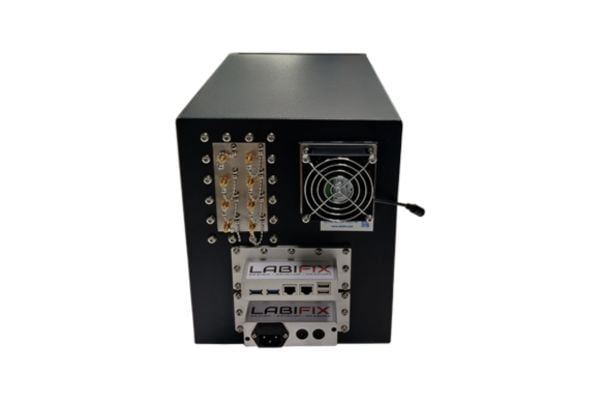

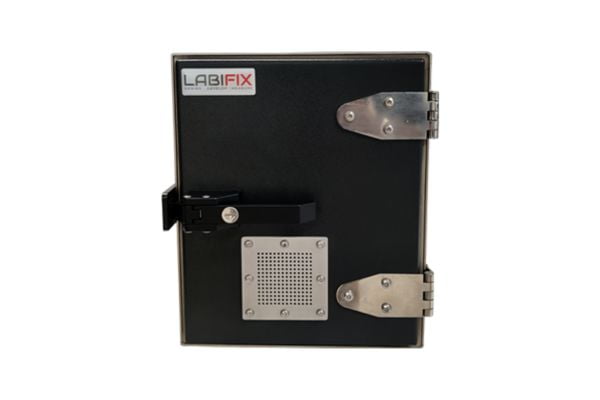

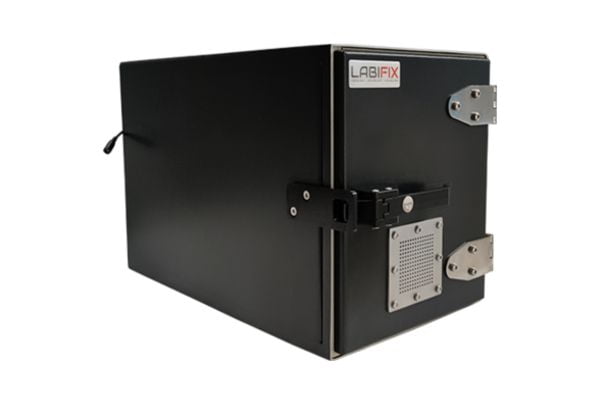

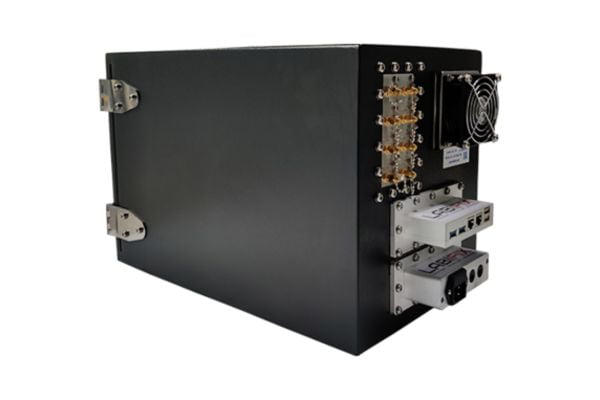

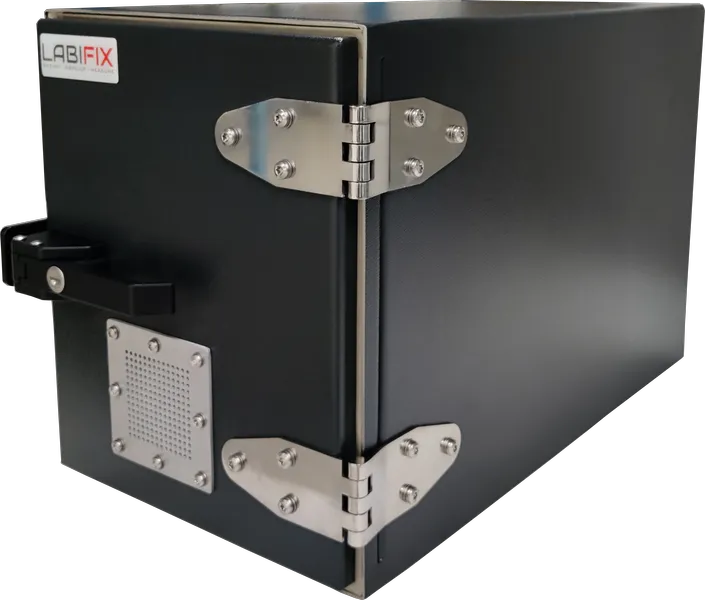

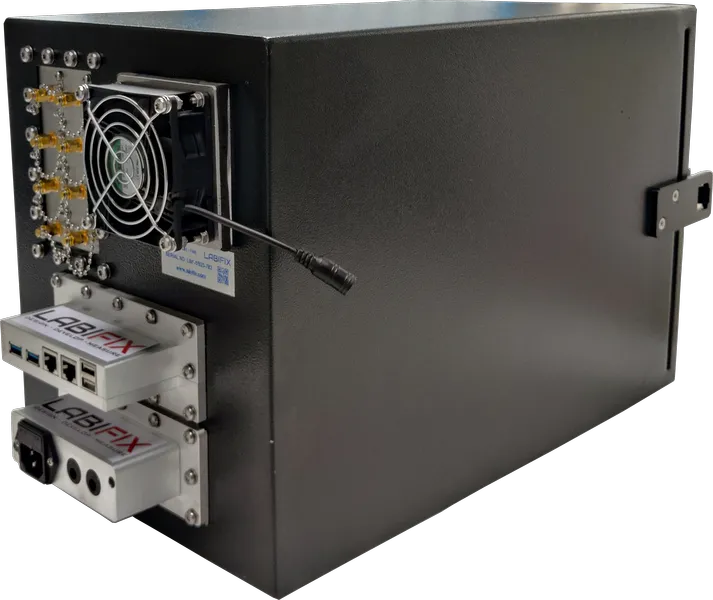

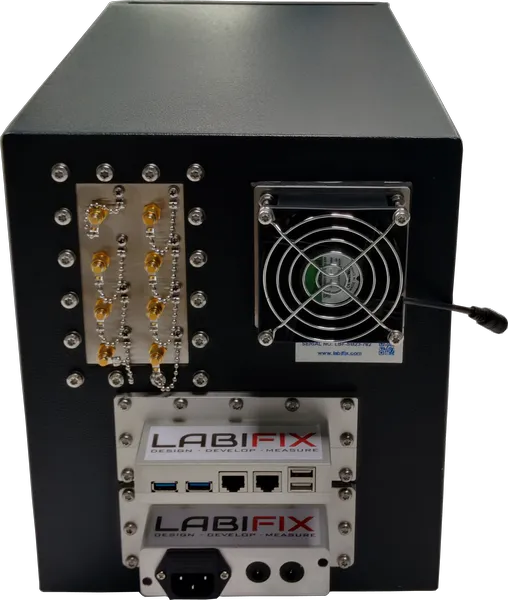

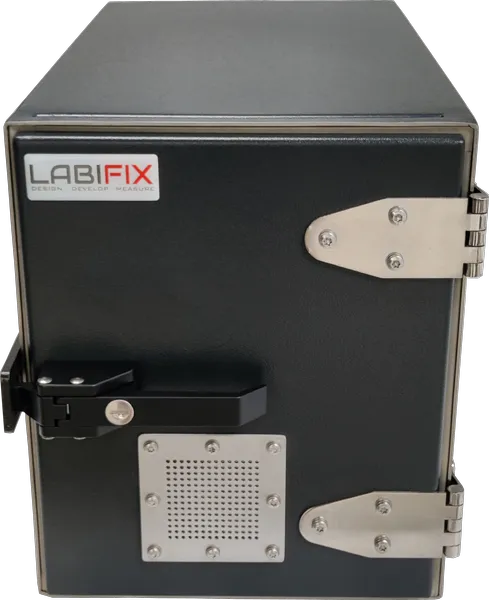

LBX1505 Compact RF isolation chamber LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX1505 RF Shield Box

LBX1505 RF Shield Enclosure is intended to make RF testing more controlled and easier to integrate into an existing laboratory workflow. With options such as Completely Customizable Shielded Enclosure and User Defined & Interchangeable I/O Connector options, the enclosure can be adapted to the equipment, interfaces and test method being used. It is well suited to controlled RF validation, development and production test workflows where repeatability matters.

Dimensions
Exterior (H x W x D)
12" (H) x 10" (W) x 12" (D)
Interior (H x W x D)
10" (H) x 8" (W) x 10" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX1505 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
10"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW12"(EXTERIOR DEPTH)SIDE VIEW10"(EXTERIOR WIDTH)12"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 10" (W) × 12" (H) × 12" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX1505 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
8"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW10"(INTERIOR DEPTH)INTERIOR SIDE VIEW8"(INTERIOR WIDTH)10"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 8" (W) × 10" (H) × 10" (D)RF Pyramidal Microwave Absorber Lining Boundary
