IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

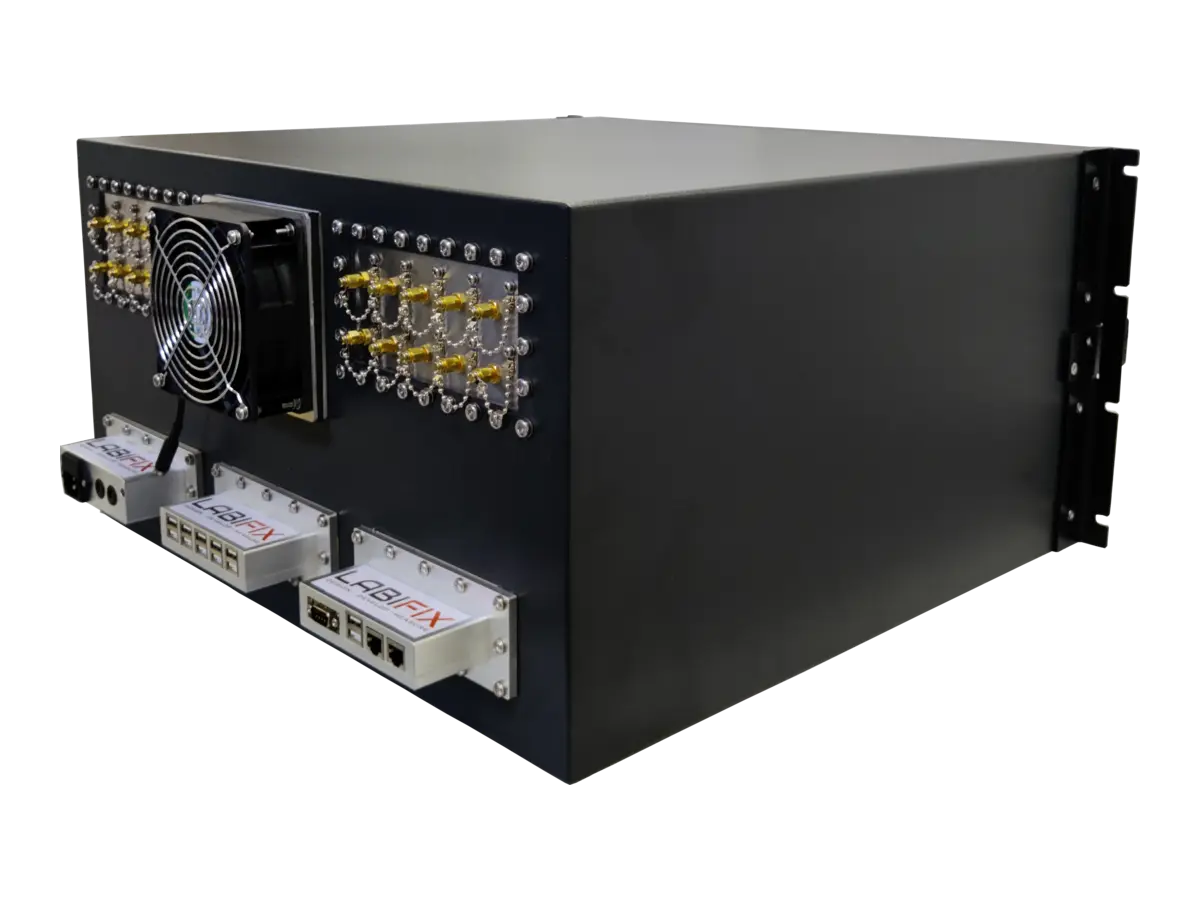

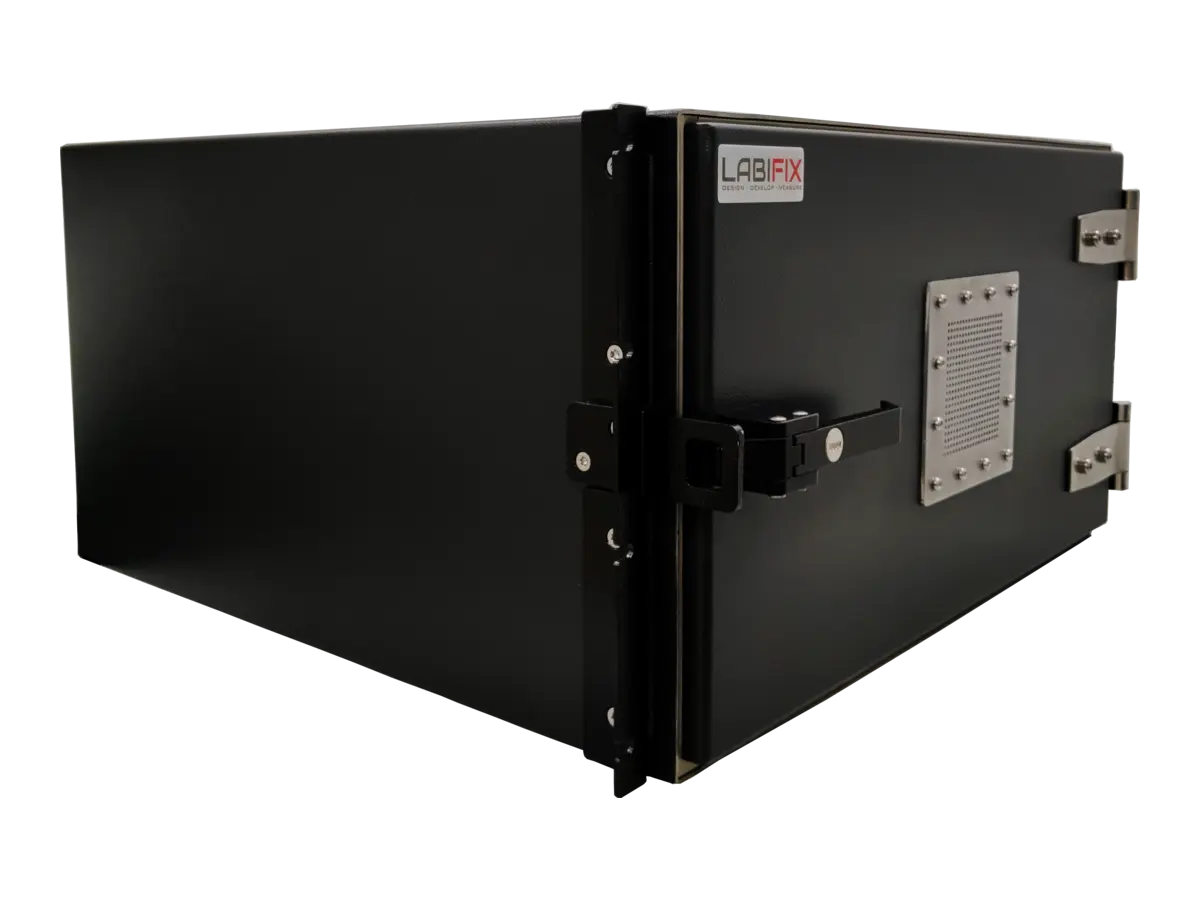

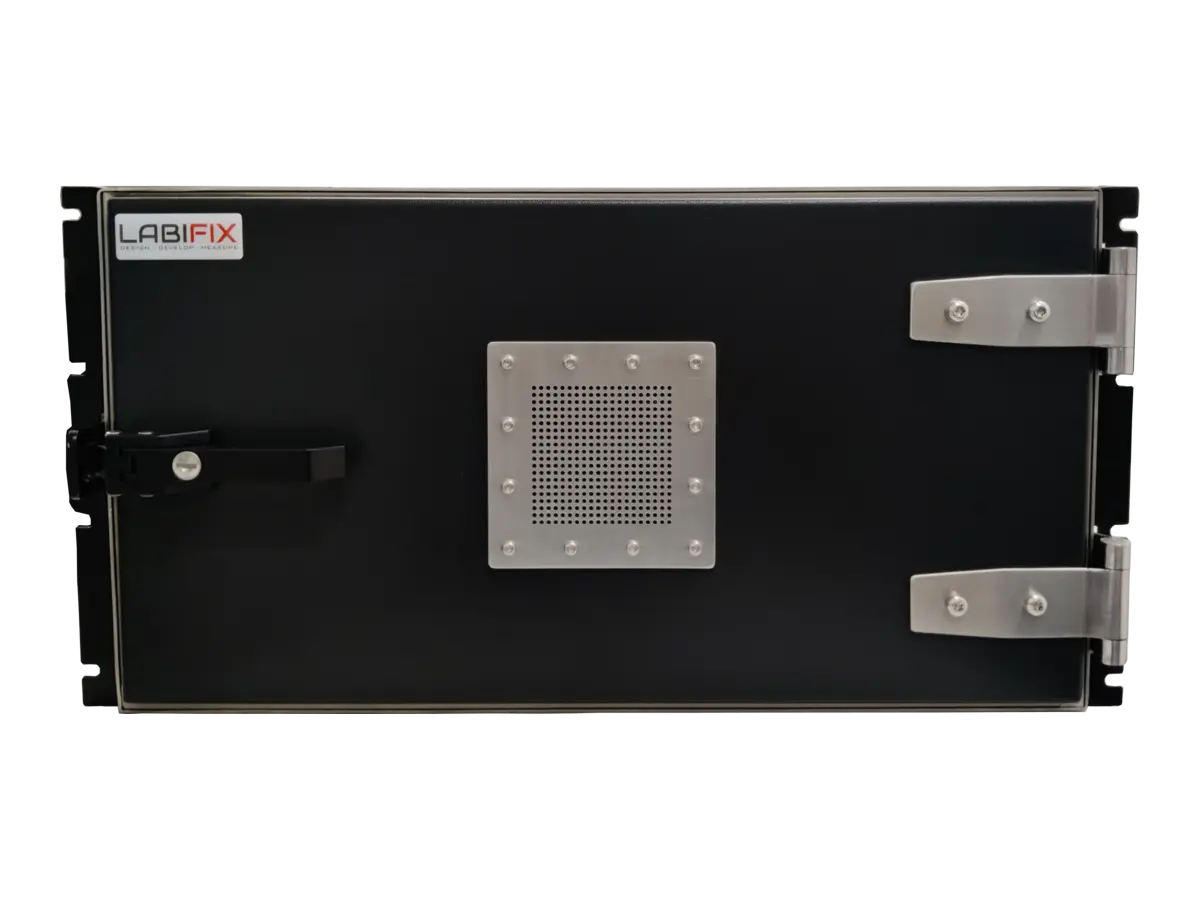

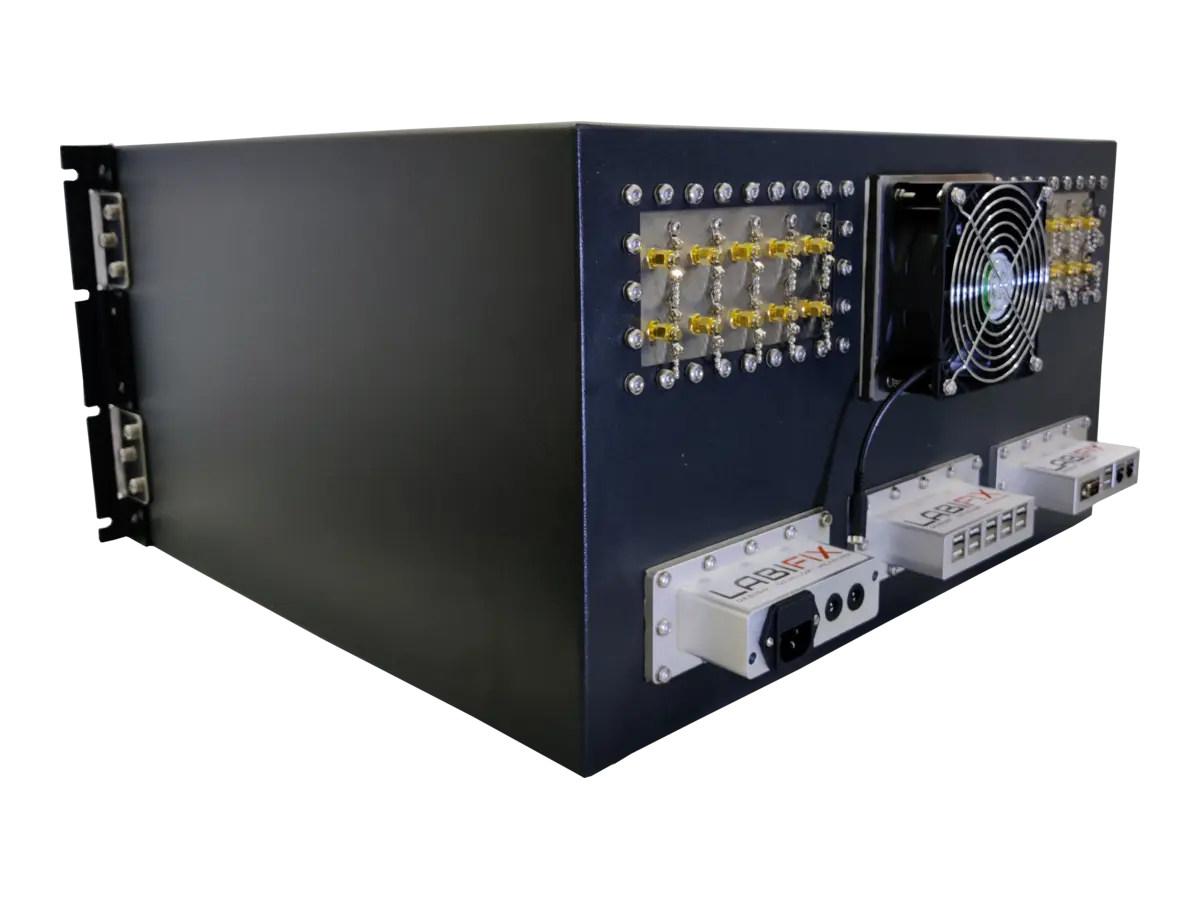

LBX2008 RF Shield Box
LabiFix’s LBX2008 RF shielding box is a rack-mounted shielded box with superior isolation >90dB. It is medium in size, making it easy to be mounted on the Rack. Excellent design makes its structure strong and precision processing provides better Isolation for device under Test (DUT). The LBX2008 RF shield Box can be used as a test instruments and integrated on a test rack to form a complete test environment. If you want a clean and flexible test environment, Labifix is your ideal choice.
Dimensions
Exterior (H x W x D)
12" (H) x 22" (W) x 22" (D)

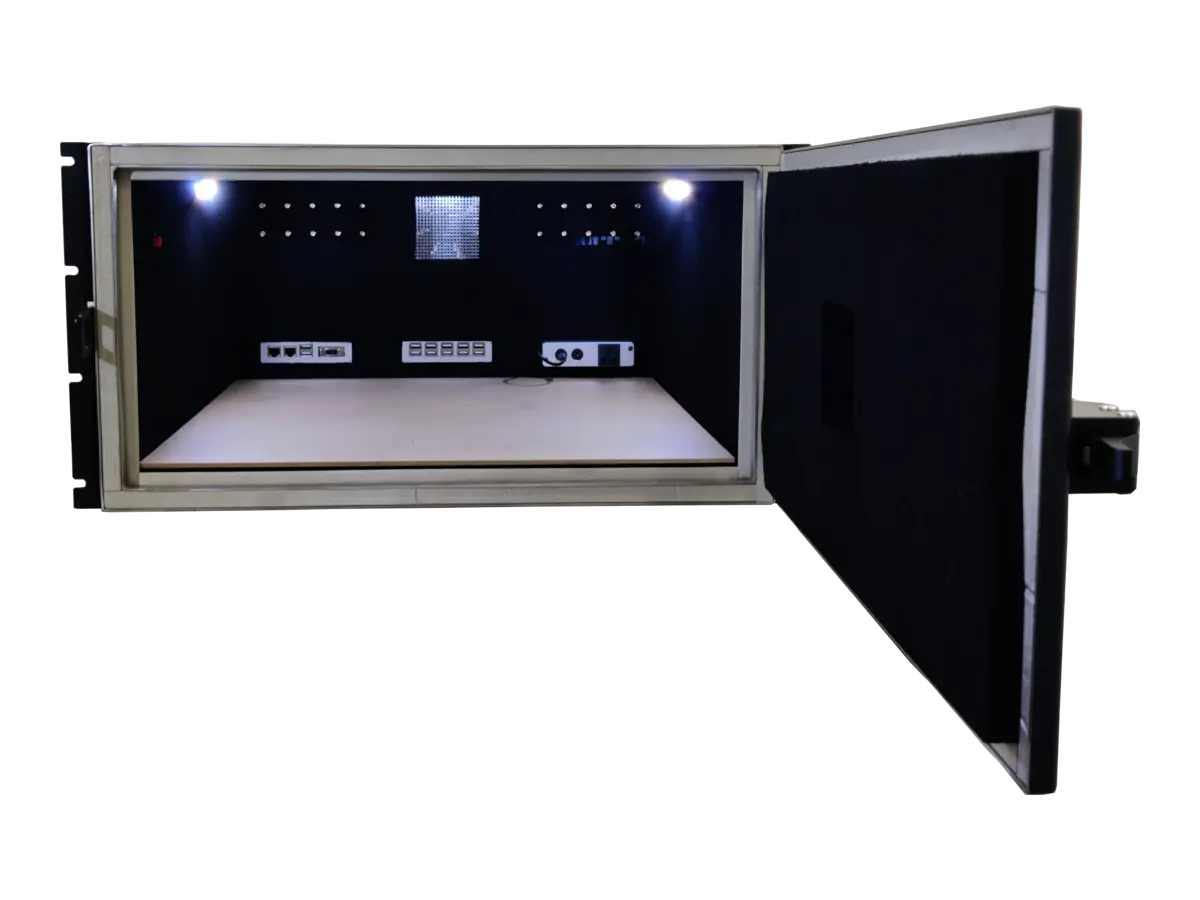

Interior (H x W x D)
10" (H) x 20" (W) x 20" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining

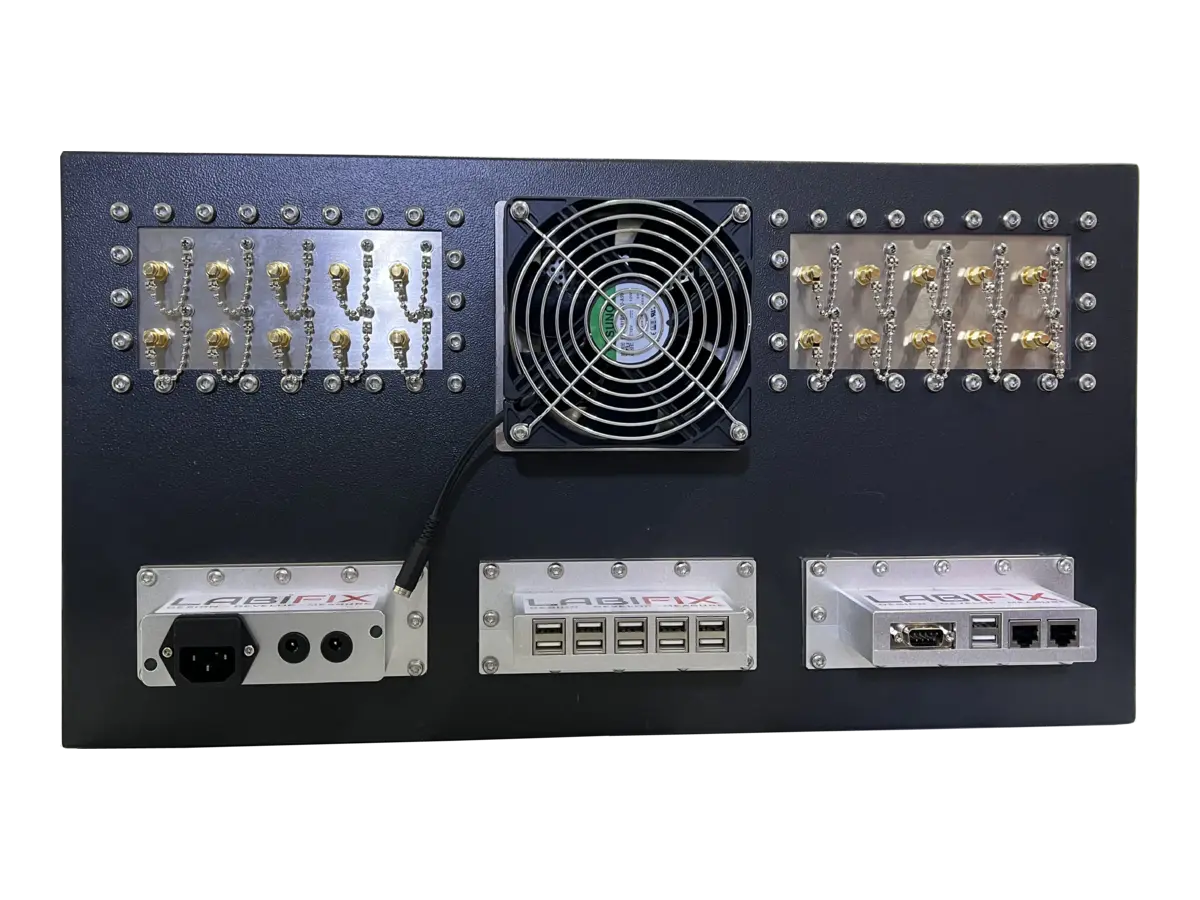

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
