IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

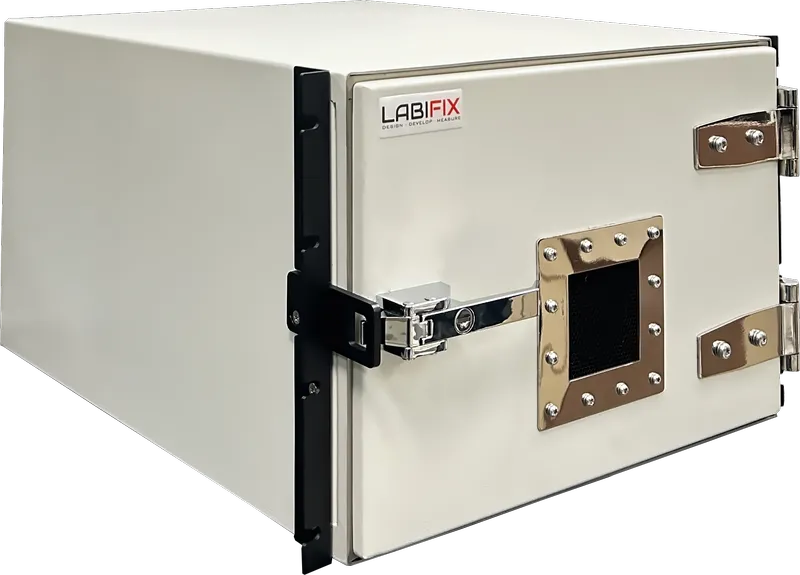

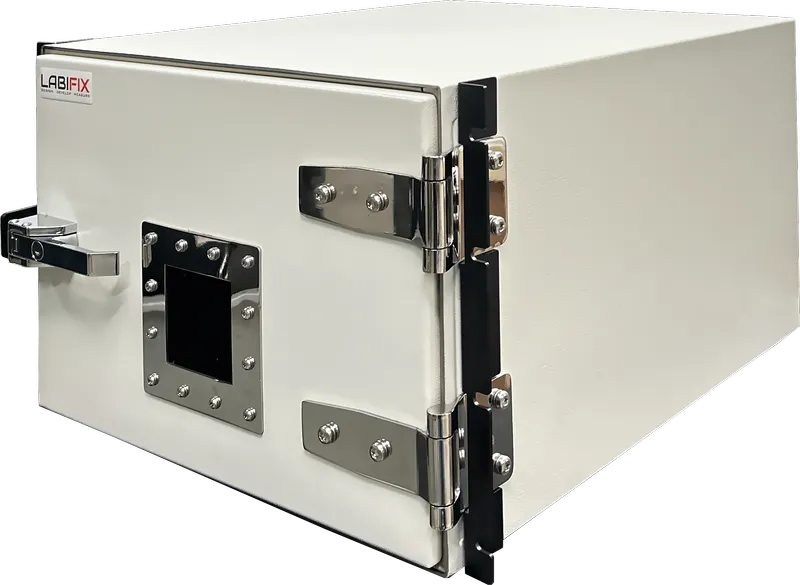

LBX2007 RF Shield Box
LBX2007 RF Shielded Test Enclosure offers a configurable approach to RF isolation for engineers working with wireless devices and electronic systems. Key configuration possibilities include Completely Customizable Shielded Enclosure and High performance shielded Air Vents for adequate air flow. It is well suited to controlled RF validation, development and production test workflows where repeatability matters. As a RF test enclosure, LBX2007 can be configured around the DUT and the way it needs to be tested.
Dimensions
Exterior (H x W x D)
12" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
10" (H) x 15" (W) x 20" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

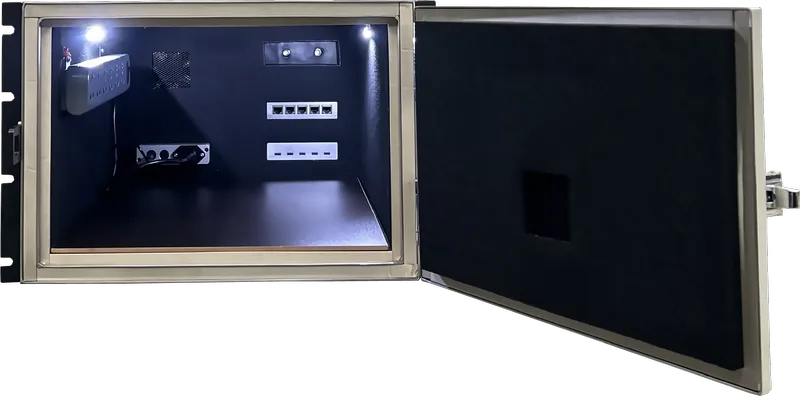

High Performance Pyramidal RF Microwave Absorber lining

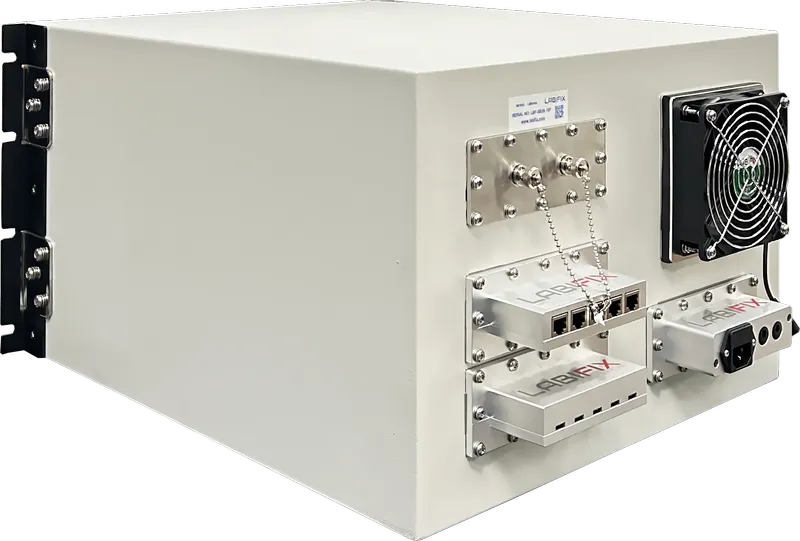

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
