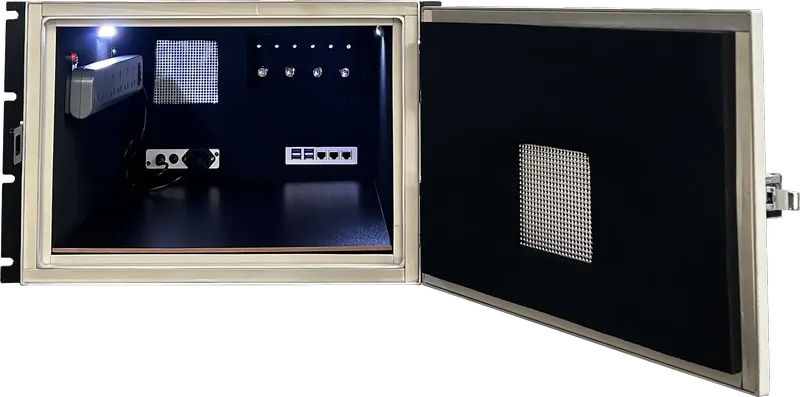

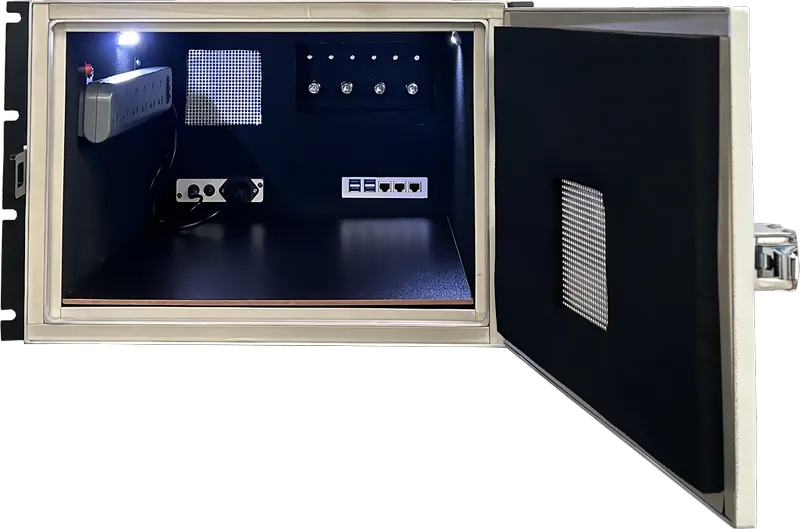

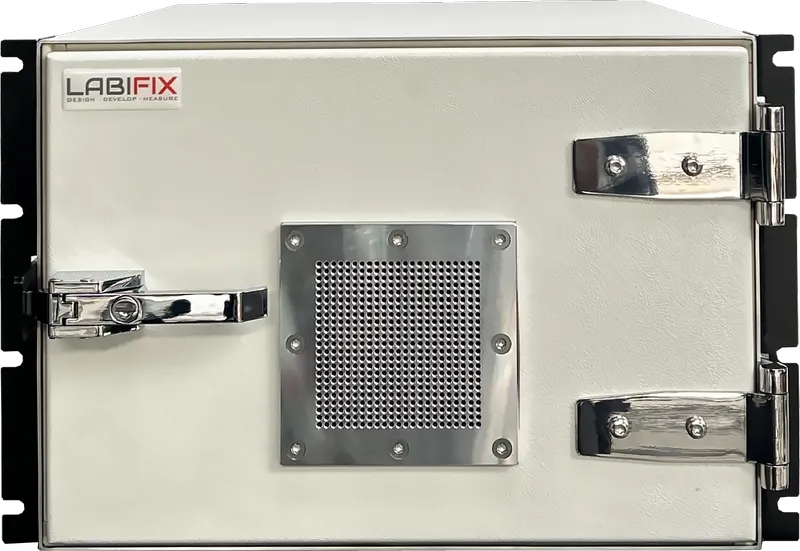

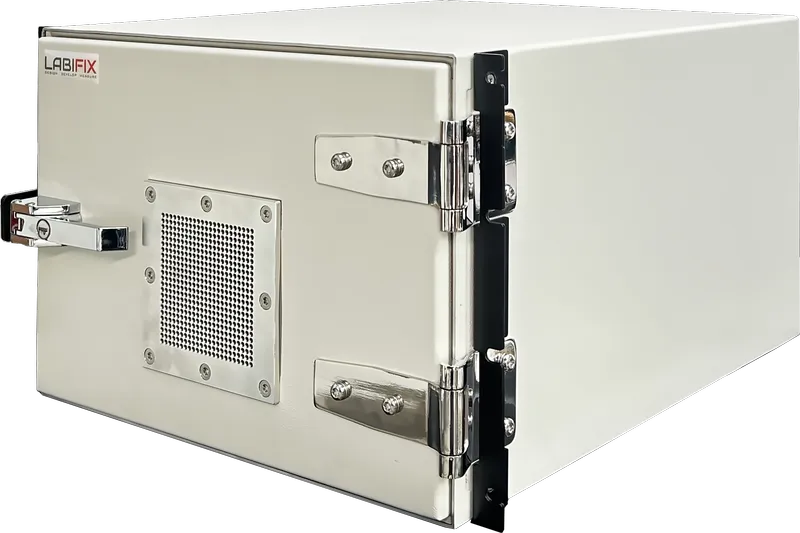

LBX2009 RF Shield Box
LBX2009 RF Test box provides a useful starting point for controlled wireless testing, with configuration options that can be matched to the test setup. The configuration can include User Defined & Interchangeable I/O Connector options, giving the test setup the flexibility to accommodate the DUT and its required interfaces. That makes it a natural fit for MIMO testing, this model provides a flexible enclosure foundation that can be matched to the DUT and instrumentation, where a defined RF environment can help engineers work with greater consistency. For teams searching for a RF Test Enclosure, LBX2009 can be considered as part of a tailored RF shielding solution.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
