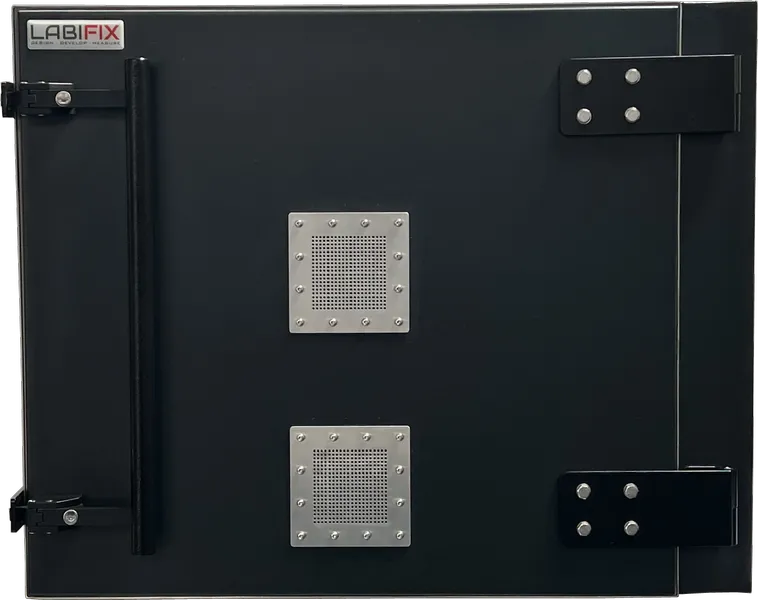

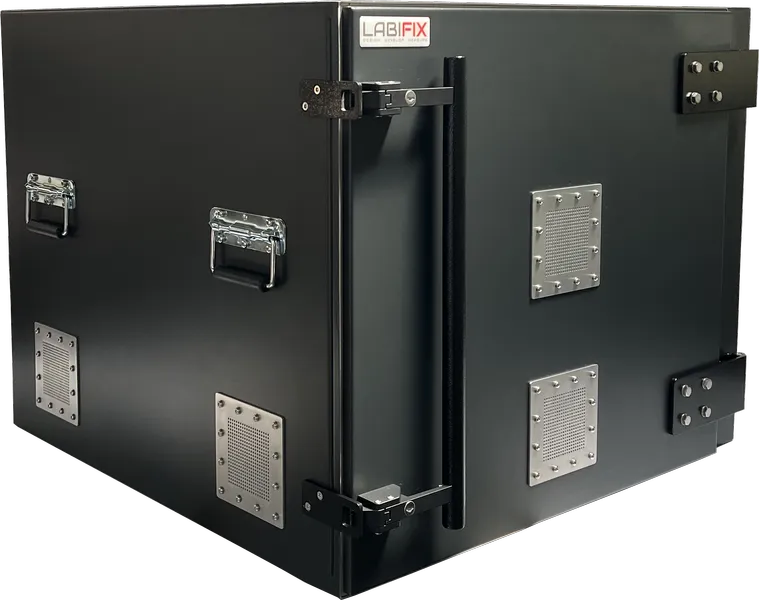

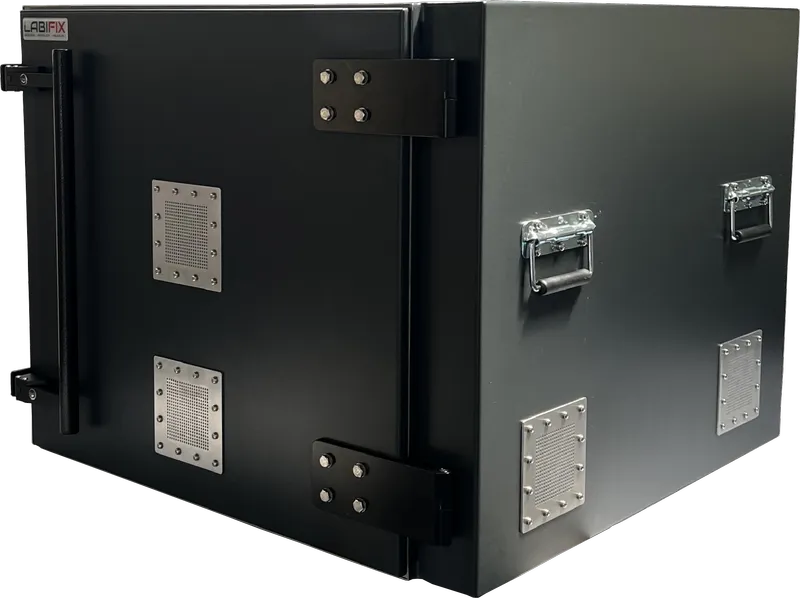

LBX5800 Go/No-Go Calibration RF Shielded Enclosure LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX5800 RF Shield Box

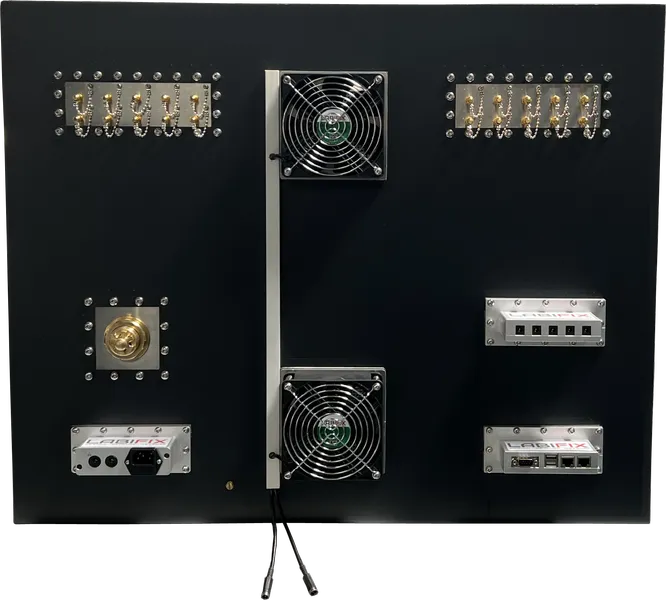

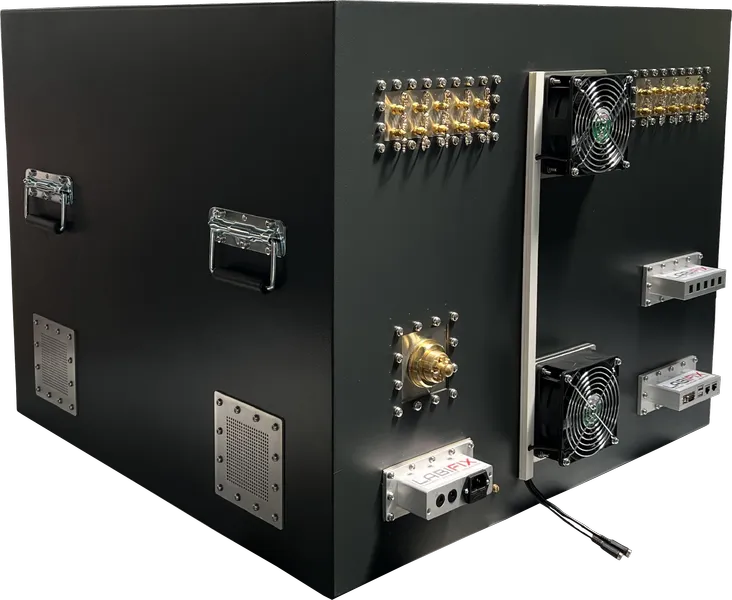

LBX5800 RF Shielded Enclosure for Mesh Network Testing and access points has an excellent design that makes its structure strong and the precision processing provides better isolation for your device under test and can be customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules. In addition to blocking all wireless signals, it is equipped with shielded power filters to connect power to the box. A durable welded Enclosure enclosure is complemented by an EMI filter on the data ports.

Dimensions
Exterior (H x W x D)
25" (H) x 31" (W) x 31" (D)
Interior (H x W x D)
23" (H) x 29" (W) x 29" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX5800 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
31"(EXTERIOR WIDTH)25"(EXTERIORHEIGHT)FRONT VIEW31"(EXTERIOR DEPTH)SIDE VIEW31"(EXTERIOR WIDTH)31"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 31" (W) × 25" (H) × 31" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX5800 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
29"(INTERIOR WIDTH)23"(INTERIORHEIGHT)INTERIOR FRONT VIEW29"(INTERIOR DEPTH)INTERIOR SIDE VIEW29"(INTERIOR WIDTH)29"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 29" (W) × 23" (H) × 29" (D)RF Pyramidal Microwave Absorber Lining Boundary
