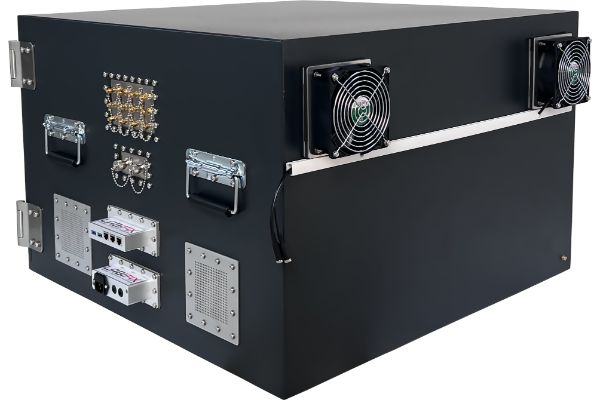

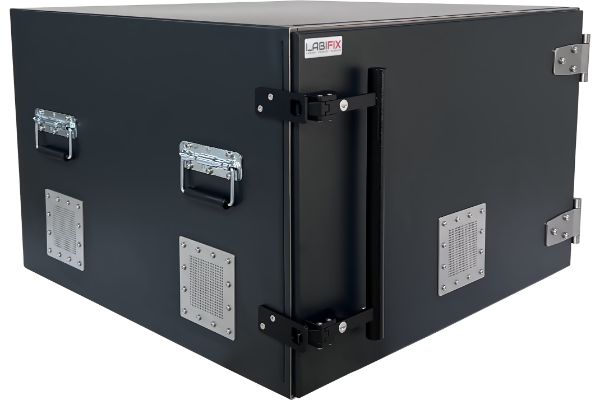

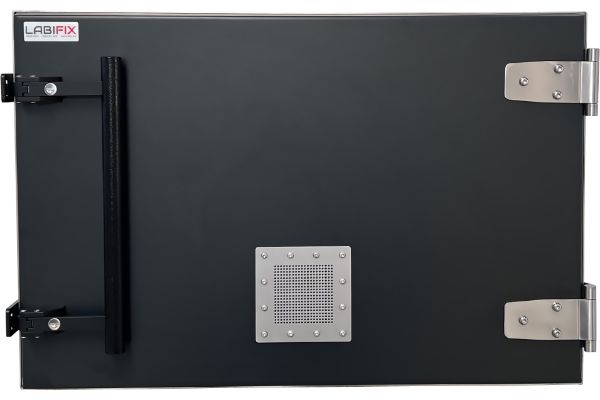

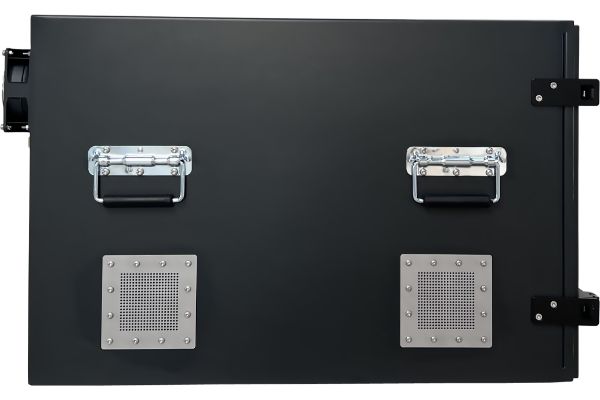

LBX5750 RF Shield Box
LBX5750 rf enclosure for rf electronics enables accurate measurements without interference from external sources. RF shielding test cases can be used for a variety of test applications such as product development, manufacturing and quality assurance. Maximum shielding efficiency against all types of EMI/RFI and noise, especially those emitted by modern wireless communication technologies such as Bluetooth, Zigbee, Wi-Fi, Cellular, IOT and R&D. A robust welded construction makes this RF shielding box particularly durable and reliable. Excellent shielding effect against RF interference with filtered AC power line and Data filters.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction

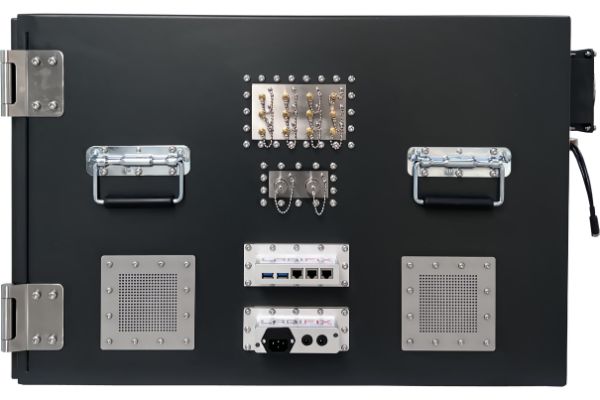

EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

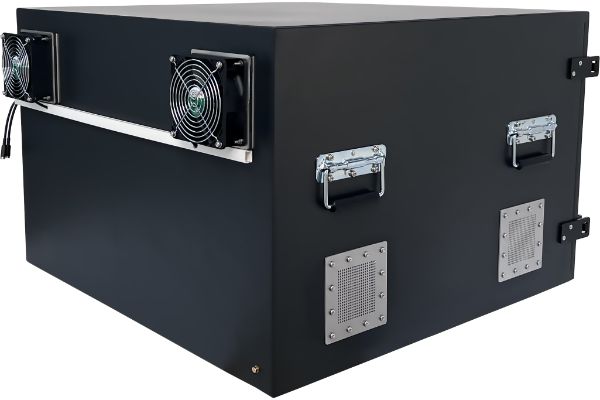

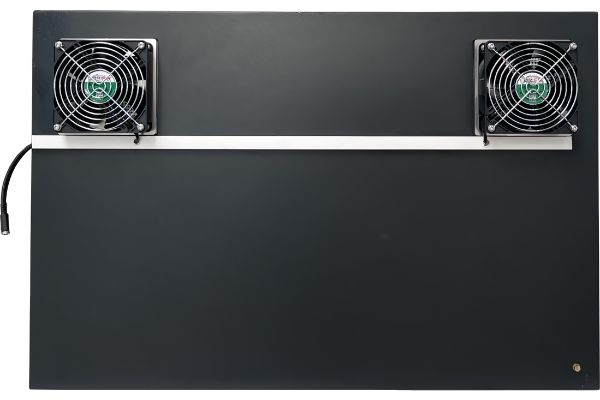

High performance shielded honeycomb Air Vents for optimal cooling
