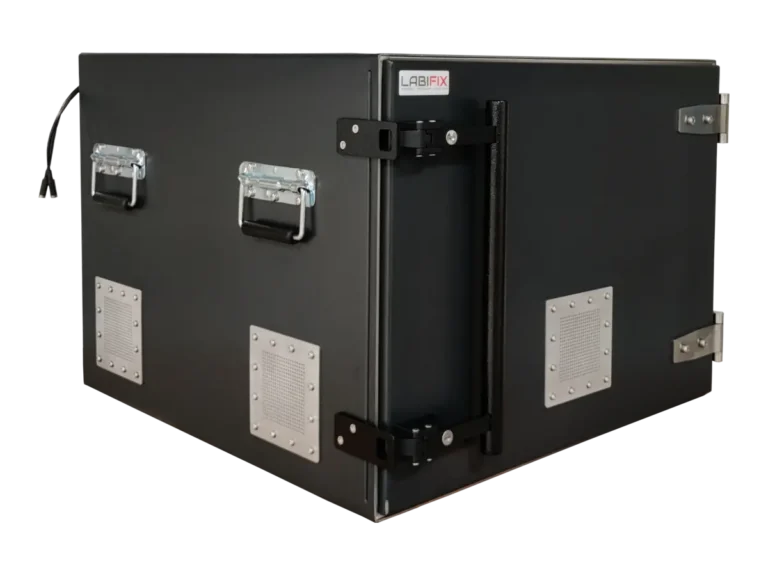

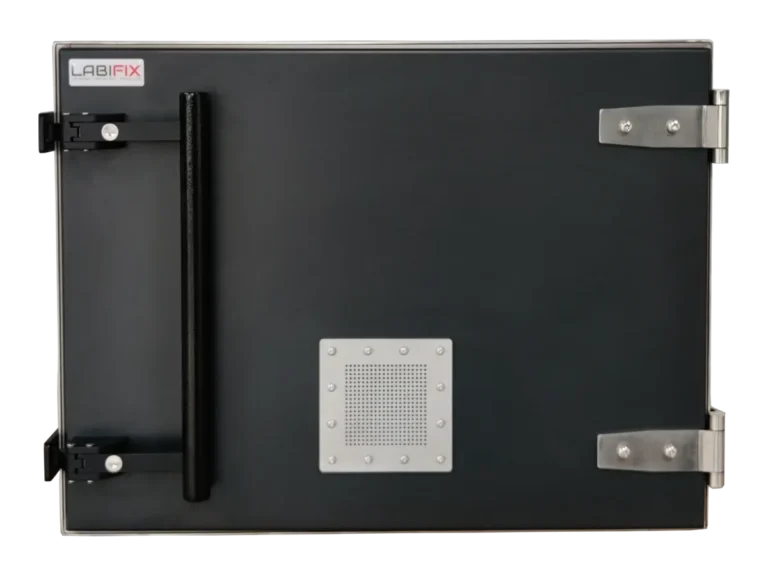

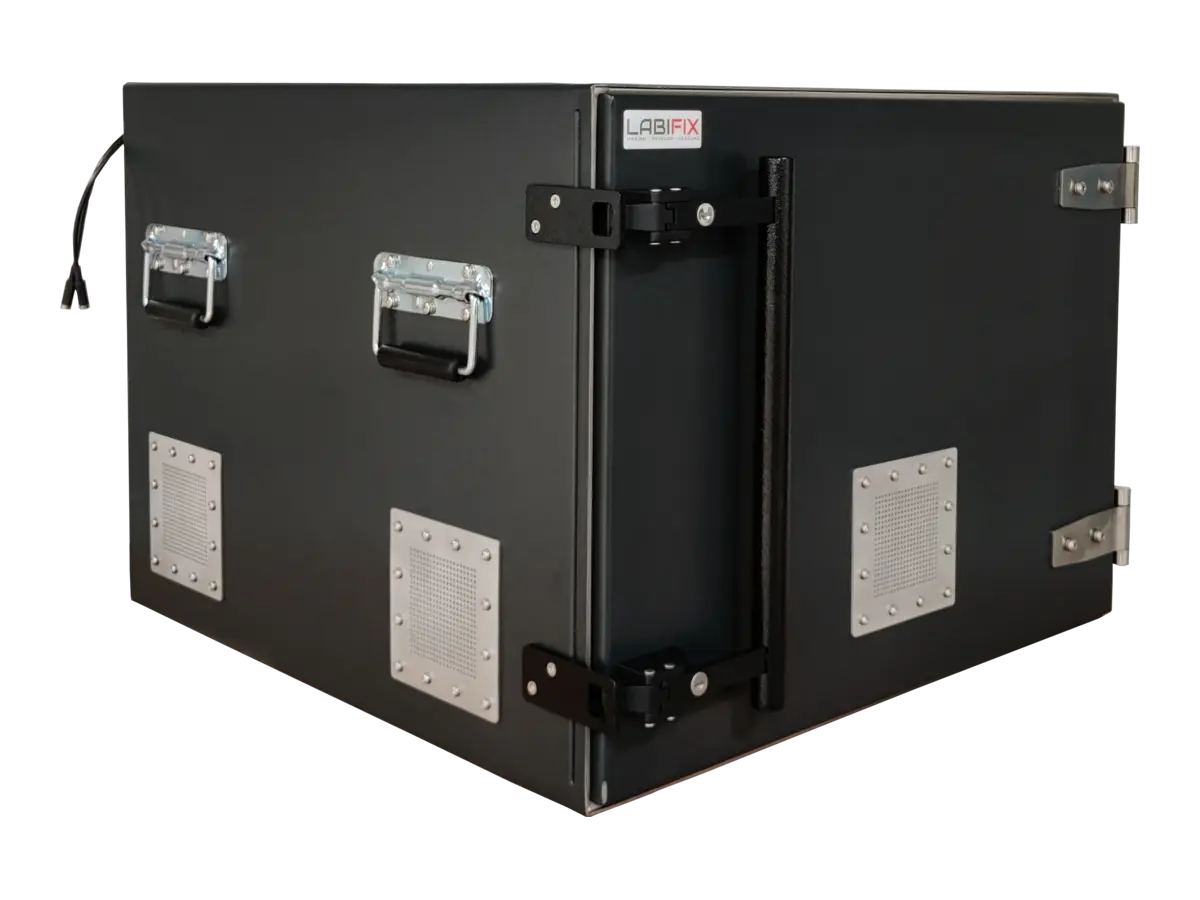

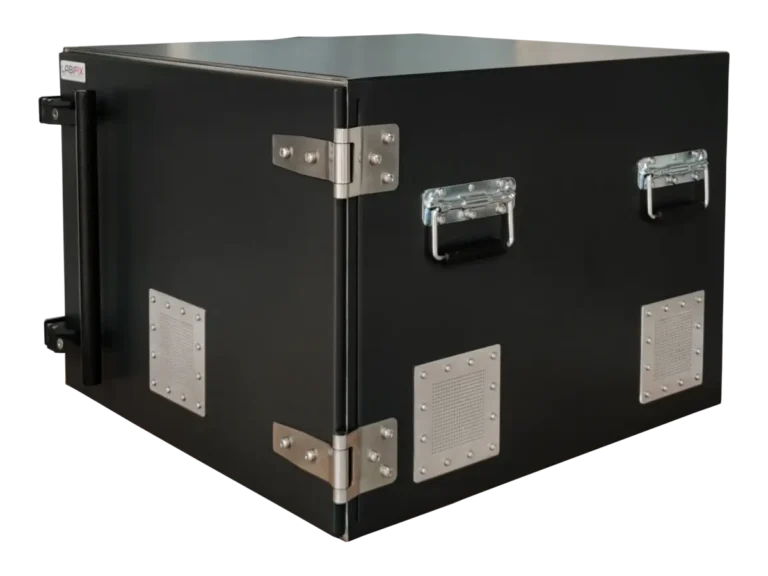

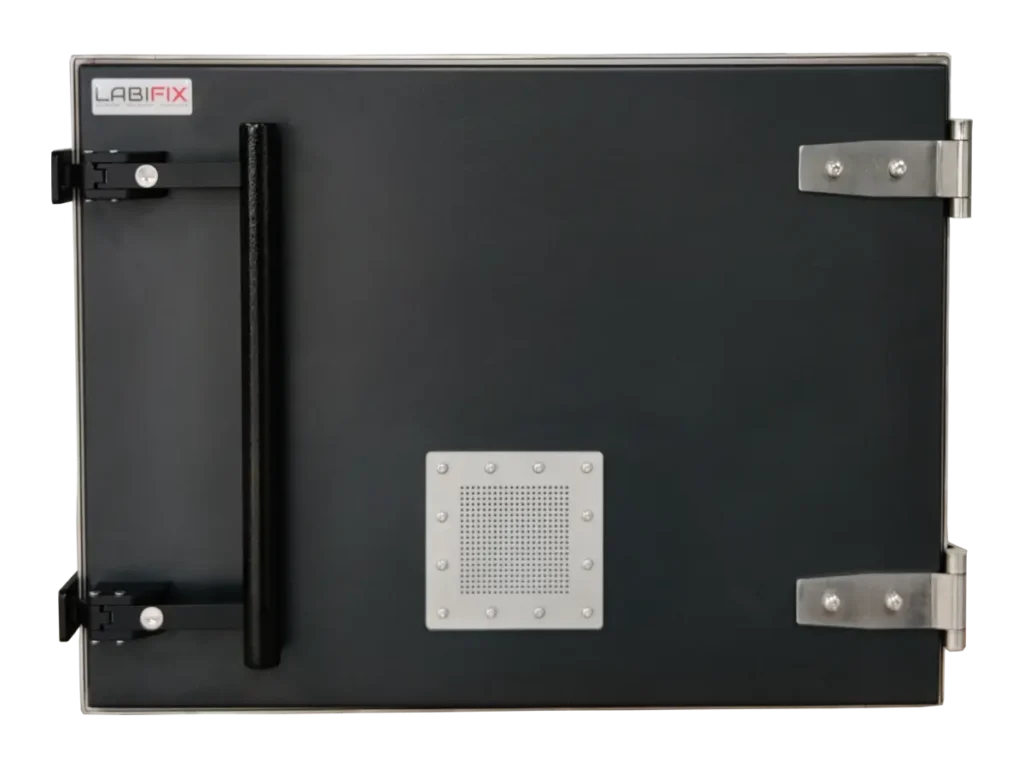

LBX5050 RF Shield Box
LBX5050 RF Shielded Test Enclosure! Our wireless device shielding solution is a welded construction designed for performing EMC/EMI/RF testing and measurement in a variety of applications. The shielded enclosure is constructed with superior Enclosure and high grade RF Absorber material helps reduce signals inside the chamber and can be customized for various requirements. A durable welded Enclosure enclosure is complemented by an EMI filter on the data ports. The excellent design makes its structure strong and the precision processing provides better isolation for your device under test. The RF Shielded Enclosure is available in 19" rack mountable form, and can be customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

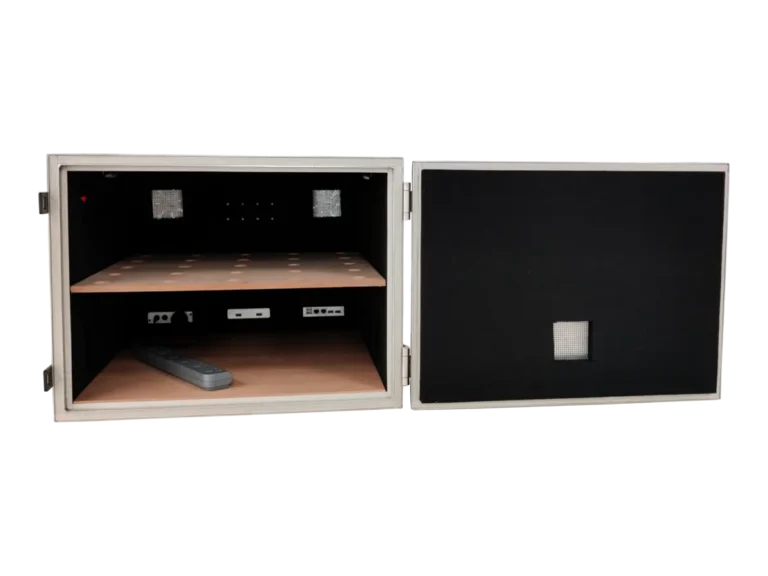

High Performance Pyramidal RF Microwave Absorber lining

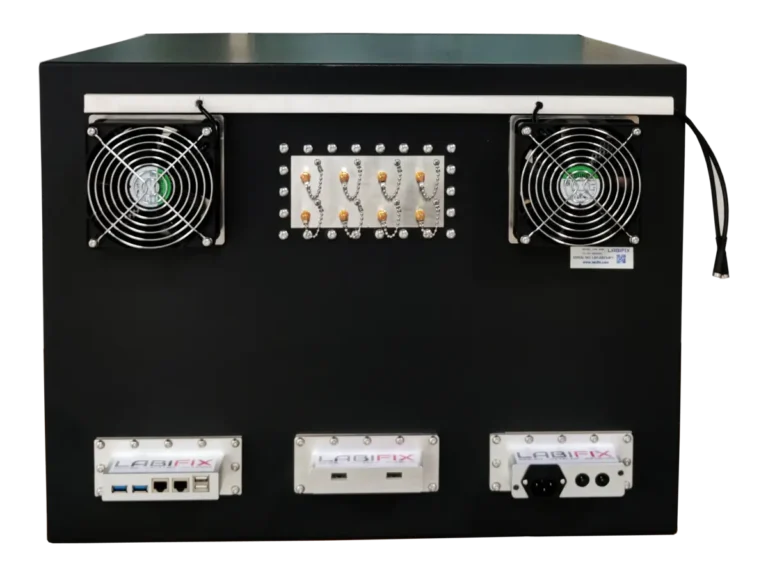

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction

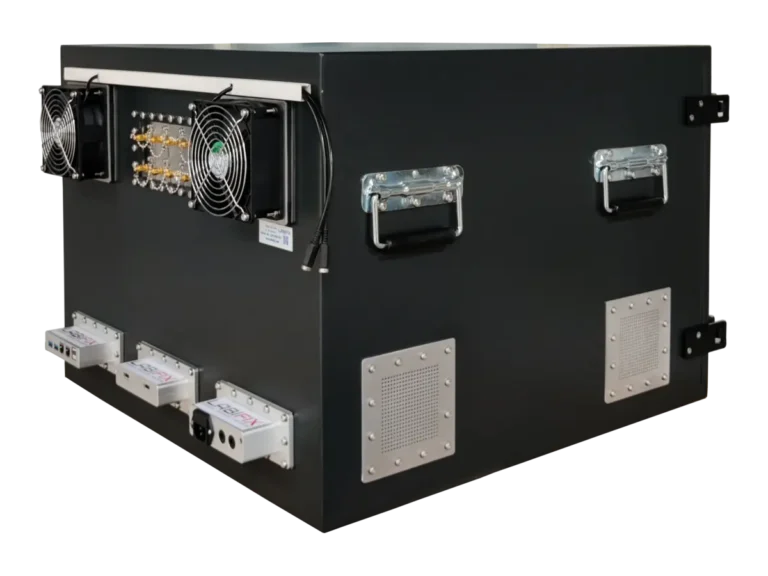

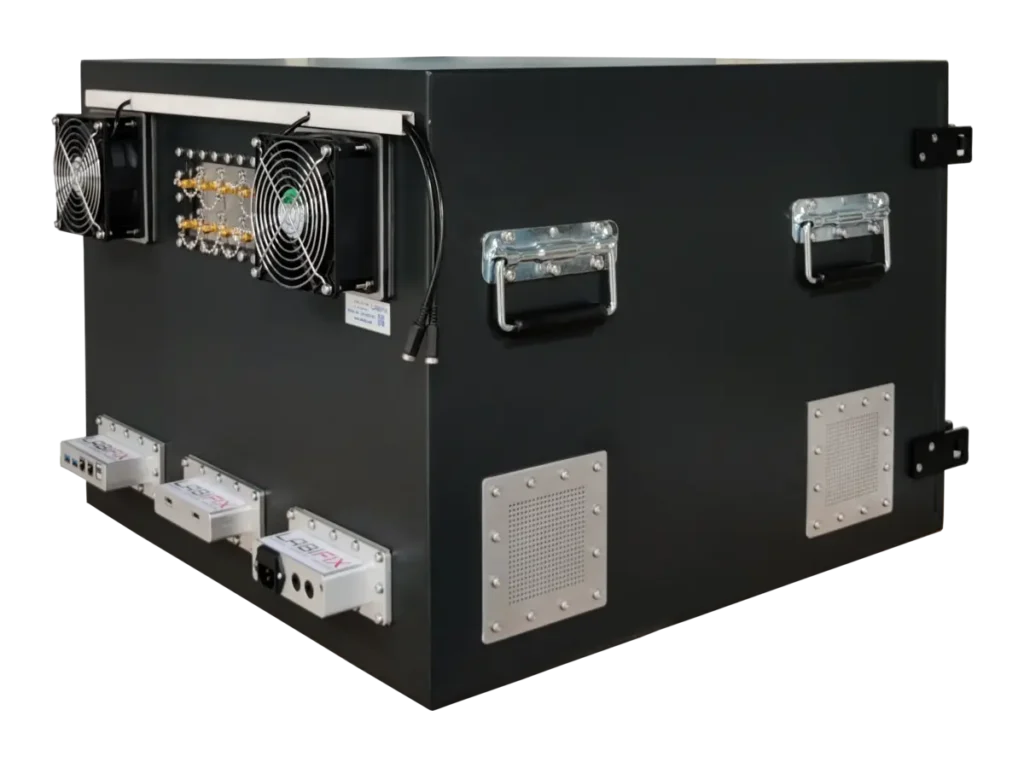

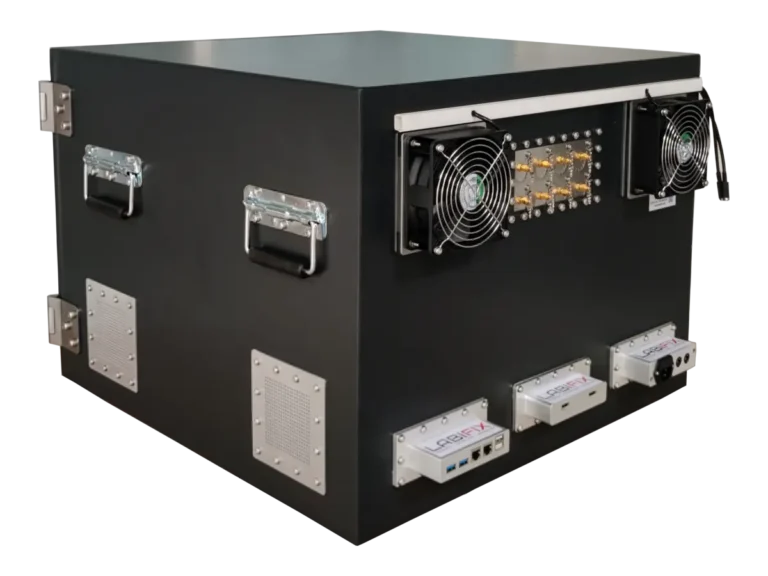

EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
