What frequency ranges does LBX5060 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsLBX5060

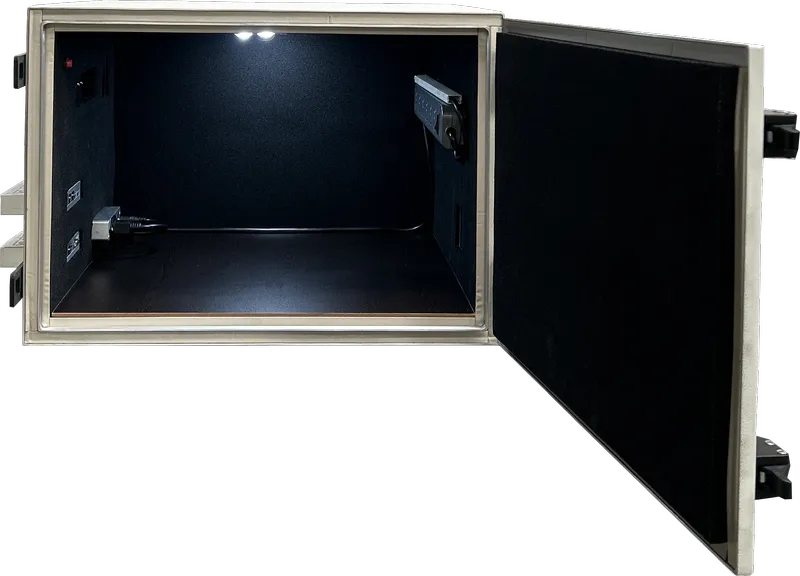

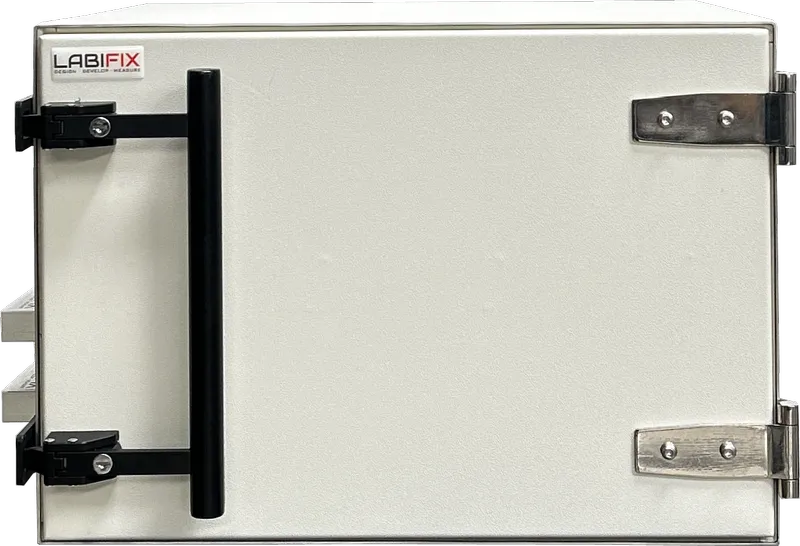

LBX5060 Wireless Device Test chamber LabiFix RF Shield Box - View 1 of 7

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX5060 RF Shield Box

Name: LBX5060 Benchtop RF Shield Box | LabiFix
Brand: Labifix Innovations
SKU: LBX5060

LBX5060 brings shielding, test access and connectivity together in a format that can be tailored to the application. Depending on the application, it can be specified with High Performance RF Absorber lining and Rugged Welded Construction. This approach keeps the enclosure practical for day-to-day engineering work while maintaining a controlled space around the device under test. It is well suited to controlled RF validation, development and production test workflows where repeatability matters. As a RF shielded enclosure, LBX5060 can be configured around the DUT and the way it needs to be tested.

Dimensions

Exterior (H x W x D)

15.7" (H) x 22.4" (W) x 22" (D)

Interior (H x W x D)

15.7" (H) x 22.4" (W) x 22" (D)

Shielding Effectiveness

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

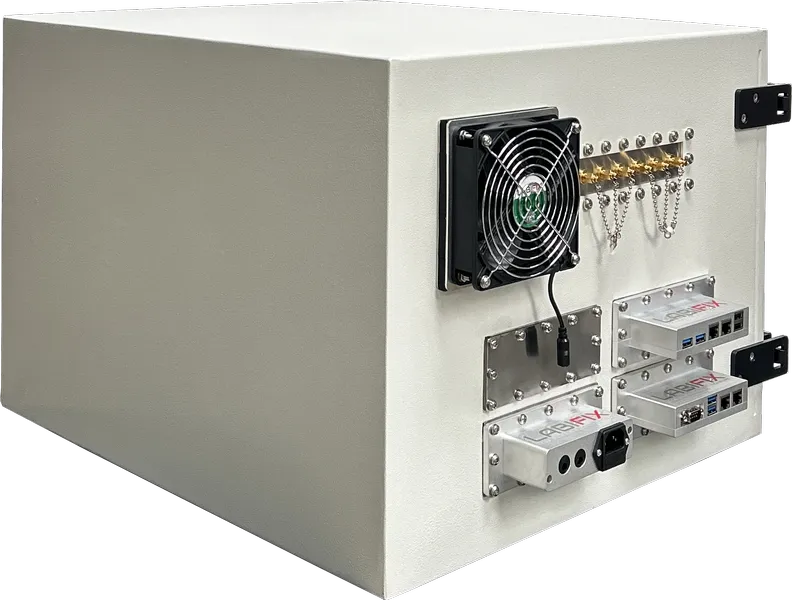

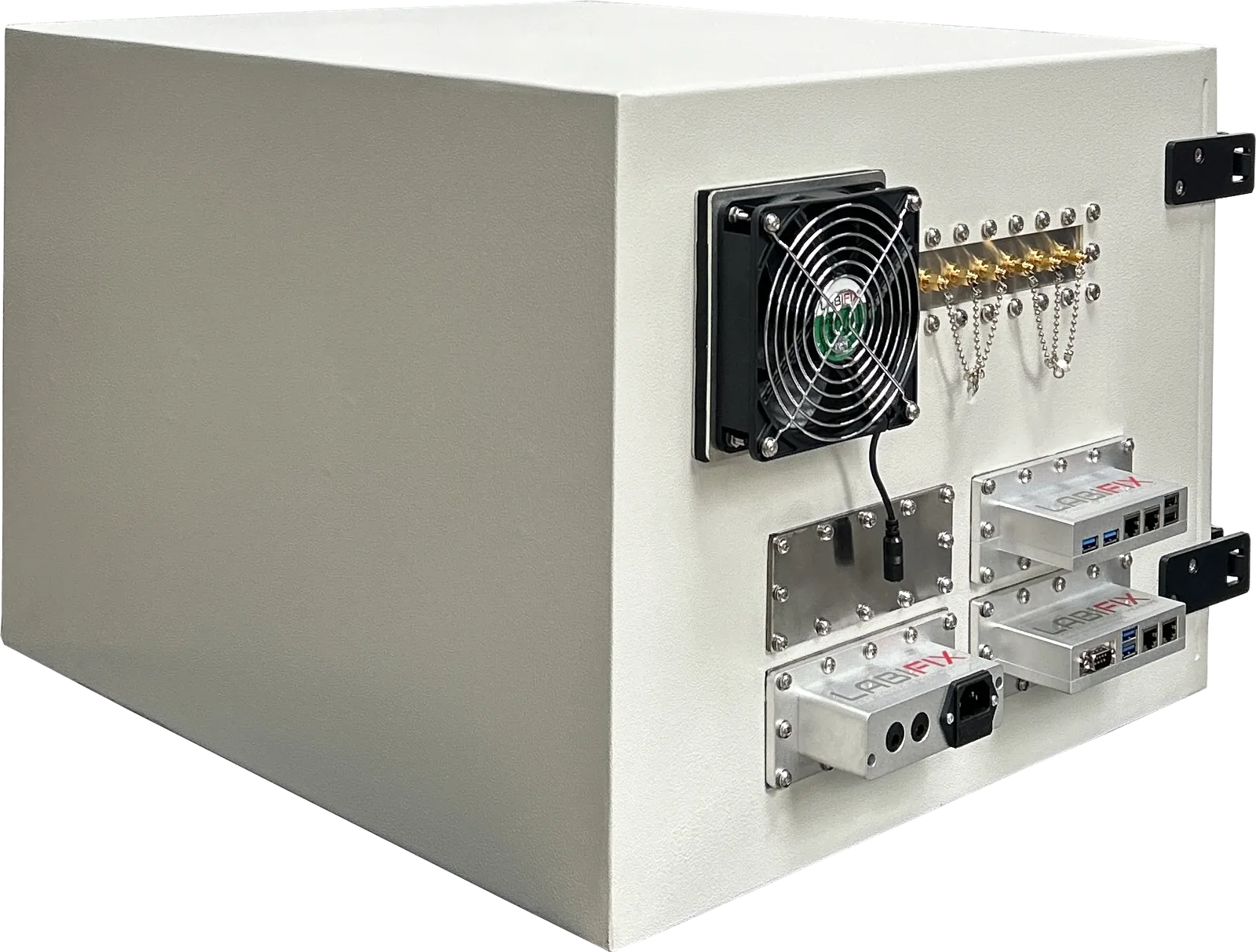

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX5060 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 22.4" (W) × 15.7" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX5060 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 22.4" (W) × 15.7" (H) × 22" (D)RF Pyramidal Microwave Absorber Lining Boundary
