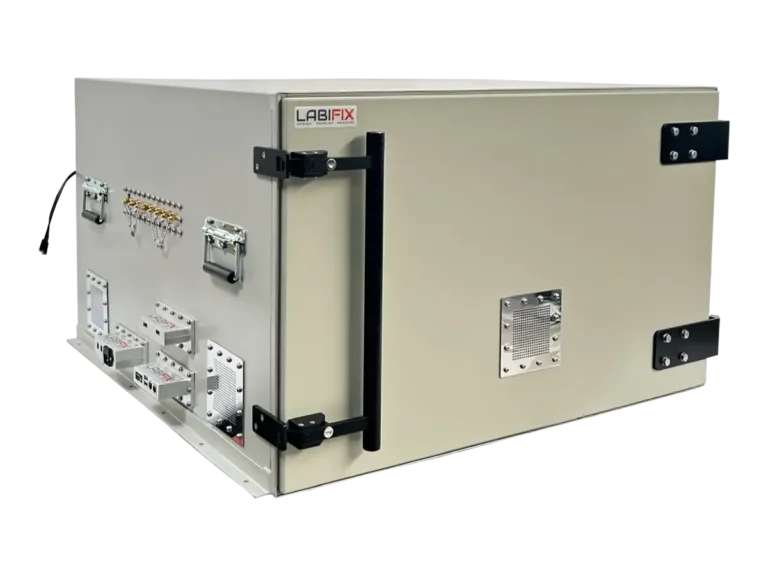

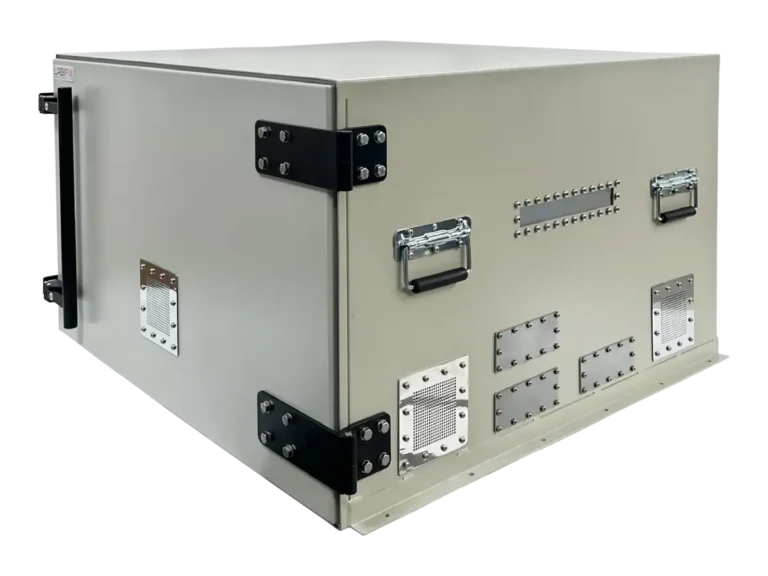

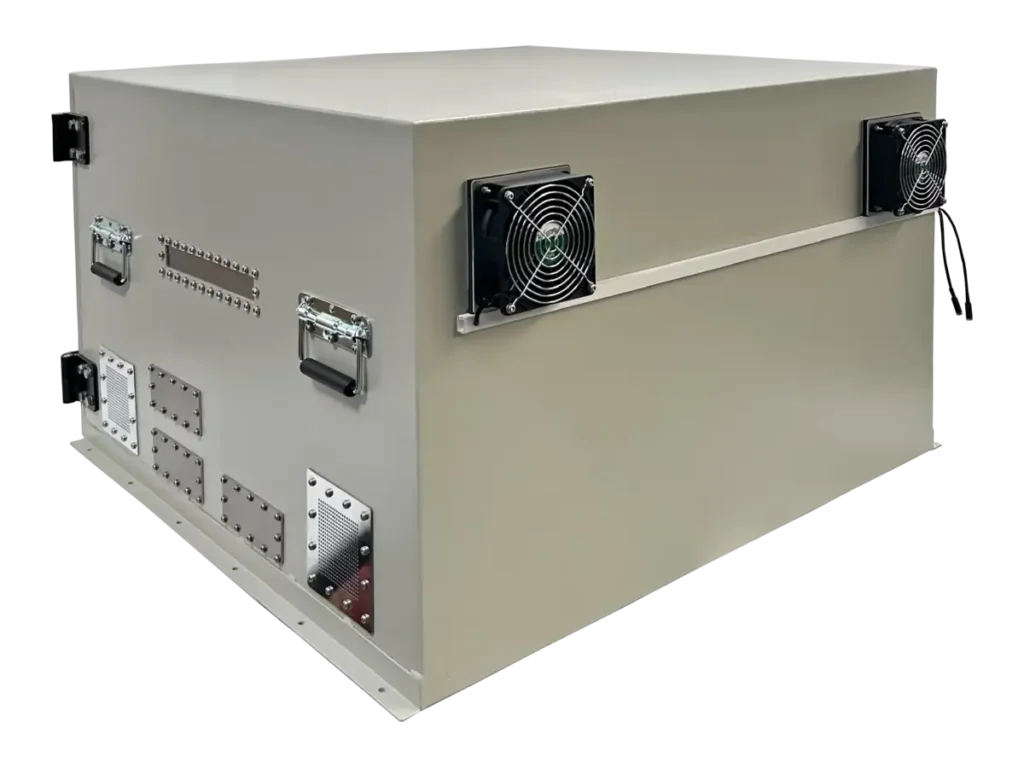

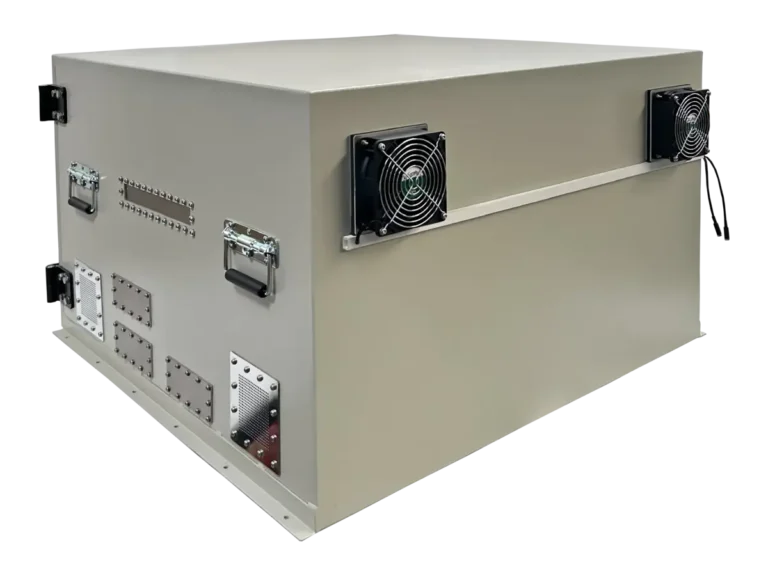

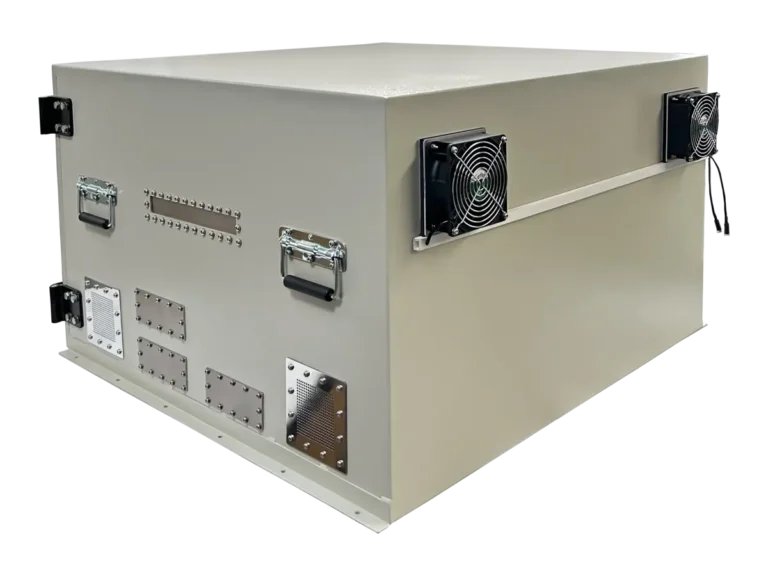

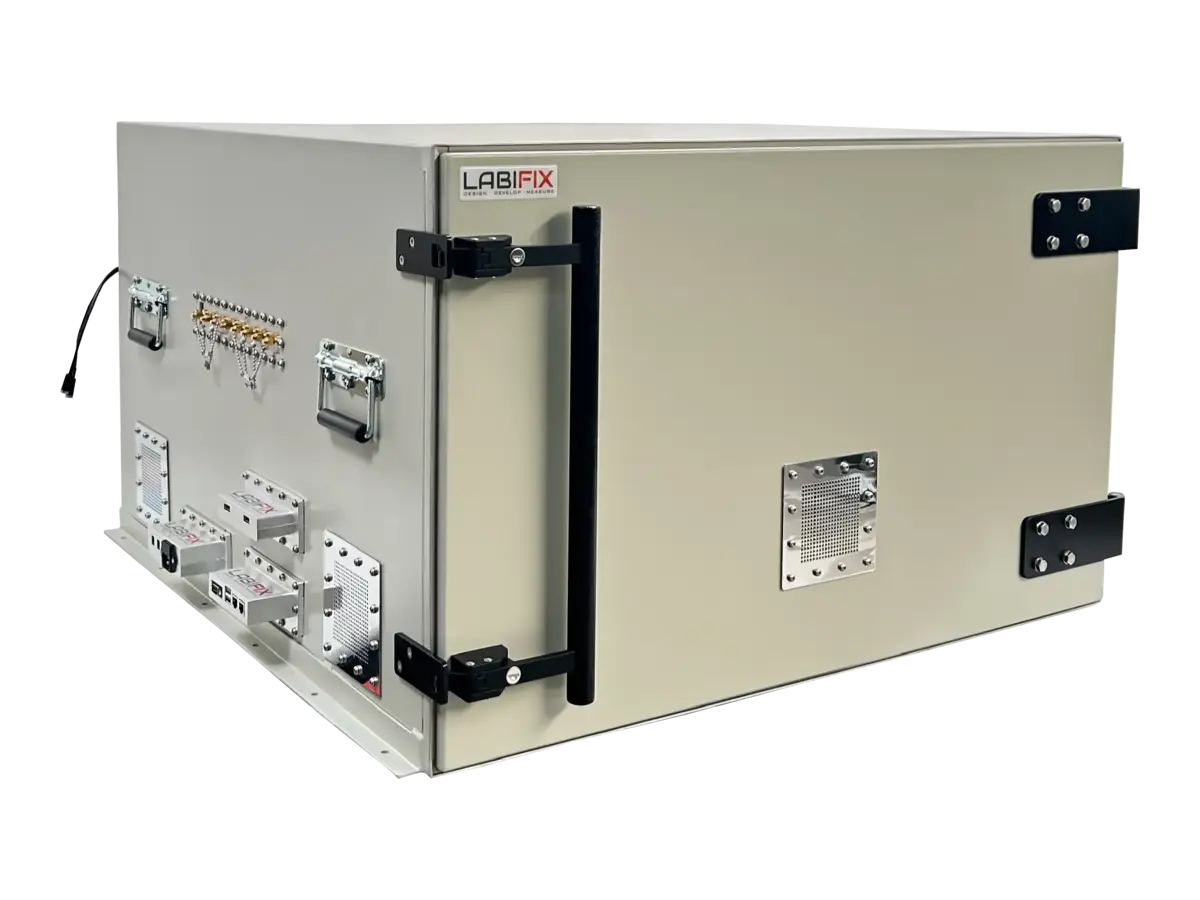

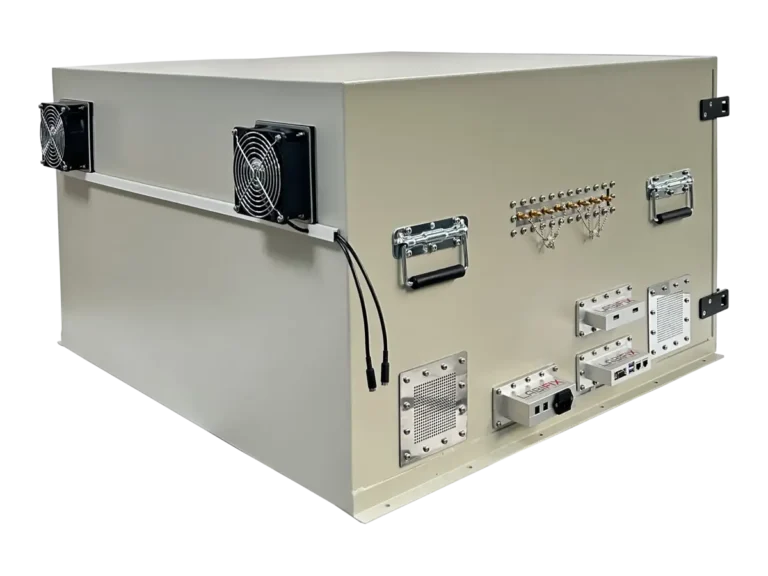

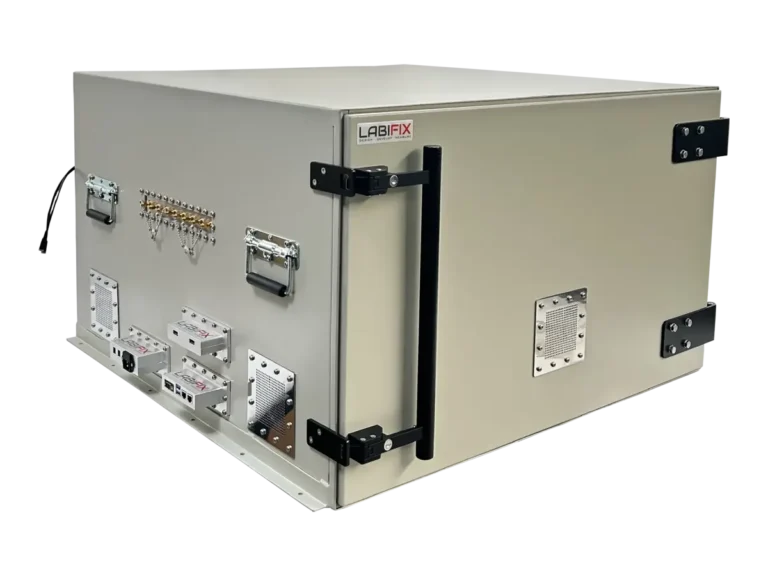

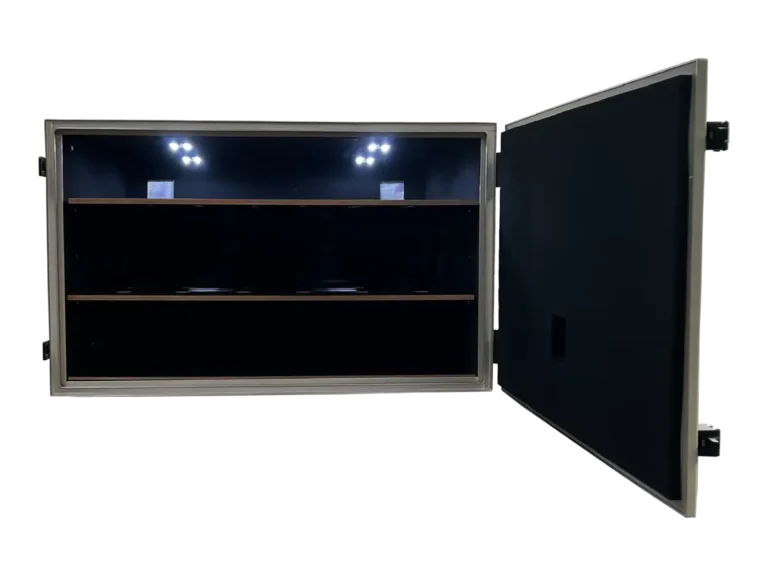

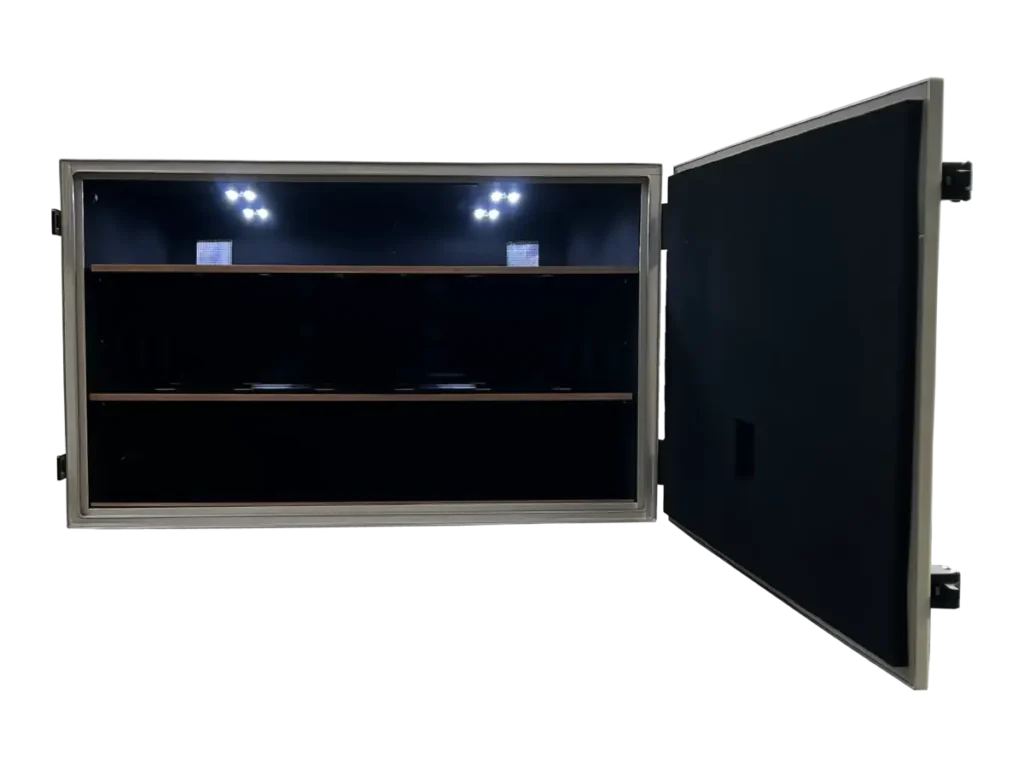

LBX7700 RF Shield Box
LBX7700 RF Shielded Enclosure is developed for engineers seeking a flexible, reliable environment for controlled wireless testing. Its configurable construction allows the enclosure to accommodate different DUT sizes, interfaces, access requirements, and test methods. High-performance RF absorber lining can help reduce internal reflections, while rugged welded construction supports demanding laboratory and production conditions. Suitable for RF validation, development, troubleshooting, and manufacturing workflows, LBX7700 helps establish repeatable test conditions and dependable isolation without forcing engineers to work within a single fixed configuration. It helps engineers create controlled, repeatable RF testing environments for accurate measurements, characterization, production testing, and laboratory workflows.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
