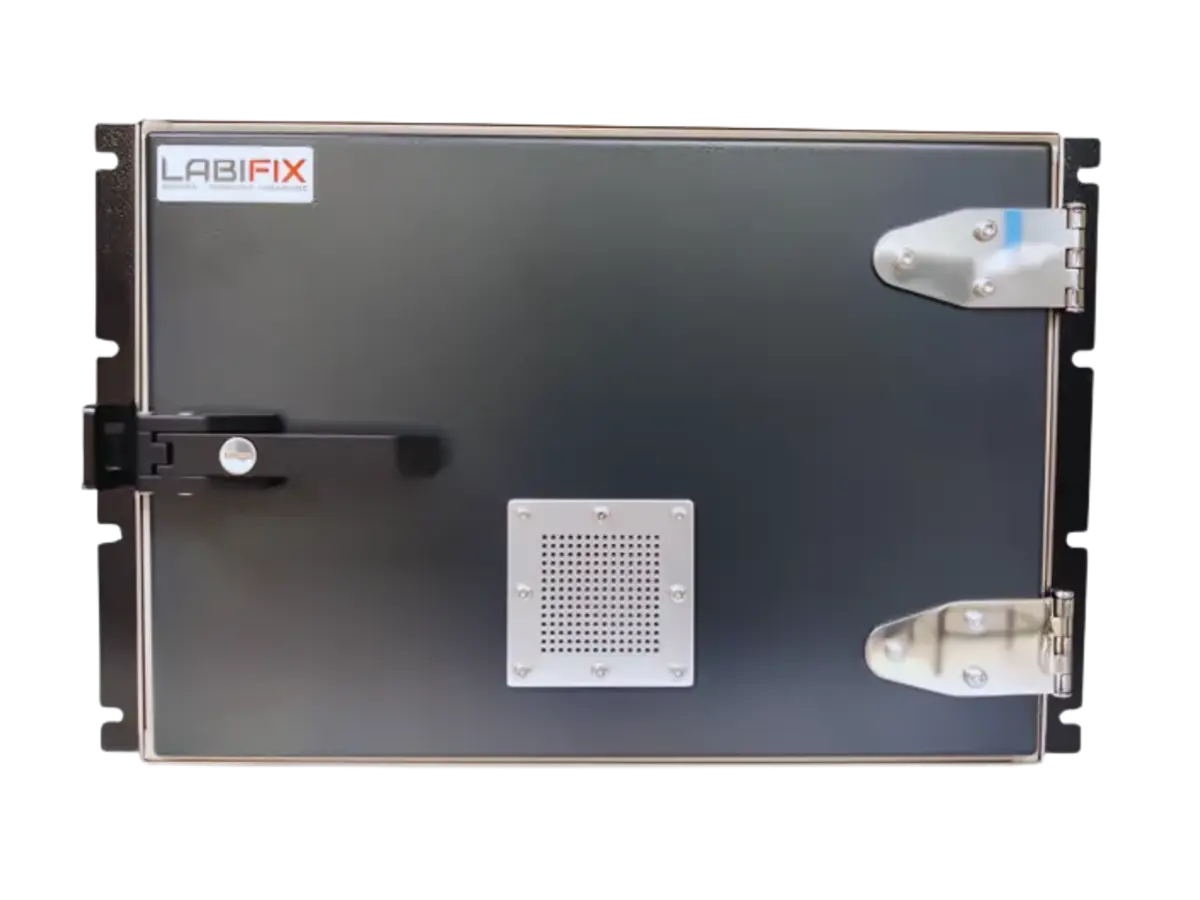

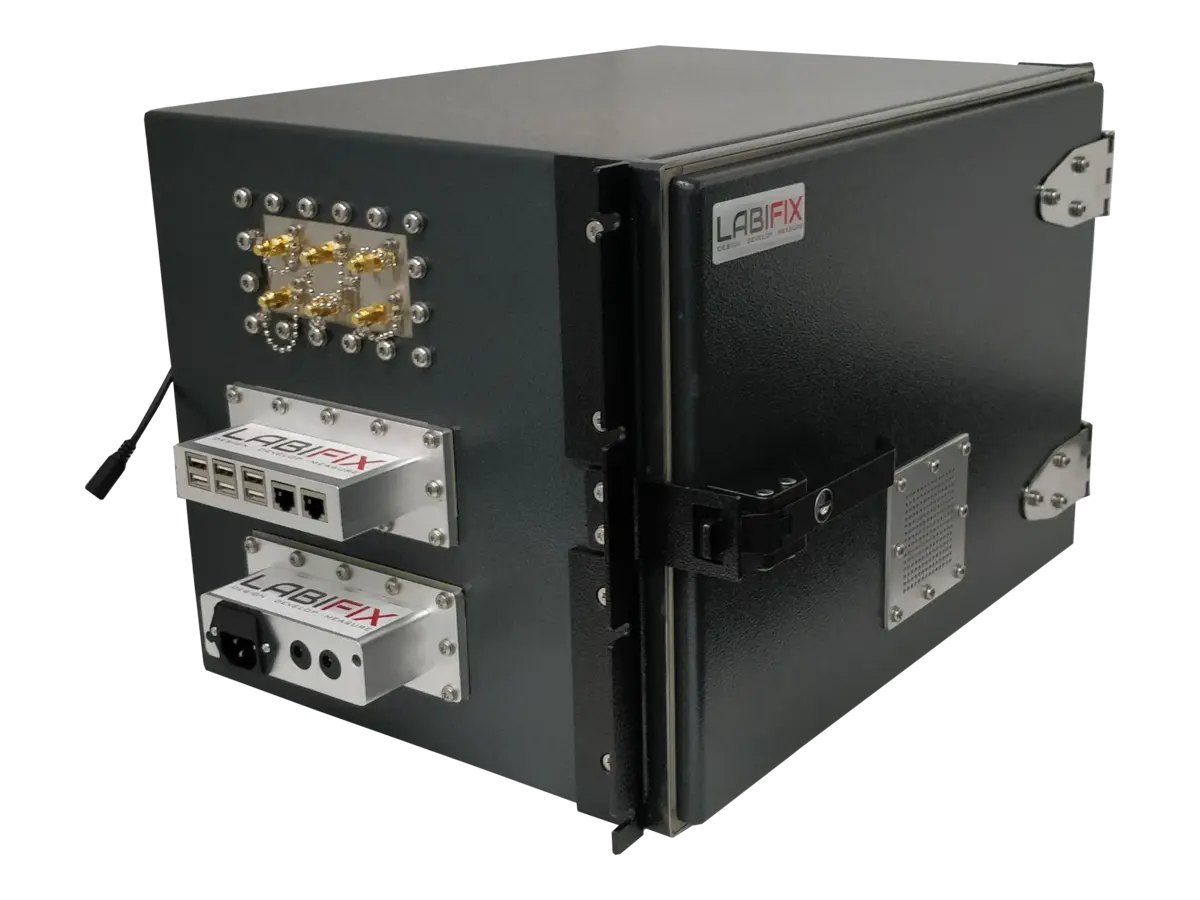

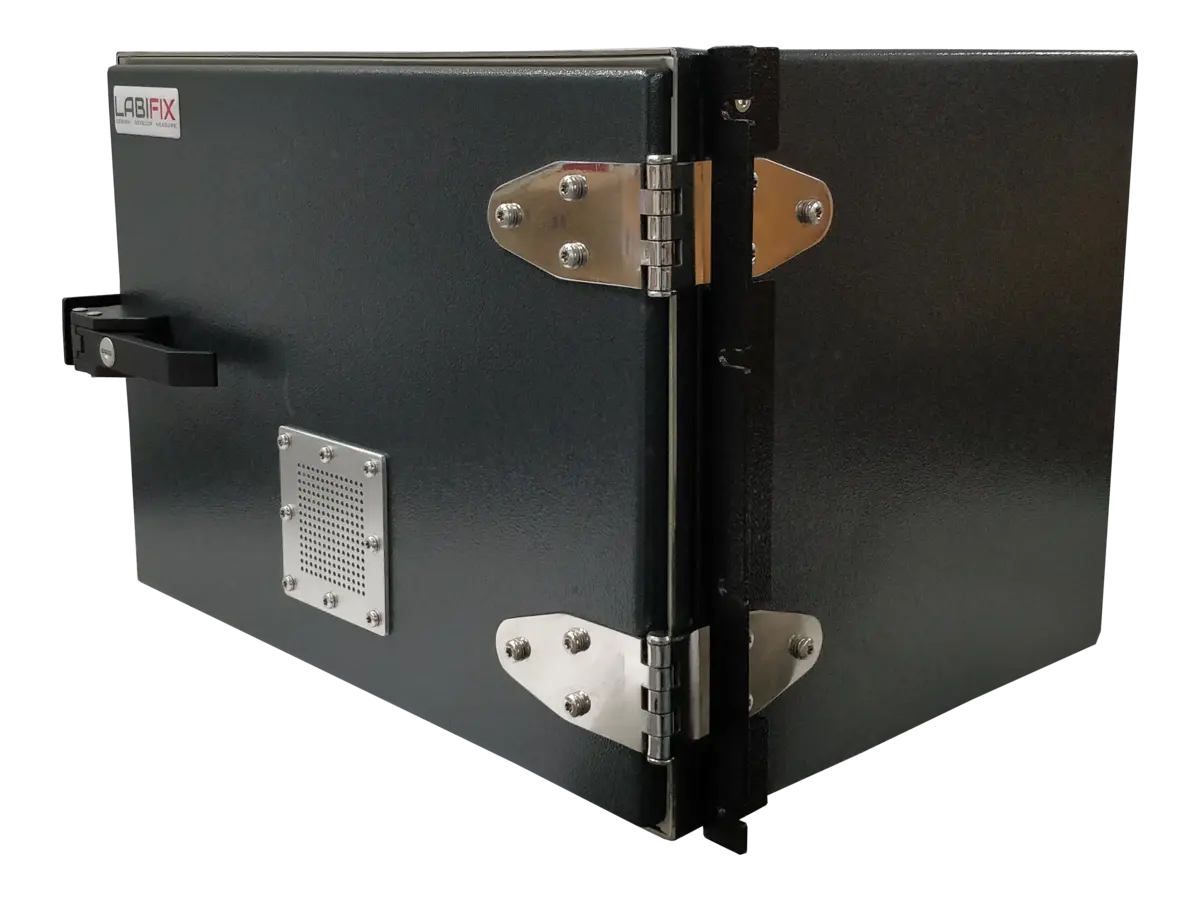

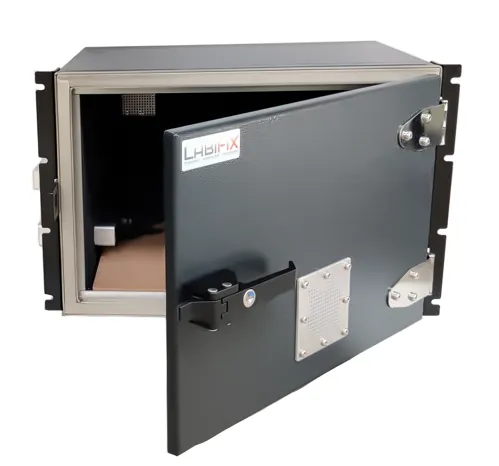

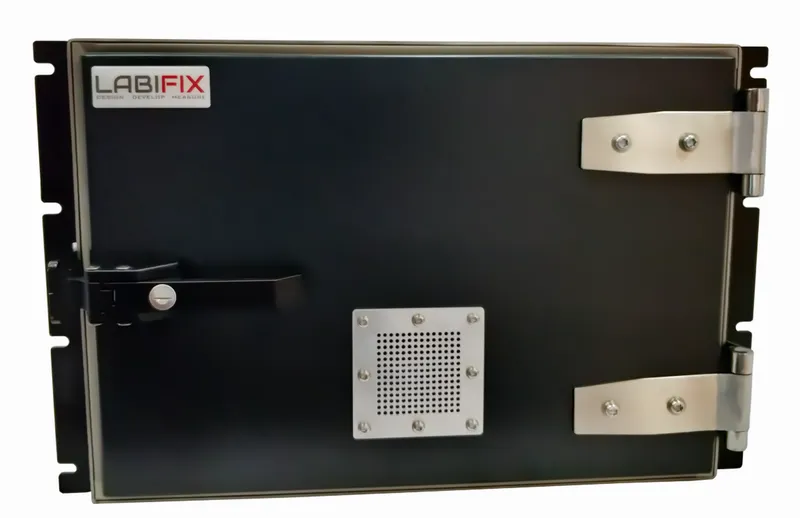

LBX1000 RF Shield Box
The LBX1000 RF Shield Box is a compact cabinet designed to accommodate testing of small or medium devices under test. The RF enclosure is constructed with high grade Enclosure and high grade RF Absorber materials, which help achieve better shielding effeteness >90dB. It comes equipped with multiple power options, ranging from AC and DC Power lines. Most importantly, LBX1000 RF Shield box comes with a high performance RF absorber lining that helps reduce noise by damping internally generated interference, enhancing signal-to-noise ratio and improving data integrity for improved stability throughout your test results
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

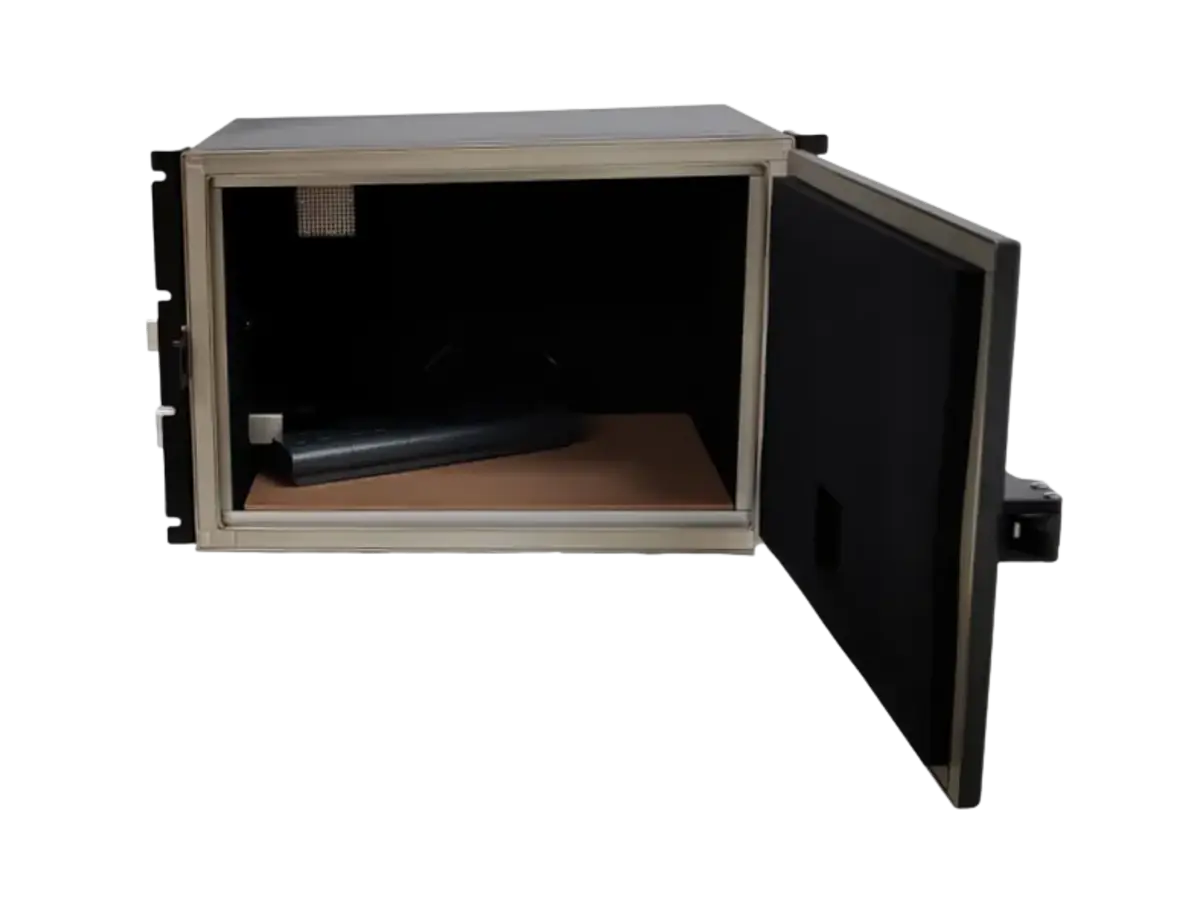

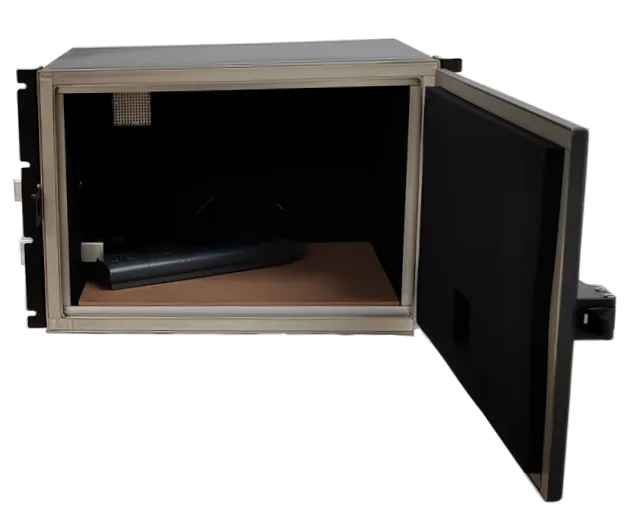

High Performance Pyramidal RF Microwave Absorber lining

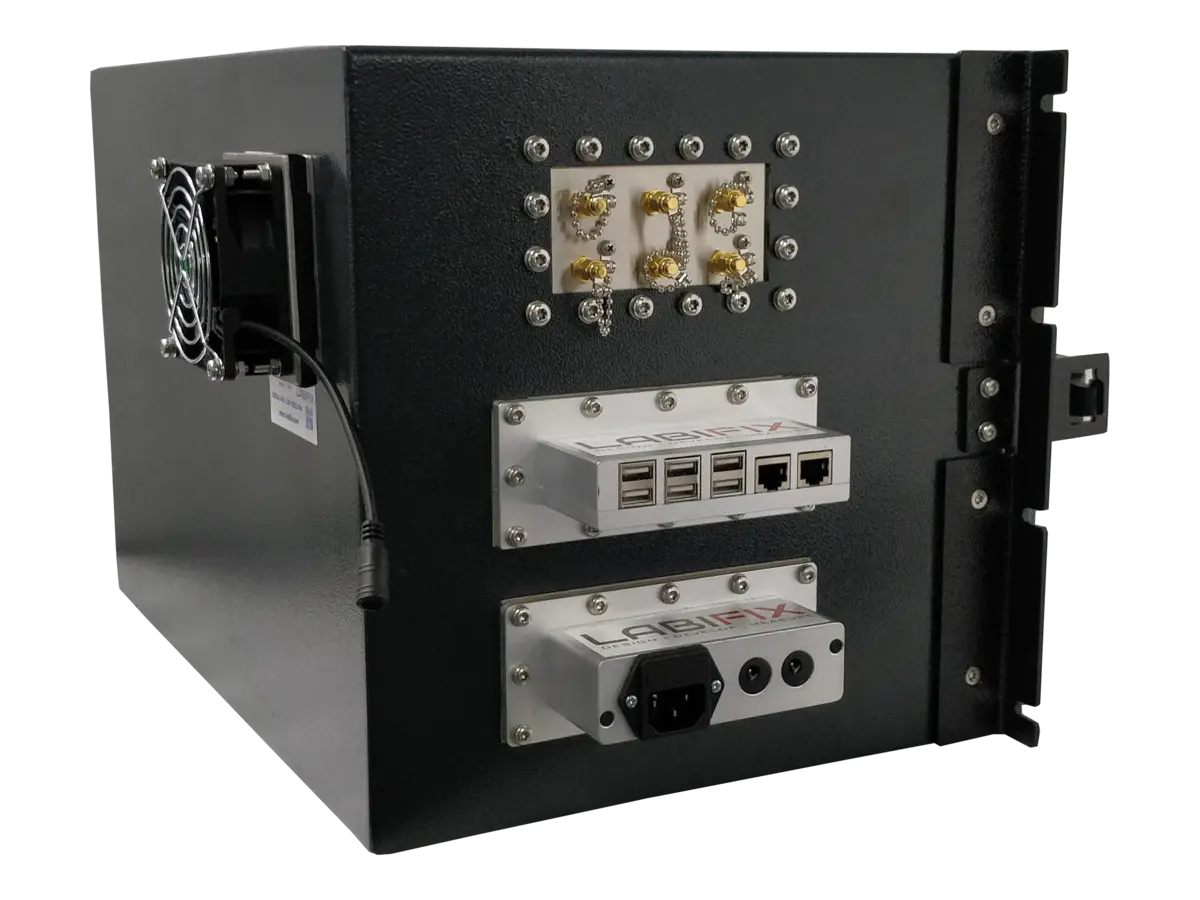

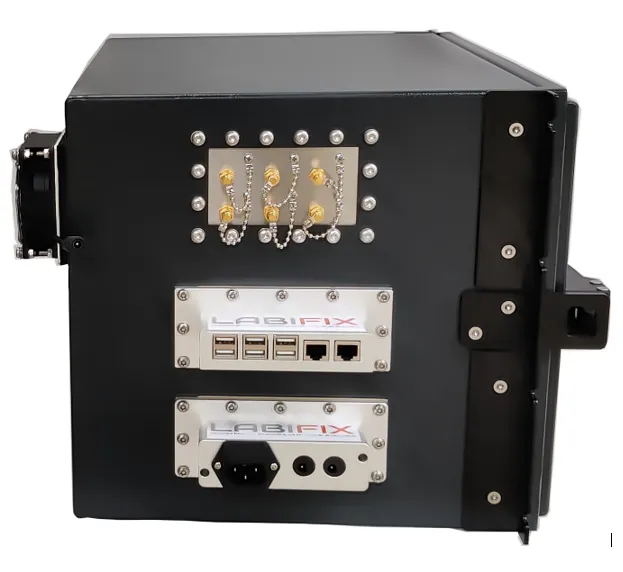

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

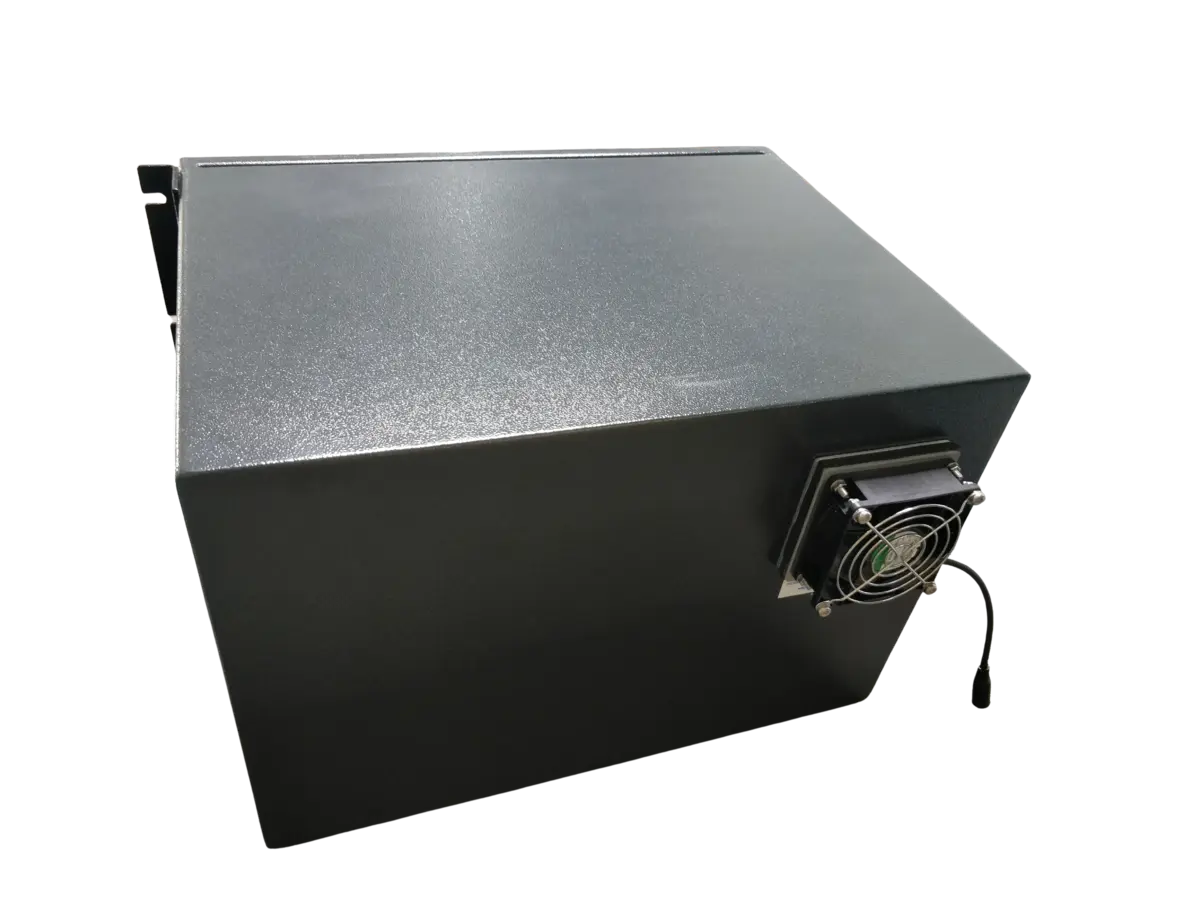

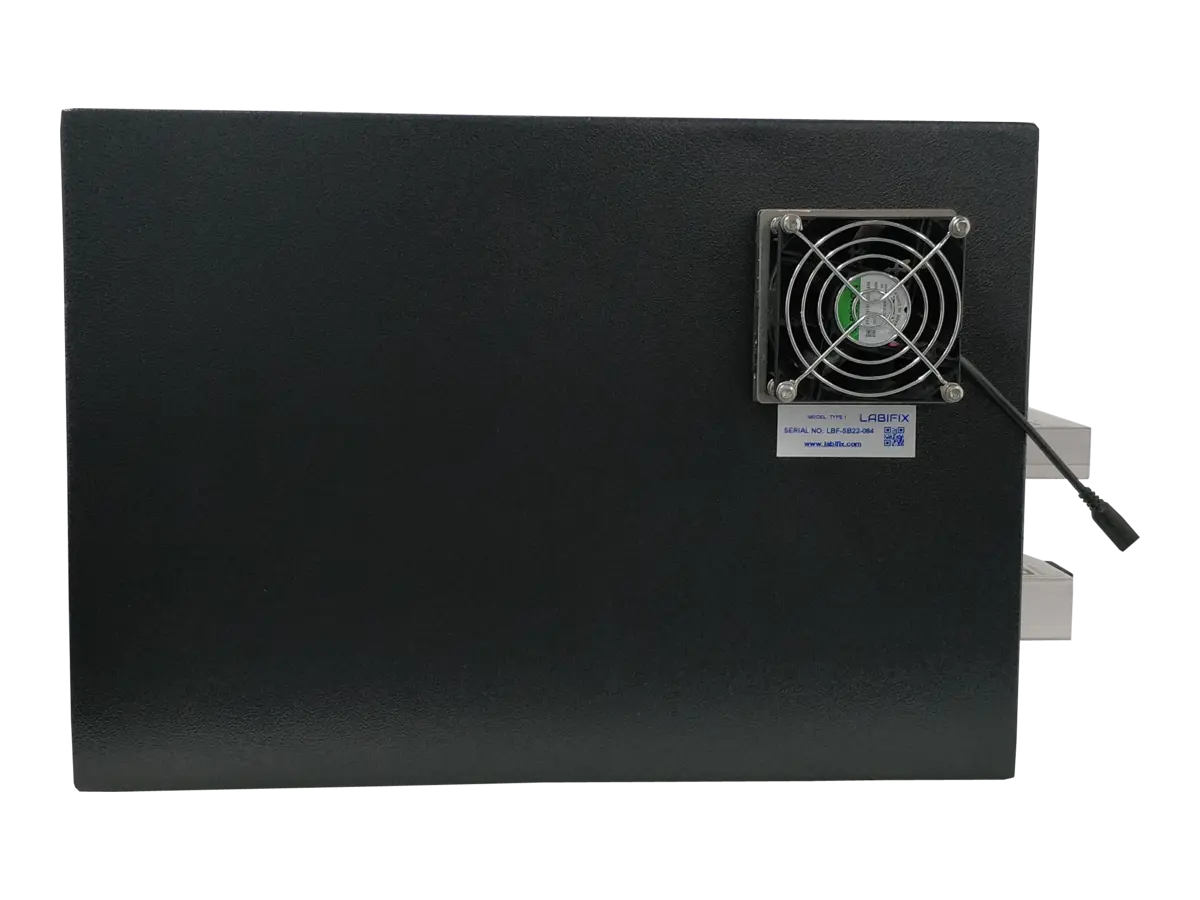

High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
