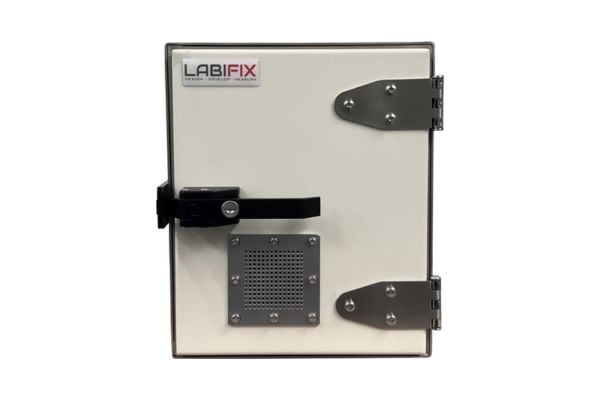

LBX0800 RF Shield Box

The LBX0800 RF isolation Box is based on a simple idea: give you a shielded space for your device, but don't make it hard to plug things in or get at what you're testing. You can add custom I/O connectors and choose the top-opening design, so you're not locked into one rigid setup. It's especially useful for wireless device testing, where you need consistent isolation and reliable connections to get repeatable results—without jumping through hoops.

Dimensions
Exterior (H x W x D)
12" (H) x 10" (W) x 14" (D)
Interior (H x W x D)
10" (H) x 8" (W) x 12" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

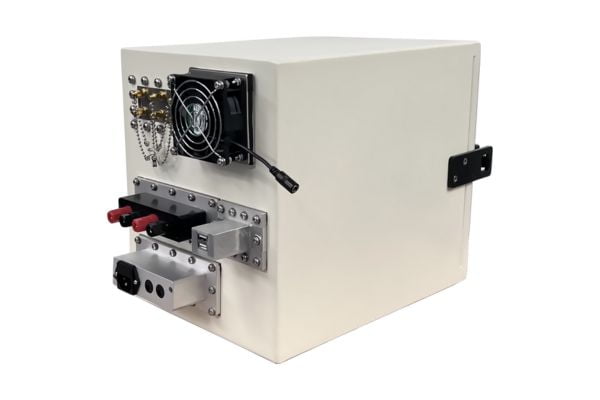

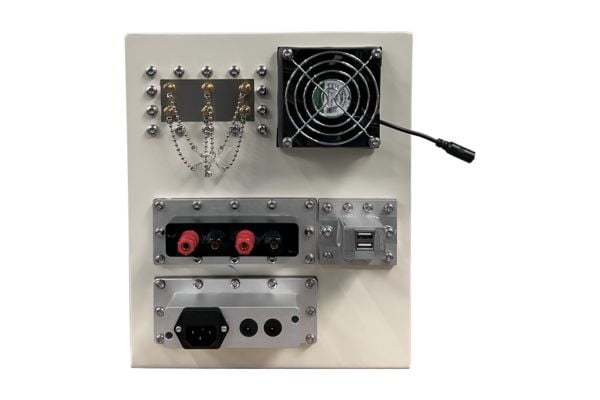

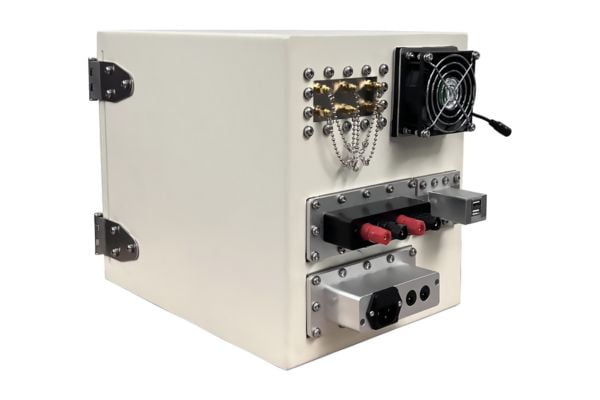

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX0800 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
10"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW14"(EXTERIOR DEPTH)SIDE VIEW10"(EXTERIOR WIDTH)14"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 10" (W) × 12" (H) × 14" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

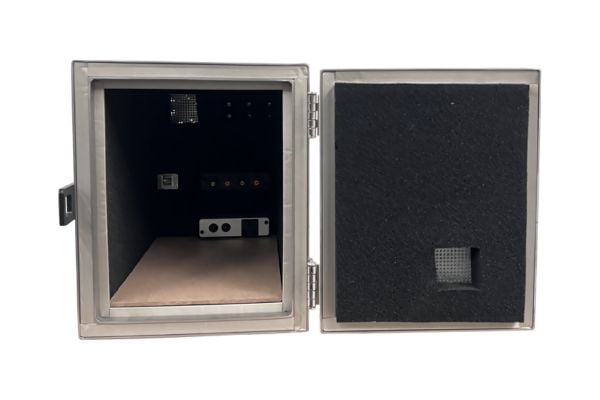

LBX0800 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
8"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW12"(INTERIOR DEPTH)INTERIOR SIDE VIEW8"(INTERIOR WIDTH)12"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 8" (W) × 10" (H) × 12" (D)RF Pyramidal Microwave Absorber Lining Boundary
