IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

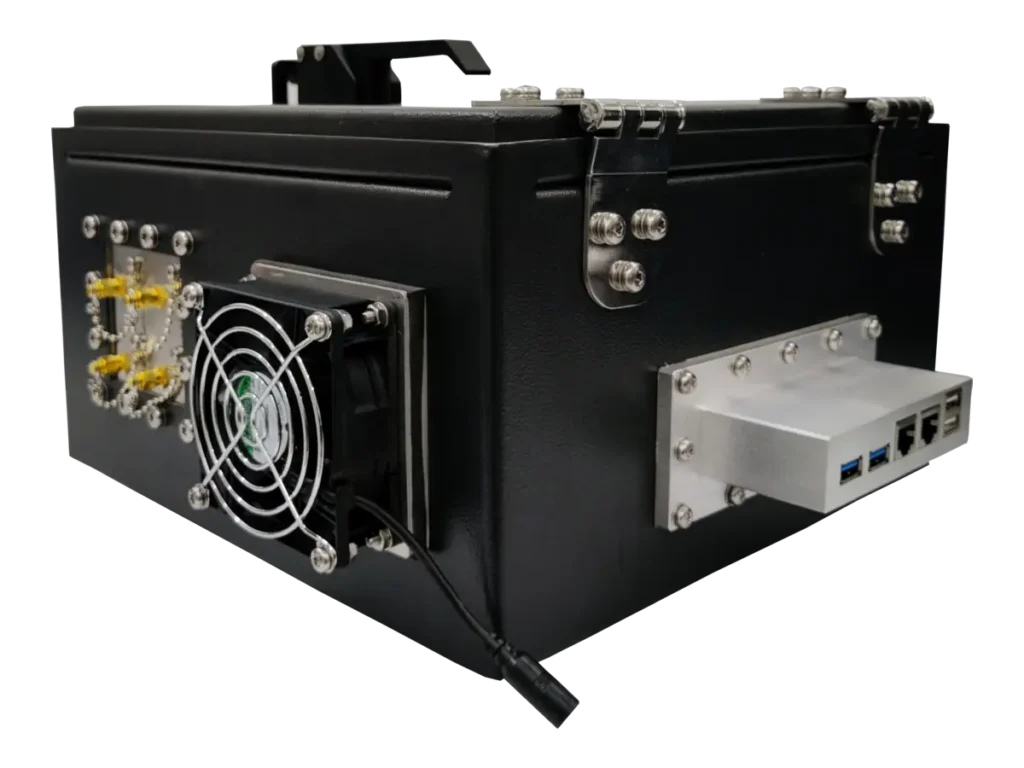

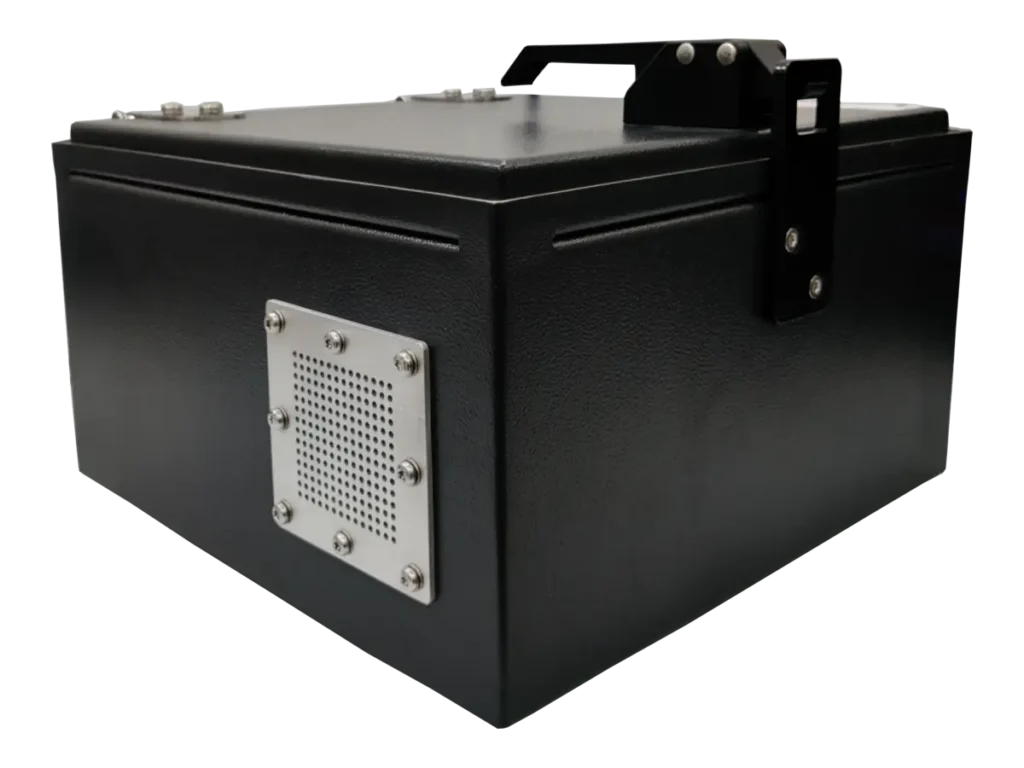

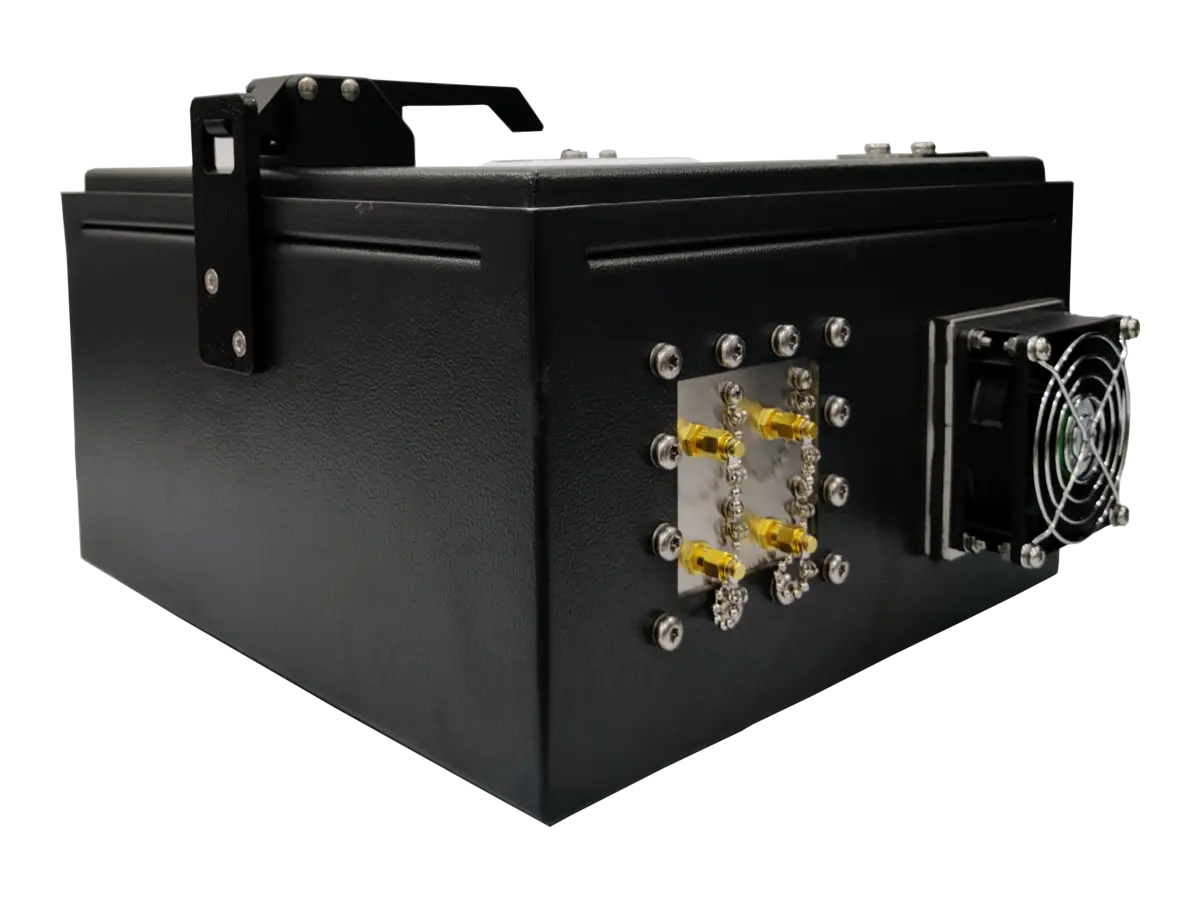

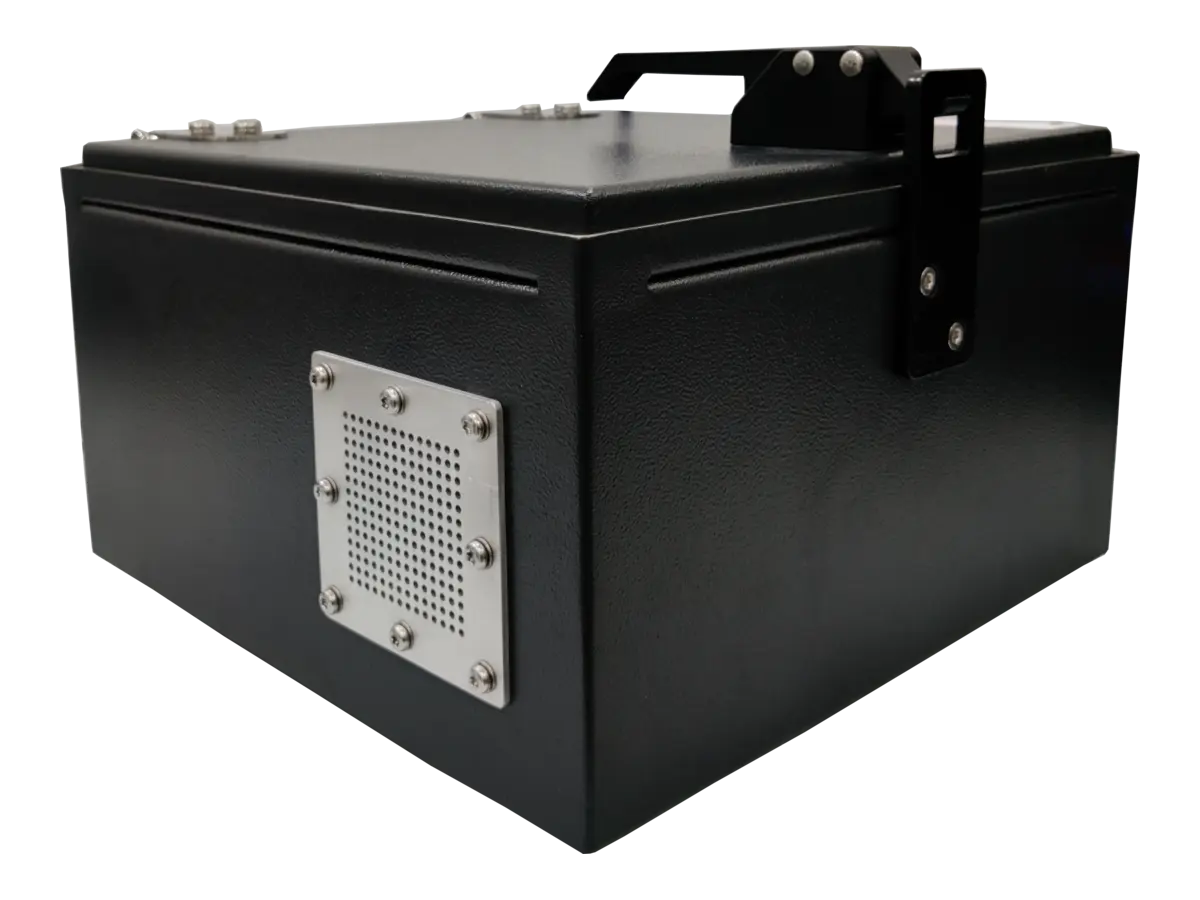

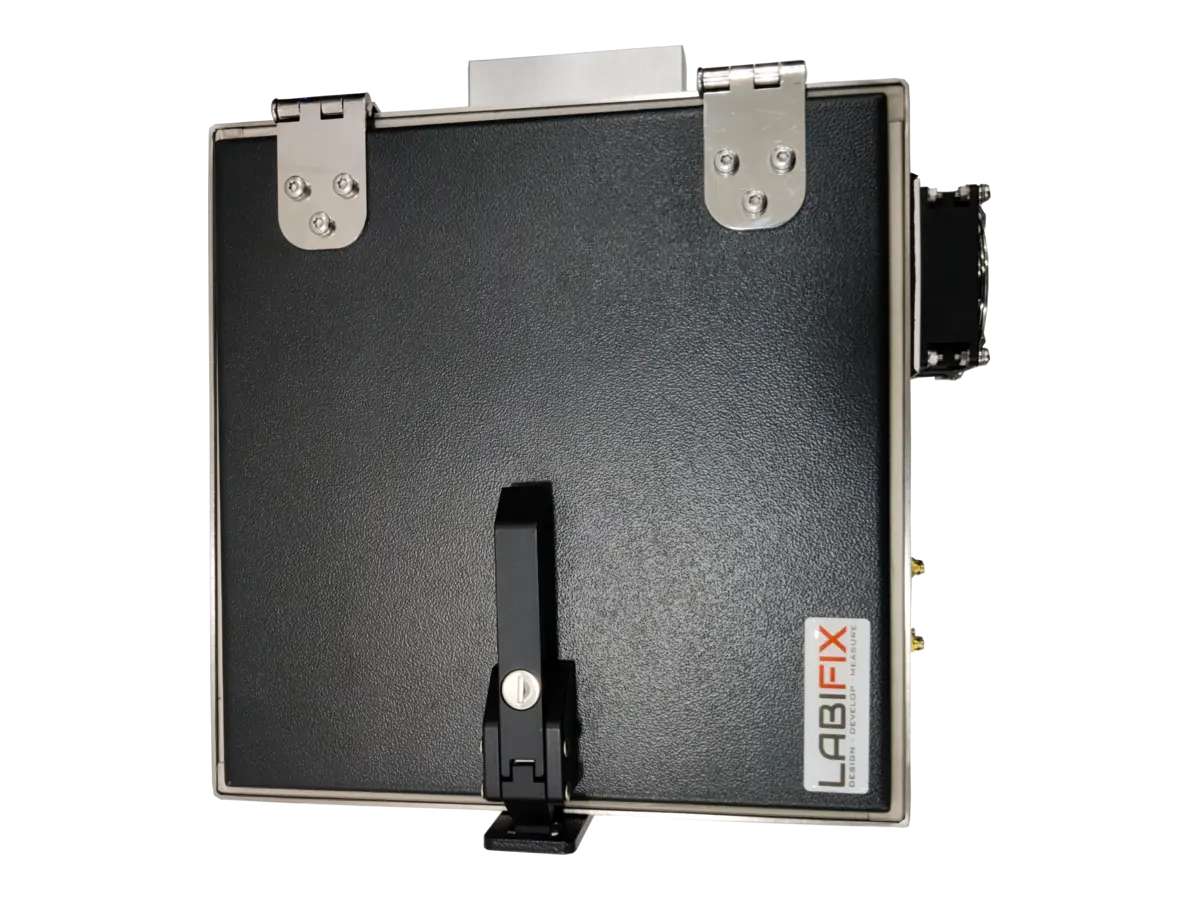

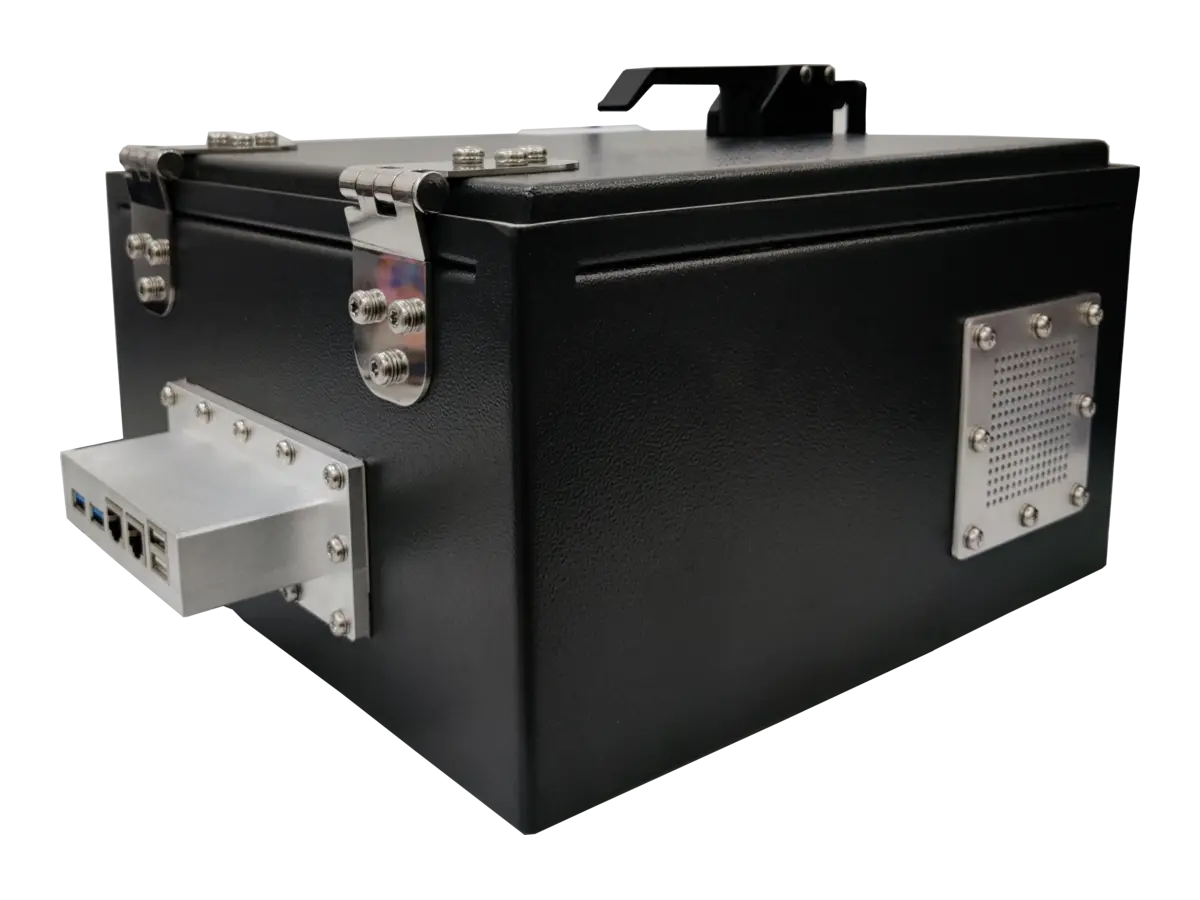

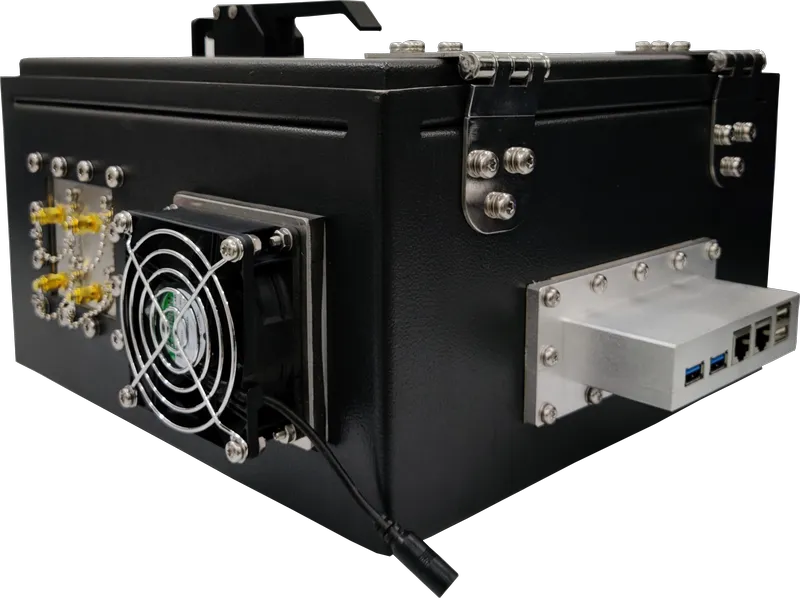

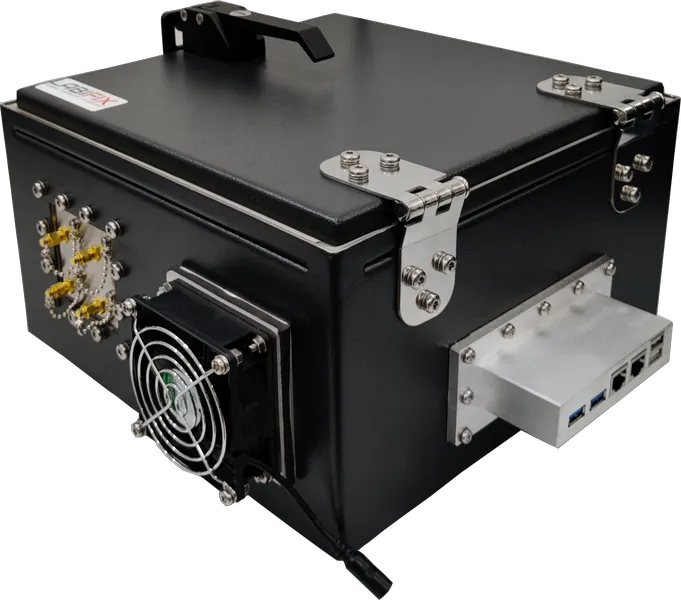

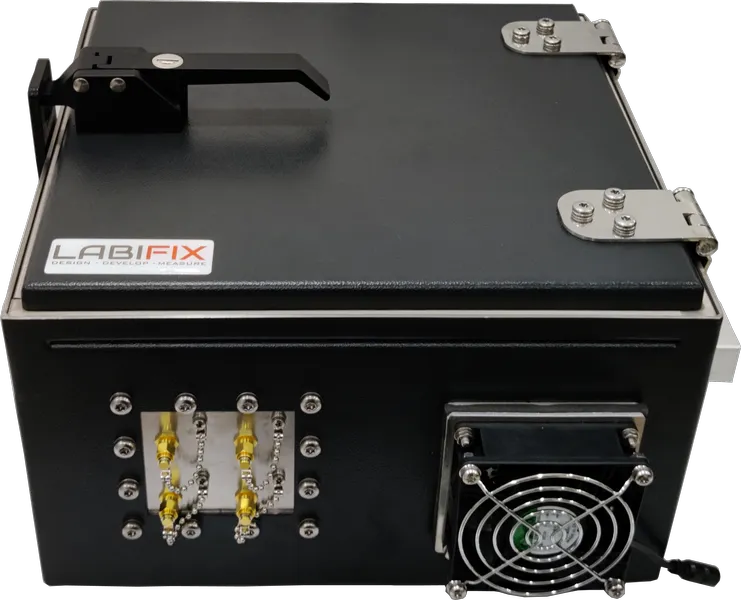

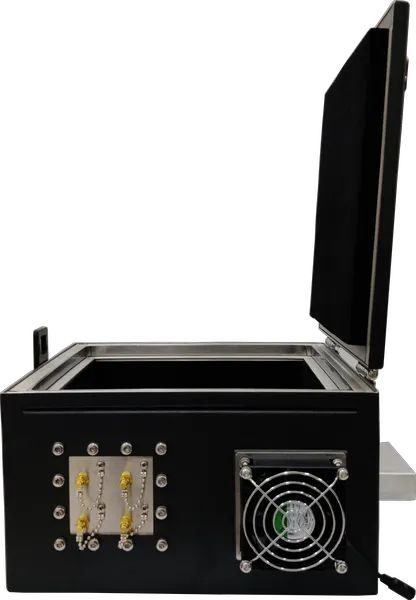

LBX0600 RF Shield Box

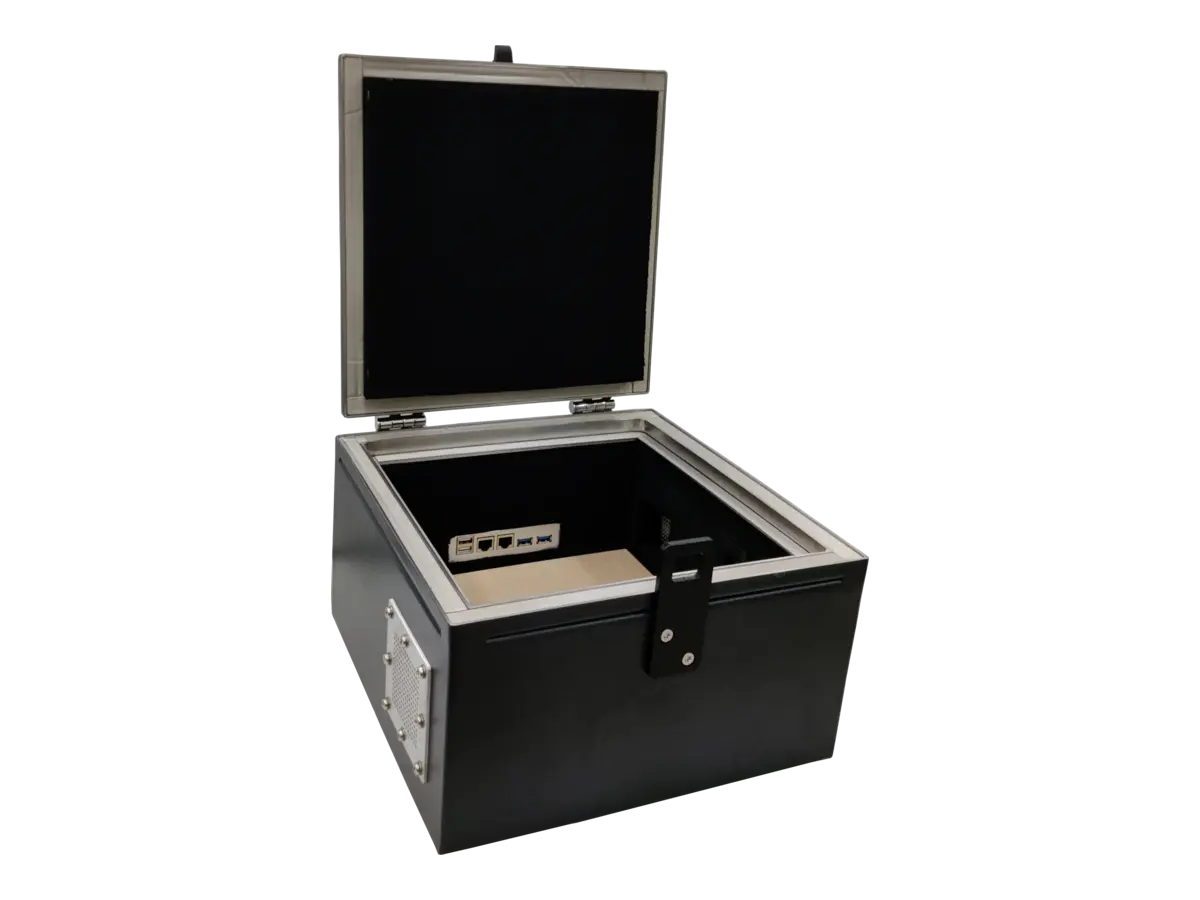

The LBX0600 is a small form factor rf enclosure for engineers who need consistent, repeatable RF testing. You can customize it with specific I/O connectors and a top-opening design to fit your particular application. That makes it practical for everyday use, while still keeping a controlled environment around the device you're testing. Whether it's for validation, development, or production, it's a best when repeatability is key factor.
Dimensions
Exterior (H x W x D)
7" (H) x 12" (W) x 12" (D)
Interior (H x W x D)
5" (H) x 10" (W) x 10" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining

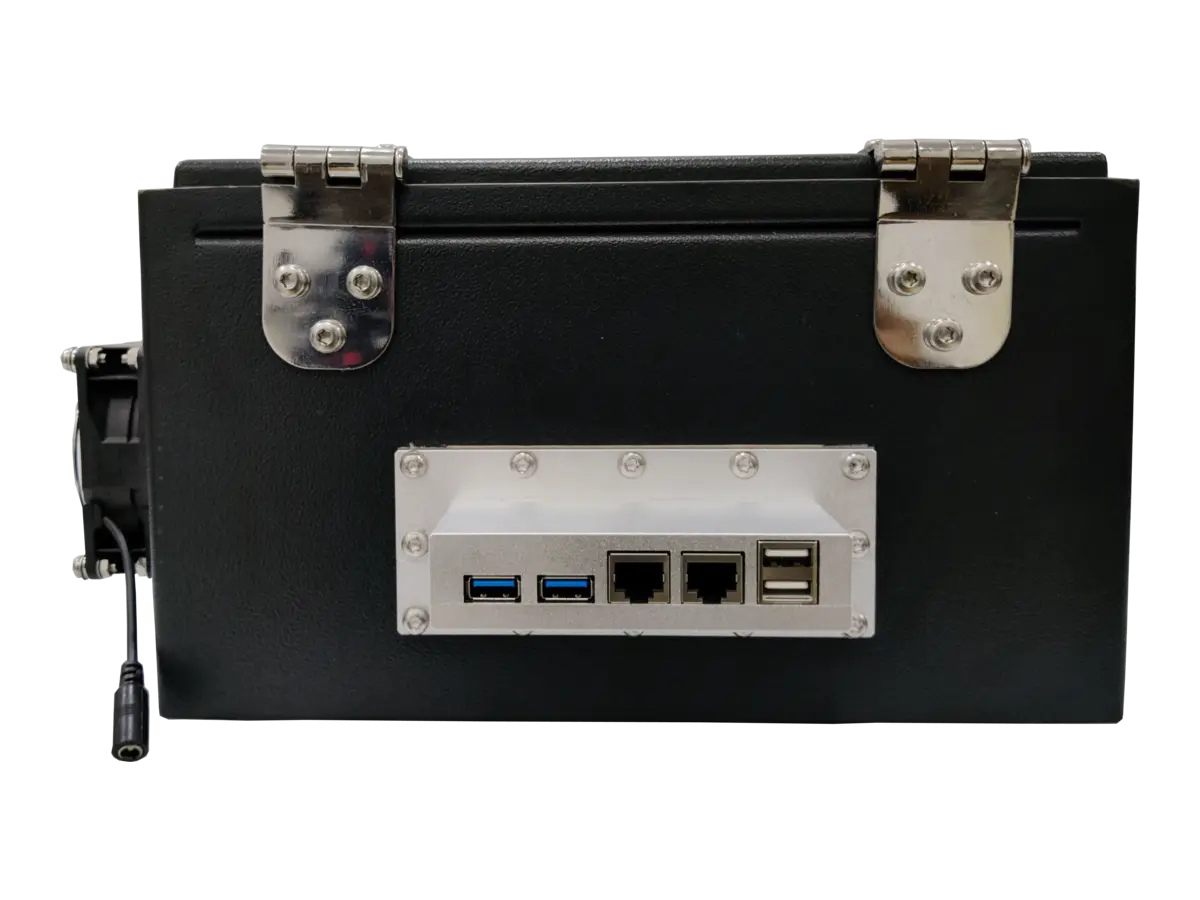

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
