LBX6050 RF Shield Box
LBX6050 is intended to make RF testing more controlled and easier to integrate into an existing laboratory workflow. With options such as High performance shielded Air Vents for adequate air flow and EMI filters on Data Ports and Power lines, the enclosure can be adapted to the equipment, interfaces and test method being used. That makes it a natural fit for EMI/EMC testing, with the enclosure able to accommodate project-specific interfaces and shielding requirements, where a defined RF environment can help engineers work with greater consistency. As a RF shielded enclosure, LBX6050 can be configured around the DUT and the way it needs to be tested
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

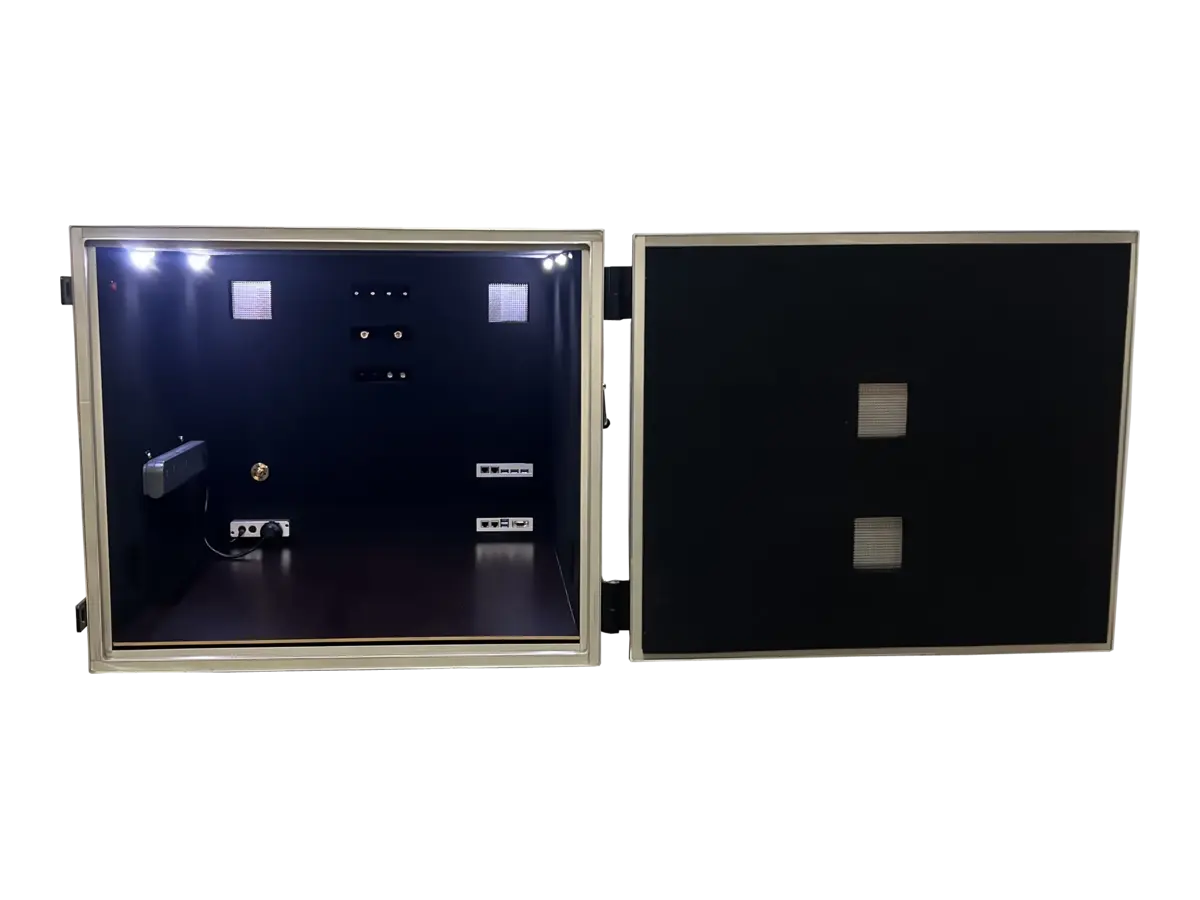

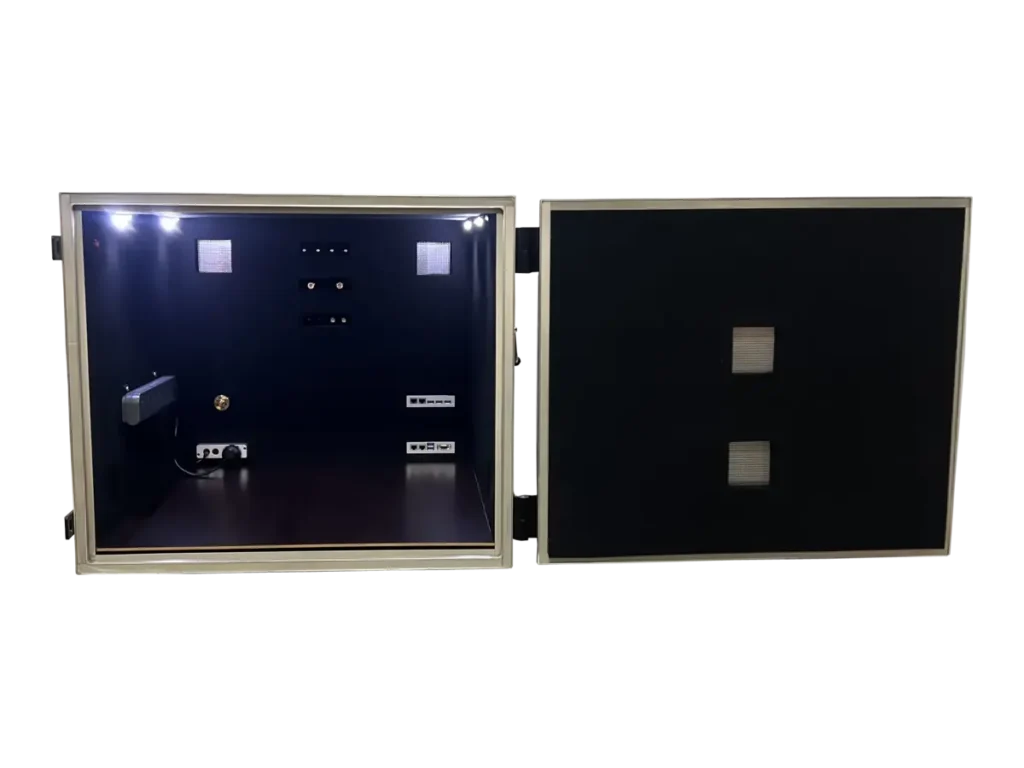

High Performance Pyramidal RF Microwave Absorber lining

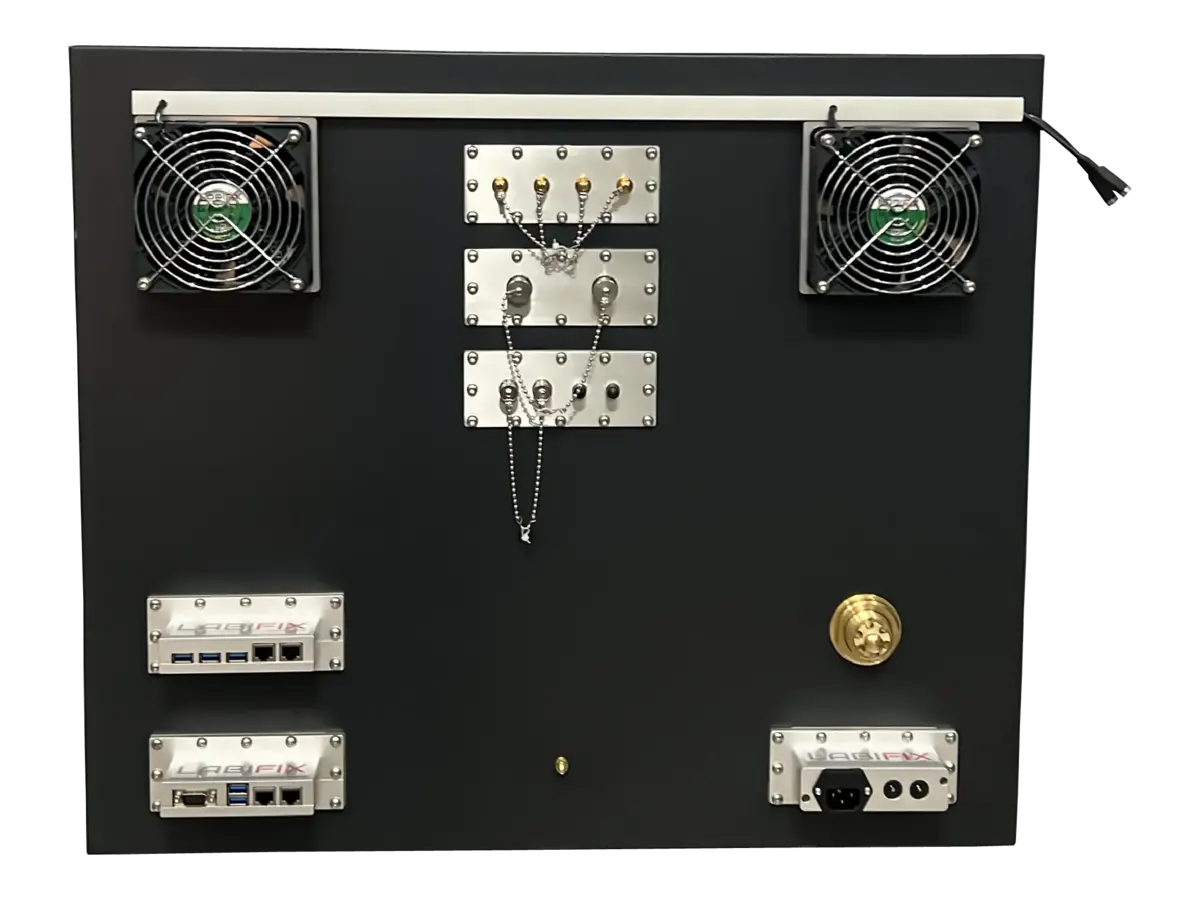

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
