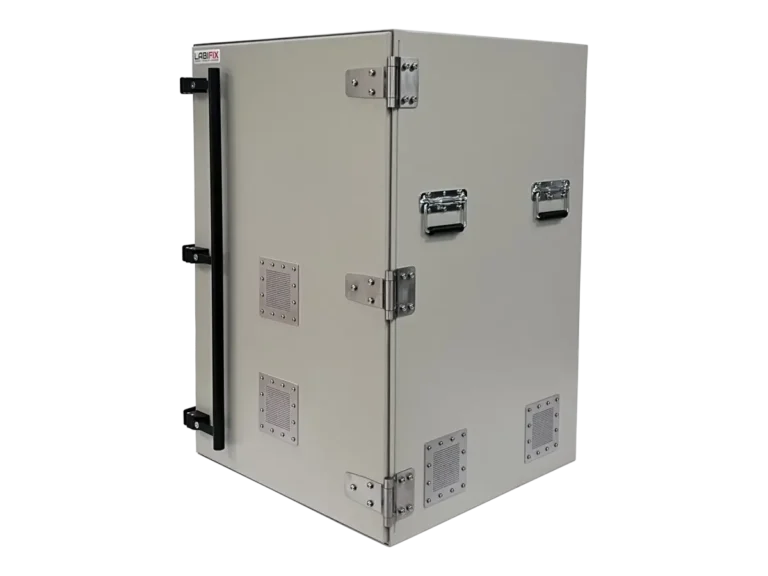

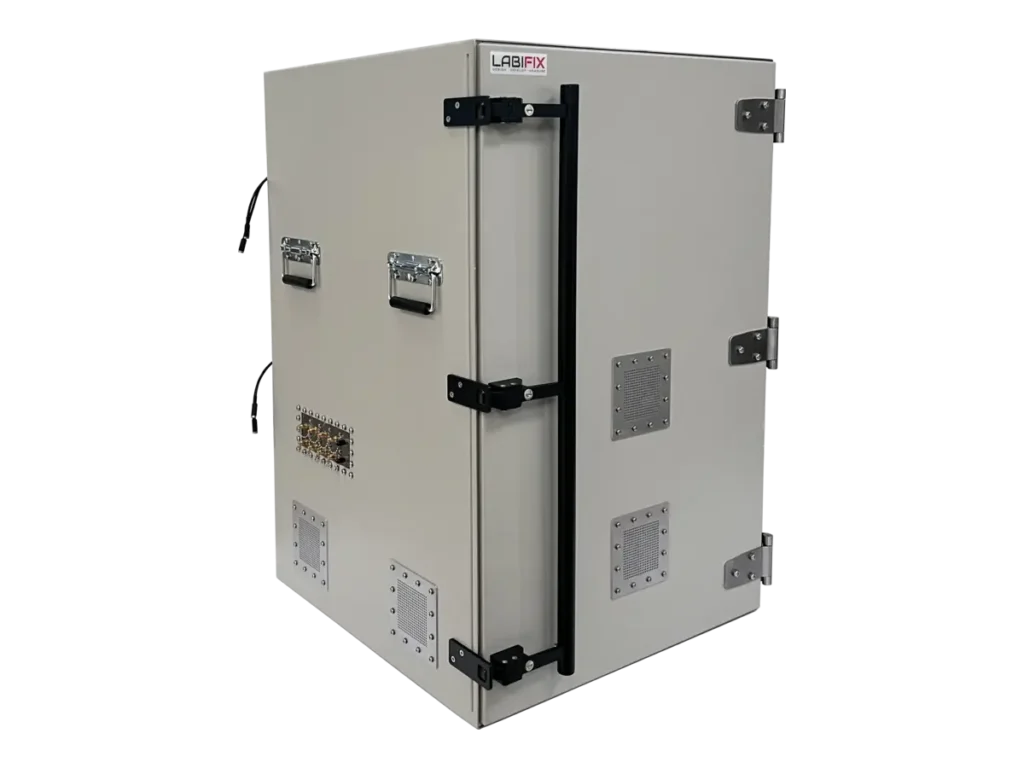

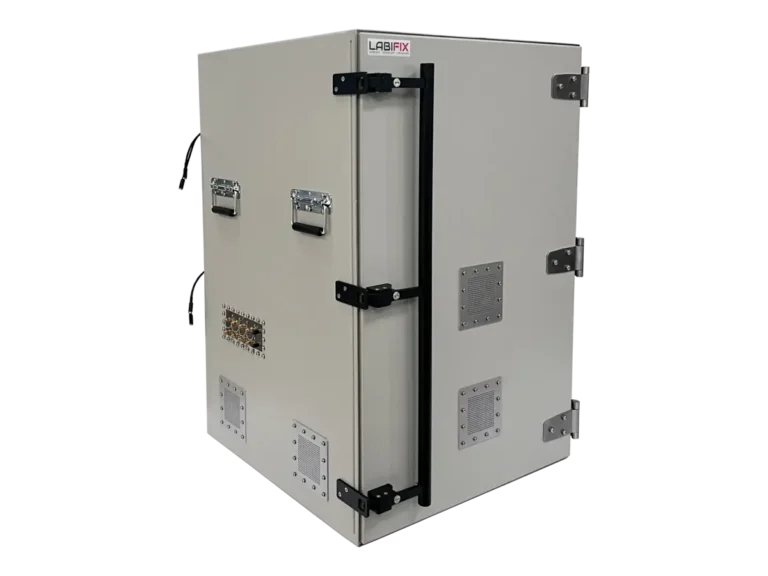

LBX6010 Handover Simulations Testing RF Isolation boxes LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX6010 RF Shield Box

LBX6010 Shielded Test box for RF and Microwave Devices Testing is constructed with superior Enclosure and high grade RF Absorber material helps reduce internal reflection inside the chamber and can be customized for various requirements. This rf enclosure is complemented by an EMI filter on the data ports. The excellent design makes its structure strong and the precision processing provides better isolation for your device under test. Superior shielding effectiveness against RF interferences featuring with Filtered AC & DC power lines, Filtered Data lines & RF connectors. I/O Options, dimensions, performance, etc. can be customized to meet your needs.

Dimensions
Exterior (H x W x D)
38" (H) x 25" (W) x 25" (D)
Interior (H x W x D)
36" (H) x 23" (W) x 23" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

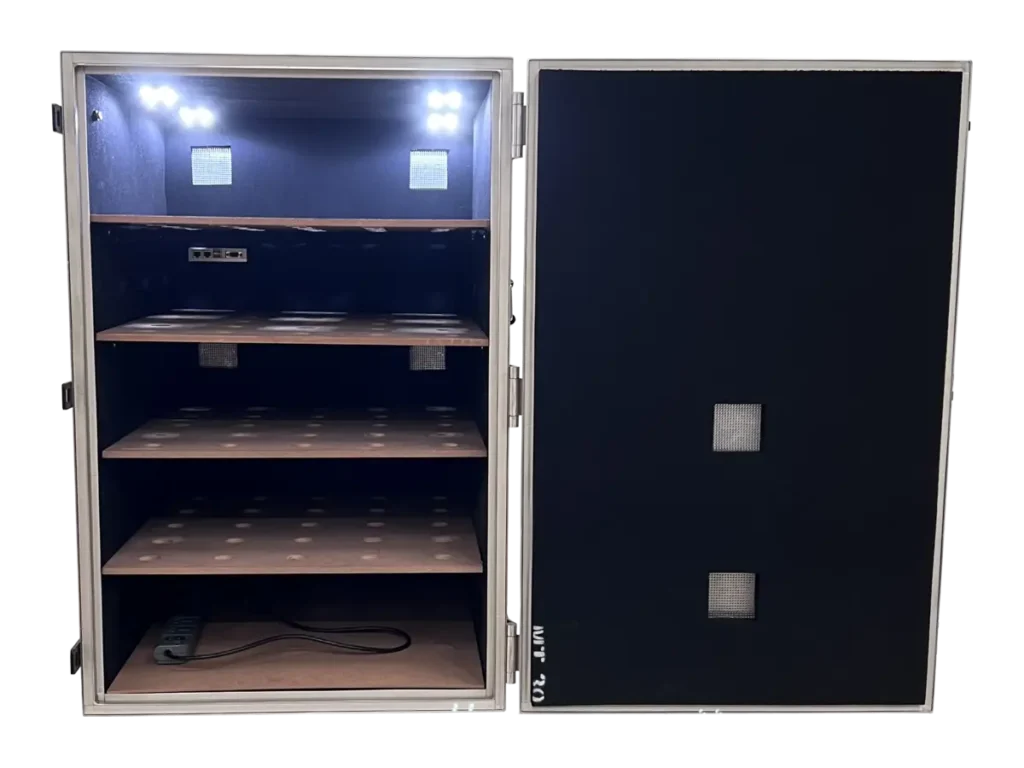

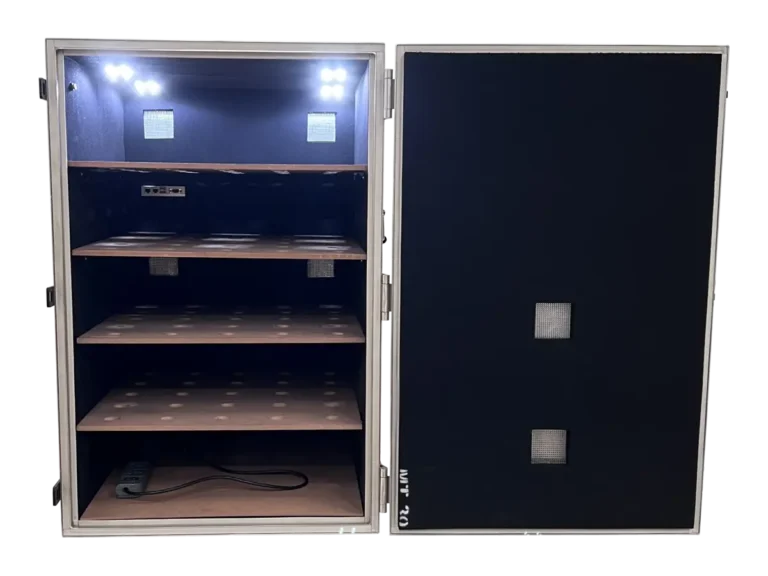

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

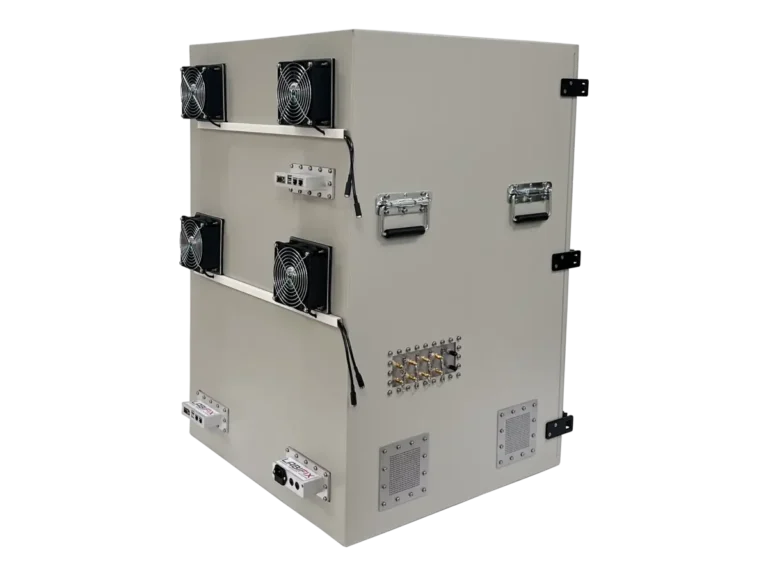

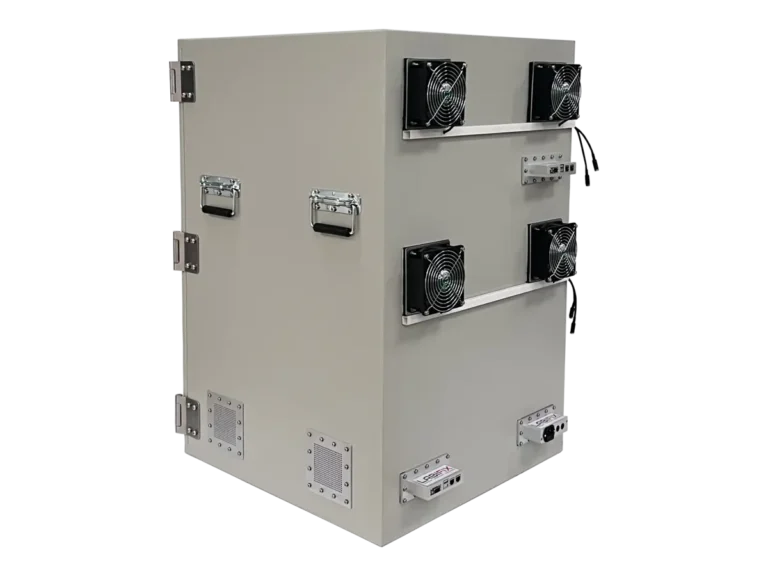

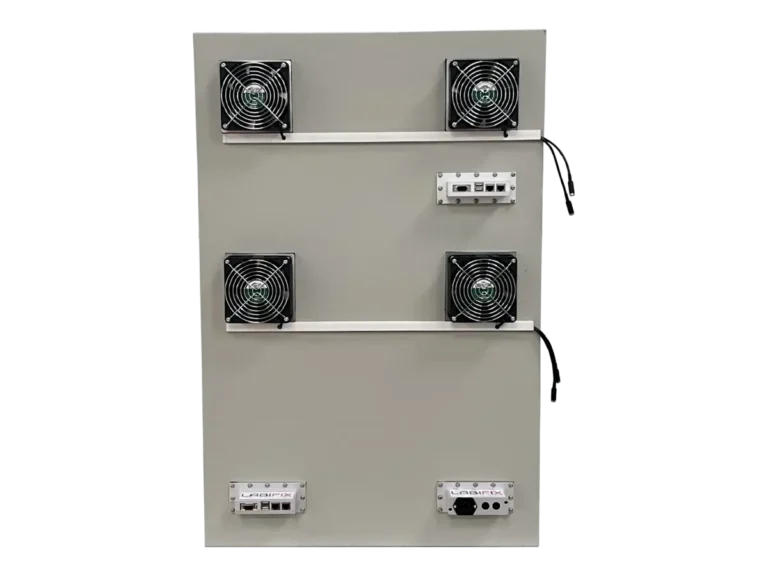

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX6010 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
25"(EXTERIOR WIDTH)38"(EXTERIORHEIGHT)FRONT VIEW25"(EXTERIOR DEPTH)SIDE VIEW25"(EXTERIOR WIDTH)25"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 25" (W) × 38" (H) × 25" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX6010 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
23"(INTERIOR WIDTH)36"(INTERIORHEIGHT)INTERIOR FRONT VIEW23"(INTERIOR DEPTH)INTERIOR SIDE VIEW23"(INTERIOR WIDTH)23"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 23" (W) × 36" (H) × 23" (D)RF Pyramidal Microwave Absorber Lining Boundary
