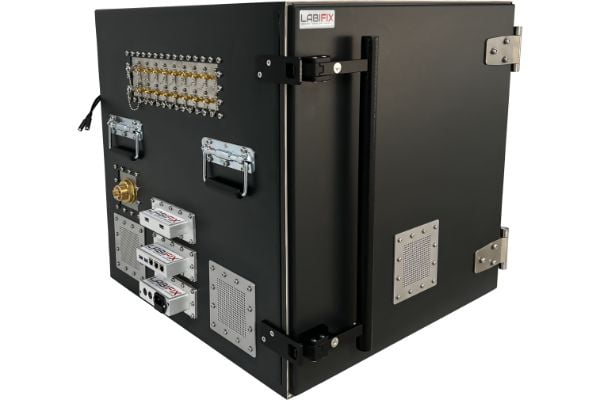

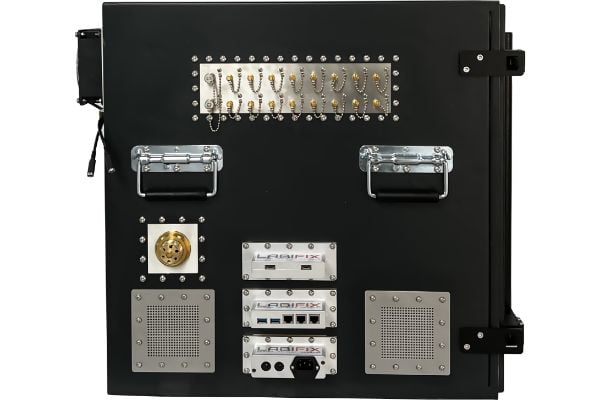

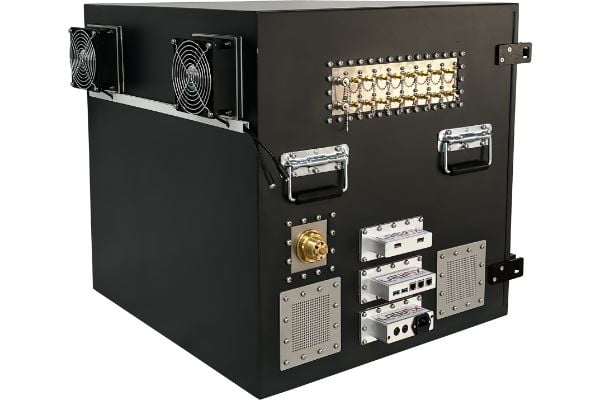

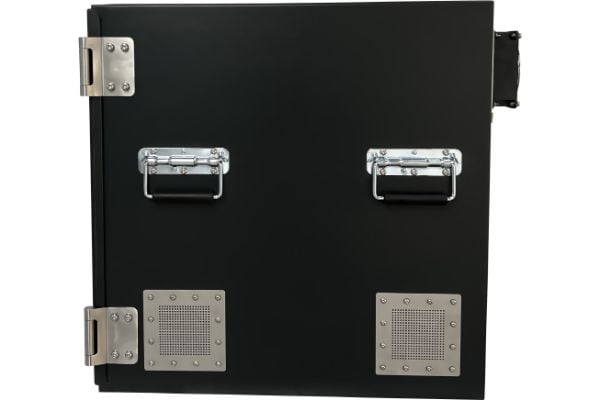

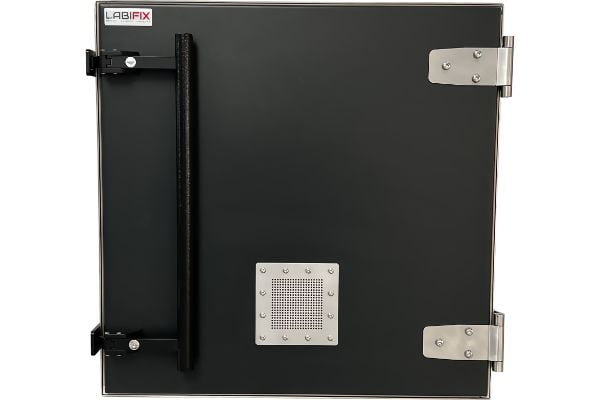

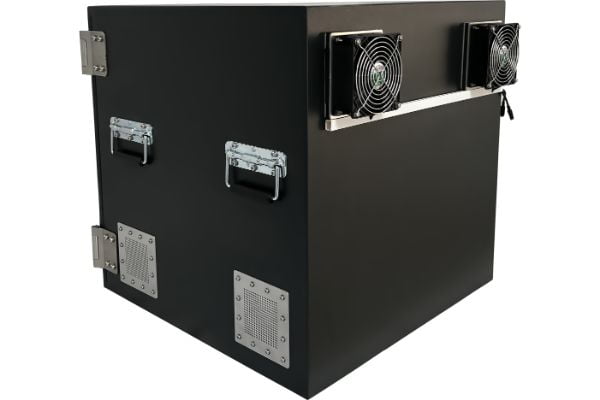

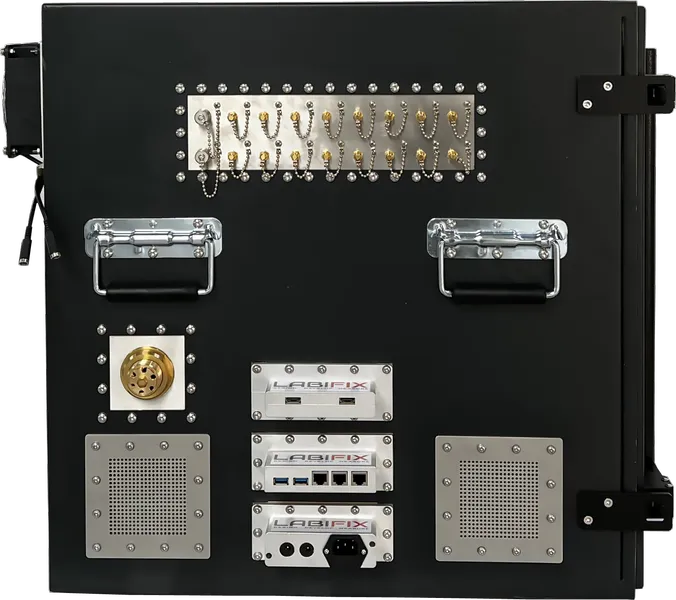

LBX6000 Throughput Testing LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX6000 RF Shield Box

LBX6000 RF Shielded Enclosure is Designed and Developed for WLAN, Wireless device testing this rf enclosure is perfect for a variety of test applications, including product development, manufacturing, and quality assurance. With its maximum shielding efficiency against all types of EMI/RFI and noise, you can be confident that your measurements will be free from interference from external sources. Additionally, features filtered AC power line and data filters for even greater shielding against RF interference. Plus, its robust welded construction makes it exceptionally durable and reliable

Dimensions
Exterior (H x W x D)
24" (H) x 24" (W) x 24" (D)
Interior (H x W x D)
22" (H) x 22" (W) x 22" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

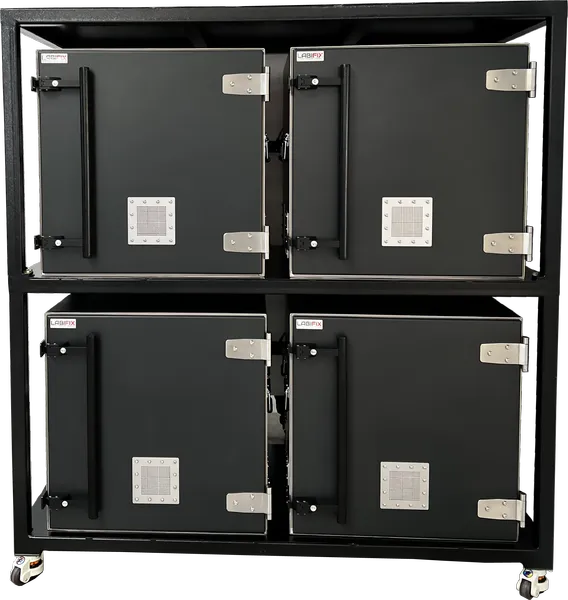

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

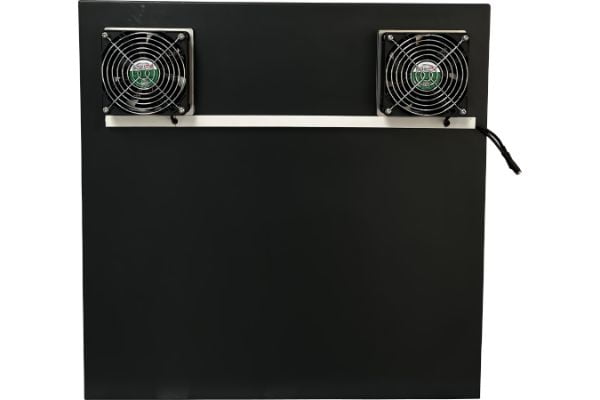

High performance shielded honeycomb Air Vents for optimal cooling

LBX6000 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
24"(EXTERIOR WIDTH)24"(EXTERIORHEIGHT)FRONT VIEW24"(EXTERIOR DEPTH)SIDE VIEW24"(EXTERIOR WIDTH)24"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 24" (W) × 24" (H) × 24" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

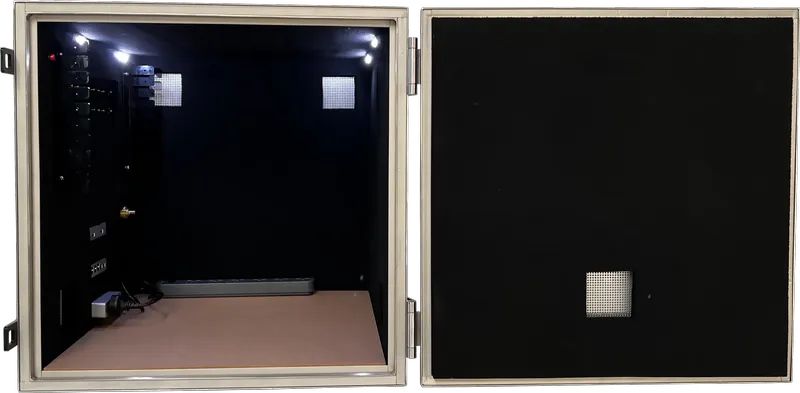

LBX6000 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
22"(INTERIOR WIDTH)22"(INTERIORHEIGHT)INTERIOR FRONT VIEW22"(INTERIOR DEPTH)INTERIOR SIDE VIEW22"(INTERIOR WIDTH)22"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 22" (W) × 22" (H) × 22" (D)RF Pyramidal Microwave Absorber Lining Boundary
