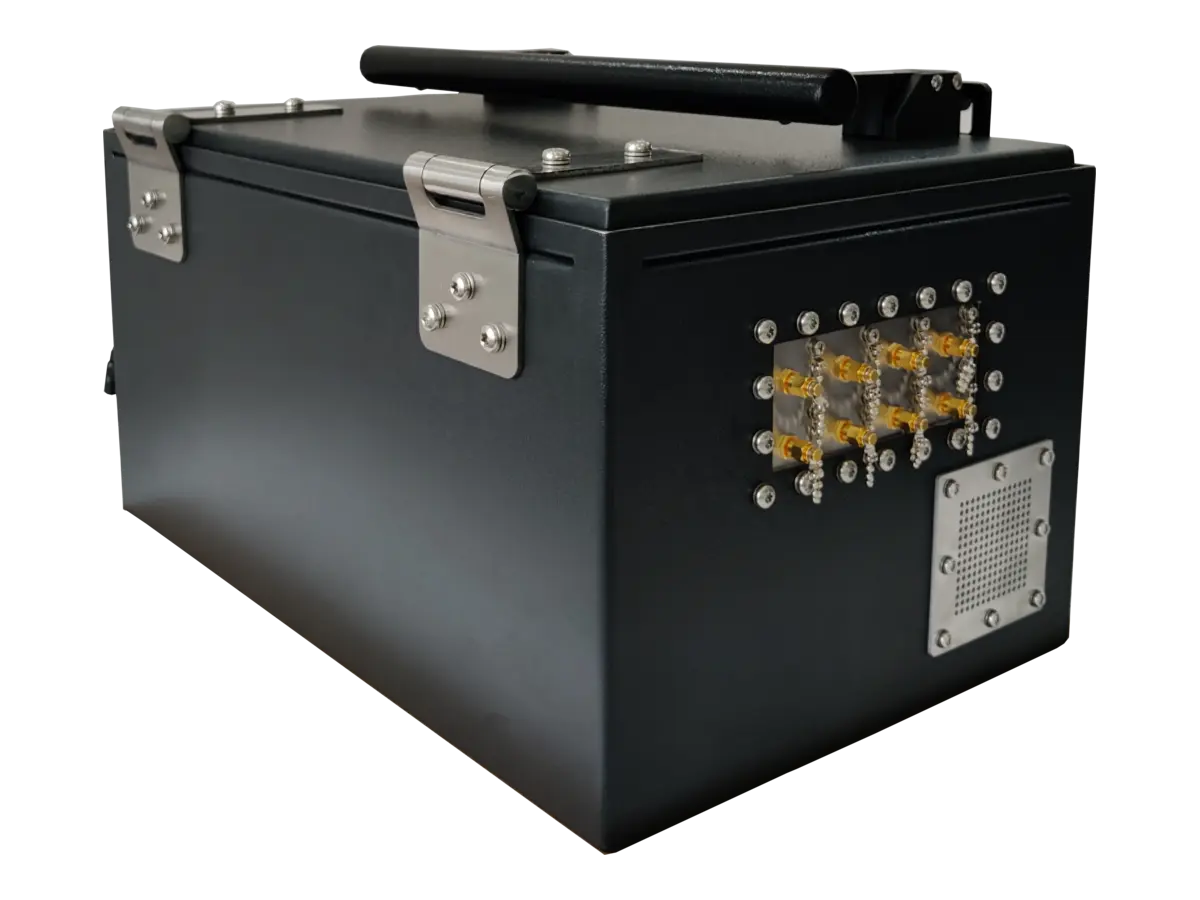

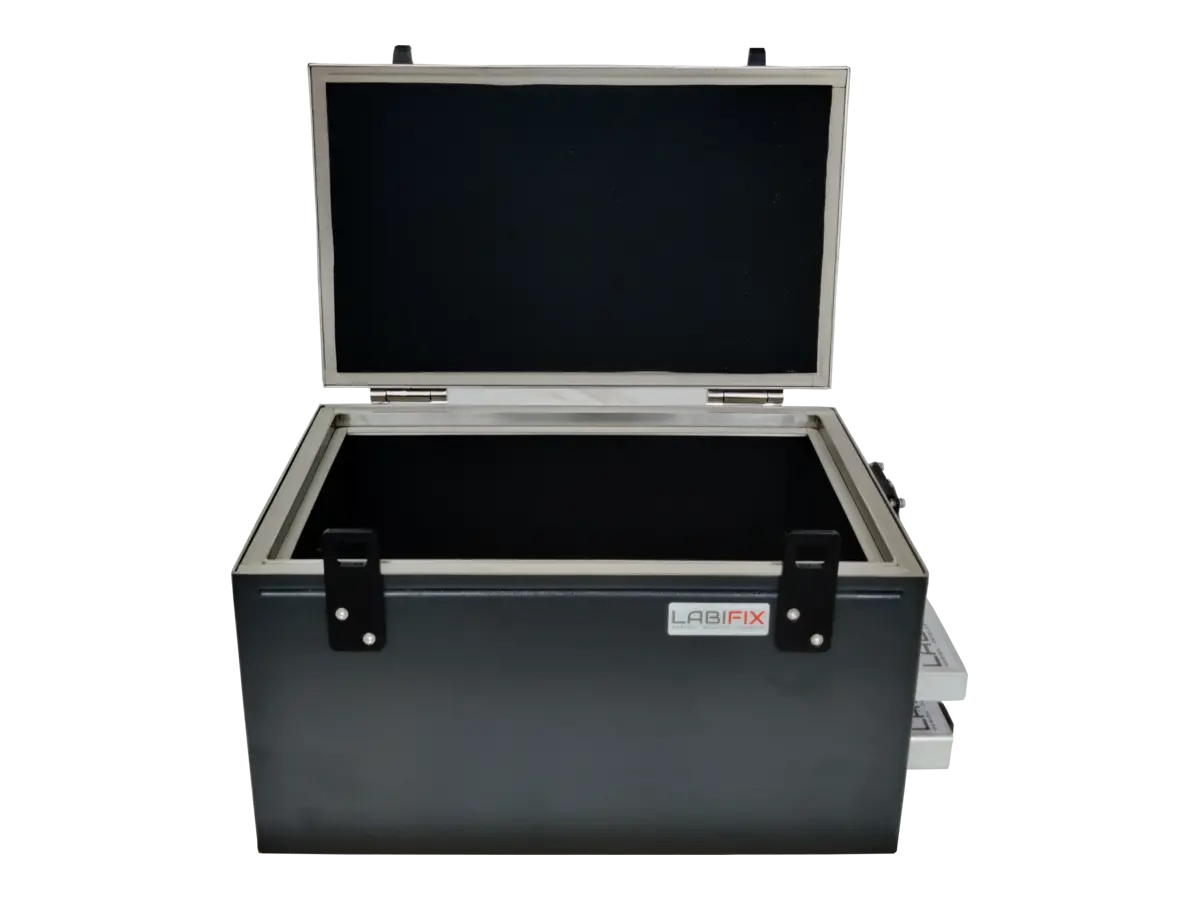

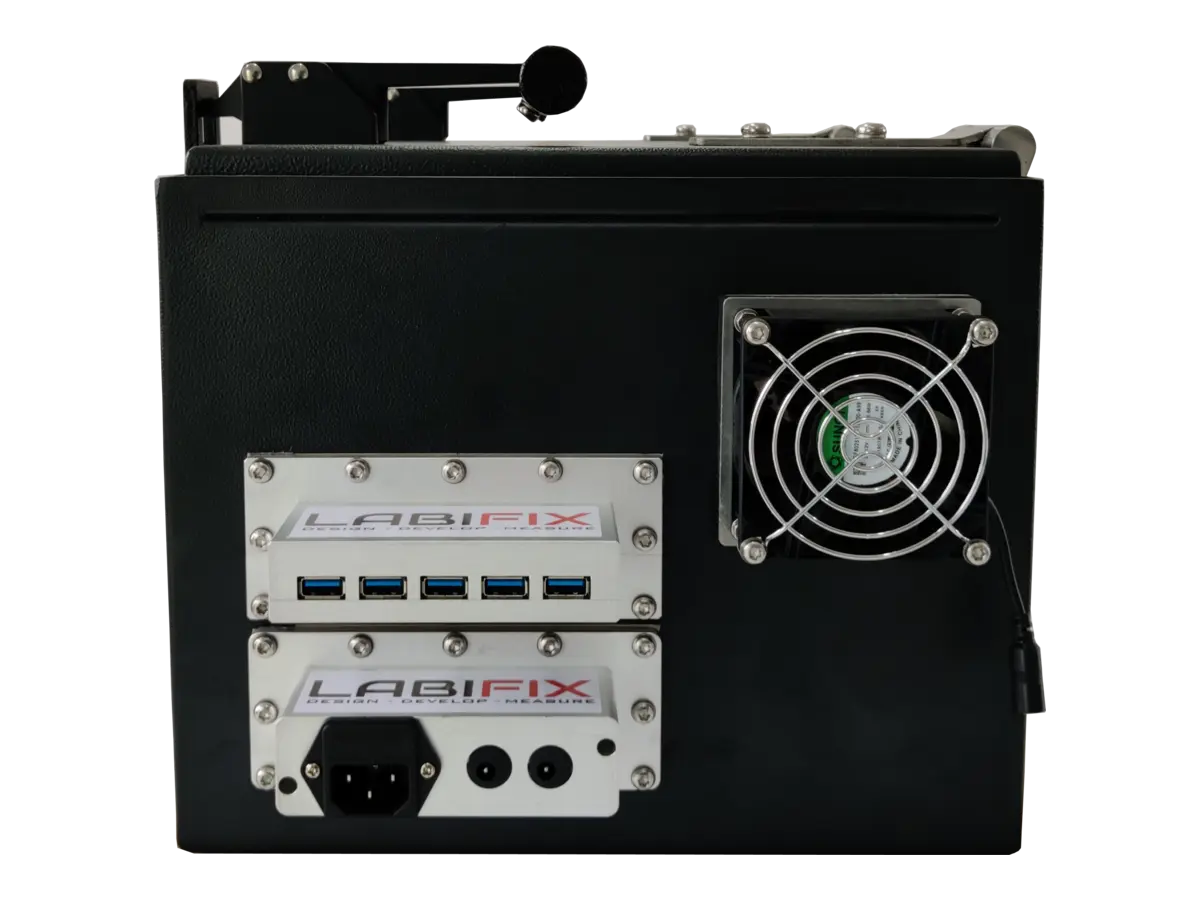

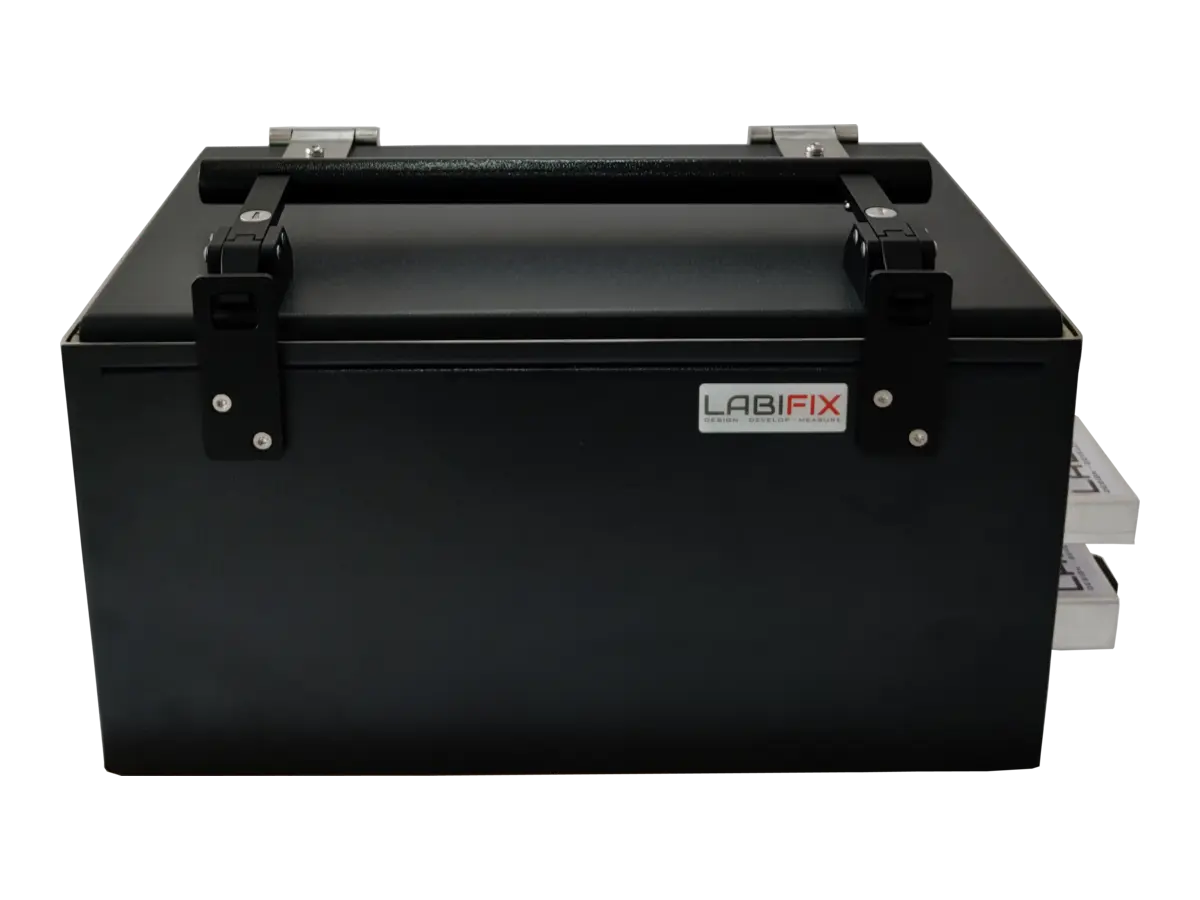

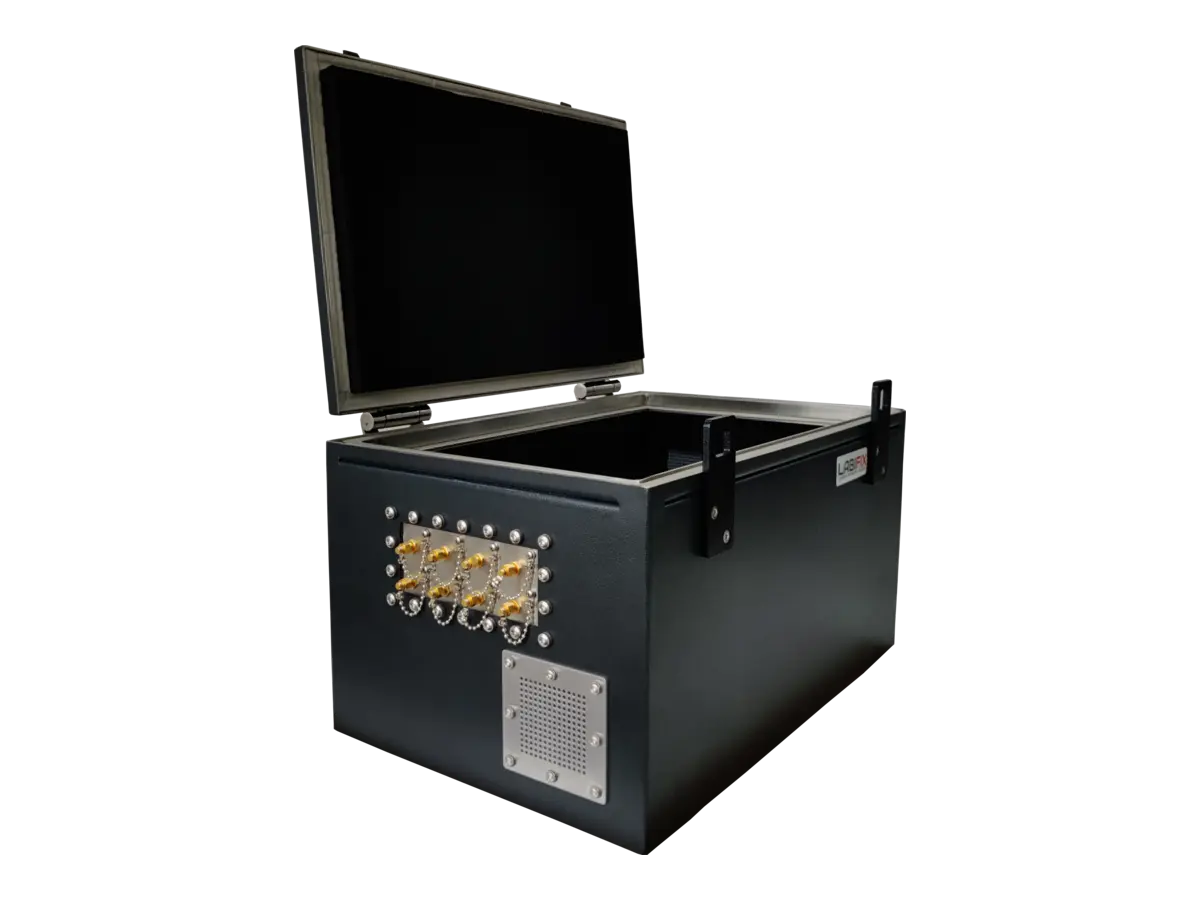

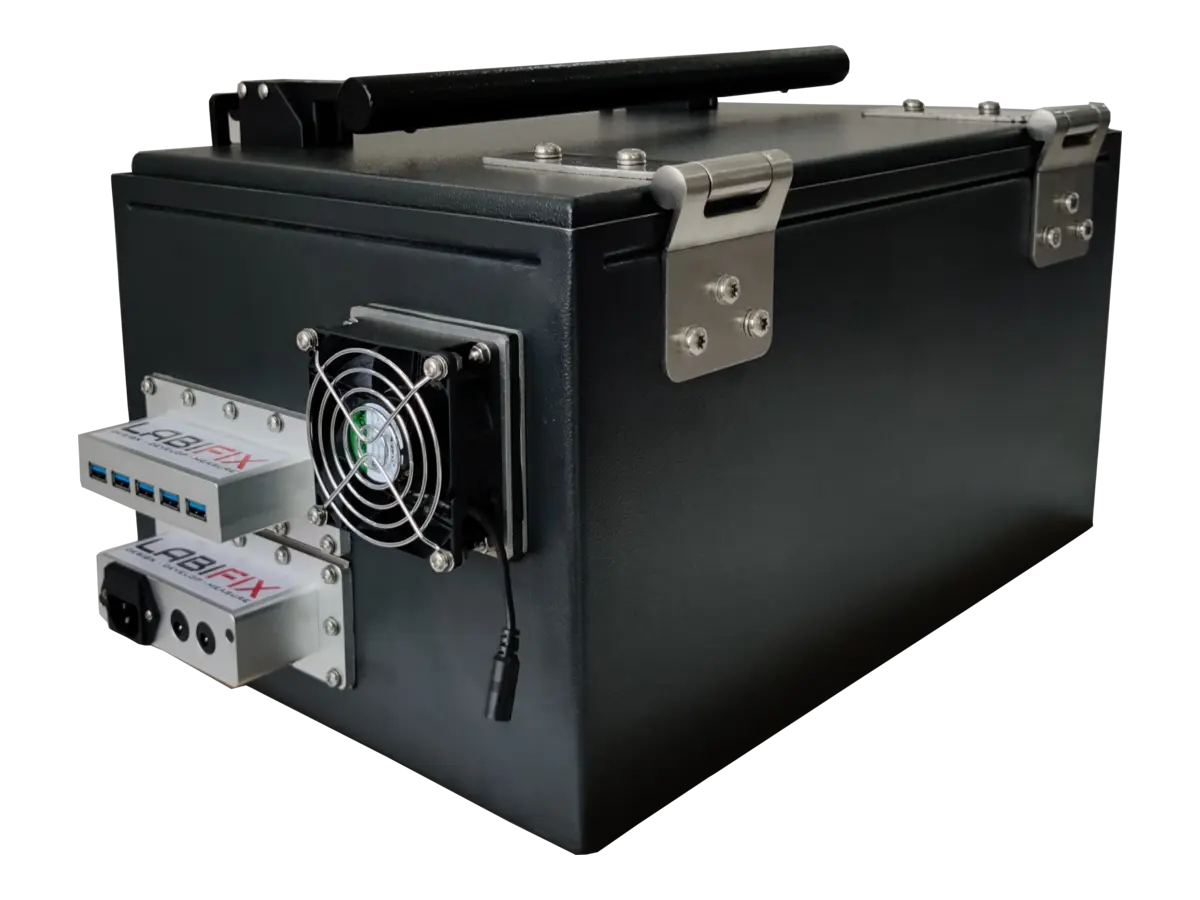

LBX3040 Top Opening RF Test Boxes LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX3040 RF Shield Box

The LBX3040 RF shielded enclosure provides maximum shielding efficiency against all types of EMI /RFI and noise, especially that radiated by modern wireless communication technologies such as 3G, 4G, 5G LTE, Wi-Fi 802.11 - all series, Wi-Max, GNSS and Bluetooth etc. The product can be customized to a customer’s specific requirements by designing the I/O connectors with any number of interchangeable RF Ports & RF Data modules. This RF enclosure is the perfect solution for any wireless device testing that requires maximum shielding from RF interference. It is ideal for use in industrial, medical, military and aerospace applications.

Dimensions
Exterior (H x W x D)
10" (H) x 19" (W) x 12" (D)
Interior (H x W x D)
08" (H) x 17" (W) x 10" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX3040 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
19"(EXTERIOR WIDTH)10"(EXTERIORHEIGHT)FRONT VIEW12"(EXTERIOR DEPTH)SIDE VIEW19"(EXTERIOR WIDTH)12"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 19" (W) × 10" (H) × 12" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX3040 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
17"(INTERIOR WIDTH)8"(INTERIORHEIGHT)INTERIOR FRONT VIEW10"(INTERIOR DEPTH)INTERIOR SIDE VIEW17"(INTERIOR WIDTH)10"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 17" (W) × 8" (H) × 10" (D)RF Pyramidal Microwave Absorber Lining Boundary
