Home ProductsLBX3020

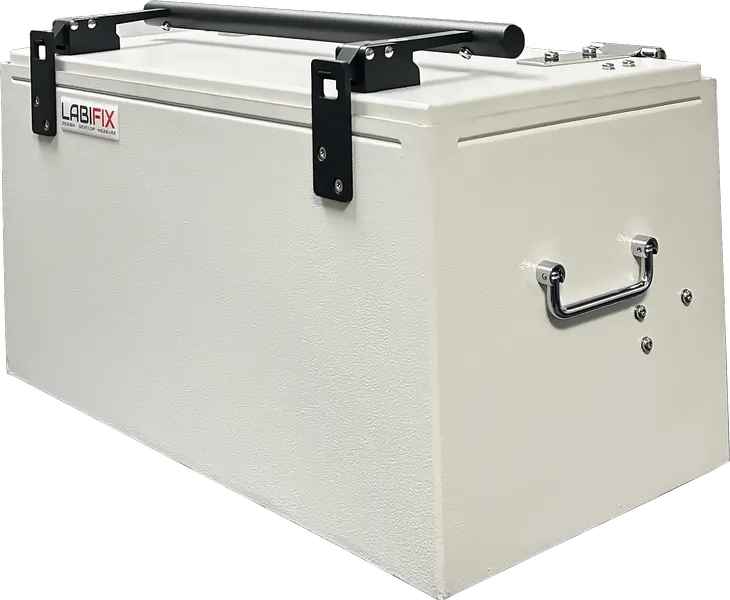

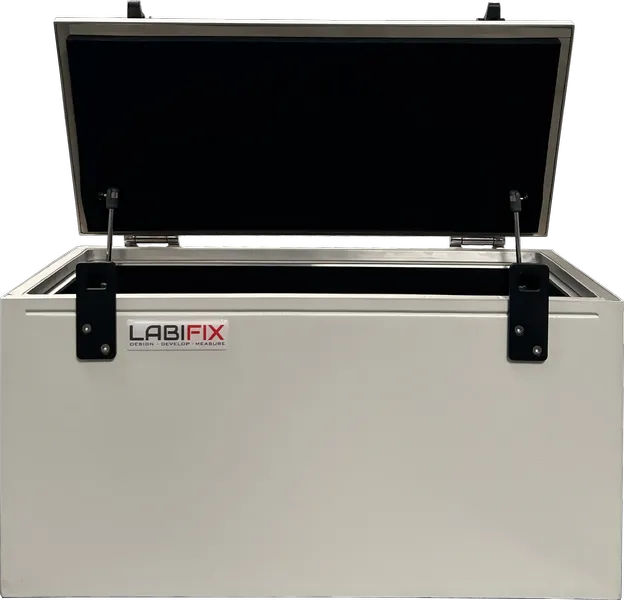

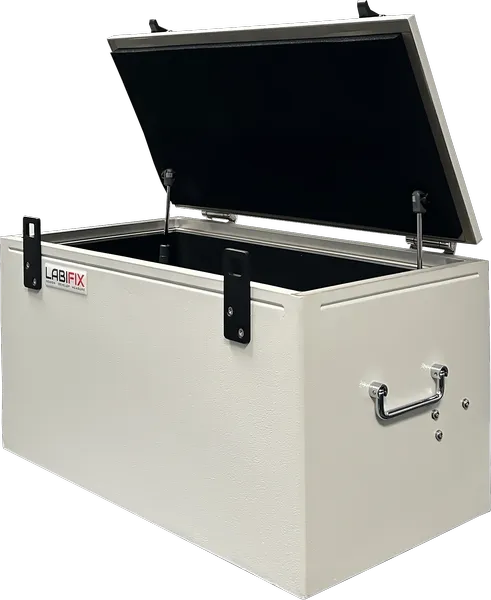

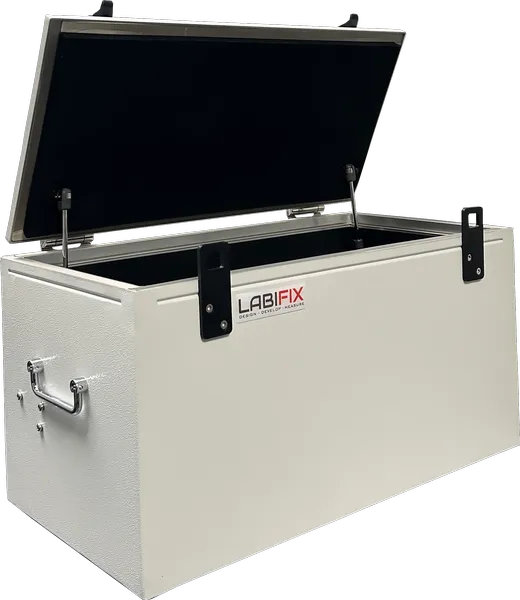

LBX3020 Top Opening RF Shield Enclosure LabiFix RF Shield Box - View 1 of 8

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX3020 RF Shield Box

Name: LBX3020 Benchtop RF Shield Box | LabiFix
Brand: Labifix Innovations
SKU: LBX3020

LBX3020 provides a practical platform for engineers who need repeatable RF testing with application-specific configuration. Depending on the application, it can be specified with Completely Customizable Shielded Enclosure and User Defined & Interchangeable I/O Connector options. This approach keeps the enclosure practical for day-to-day engineering work while maintaining a controlled space around the device under test. It is well suited to controlled RF validation, development and production test workflows where repeatability matters. As a RF shielded enclosure, LBX3020 can be configured around the DUT and the way it needs to be tested.

Dimensions

Exterior (H x W x D)

12" (H) x 24" (W) x 12" (D)

Interior (H x W x D)

10" (H) x 22" (W) x 10" (D)

Shielding Effectiveness

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX3020 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 24" (W) × 12" (H) × 12" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX3020 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 22" (W) × 10" (H) × 10" (D)RF Pyramidal Microwave Absorber Lining Boundary
