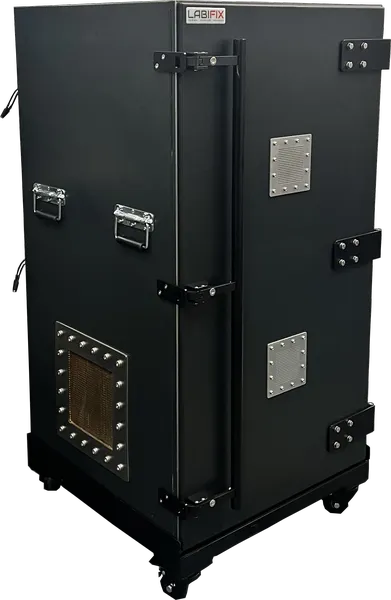

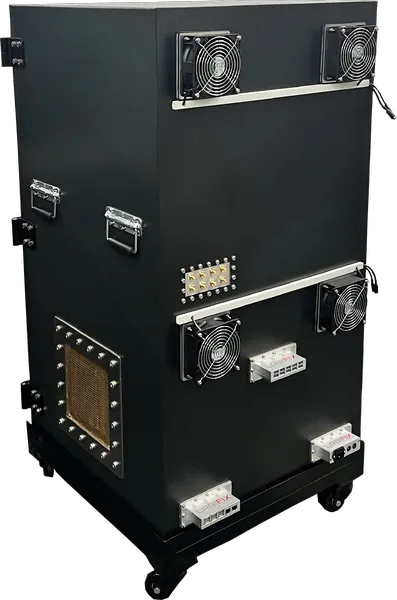

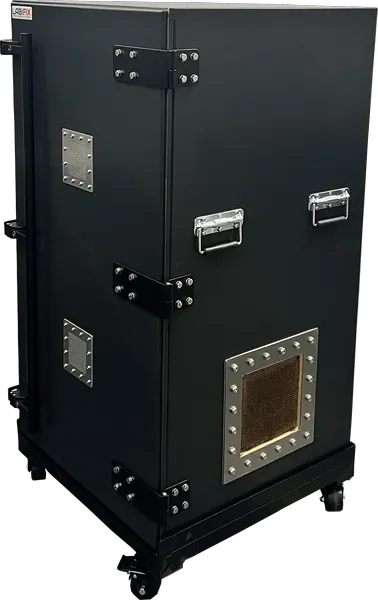

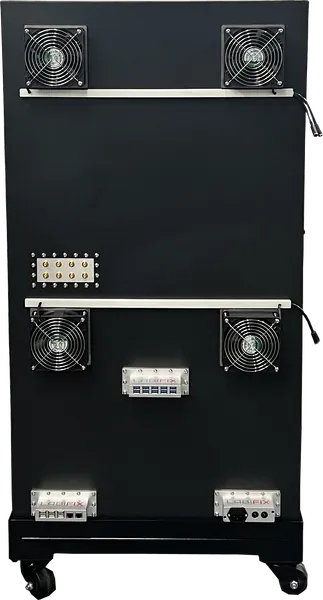

LBX7600 RF Shield Box
LBX7600 modular RF shielding enclosure is designed to support evolving 5G, IoT, and wireless validation requirements. Its adaptable internal space can accommodate different DUT sizes, while multiple RF and data interfaces simplify connection to external test equipment. Filtered AC power helps maintain isolation while supplying the DUT. The modular design can be configured for bench-top or trolley use, allowing convenient relocation within engineering environments. It is suitable for MIMO OTA validation, device verification, protocol testing, characterization, and production test workflows. It helps engineers create controlled, repeatable RF testing environments for accurate measurements, product development, troubleshooting, production testing, quality assurance, repeatable results, and modern devices.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
