RF SHIELD BOX

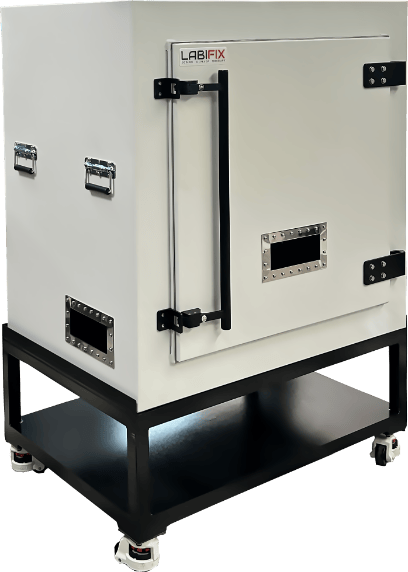

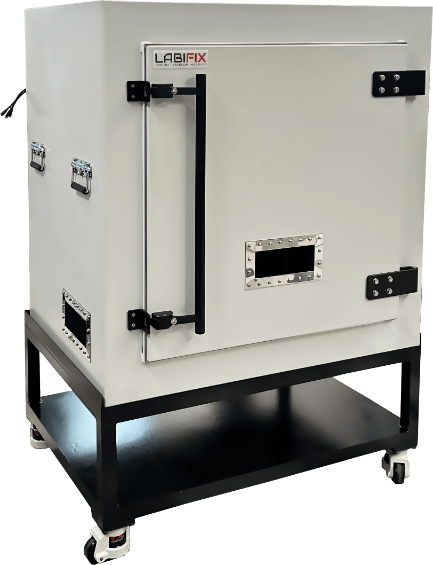

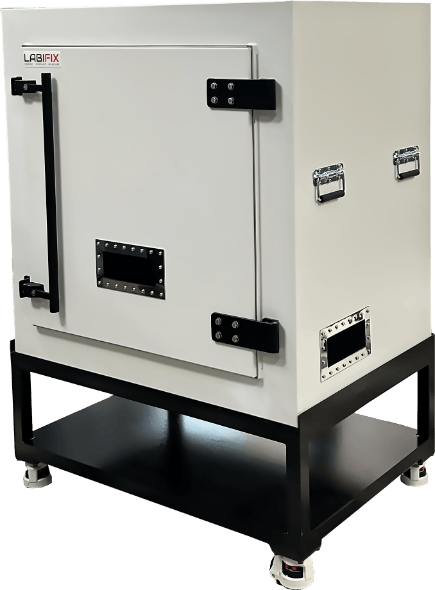

LBX7650 RF Shield Box

LBX7650 RF Shielded Enclosure offers a practical and configurable solution for laboratories that need consistent RF isolation in an adaptable format. The enclosure can be arranged around the equipment, interfaces, and testing approach, with options such as high-performance RF absorber lining and rugged welded construction. Its flexible configuration supports wireless development, controlled validation, troubleshooting, and production testing. By providing a stable environment around the device under test, LBX7650 helps engineers improve measurement consistency while maintaining convenient access and application-specific connectivity. It helps engineers create controlled, repeatable RF testing environments for troubleshooting, demanding applications, and production testing

Dimensions
Exterior (H x W x D)
40" (H) x 40" (W) x 28" (D)
Interior (H x W x D)
38" (H) x 38" (W) x 26" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

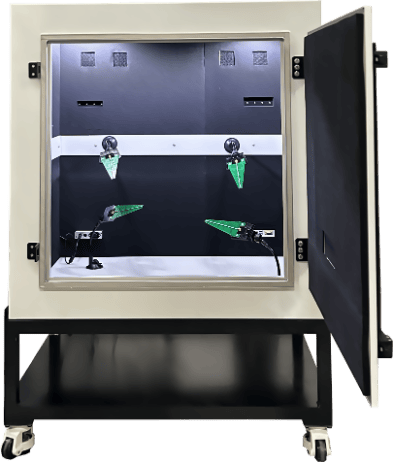

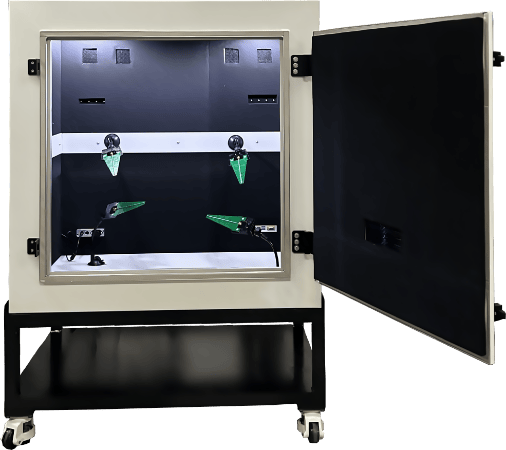

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

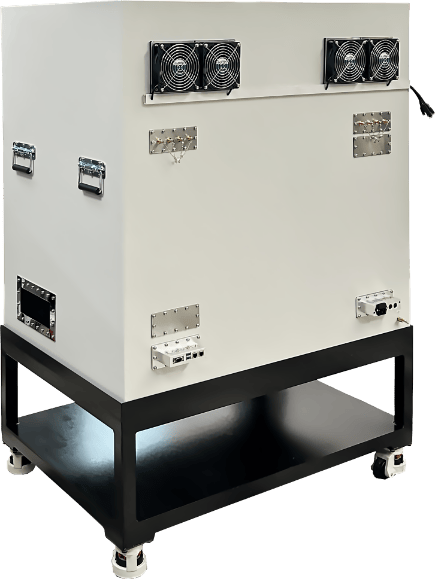

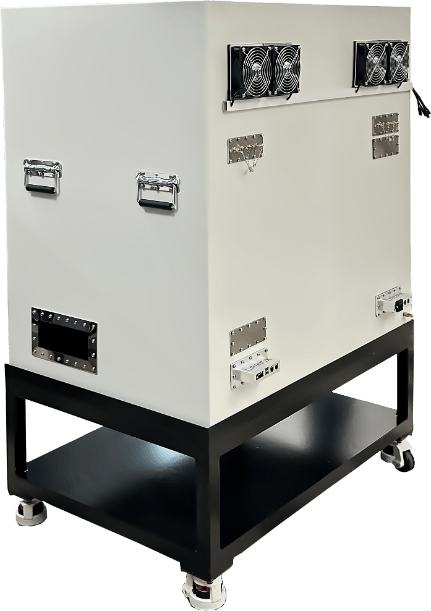

High performance shielded honeycomb Air Vents for optimal cooling

LBX7650 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
40"(EXTERIOR WIDTH)40"(EXTERIORHEIGHT)FRONT VIEW28"(EXTERIOR DEPTH)SIDE VIEW40"(EXTERIOR WIDTH)28"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 40" (W) × 40" (H) × 28" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX7650 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
38"(INTERIOR WIDTH)38"(INTERIORHEIGHT)INTERIOR FRONT VIEW26"(INTERIOR DEPTH)INTERIOR SIDE VIEW38"(INTERIOR WIDTH)26"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 38" (W) × 38" (H) × 26" (D)RF Pyramidal Microwave Absorber Lining Boundary
