IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

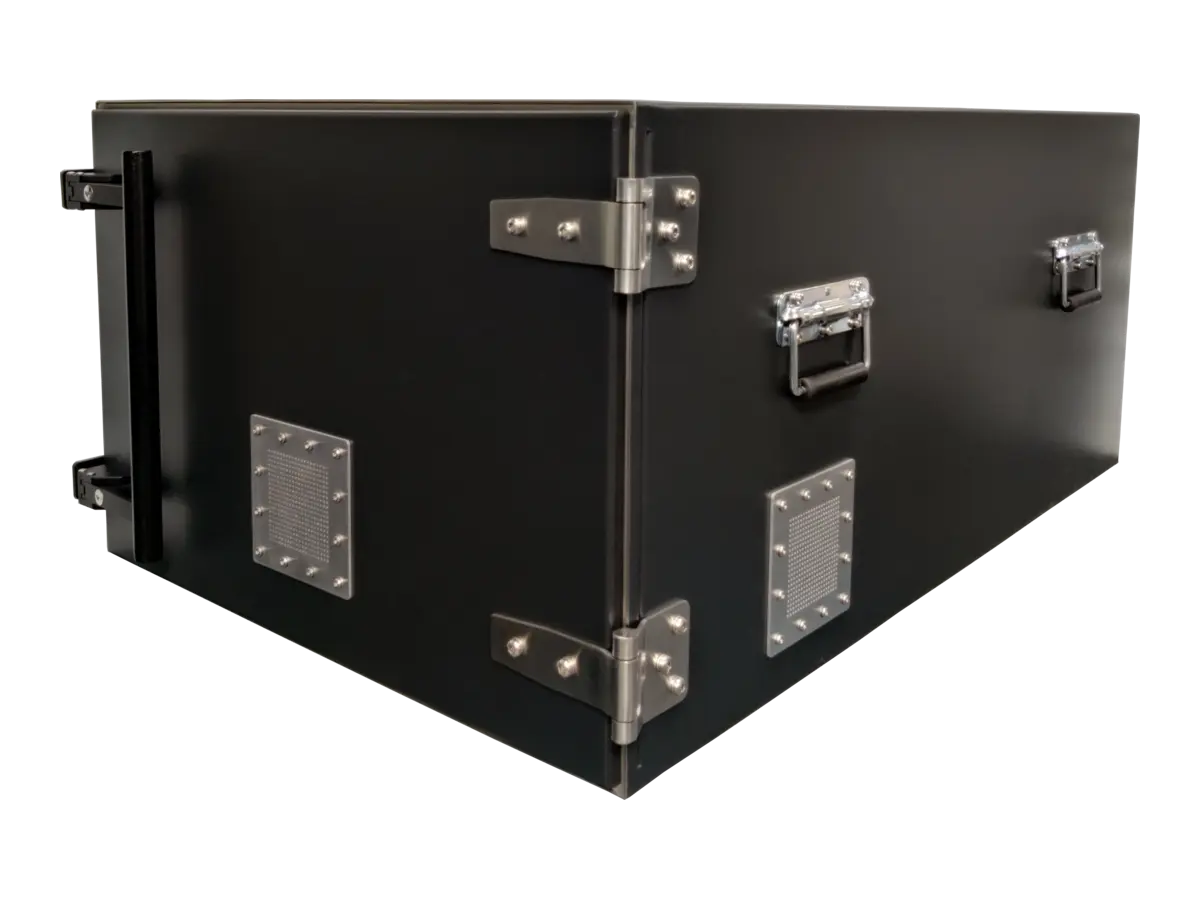

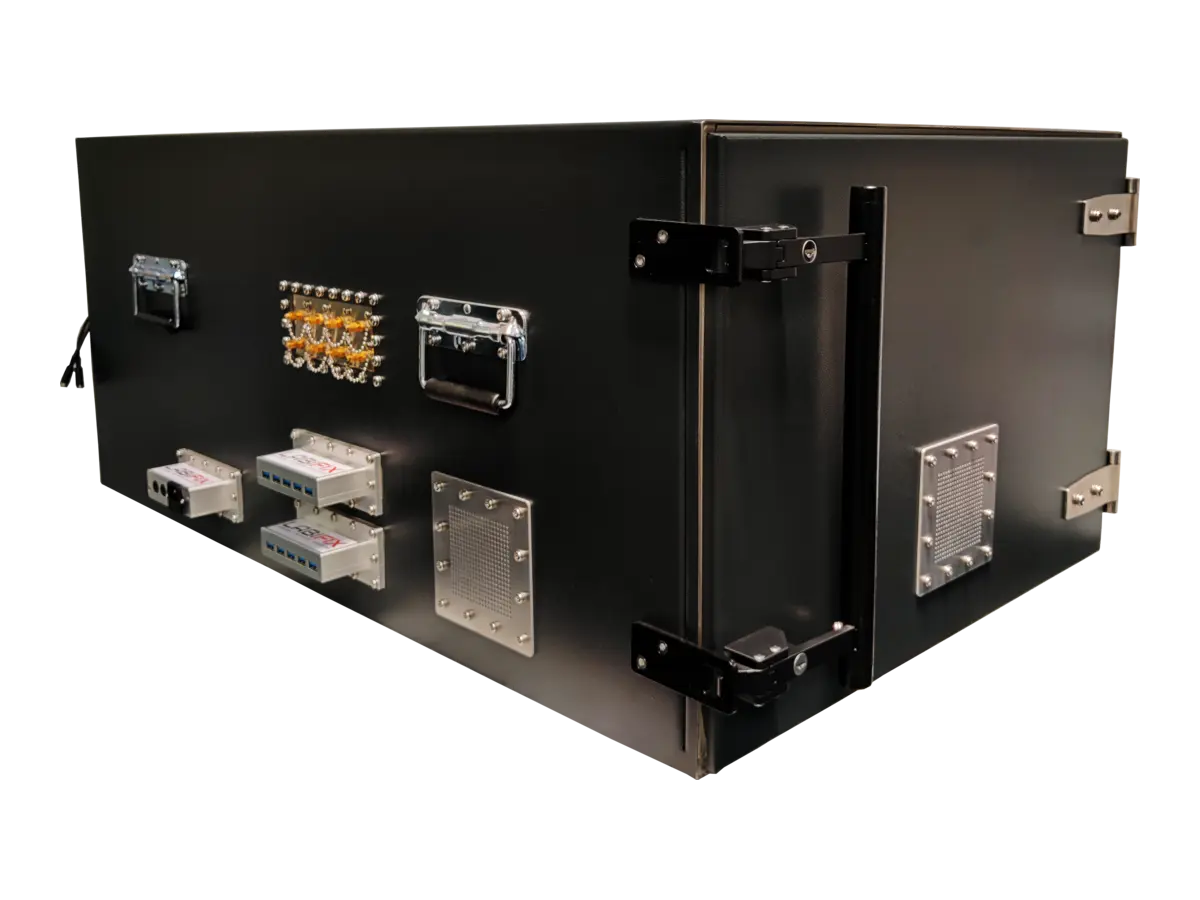

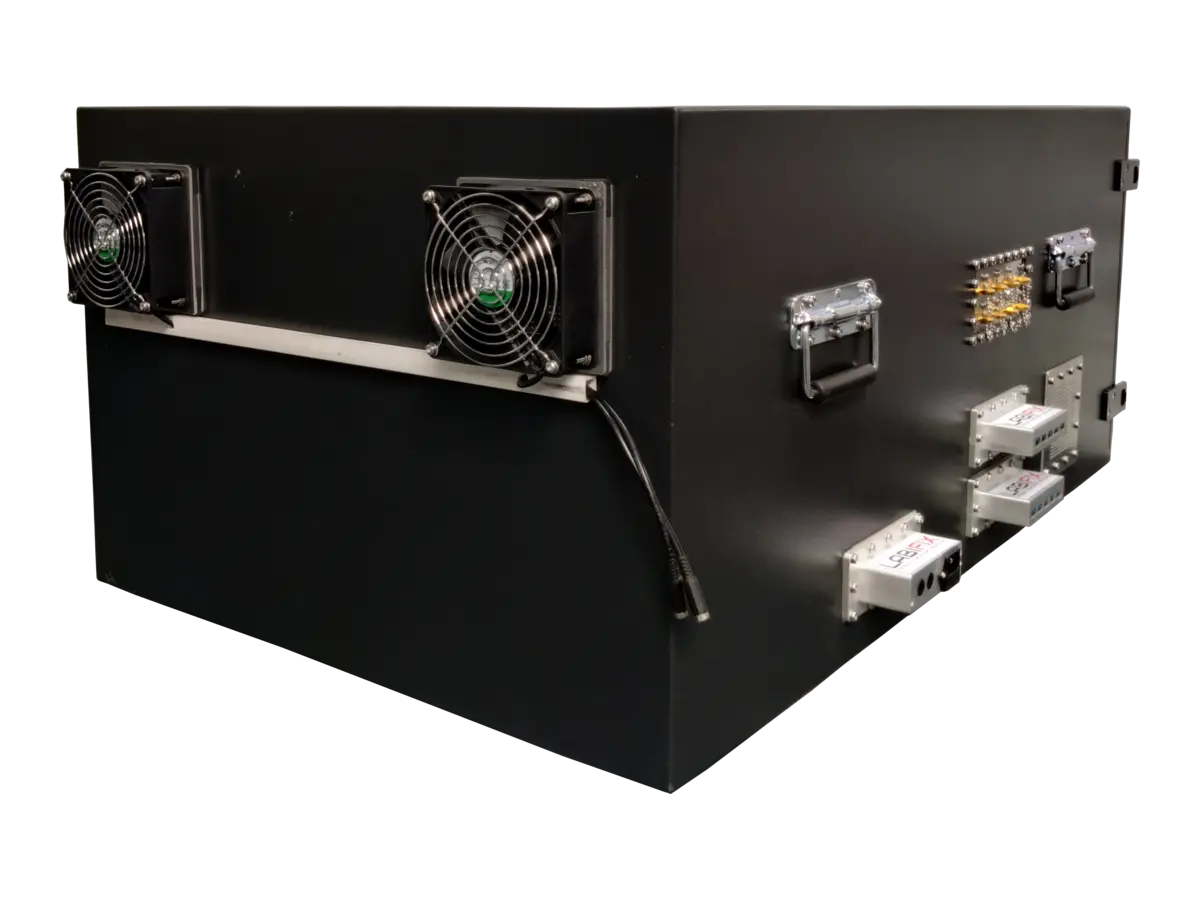

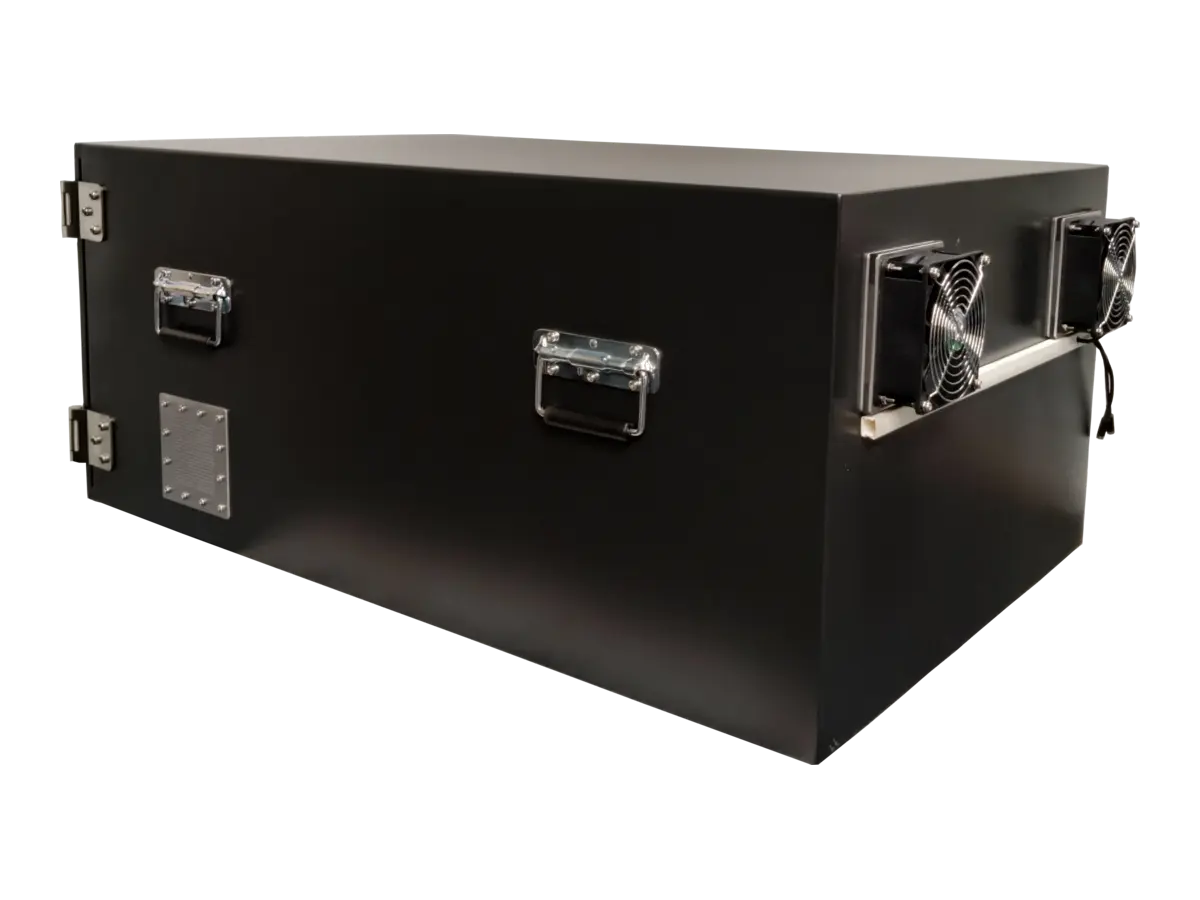

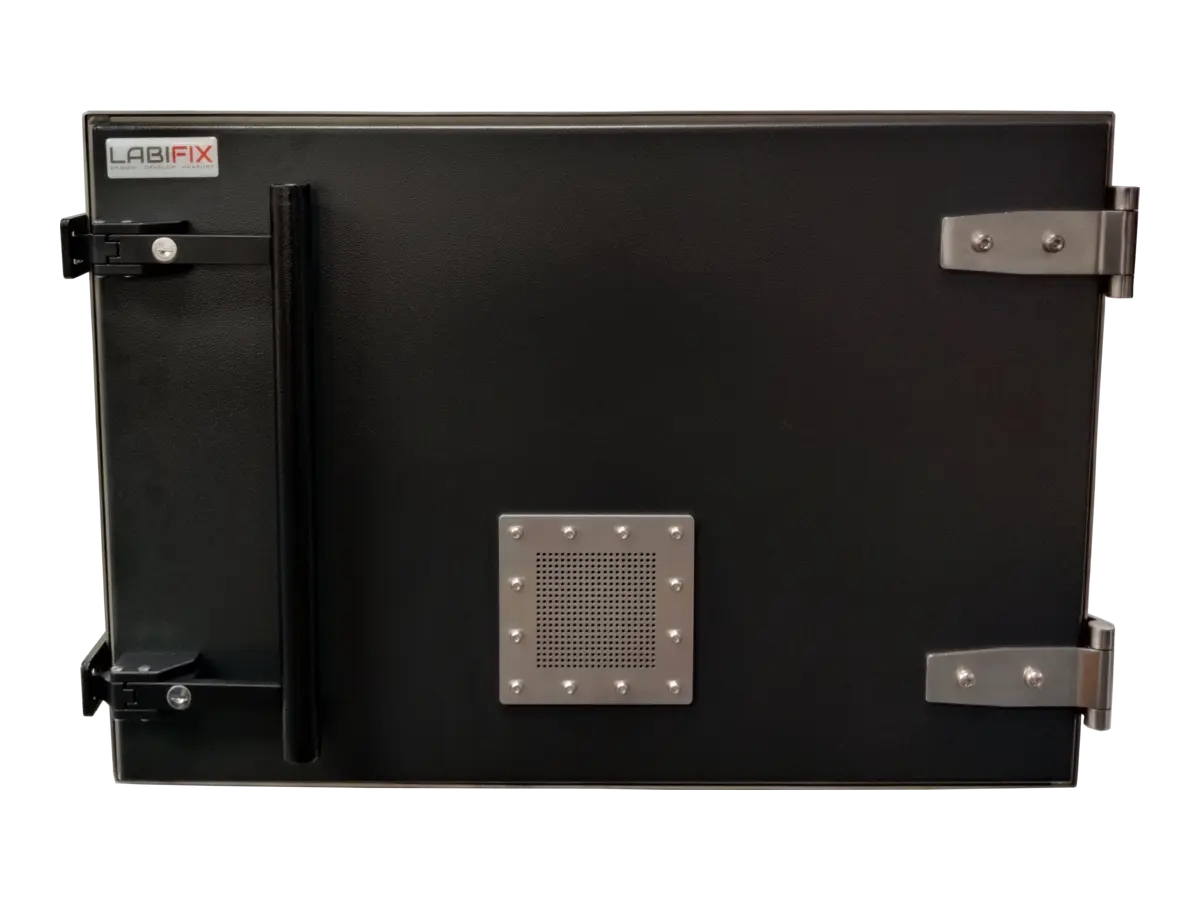

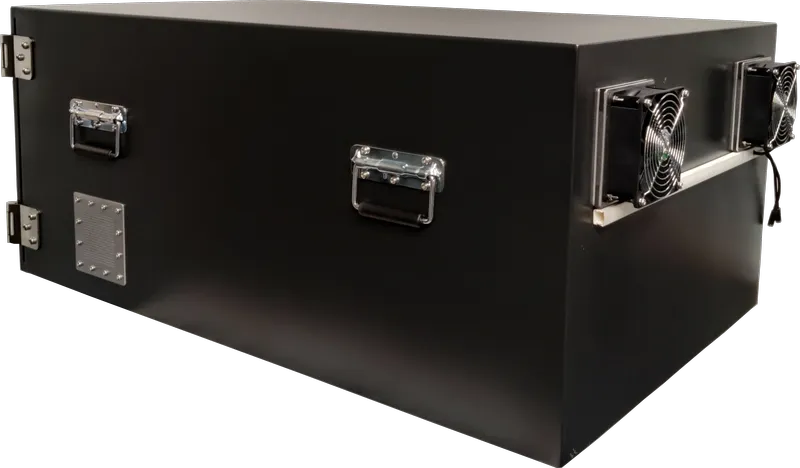

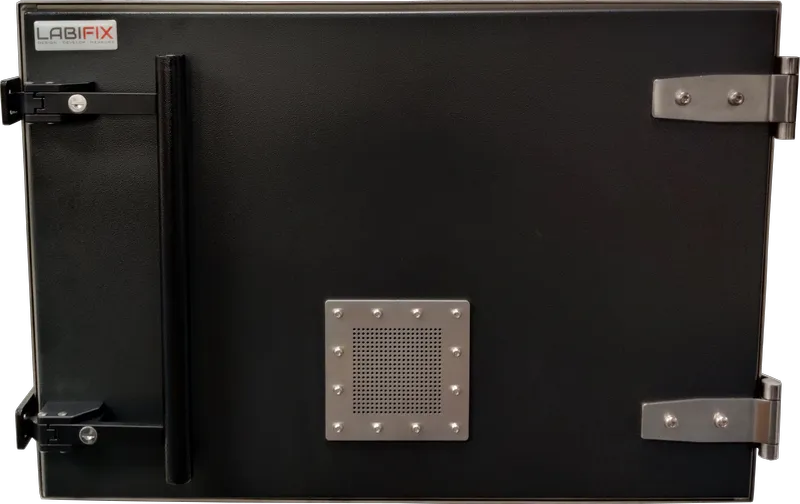

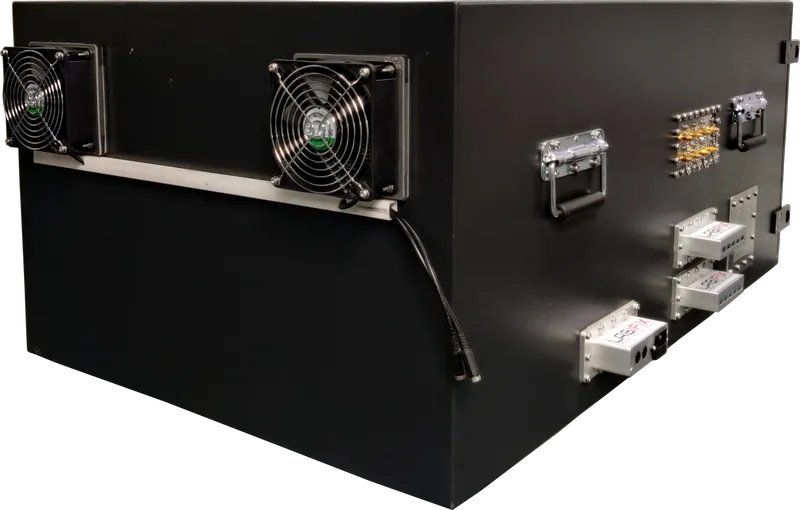

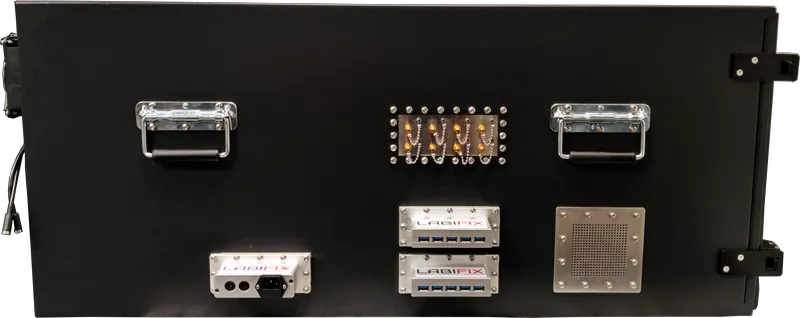

LBX4750 RF Shield Box
The LBX4750 RF shielded test enclosure is perfect for a variety of test applications, including product development, manufacturing, and quality assurance. With its maximum shielding efficiency against all types of EMI/RFI and noise, you can be confident that your measurements will be free from interference from external sources. Additionally, the LBX4750 features filtered AC power line and data filters for even greater shielding against RF interference. Plus, its robust welded construction makes it exceptionally durable and reliable
Dimensions
Exterior (H x W x D)
18" (H) x 26" (W) x 24" (D)
Interior (H x W x D)
16" (H) x 24" (W) x 22" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining

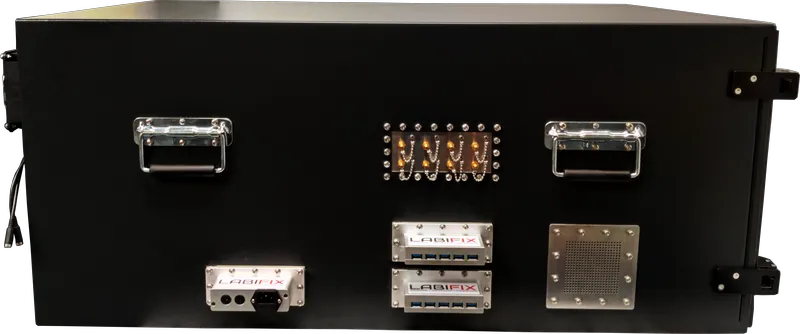

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
