RF SHIELD BOX

LBX4900 RF Shield Box

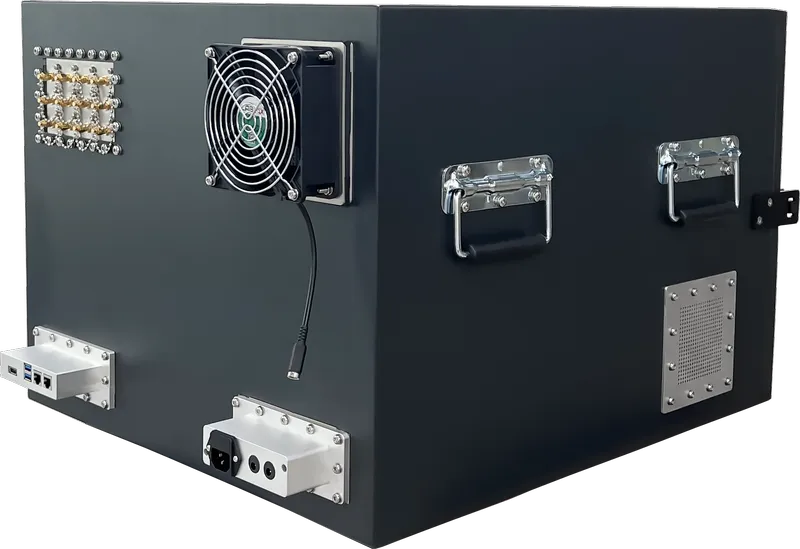

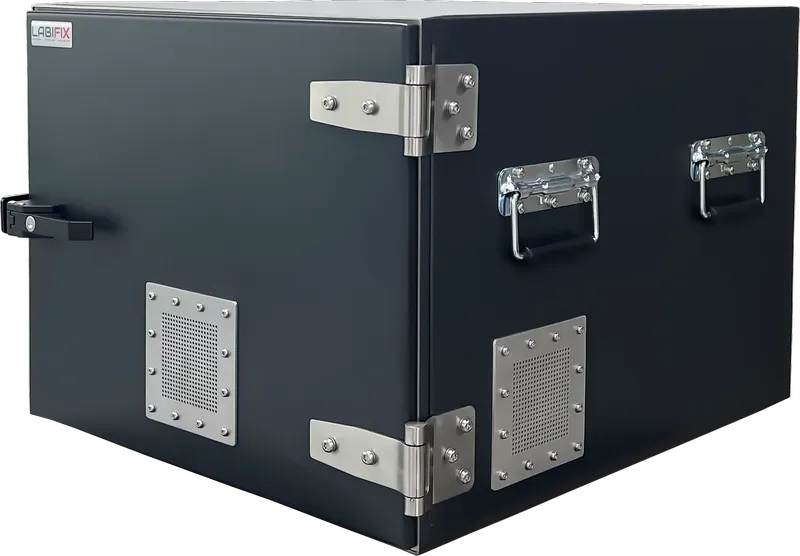

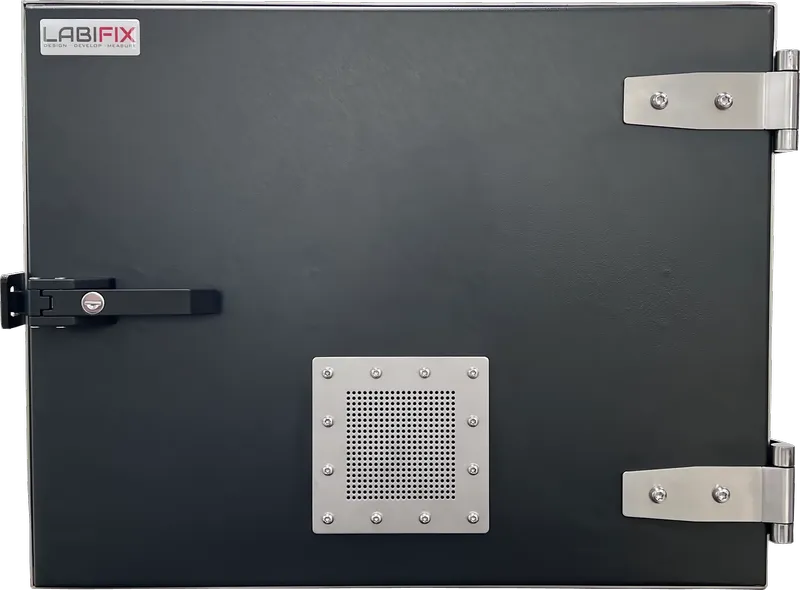

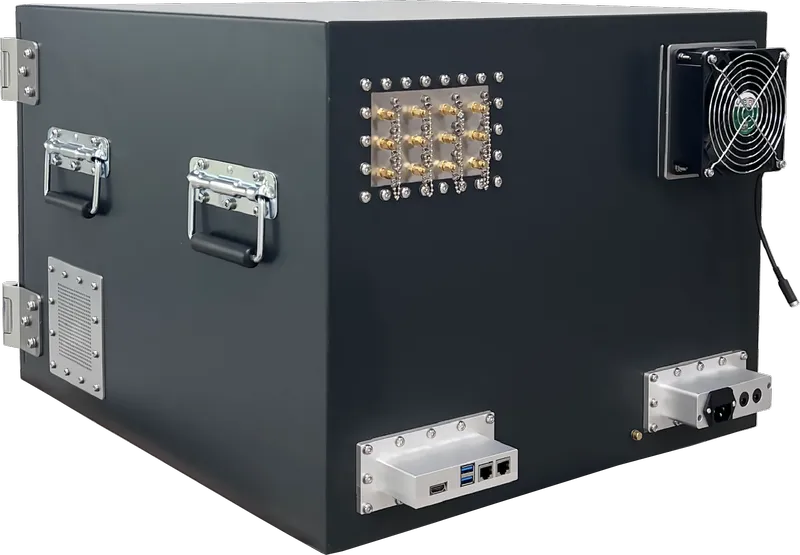

The LBX4900 Bluetooth Zigbee RF Shielded Test Enclosure is suitable for a variety of test applications, including product development, manufacturing, and quality assurance. With its maximum shielding efficiency against all types of EMI/RFI and noise, you can be confident that your measurements will be free from interference from external sources. Additionally, the LBX4900 features filtered AC power line and data filters for even superior shielding against RF interference. In addition, its robust welded construction ensures long-lasting and reliable performance.

Dimensions
Exterior (H x W x D)
17" (H) x 22" (W) x 24" (D)
Interior (H x W x D)
15" (H) x 20" (W) x 22" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX4900 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
22"(EXTERIOR WIDTH)17"(EXTERIORHEIGHT)FRONT VIEW24"(EXTERIOR DEPTH)SIDE VIEW22"(EXTERIOR WIDTH)24"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 22" (W) × 17" (H) × 24" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX4900 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
20"(INTERIOR WIDTH)15"(INTERIORHEIGHT)INTERIOR FRONT VIEW22"(INTERIOR DEPTH)INTERIOR SIDE VIEW20"(INTERIOR WIDTH)22"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 20" (W) × 15" (H) × 22" (D)RF Pyramidal Microwave Absorber Lining Boundary
LABIFIX RF PRODUCT PORTFOLIO

Related RF Shielding Enclosures

Explore complementary RF test boxes and isolation enclosures engineered for precision testing

LBX ACB20 PERFECT AUDIO VALIDATION

LBX ACB20 PERFECT AUDIO VALIDATION - LabiFix RF Shield Box, front view

LBX ACB20 Acoustic Enclosure serves as an effective and controlled acoustic testing, featuring configuration options that can be tailored to the specific test setup. Its design allows for the integration of an acoustic gasket system along with connectivity and access, without necessitating a fixed arrangement for the device under test (DUT). This enclosure provides a flexible pathway to controlled device-level acoustic testing, enabling the assessment of acoustic products such as speakers, receivers, and microphones in a stable environment characterized by a low noise floor of 25-30 dB. In a noisy environment of 60 dB, the internal noise level is 25 dB. In a noisy environment of 80 dB, the internal noise level is less than 35 dB.

View Details

LBX0500 SMALL RF SHIELDING BOX

LBX0500 SMALL RF SHIELDING BOX - LabiFix RF Shield Box, front view

LBX-0500 is smaller version of RF Shielded Box which is equipped with features to support wide range of testing requirements. Conveniently used for smaller DUTS these shied Boxes are effectively shield against RF interferences, featuring with Filtered AC & DC power lines, Filtered Data lines, RF connectors. I/O Options, performance, etc. can be customized to meet your needs.

View Details

LBX0600 COMPACT TOP OPENING RF SHIELD BOX

LBX0600 COMPACT TOP OPENING RF SHIELD BOX - LabiFix RF Shield Box, front view

The LBX0600 is a small form factor rf enclosure for engineers who need consistent, repeatable RF testing. You can customize it with specific I/O connectors and a top-opening design to fit your particular application. That makes it practical for everyday use, while still keeping a controlled environment around the device you're testing. Whether it's for validation, development, or production, it's a best when repeatability is key factor.

View Details

Get in Touch with Engineering

Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.

Call Us Direct
+91 8792387614
Email Inquiry
business@labifix.com

Request Technical Datasheet (PDF)
