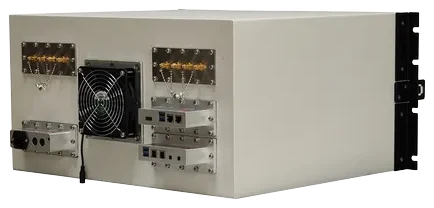

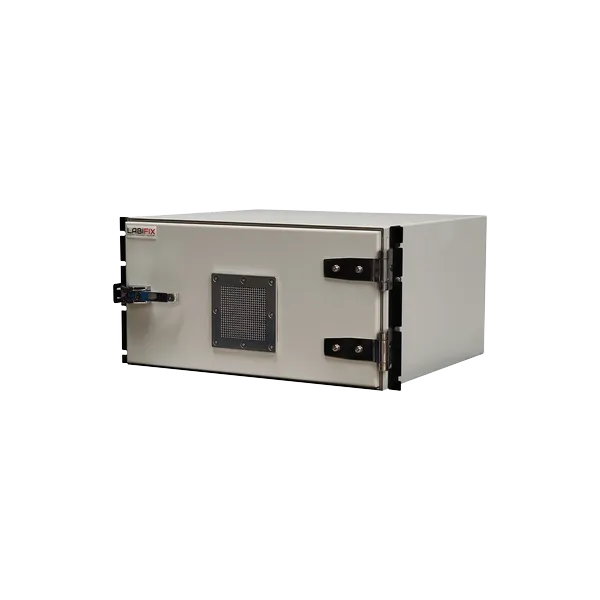

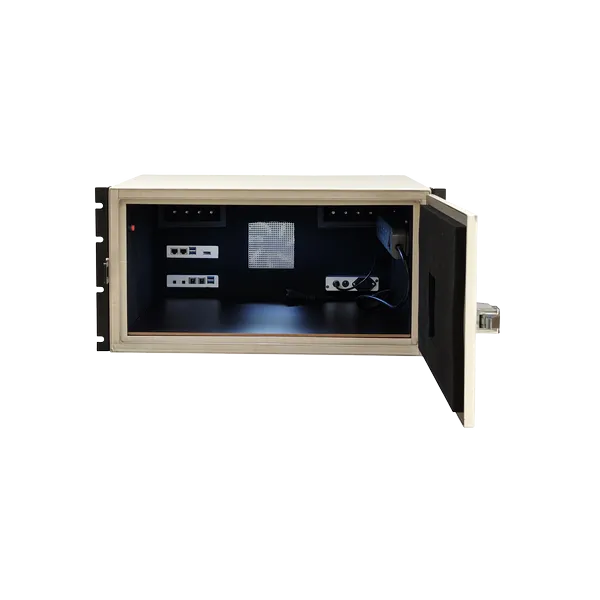

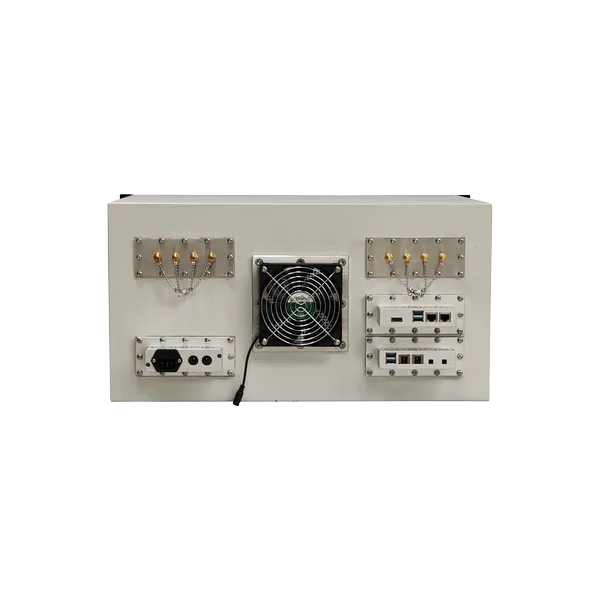

LBX1960 RF Shielded box LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX1960 RF Shield Box

LBX1960 RF shielded enclosure is built for engineers who need consistent, repeatable testing. It supports various applications—Bluetooth, WiFi, 5G, and IoT. A compact shielded test box that fits any workflow. Reliable, affordable, and designed for daily engineering use. Reliable, affordable, and easy to integrate.

Dimensions
Exterior (H x W x D)
11" (H) x 22" (W) x 20" (D)
Interior (H x W x D)
09" (H) x 20" (W) x 18" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX1960 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
22"(EXTERIOR WIDTH)11"(EXTERIORHEIGHT)FRONT VIEW20"(EXTERIOR DEPTH)SIDE VIEW22"(EXTERIOR WIDTH)20"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 22" (W) × 11" (H) × 20" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX1960 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
20"(INTERIOR WIDTH)9"(INTERIORHEIGHT)INTERIOR FRONT VIEW18"(INTERIOR DEPTH)INTERIOR SIDE VIEW20"(INTERIOR WIDTH)18"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 20" (W) × 9" (H) × 18" (D)RF Pyramidal Microwave Absorber Lining Boundary
