What frequency ranges does LBX2015 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsLBX2015

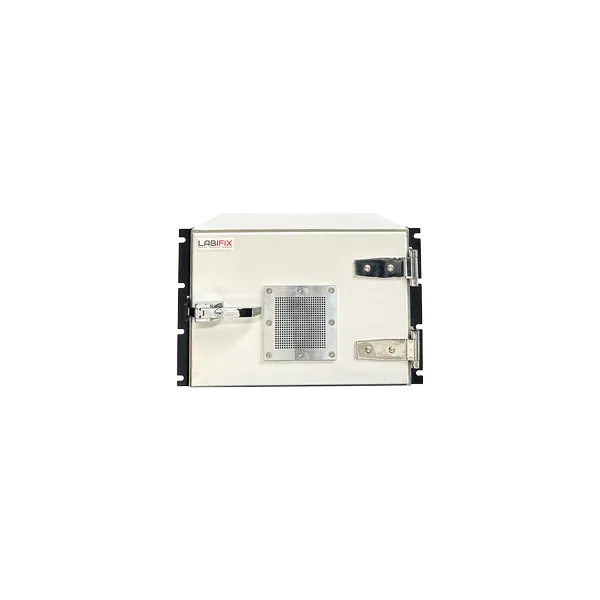

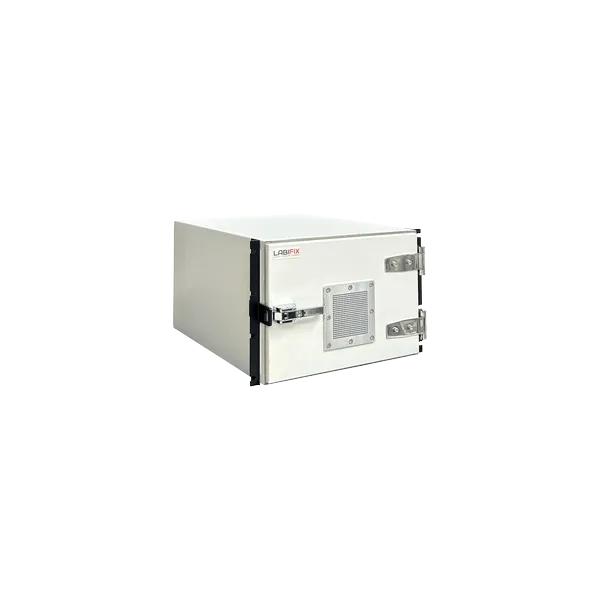

LBX2015 Lab bench RF Test Enclosure LabiFix RF Shield Box - View 1 of 6

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX2015 RF Shield Box

Name: LBX2015 Benchtop RF Shield Box | LabiFix
Brand: Labifix Innovations
SKU: LBX2015

The LBX2015 RF Enclosure box is designed to enhance the control of RF testing and facilitate its integration into current laboratory workflows. It offers features like a Fully Customizable Shielded Enclosure and User Defined & Interchangeable I/O Connector options, allowing the enclosure to be tailored to the specific equipment, interfaces, and testing methods employed. This makes it particularly suitable for RF validation, development, and production testing workflows where consistency is crucial. As an RF shielded enclosure, the LBX2015 can be arranged around the Device Under Test (DUT) according to the required testing procedures.

Dimensions

Exterior (H x W x D)

12" (H) x 17" (W) x 22" (D)

Interior (H x W x D)

10" (H) x 15" (W) x 20" (D)

Shielding Effectiveness

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

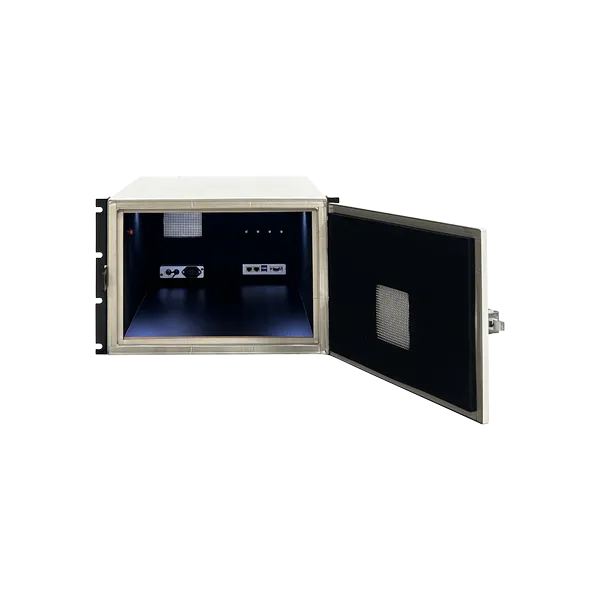

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

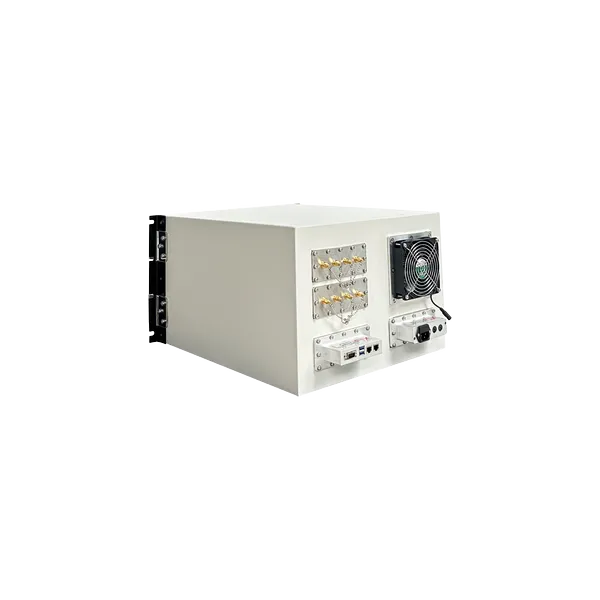

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX2015 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 17" (W) × 12" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX2015 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 15" (W) × 10" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
