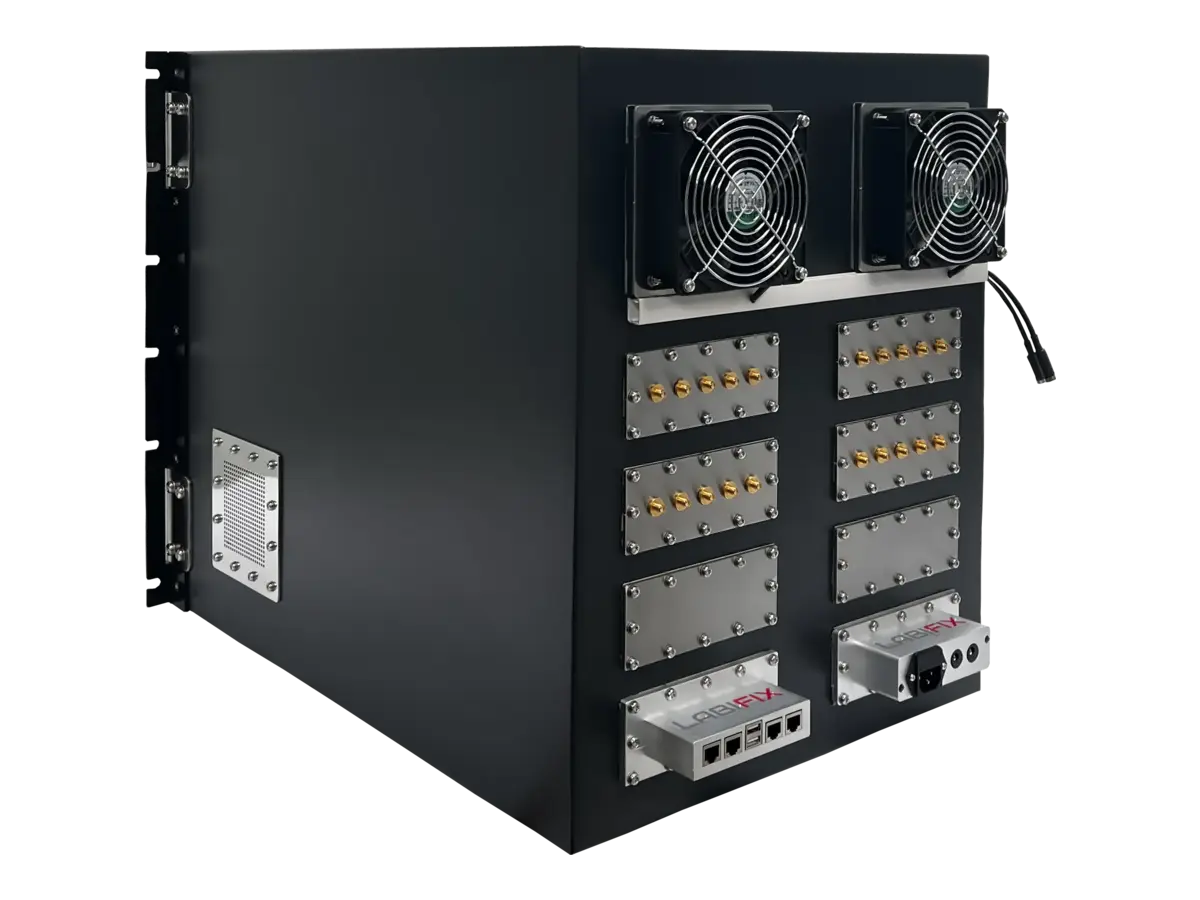

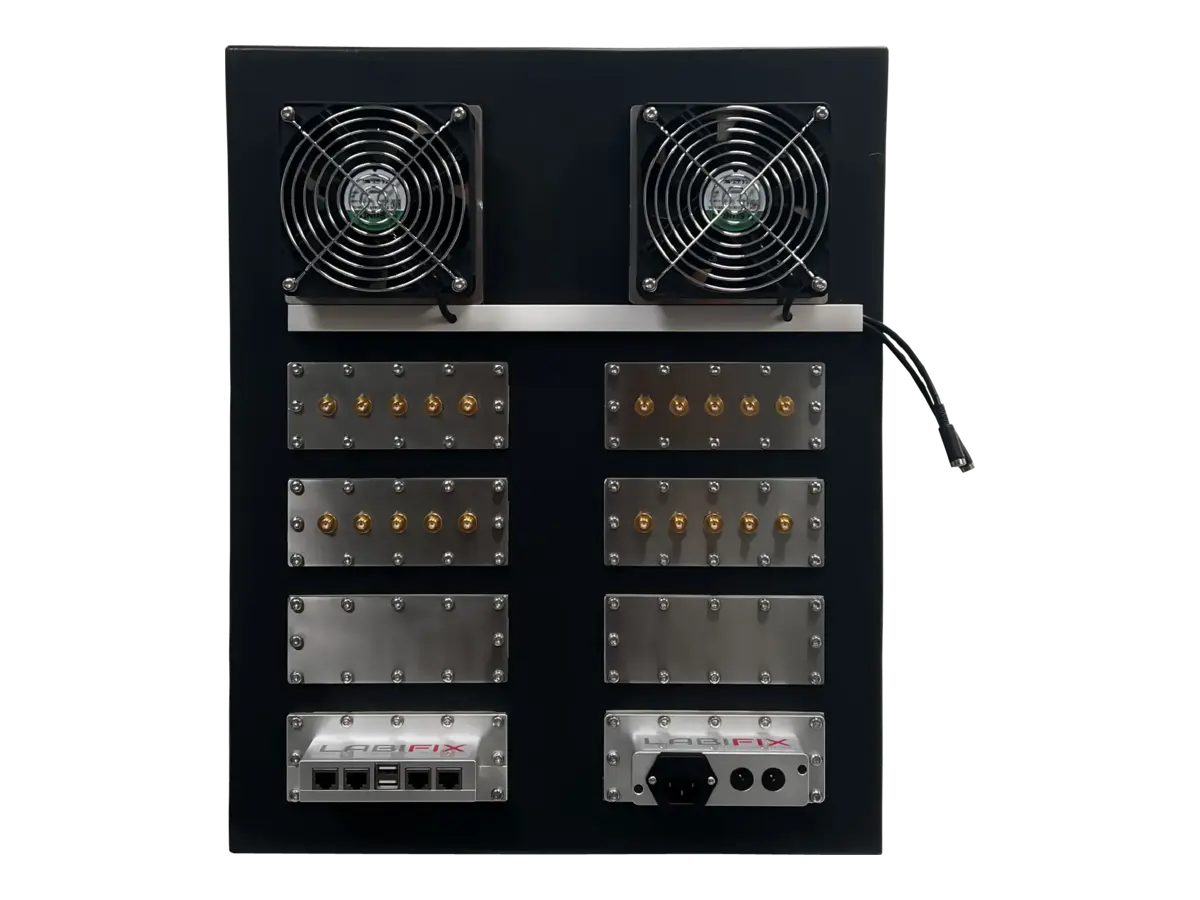

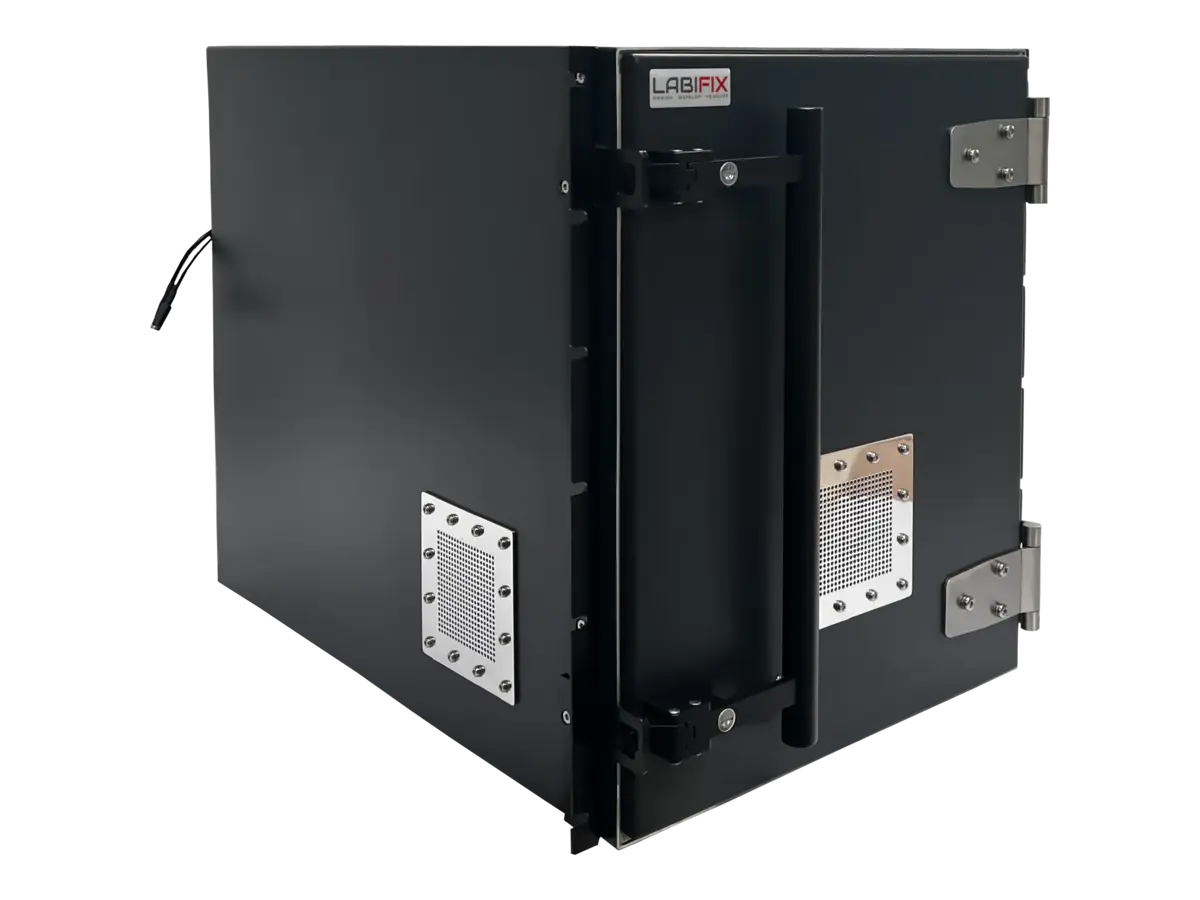

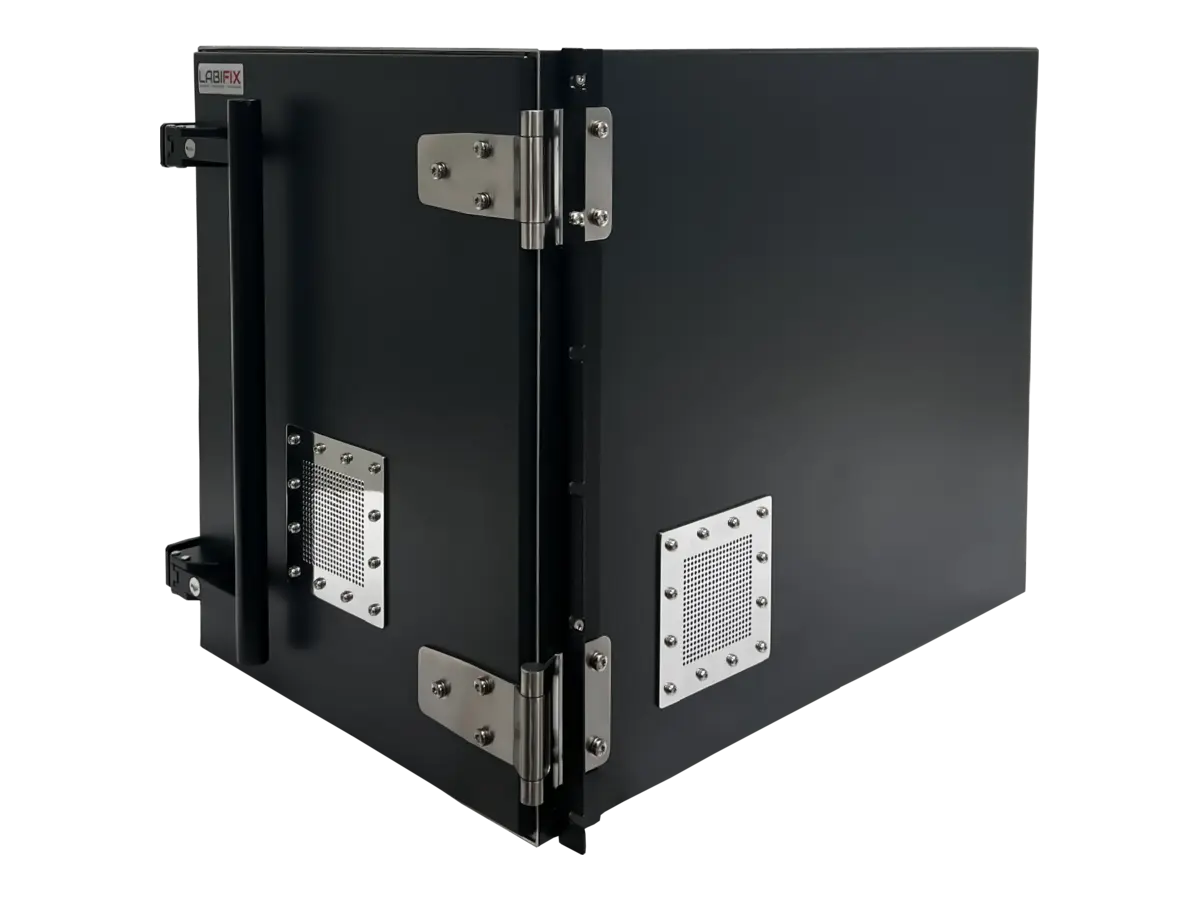

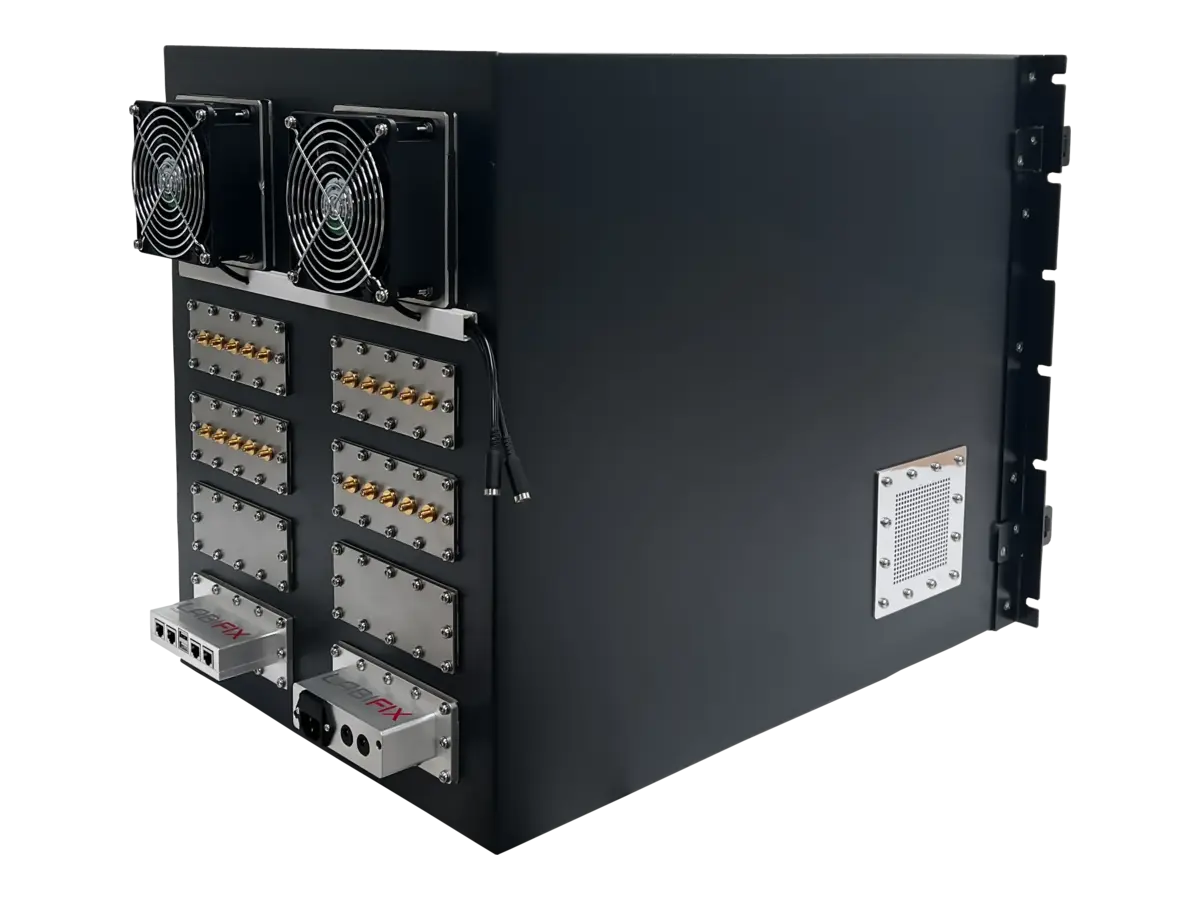

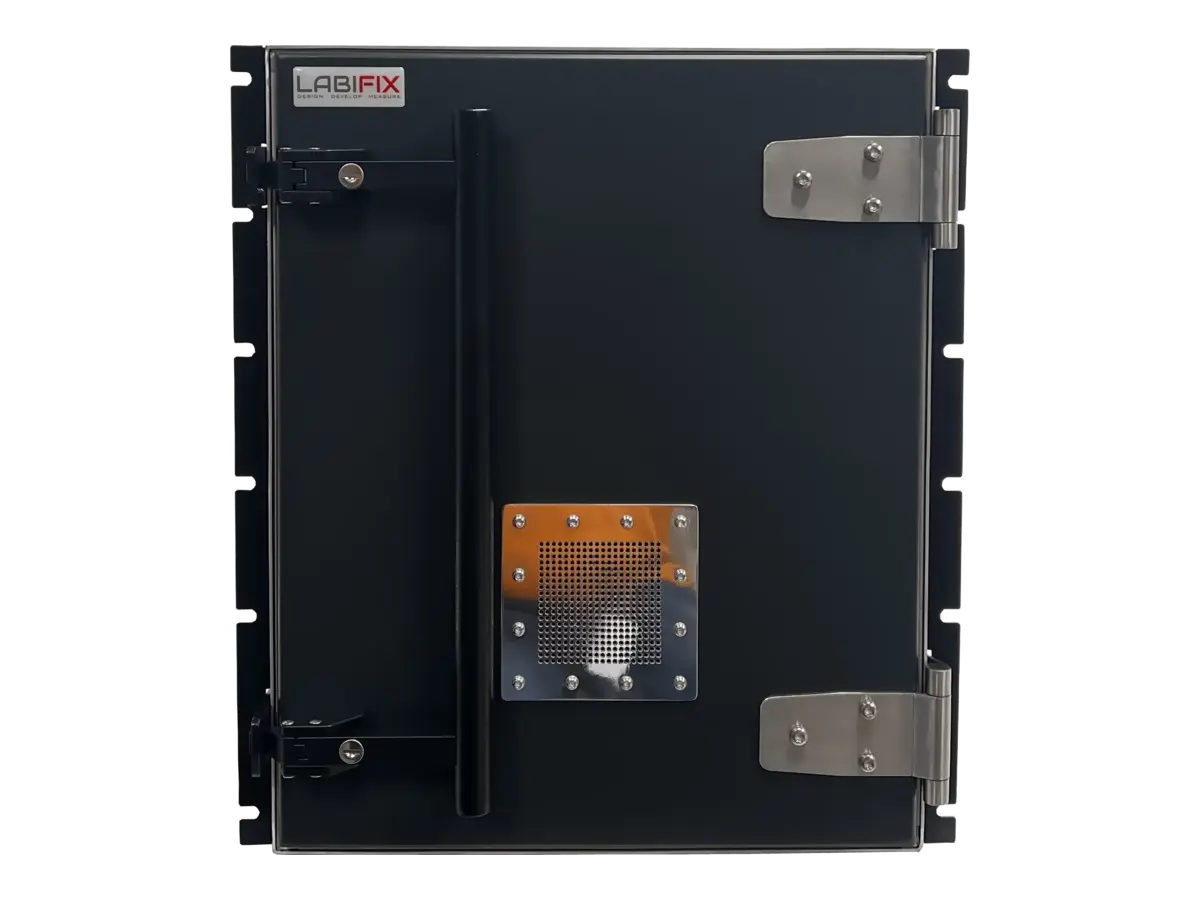

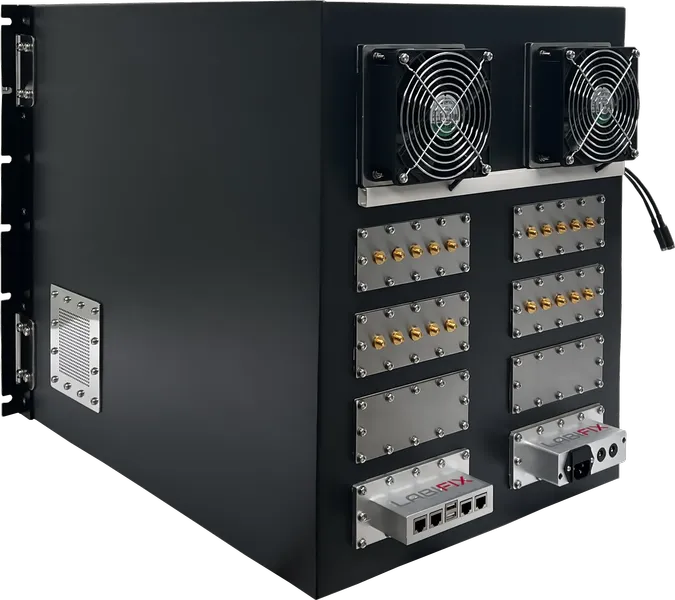

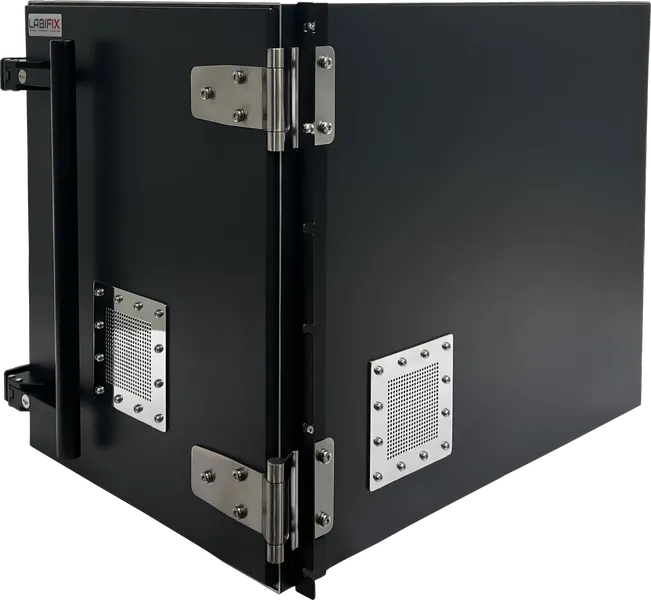

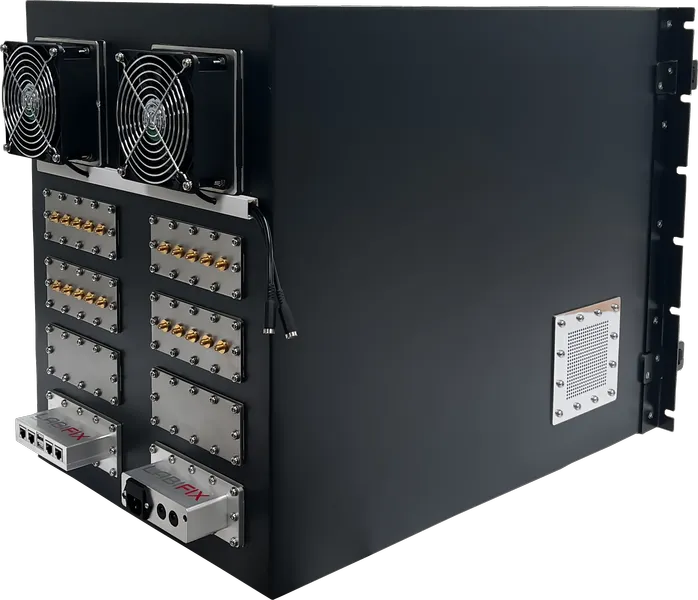

LBX4600 IoT device Testing Enclosure LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX4600 RF Shield Box

LBX4600 is ideal for engineering teams seeking reliable RF isolation without commitment to a specific test setup. Its design can combine Fully Customizable Shielded Enclosures and High-performance Shielded Air Vents for proper airflow, allowing engineers to balance shielding, connectivity, and access without confining the DUT to a predetermined arrangement. It is ideal for controlled RF validation, development, and production testing processes where consistency is crucial. The LBX4600, as an RF test enclosure, can be arranged according to the DUT and its required testing approach.

Dimensions
Exterior (H x W x D)
16" (H) x 24" (W) x 19" (D)
Interior (H x W x D)
14" (H) x 22" (W) x 17" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX4600 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
24"(EXTERIOR WIDTH)16"(EXTERIORHEIGHT)FRONT VIEW19"(EXTERIOR DEPTH)SIDE VIEW24"(EXTERIOR WIDTH)19"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 24" (W) × 16" (H) × 19" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX4600 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
22"(INTERIOR WIDTH)14"(INTERIORHEIGHT)INTERIOR FRONT VIEW17"(INTERIOR DEPTH)INTERIOR SIDE VIEW22"(INTERIOR WIDTH)17"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 22" (W) × 14" (H) × 17" (D)RF Pyramidal Microwave Absorber Lining Boundary
