What frequency ranges does LBX4640 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsLBX4640

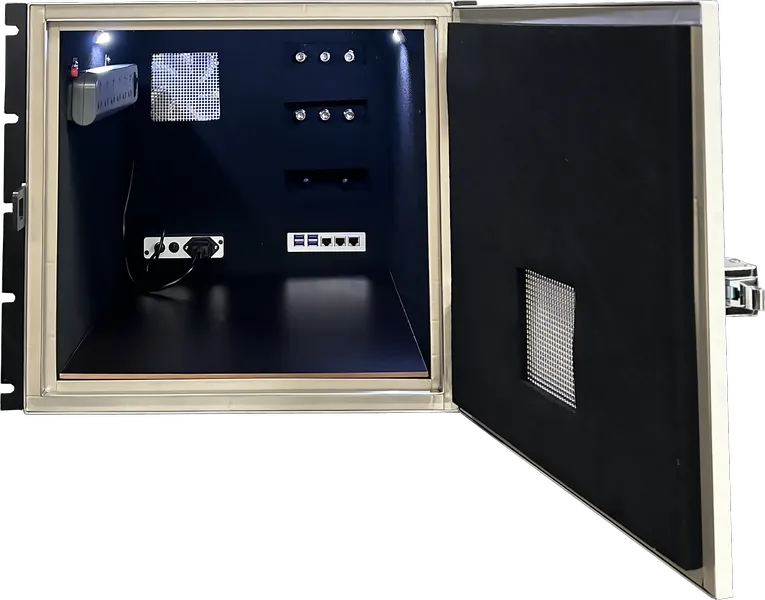

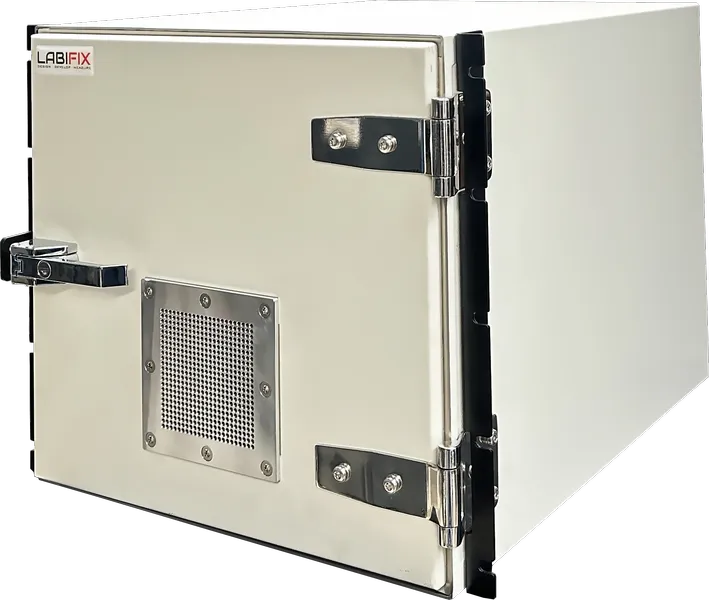

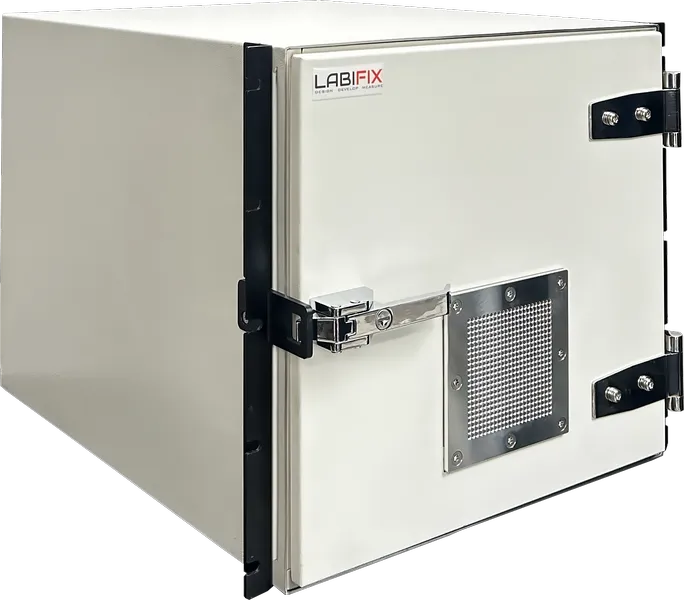

LBX4640 Benchtop Faraday cage LabiFix RF Shield Box - View 1 of 6

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX4640 RF Shield Box

Name: LBX4640 19" Rack-Mount RF Shield Box | LabiFix
Brand: Labifix Innovations
SKU: LBX4640

LBX4640 is designed to help make RF testing more manageable and simpler to fit into an existing lab setup. The enclosure can be adjusted to fit the equipment, interfaces, and testing method being used, with choices like High Performance RF Absorber lining and Rugged Welded Construction available. It works well for controlled RF testing, development, and production testing processes where consistent results are important. As a radio frequency shielded enclosure, the LBX4640 can be set up around the device under test and arranged according to how it needs to be tested.

Dimensions

Exterior (H x W x D)

16" (H) x 17" (W) x 22" (D)

Interior (H x W x D)

14" (H) x 15" (W) x 20" (D)

Shielding Effectiveness

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

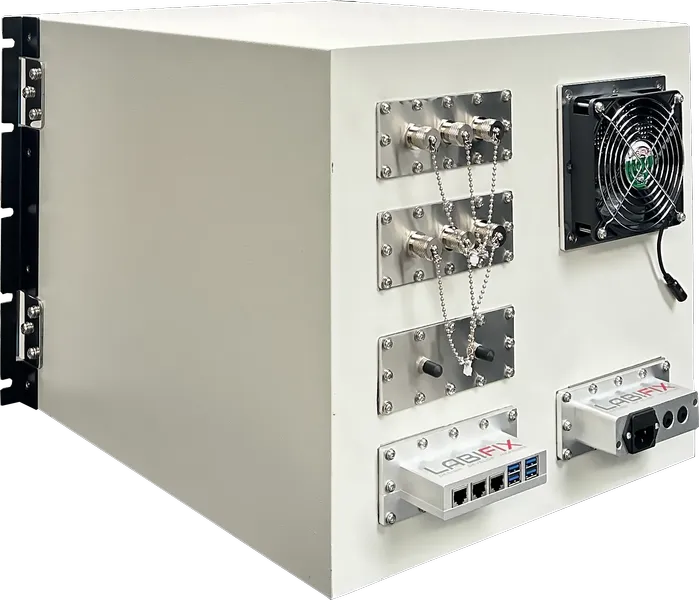

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX4640 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 17" (W) × 16" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX4640 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 15" (W) × 14" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
