Compact RF Shield Box for IoT Wearables Testing | LabiFix

LBX2700

RF SHEILDED TEST ENCLOSURE

LBX8400 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

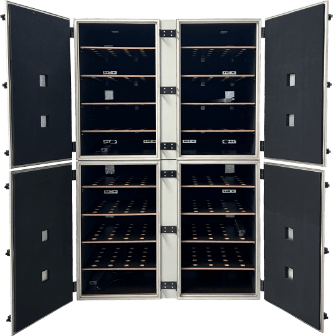

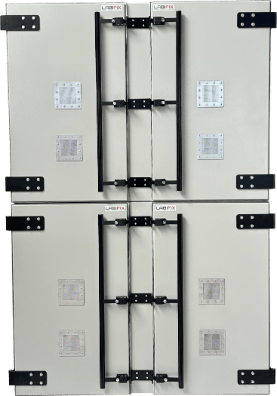

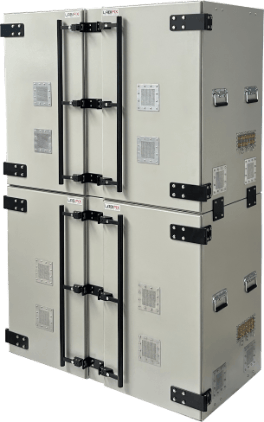

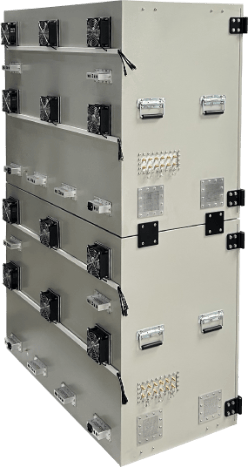

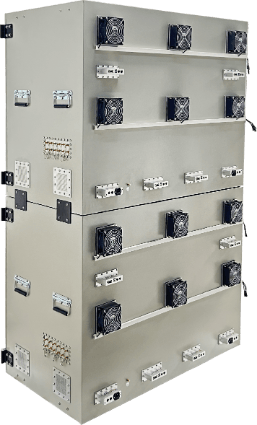

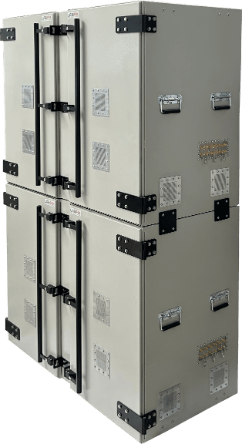

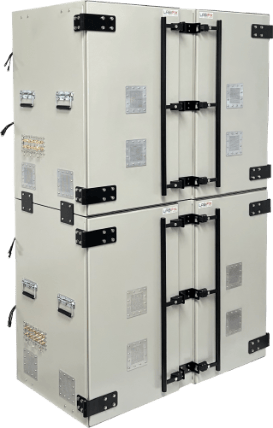

The LBX8400 is a large RF shielded enclosure with two front-opening swing doors. It is large enough to hold multiple devices such as laptops, desktop computers, and RF electronics, and it includes optional compartments for easy placement of test devices.

The LBX8400 RF shield enclosure is designed to meet a wide range of testing requirements, and its rugged welded construction ensures extra durability and reliability. Filtered AC and DC power lines, data lines, and RF connectors provide superior shielding against RF interference.

Description

Our Solutions & Benefits
  • Design and Develop for Wireless Device Testing
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports and Power lines
  • RF Gasket System
  • High performance shielded Air Vents for adequate air flow
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • > 85dB @ 20 MHz ~ 1 GHz
  • > 95dB @ 1 GHz ~ 3 GHz
  • > 90dB @ 3 GHz ~ 6 GHz
  • > 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 38"H x 50"W x 25"D
  • Interior : 36"H x 48"W x 23"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

RF Shielded Enclosure 1.5
RF Shielded Enclosure 1.4
RF Shielded Enclosure 1.3
RF Shielded Enclosure 1.2
RF Shielded Enclosure 1.1
RF Shielded Enclosure 1.0
RF Shielded Enclosure 0.2
RF Shielded Enclosure 0.1
Applications
  • Wireless Device Testing
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Bluetooth and Zigbee
  • Forensics and Security
  • Cellular 4G,5G,LTE, Wimax
  • Wireless Medical Device
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC,
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
  • RF Ports : SMA Bulkhead Connector
  • Filtered USB 3.0
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector
  • Honeycomb Air Vents 120 mm x 120 mm
  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
