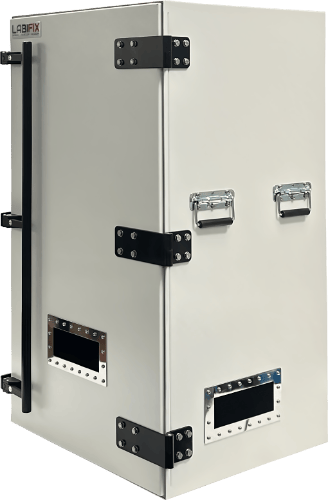

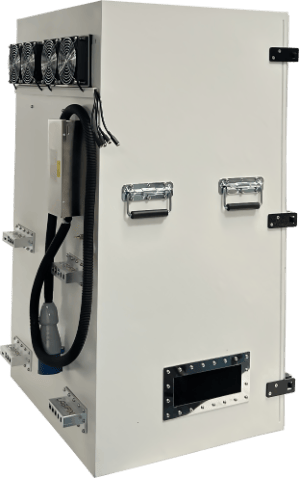

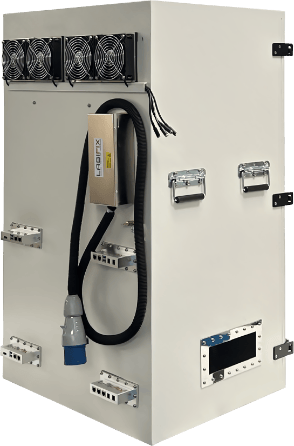

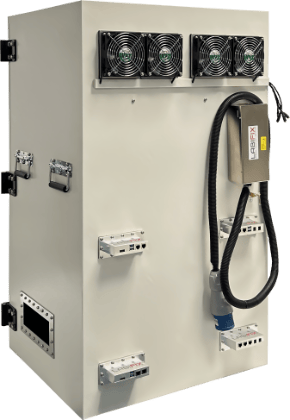

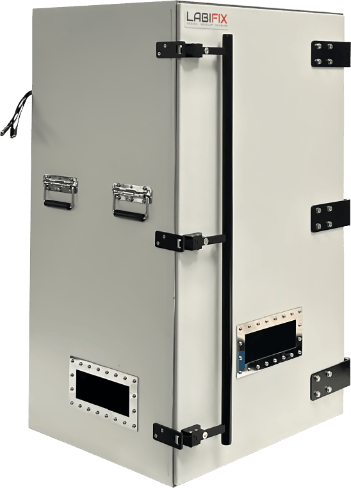

LBX6850 RF SHEILDED TEST ENCLOSURE
RF SHEILDED TEST ENCLOSURE
The LBX6850 is a cost effective RF enclosure that was specifically designed for testing wireless devices. It’s ideal for anyone who wants to test their device without worrying about interference or other external factors. The LBX6850 RF chamber design allows you to test multiple devices at once and customize your I/O panel with interchangeable connectors, allowing standard I/O to be replaced as needed.
The LBX6850 RF shielded enclosure is ideal for your Wi-Fi or Wimax testing needs. Our shielding system maintains a stable test environment with adequate ventilation and can be powered by AC/DC, 12V DC, or 230VAC power line filters.
Description
- EMI filters on Data Ports and Power lines
- High Performance RF Absorber lining
- Design and Develop for Wireless Device Testing
- High performance shielded Air Vents for adequate air flow
- Completely Customizable Shielded Enclosure
- User Defined & Interchangeable I/O Connector options
- Rugged Welded Construction
- RF Gasket System
SHIELDING EFFECTIVENESS (ISOLATION)
DIMENSION
- > 85dB @ 20 MHz ~ 1 GHz
- > 95dB @ 1 GHz ~ 3 GHz
- > 90dB @ 3 GHz ~ 6 GHz
- > 85dB @ 6 GHz ~ 12 GHz
- Exterior : 44″H x 26″W x 22″D
- Interior : 42″H x 24″W x 20″D
Download Datasheet
Need more help?
We’re happy to assist you. Talk to experts now.
+91 80-79690756
business@labifix.com
- Bluetooth and Zigbee
- Cellular 4G,5G,LTE, Wimax
- Forensics and Security
- Wireless Device Testing
- Wi-Fi 802.11 – All series
- R&D and Quality Assurance Tests
- Wireless Medical Device
- Filtered Ethernet – 10M, 100M, 1G & 10G
- Filtered USB 2.0 & 3.0 –C Type
- AC / DC Power line filter
- RF Ports: SMA, N Type, BNC, TNC,
- Fiber optics: ST & Waveguide
- Data: DB9, DB15, DB25, DB50, RJ11
- Filtered HDMI, VGA & Audio Ports
- RF Ports : SMA Bulkhead Connector
- RF Ports : N Type Bulkhead Connector
- Filtered USB 3.0
- Filtered HDMI
- Fiber Optic Insertion Waveguide
- Filtered Ethernet
- AC Power line Filter Voltage Range 110 ~ 270V – 50/60 Hz
- DC Power – 5A Jack Connector

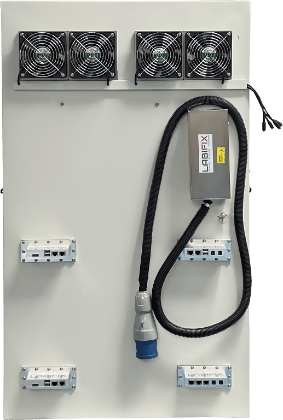

- Honeycomb Air Vents 120 mm x 120 mm

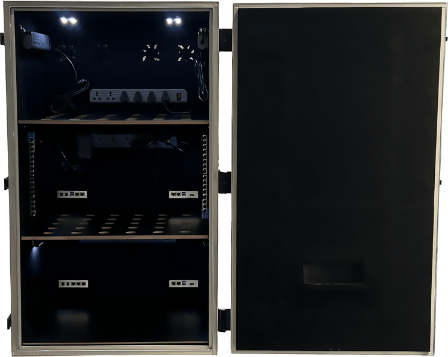

- 1” RF Absorber for dampening internal signal reflections
- Higher CFM Fan size of 120mm
- Base wooden plate to place DUT
- IEC Power cords
- Belkin Power Strip 6 Way Universal Sockets
