LBX6600 RF SHEILDED TEST ENCLOSURE | LabiFix

LBX2700

RF SHEILDED TEST ENCLOSURE

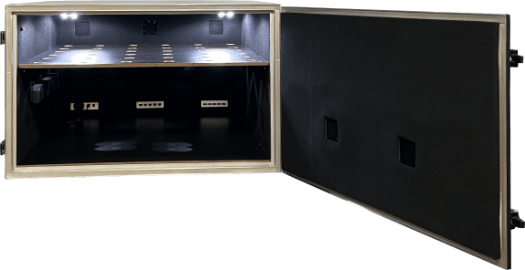

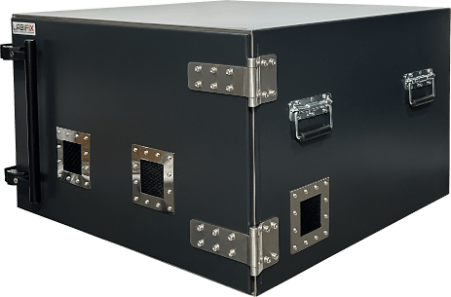

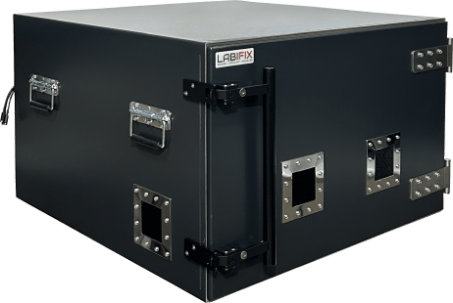

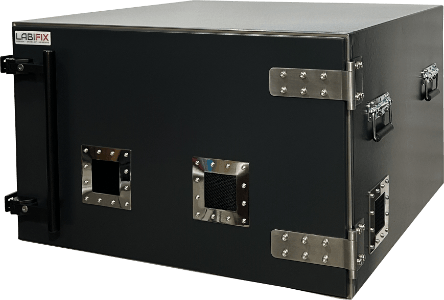

LBX6600 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

Specifically designed for wireless device testing, the LBX6600 is an affordable RF enclosure. It’s perfect for anyone who wants to test their gadget without having to worry about outside interference or other factors. With the interchangeable connectors on the LBX6600 RF chamber design, you can customize your I/O panel and test multiple devices at once. Standard I/O can be replaced as needed.

For all of your Wi-Fi and Wimax testing requirements, the LBX6600 RF shielded enclosure is perfect. Our shielding system, which can be powered by AC/DC, 12V DC, or 230VAC power line filters, keeps the test environment stable and ventilates well.

Description

Our Solutions & Benefits
  • EMI filters on Data Ports and Power lines
  • High Performance RF Absorber lining
  • Design and Develop for Wireless Device Testing
  • High performance shielded Air Vents for adequate air flow
  • Completely Customizable Shielded Enclosure
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • RF Gasket System
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • > 85dB @ 20 MHz ~ 1 GHz
  • > 95dB @ 1 GHz ~ 3 GHz
  • > 90dB @ 3 GHz ~ 6 GHz
  • > 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 20"H x 32"W x 32"D
  • Interior : 18"H x 30"W x 30"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

IMG_8593
IMG_8583
IMG_8577
IMG_8569
IMG_8561
IMG_8555
IMG_8541
IMG_8537
IMG_8528
IMG_8523
Applications
  • Bluetooth and Zigbee
  • Cellular 4G,5G,LTE, Wimax
  • Forensics and Security
  • Wireless Device Testing
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Wireless Medical Device
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC,
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
  • RF Ports : SMA Bulkhead Connector
  • RF Ports : N Type Bulkhead Connector
  • Filtered RJ45
  • Filtered USB 3.0
  • Fiber Optic Insertion Waveguide
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector

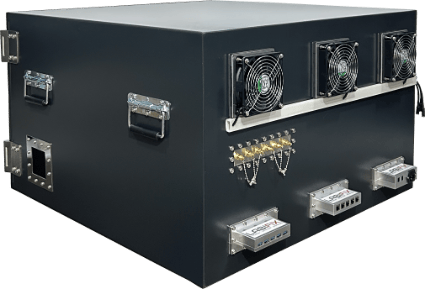

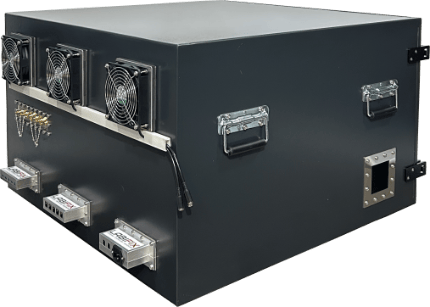

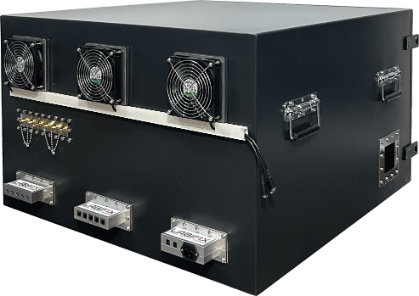

  • Honeycomb Air Vents 120 mm x 120 mm
  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
