LBX4060 RF SHEILDED TEST ENCLOSURE | LabiFix

LBX2700

RF SHEILDED TEST ENCLOSURE

LBX4060 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

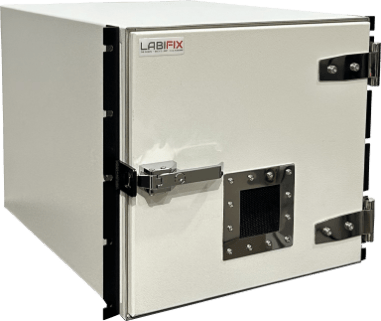

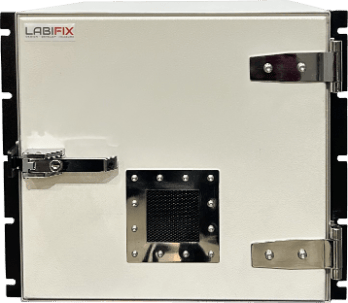

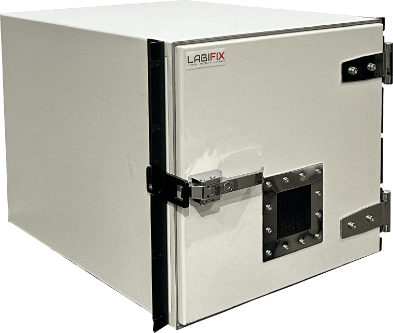

The LBX4060 Wi-Fi Test Box is designed to isolate and protect sensitive electronic devices from outside interference,making it ideal for wireless device testing. Its tough steel construction and heavy-duty hinges ensure it will withstand years of use. High-quality RF absorber materials, as well as a variety of IO RF connectors, data ports, and power options, help to dampen the signal inside the RF enclosure.

This box can be customized to meet a variety of requirements. The RF box is ideal for engineers who require an inexpensive manual test environment to isolate their device from external interference during each validation cycle.

Description

Our Solutions & Benefits
  • Design and Develop for Wireless Device Testing
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports and Power lines
  • RF Gasket System
  • High performance shielded Air Vents for adequate air flow
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • > 95dB @ 20 MHz ~ 1 GHz
  • > 95dB @ 1 GHz ~ 3 GHz
  • > 90dB @ 3 GHz ~ 6 GHz
  • > 85dB @ 6 GHz ~ 12 GHz
  • Exterior :16"H x 17"W x 22"D
  • Interior : 14"H x 15"W x 20"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

LBX4060 (11)
LBX4060 (10)
LBX4060 (9)
LBX4060 (8)
LBX4060 (7)
LBX4060 (6)
LBX4060 (5)
LBX4060 (4)
LBX4060 (3)
LBX4060 (2)
LBX4060 (1)
Applications
  • Bluetooth and Zigbee
  • Cellular 4G,5G,LTE, Wimax
  • Forensics and Security
  • Wireless Medical Device
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Wireless Device Testing

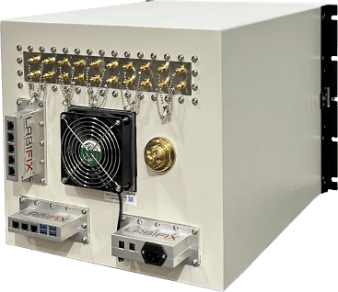

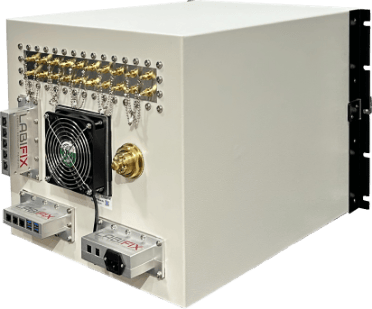

USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC,
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
  • RF Ports : SMA Bulkhead Connector
  • RF Ports : N Type Bulkhead Connector
  • Waveguide
  • Filtered USB 3.0
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz -1
  • DC Power - 5A Jack Connector
  • Honeycomb Air Vents 120 mm x 120 mm

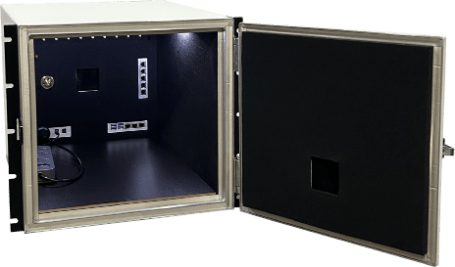

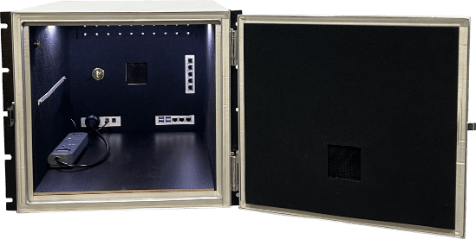

  • 2” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
