Compact RF Shield Box for IoT Wearables Testing | LabiFix

LBX2700

RF SHEILDED TEST ENCLOSURE

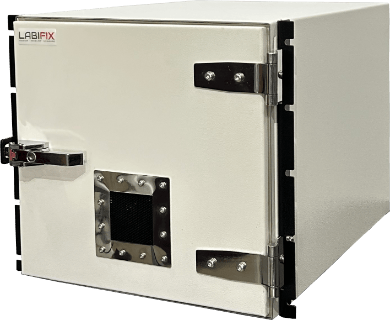

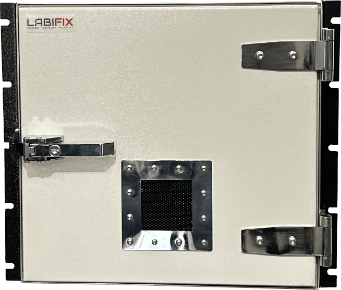

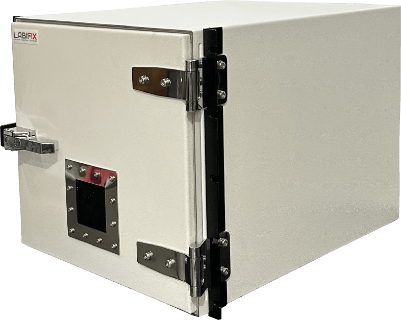

LBX4040 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

For the purpose of testing wireless devices, the LBX4040 is a reasonably priced RF enclosure. If you want to test your device without worrying about interference or other environmental factors, this is the ideal solution. The LBX4040  RF chamber design has interchangeable connectors that allow you to customize your I/O panel and replace standard I/O when necessary. It also allows you to test multiple devices at once.

For your testing needs, whether Wi-Fi or Wimax, the RF shielded enclosure LBX4040 is the ideal choice. We can power our shielding system with AC/DC, 12V DC, or 230VAC power line filters, and it offers a stable test environment with plenty of ventilation.

Description

Our Solutions & Benefits
  • Design and Develop for Wireless Device Testing
  • EMI filters on Data Ports and Power lines
  • RF Gasket System
  • User Defined & Interchangeable I/O Connector options
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • Rugged Welded Construction
  • High performance shielded Air Vents for adequate air flow
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • > 85dB @ 20 MHz ~ 1 GHz
  • > 95dB @ 1 GHz ~ 3 GHz
  • > 90dB @ 3 GHz ~ 6 GHz
  • > 85dB @ 6 GHz ~ 12 GHz
  • Exterior :16"H x 17"W x 22"D
  • Interior : 14"H x 15"W x 20"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

RF Shielded Test Enclosure 1.10
RF Shielded Test Enclosure 1.9
RF Shielded Test Enclosure 1.8
RF Shielded Test Enclosure 1.7
RF Shielded Test Enclosure 1.6
RF Shielded Test Enclosure 1.5
RF Shielded Test Enclosure 1.4
RF Shielded Test Enclosure 1.0
RF Shielded Test Enclosure 1.1
RF Shielded Test Enclosure 1.2
RF Shielded Test Enclosure 1.3
Applications
  • R&D and Quality Assurance Tests
  • Forensics and Security
  • Cellular 4G,5G,LTE, Wimax
  • Wi-Fi 802.11 - All series
  • Bluetooth and Zigbee
  • Wireless Device Testing
  • Wireless Medical Device

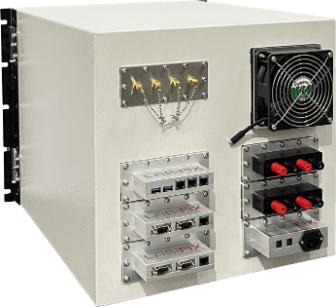

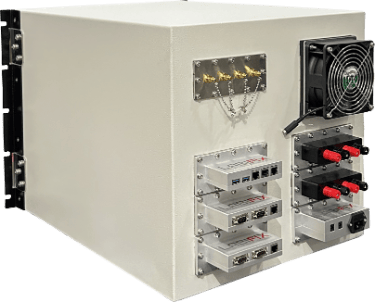

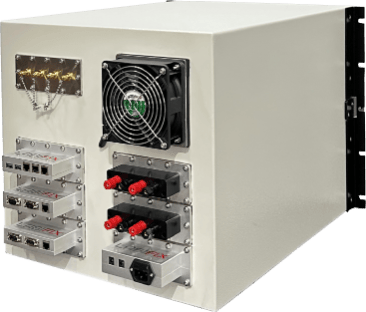

USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, F Type,
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
  • RF Ports : SMA Bulkhead Connector
  • RF Ports : N Type Bulkhead Connector
  • Filtered DB9
  • Filtered USB 3.0
  • Filtered RJ45*3
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector
  • Honeycomb Air Vents 120 mm x 120 mm

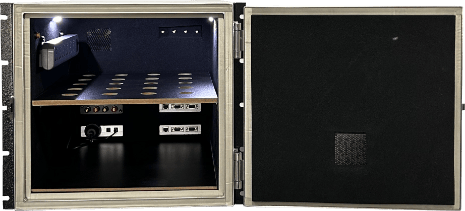

  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
