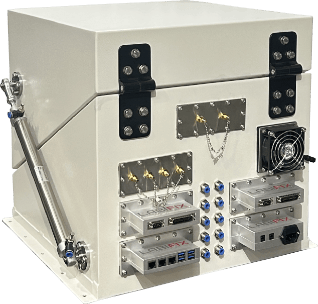

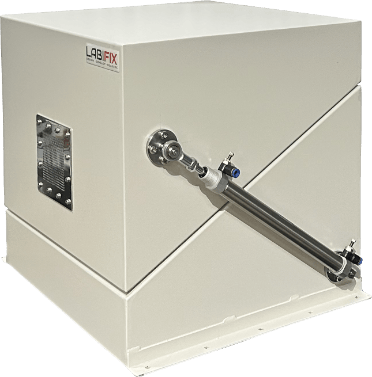

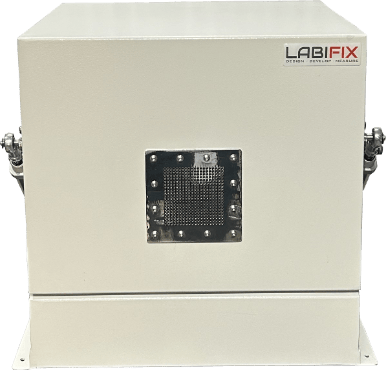

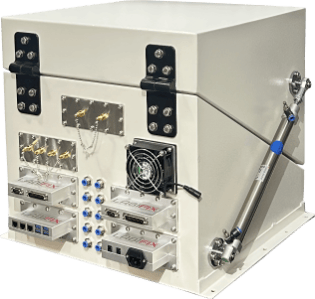

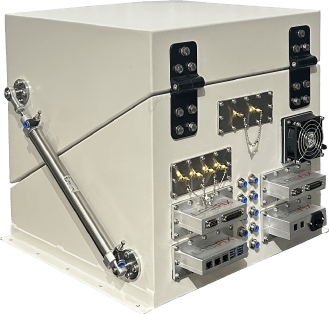

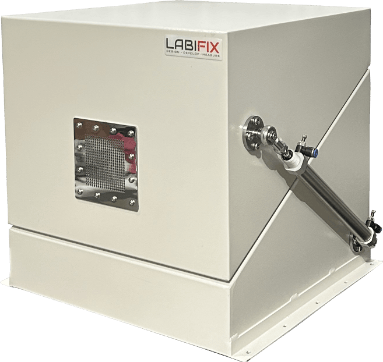

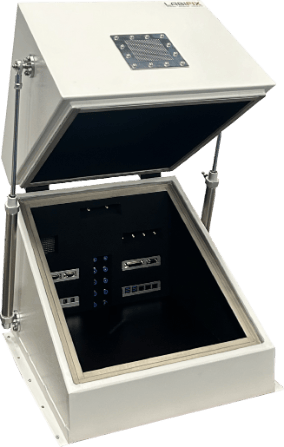

LBX3900 RF SHEILDED TEST ENCLOSURE LabiFix RF Shield Box - View 1 of 13
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX3900 RF Shield Box

Explore the LabiFix LBX3900 RF Shield Box. Features >85dB attenuation up to 8GHz, custom I/O filter panels, and ISO 9001 quality. Request a custom quote today.

Dimensions
Exterior (H x W x D)
12"H x 8.5"W x 18"D
Interior (H x W x D)
10"H x 6.5"W x 16"D
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 80 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX3900 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
8.5"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW18"(EXTERIOR DEPTH)SIDE VIEW8.5"(EXTERIOR WIDTH)18"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 8.5" (W) × 12" (H) × 18" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX3900 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
6.5"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW16"(INTERIOR DEPTH)INTERIOR SIDE VIEW6.5"(INTERIOR WIDTH)16"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 6.5" (W) × 10" (H) × 16" (D)RF Pyramidal Microwave Absorber Lining Boundary
