LBX1200 RF SHEILDED TEST ENCLOSURE | LabiFix

LBX2700

RF SHEILDED TEST ENCLOSURE

LBX1200 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

The LBX1200 RF Shield Box is ideal for testing wireless devices under test, including Bluetooth, Zigbee, Wimax, and cellular. Along with outstanding RF absorber materials that assist minimize the signal inside the RF Box, the device has a variety of IO RF connections, data ports, and power options that can be utilized to test devices in both product research and development and manufacturing efficiency enhancement without constraints.

Engineers can use this box to set up a low-cost manual test environment for each validation need, isolating their device from external interference.

Description

Our Solutions & Benefits
  • EMI filters on Data Ports and Power lines
  • High Performance RF Absorber lining
  • Design and Develop for Wireless Device Testing
  • Completely Customizable Shielded Enclosure
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • RF Gasket System
  • High performance shielded Air Vents for adequate air flow
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • > 95dB @ 20 MHz ~ 1 GHz
  • > 90dB @ 1 GHz ~ 3 GHz
  • > 95dB @ 3 GHz ~ 6 GHz
  • > 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 16"H x 24"W x 18"D
  • Interior : 14"H x 22"W x 16"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

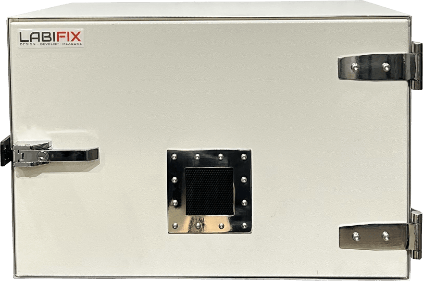

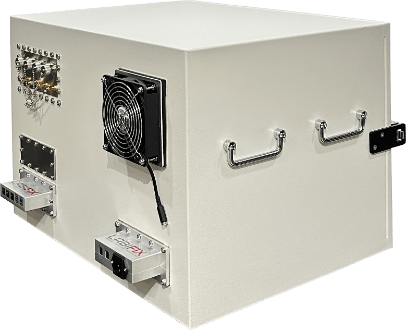

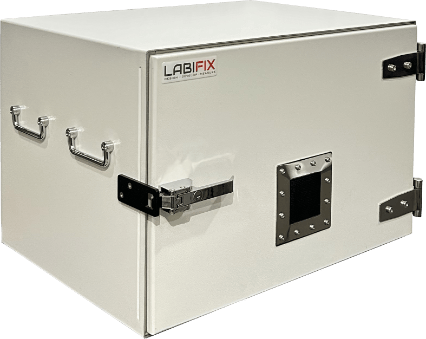

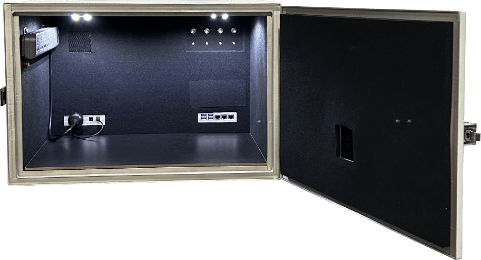

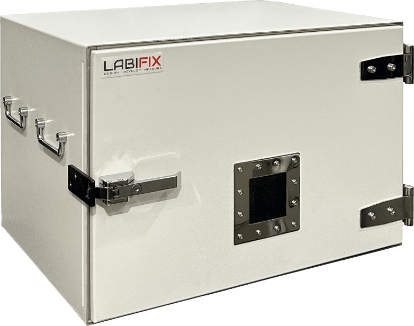

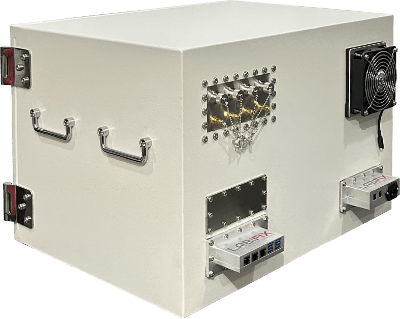

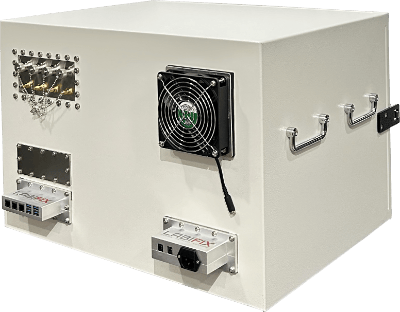

LBX1200 RF Shield box (11)
LBX1200 RF Shield box (10)
LBX1200 RF Shield box (9)
LBX1200 RF Shield box (8)
LBX1200 RF Shield box (7)
LBX1200 RF Shield box (6)
LBX1200 RF Shield box (5)
LBX1200 RF Shield box (4)
LBX1200 RF Shield box (2)
LBX1200 RF Shield box (1)
Applications
  • Bluetooth and Zigbee
  • Cellular 4G,5G,LTE, Wimax
  • Forensics and Security
  • Wireless Device Testing
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC,
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
  • RF Ports : SMA Bulkhead Connector x 4 No’s
  • RF Ports : N Type Bulkhead Connector x 4 No’s
  • Filtered USB 3.0 x 4 No’s
  • Filtered Ethernet : 4 No’s
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz -1
  • DC Power - 5A Jack Connector
  • Honeycomb Air Vents 200 mm x 200 mm x 2 No’s
  • 2” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 200mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
