RF Shielded Test Enclosure for IoT Wearables | LabiFix

LBX1900

RF SHEILDED TEST ENCLOSURE

LBX4250 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

Wi-Fi 802.11a/b/g/n/ac/n MIMO, RF electronics, and 3G, 4G, and 5G LTE are among the wireless communication technologies supported by the LBX4250 RF Shielded Test Enclosure. It is also fully customizable, giving users a large selection of enclosures and I/O connectors to choose from, along with a multitude of options for data and power ports.

Superior steel and high-grade RF absorber materials are used in the construction of the RF shielded enclosure, which can be tailored to meet specific needs and dampen signals inside the RF chamber. While maintaining a high shielding effectiveness of >100dB, the unit’s interior space permits the testing of larger devices.

Description

Features
  • Completely Customizable Shielded Enclosure
  • RF Gasket System
  • Design and Develop for Wireless Device Testing
  • Rugged Welded Construction
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • EMI filters on Data Ports and Power lines
  • High performance shielded Air Vents for adequate air flow
Applications
  • Bluetooth and Zigbee
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Wireless Medical Device
  • Forensics and Security
  • Wireless Device Testing
  • Cellular 4G,5G,LTE, Wimax
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 22"H x 21"W x 19"D
  • Interior : 20"H x 19"W x 17"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

RF Shielded Enclosure 1.0
RF Shielded Enclosure 1.1
RF Shielded Enclosure 1.2
RF Shielded Enclosure 1.3
RF Shielded Enclosure 1.4
RF Shielded Enclosure 1.5
RF Shielded Enclosure 1.6
RF Shielded Enclosure 1.7
RF Shielded Enclosure 1.8
LBX4250 Shielded Enclosure comes with the following
  • RF Ports : SMA Bulkhead Connector
  • Filtered USB 2.0
  • Filtered USB 3.0
  • Filtered USB RS232
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector

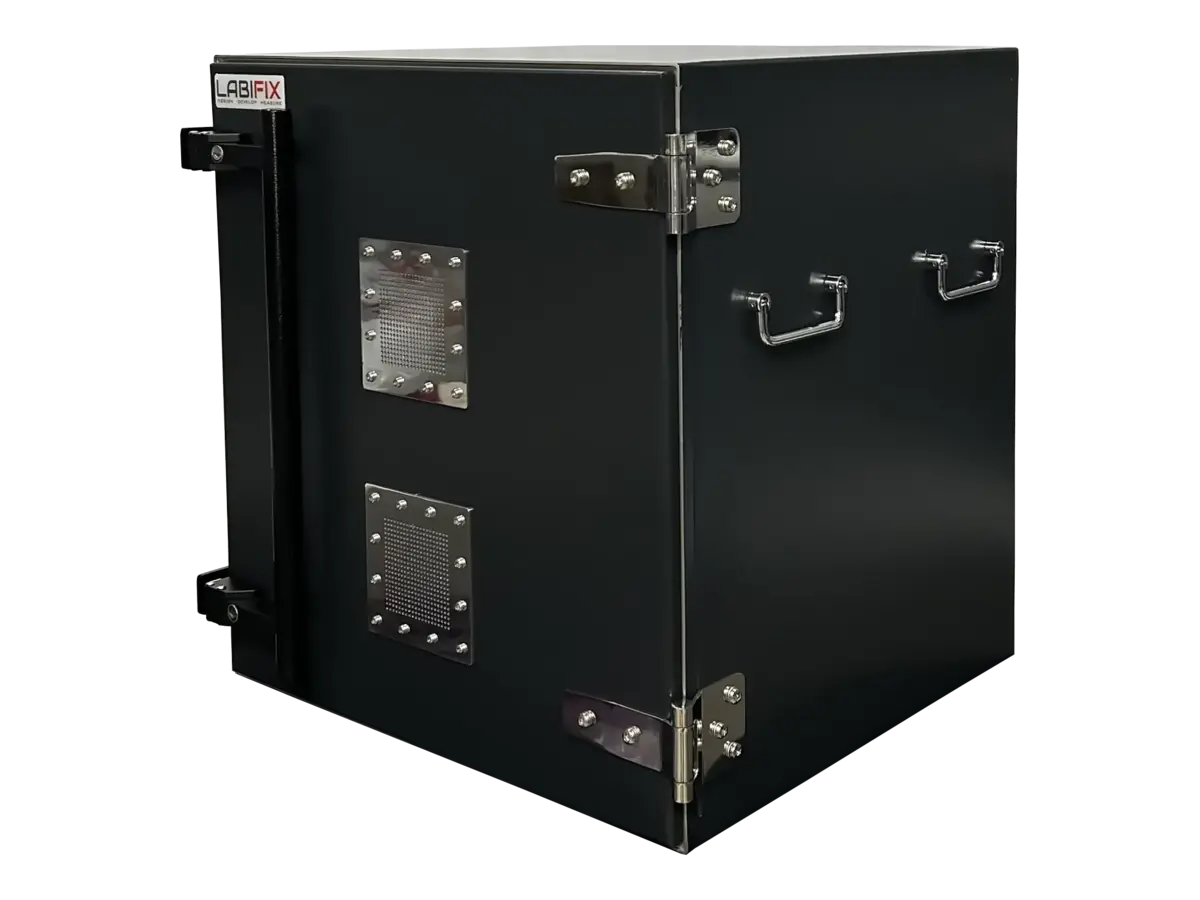

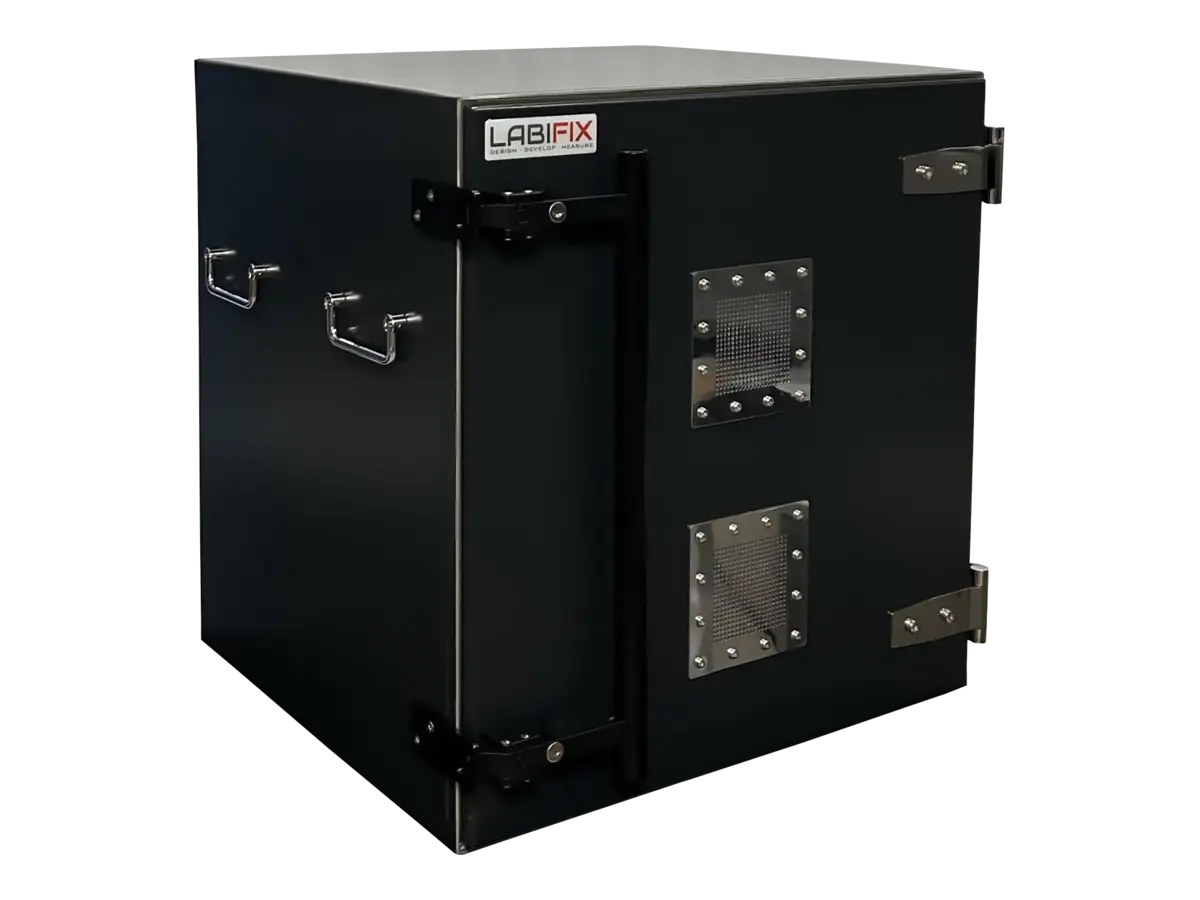

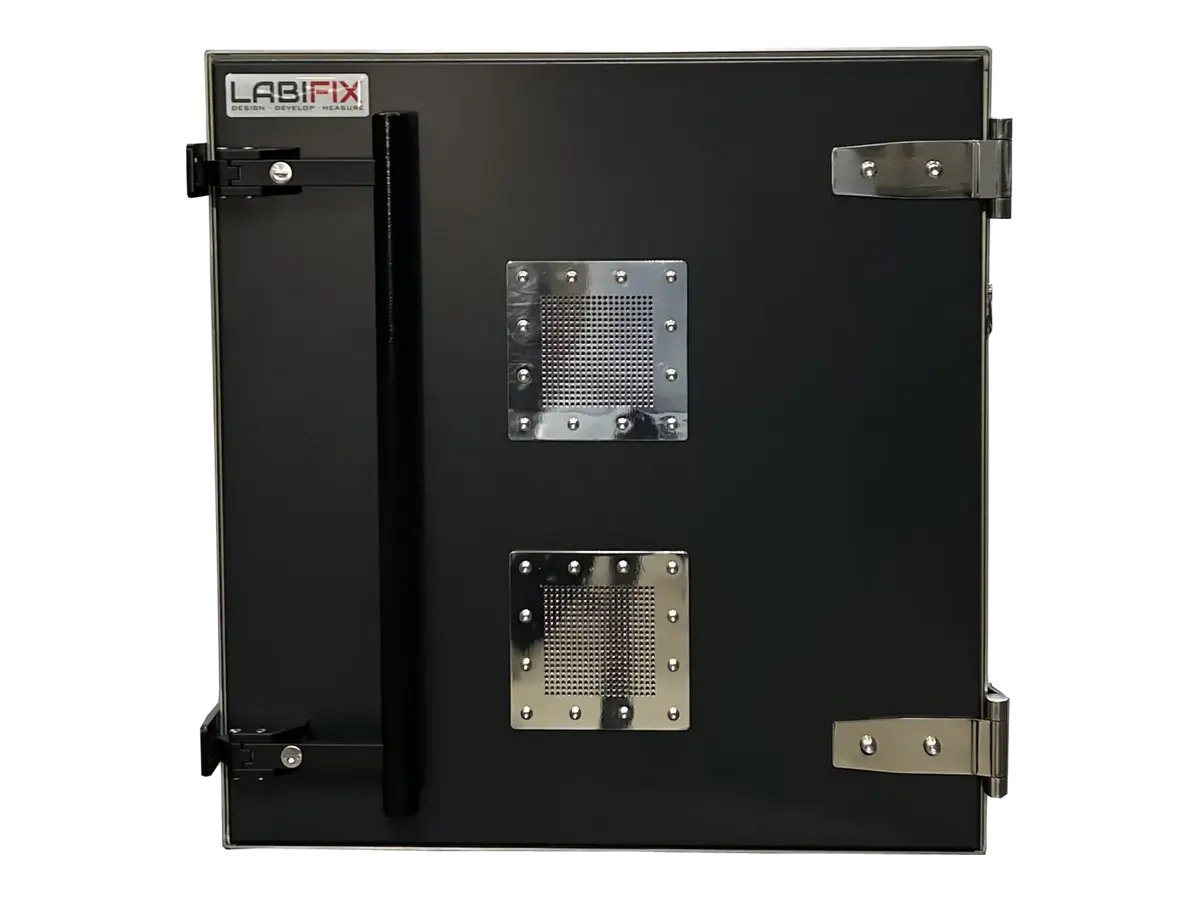

  • Honeycomb Air Vents 120 mm x 120 mm

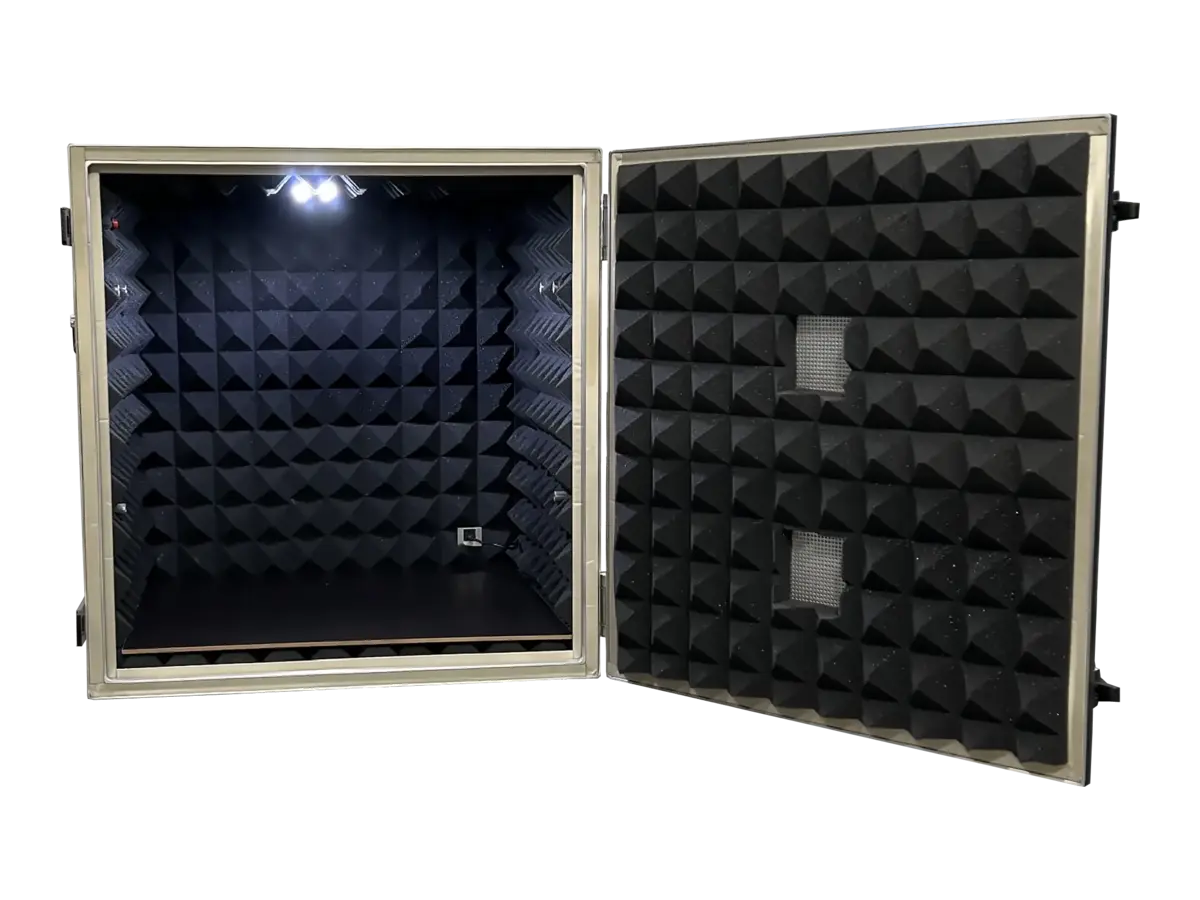

  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
