HomeProductsLBX7400

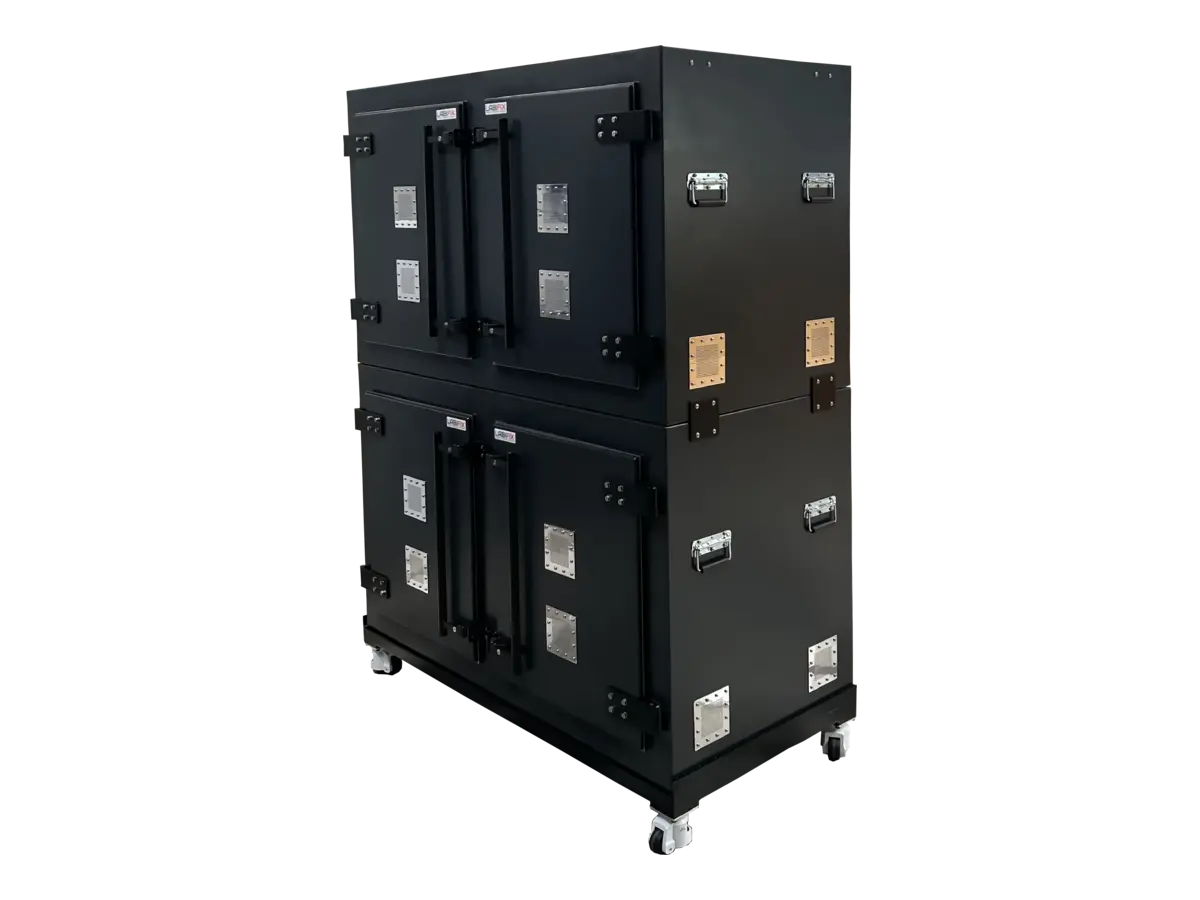

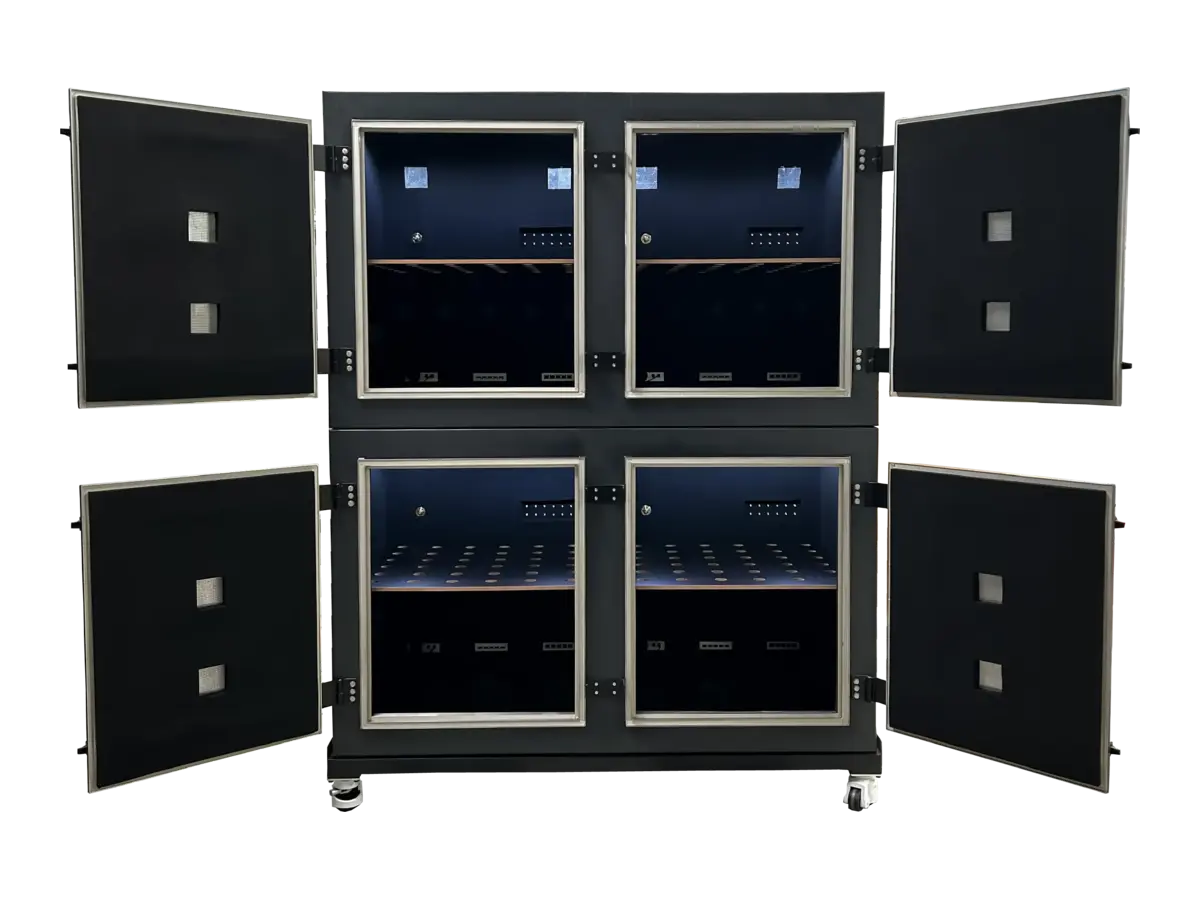

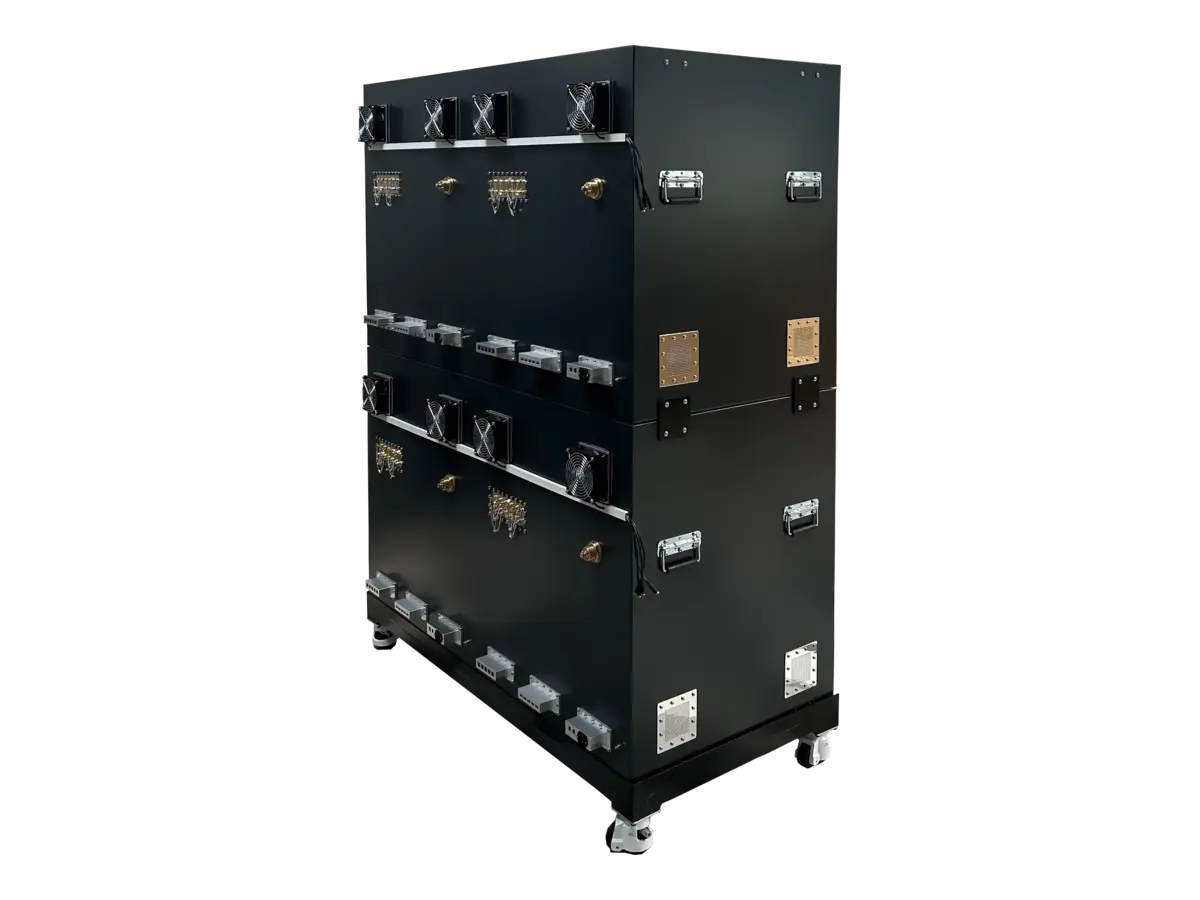

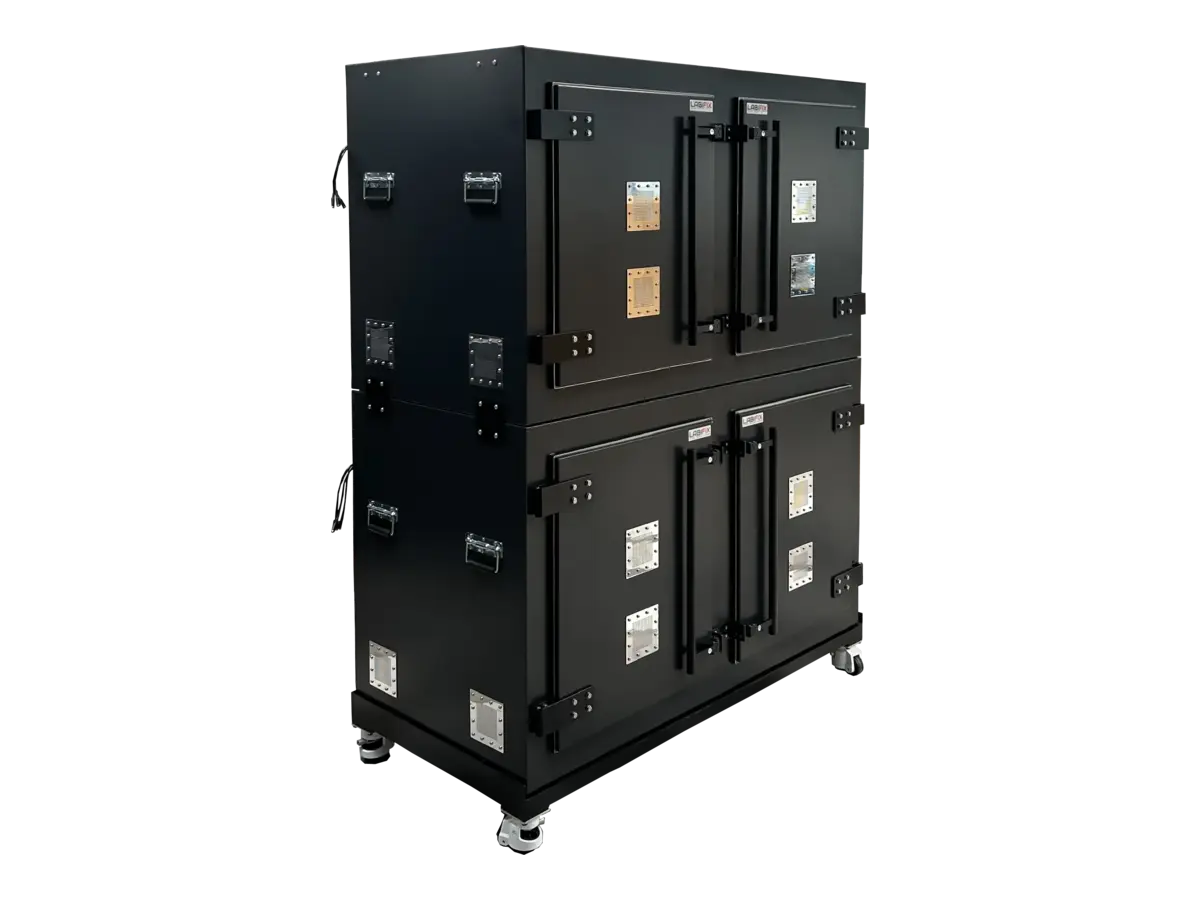

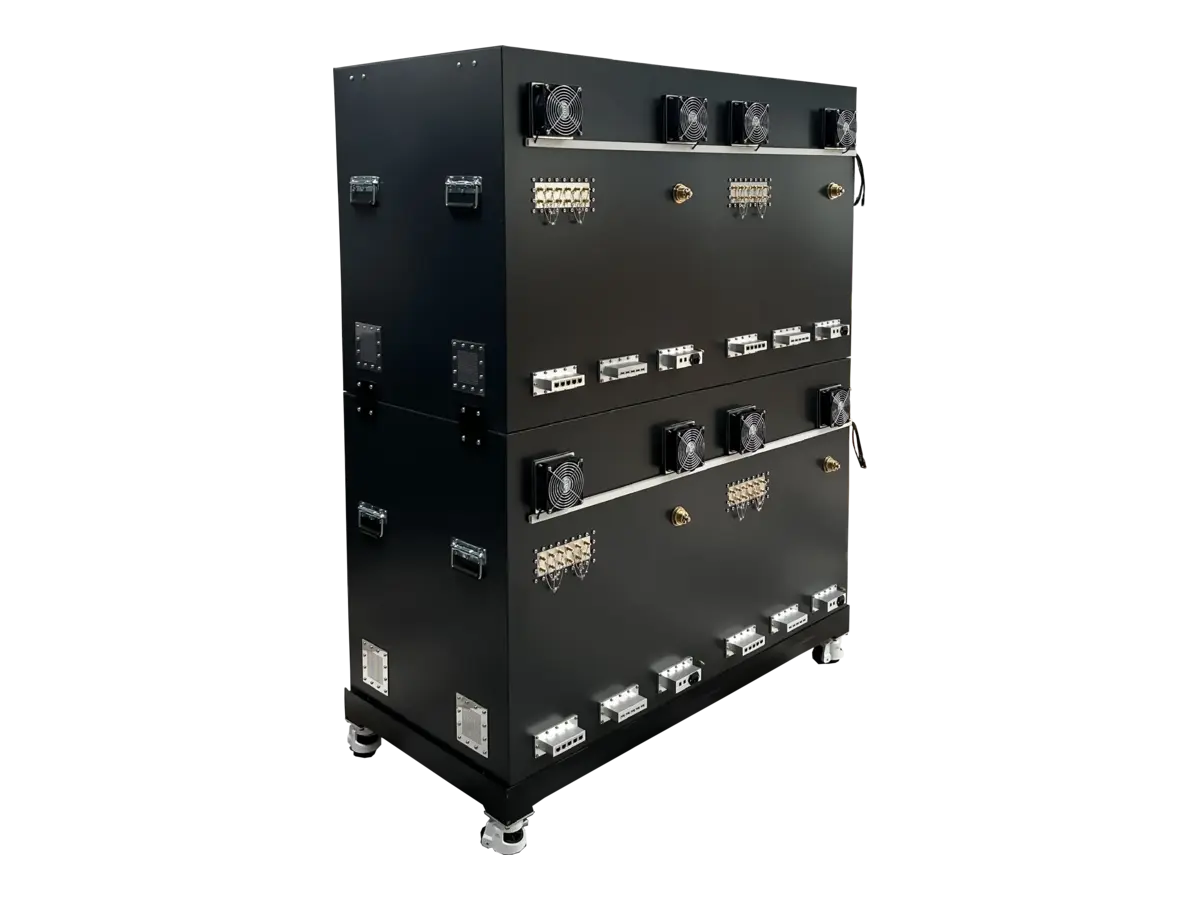

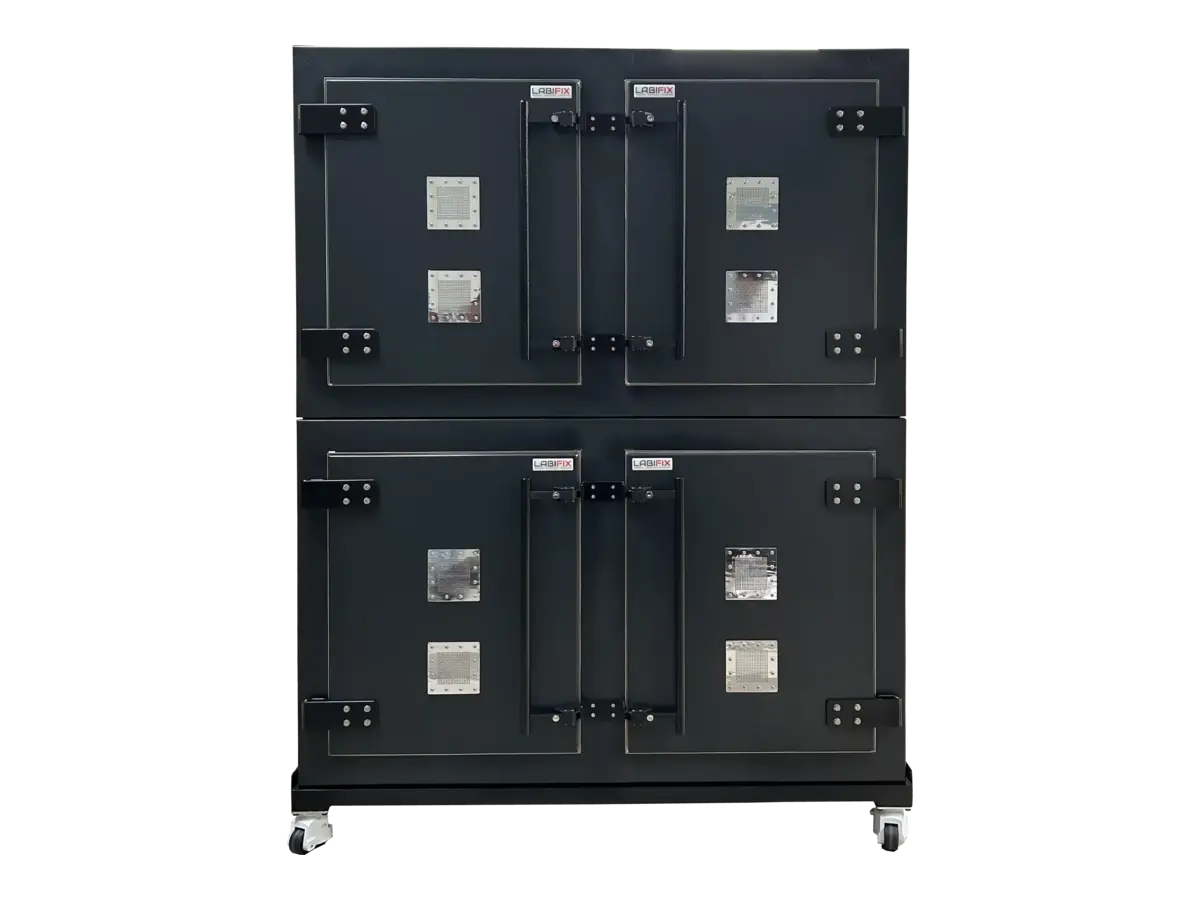

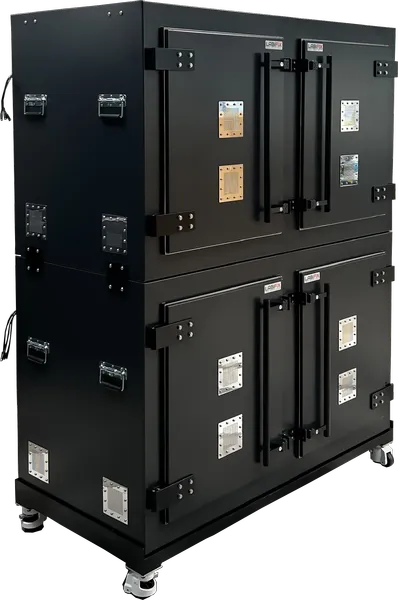

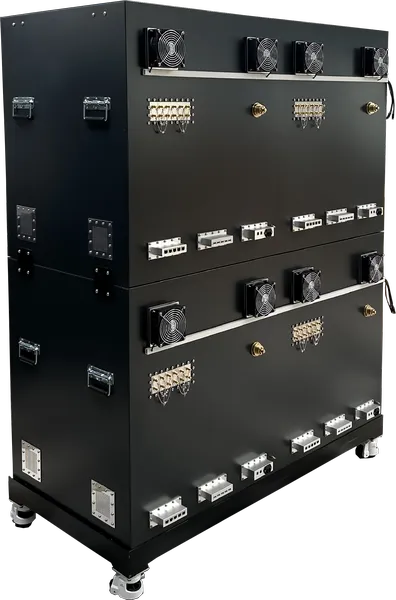

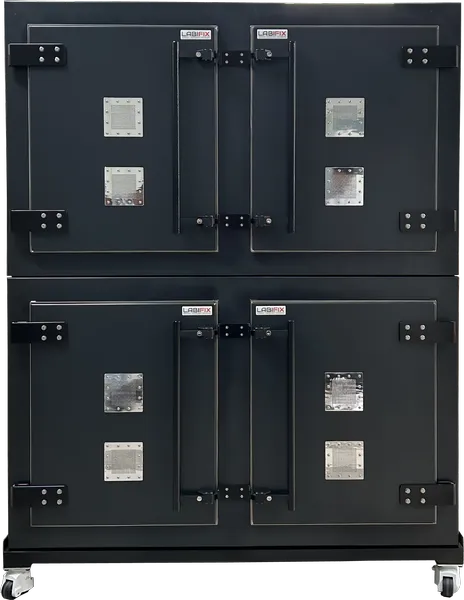

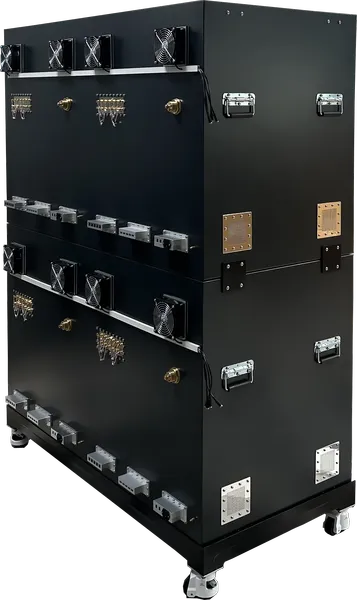

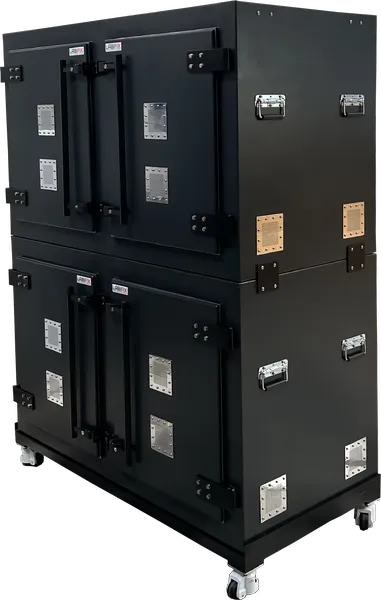

LBX7400 Muti Stack RF Shielded Test Enclosure LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX7400 RF Shield Box

Maximum shielding. Maximum flexibility. The LBX7530 delivers both. This manual shielded enclosure provides exceptional isolation against all forms of EMI and RFI, particularly the dense electromagnetic environment created by modern wireless technologies. It's designed to handle the full spectrum of contemporary protocols—3G, 4G, 5G LTE, all Wi-Fi 802.11 variants, Wi-Max, GNSS, and Bluetooth. What makes this enclosure truly special is the customization capability. Need multiple RF ports? Want specific data modules? Just tell us your requirements. The versatility extends to industrial, medical, military, and aerospace applications, making it one of the most adaptable shielding solutions available.

Dimensions
Exterior (H x W x D)
36" (H) x 60" (W) x 30" (D)
Interior (H x W x D)
34" (H) x 58" (W) x 28" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX7400 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
60"(EXTERIOR WIDTH)36"(EXTERIORHEIGHT)FRONT VIEW30"(EXTERIOR DEPTH)SIDE VIEW60"(EXTERIOR WIDTH)30"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 60" (W) × 36" (H) × 30" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX7400 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
58"(INTERIOR WIDTH)34"(INTERIORHEIGHT)INTERIOR FRONT VIEW28"(INTERIOR DEPTH)INTERIOR SIDE VIEW58"(INTERIOR WIDTH)28"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 58" (W) × 34" (H) × 28" (D)RF Pyramidal Microwave Absorber Lining Boundary
