RF SHIELD BOX

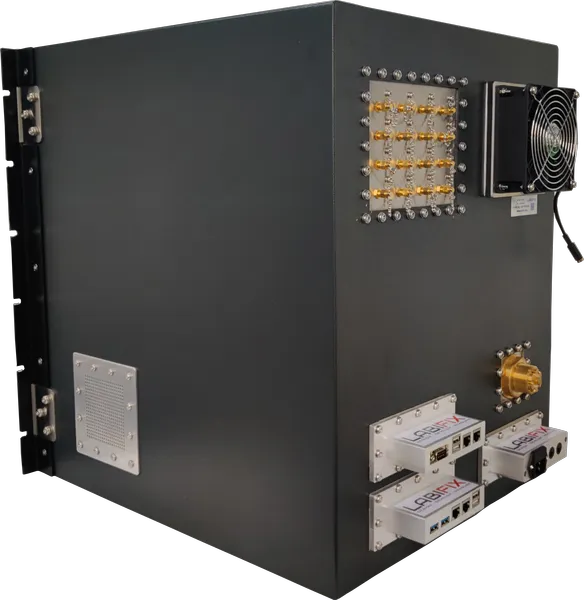

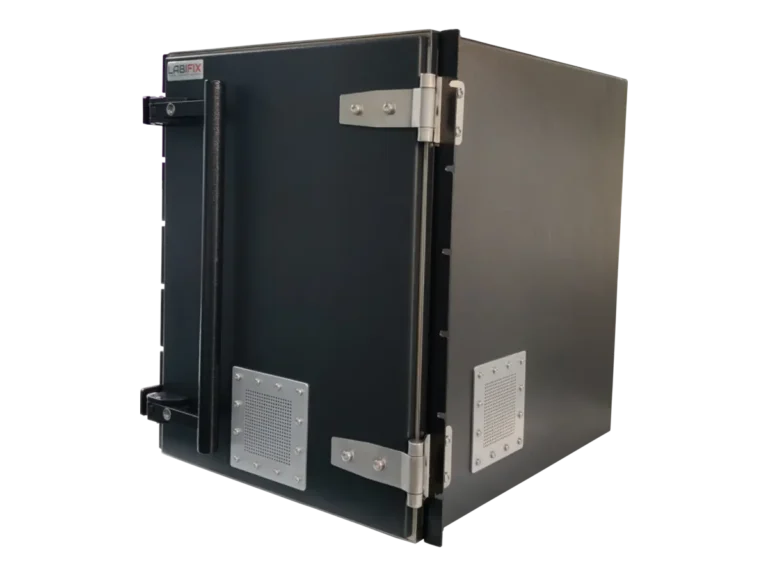

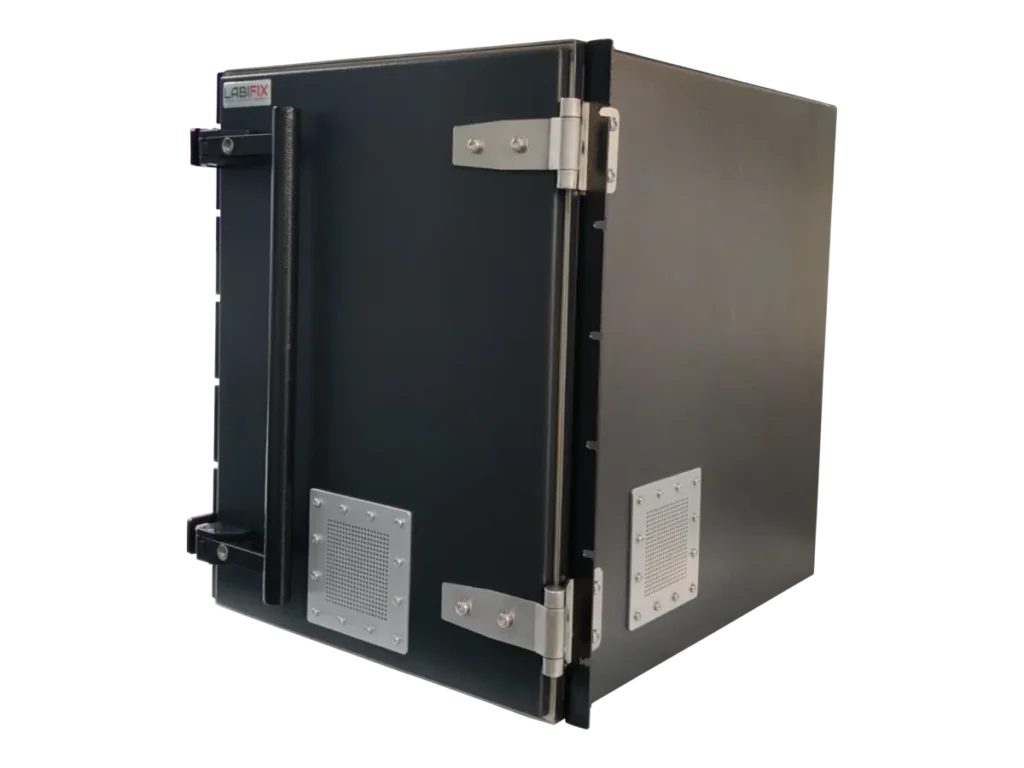

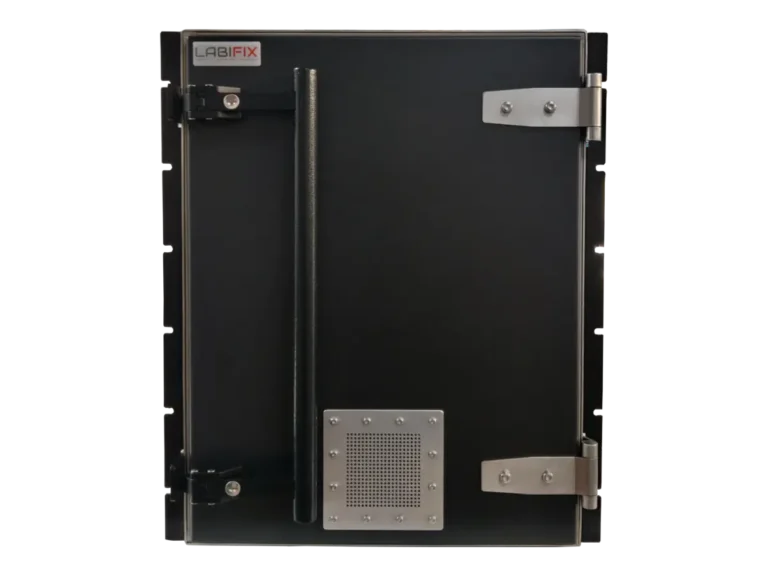

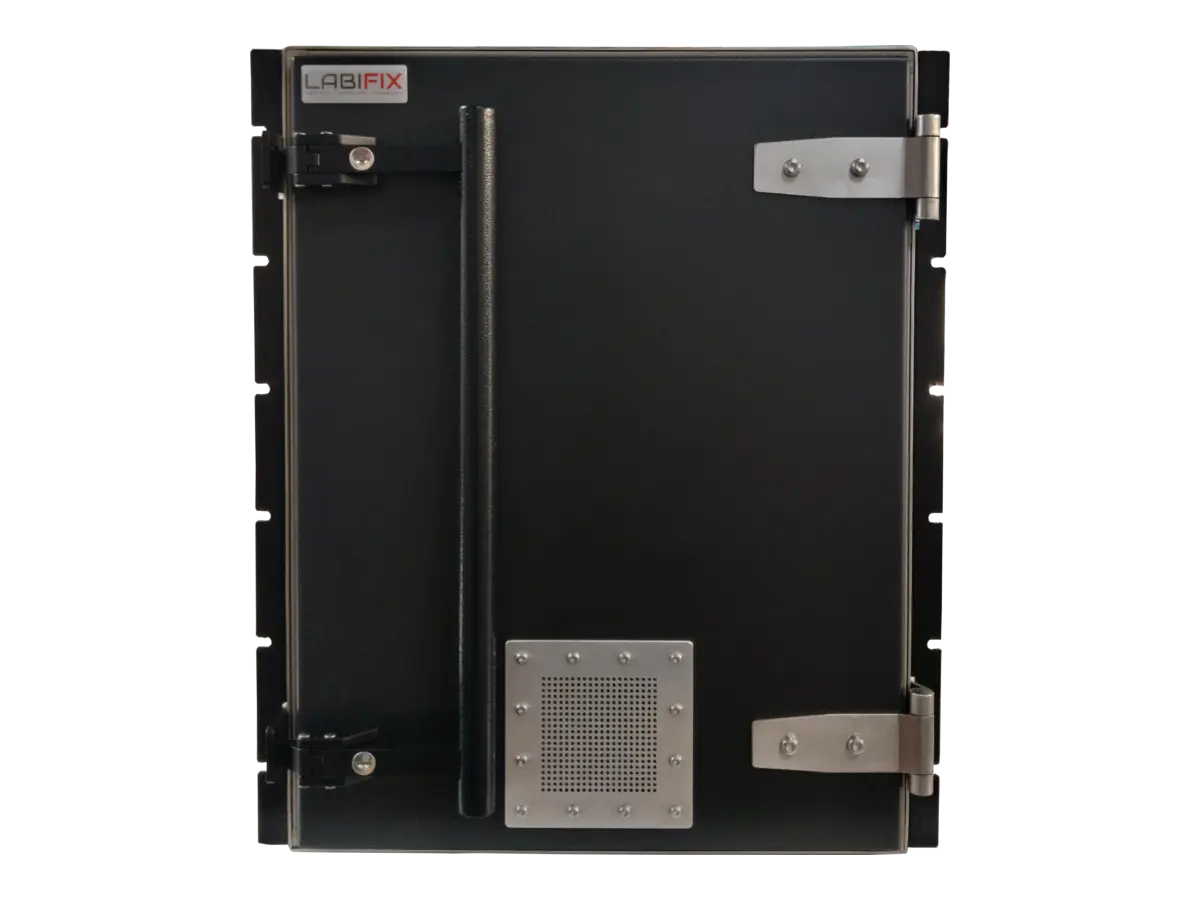

LBX4200 RF Shield Box

LabiFix’s LBX4200 RF shielding box is the perfect solution for shielding your wireless electronic devices from unwanted RF interference. This rack-mounted shielded box features superior isolation of >90dB, making it an ideal solution for a wide range of testing applications. The excellent design of the RF Shielded Enclosure makes it strong and precision processing provides better isolation of >90dB for your device under test. Plus, the RF Shielded Enclosure is available in a 19” rack mountable design, making it easy to integrate into your existing setup

Dimensions
Exterior (H x W x D)
22" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
20" (H) x 15" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

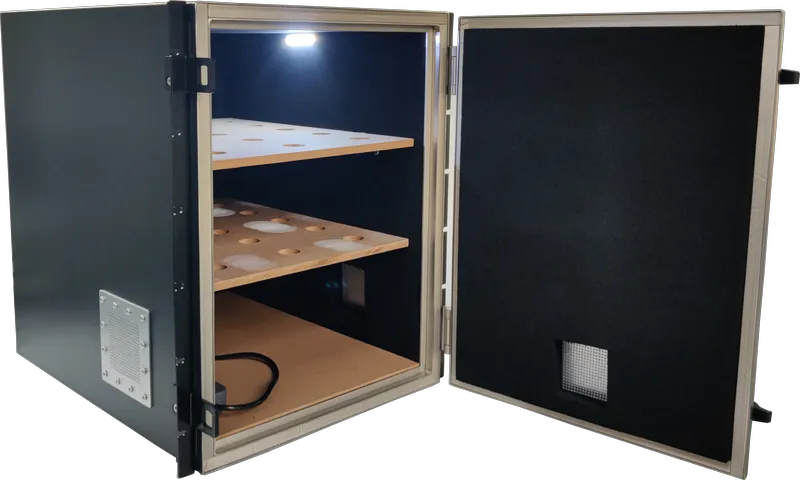

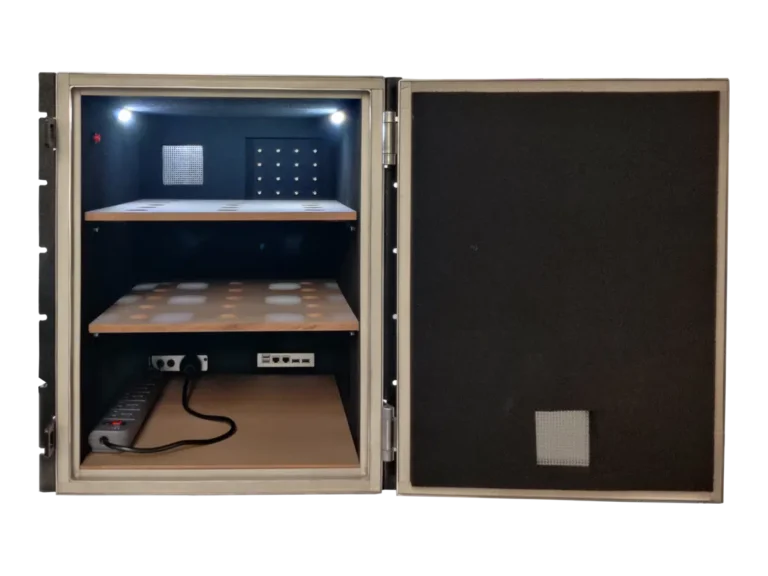

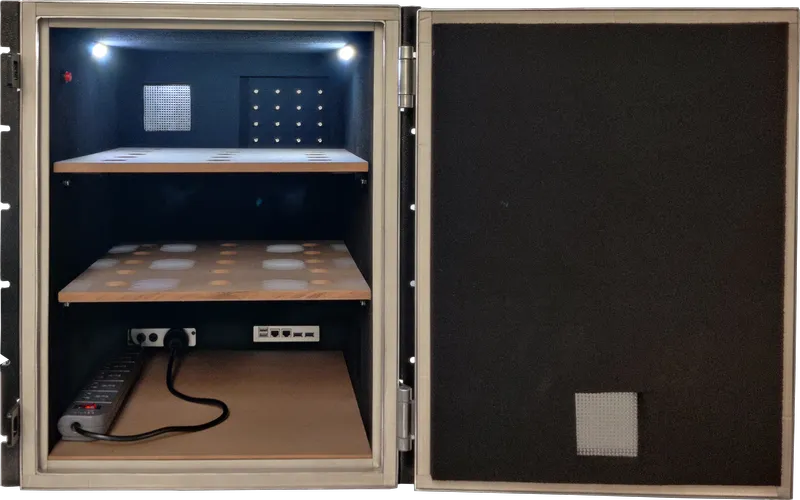

High Performance Pyramidal RF Microwave Absorber lining

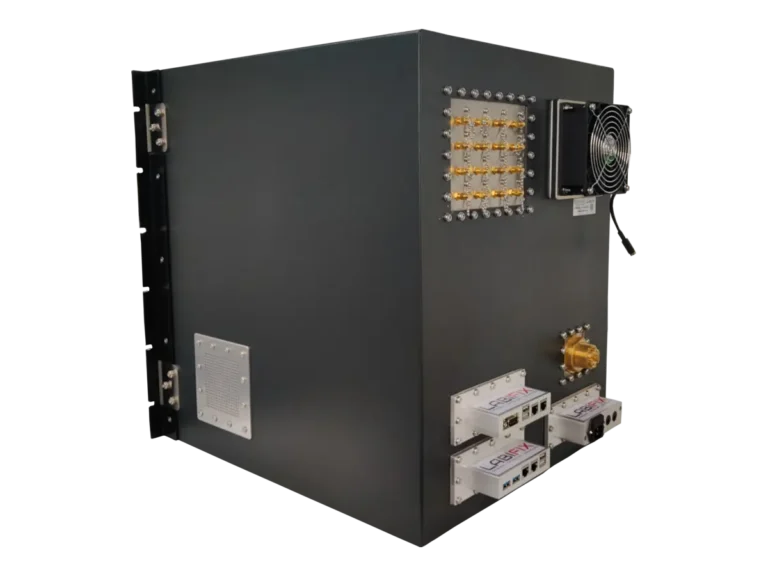

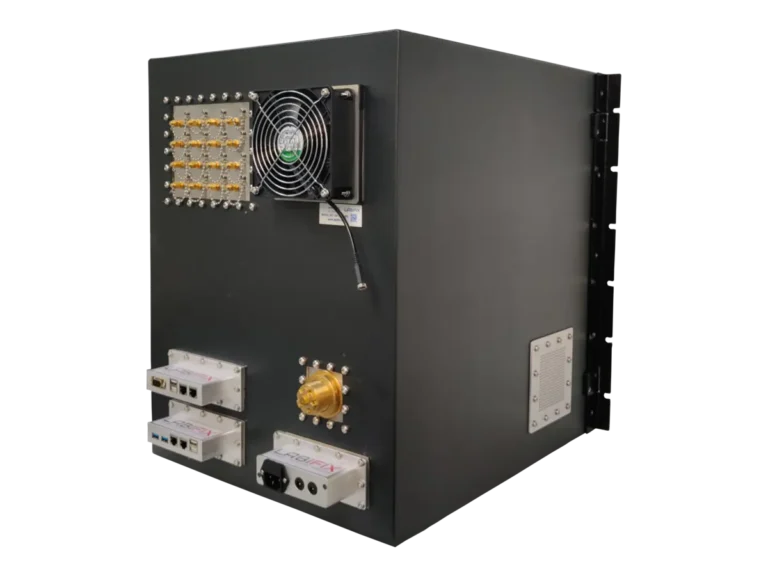

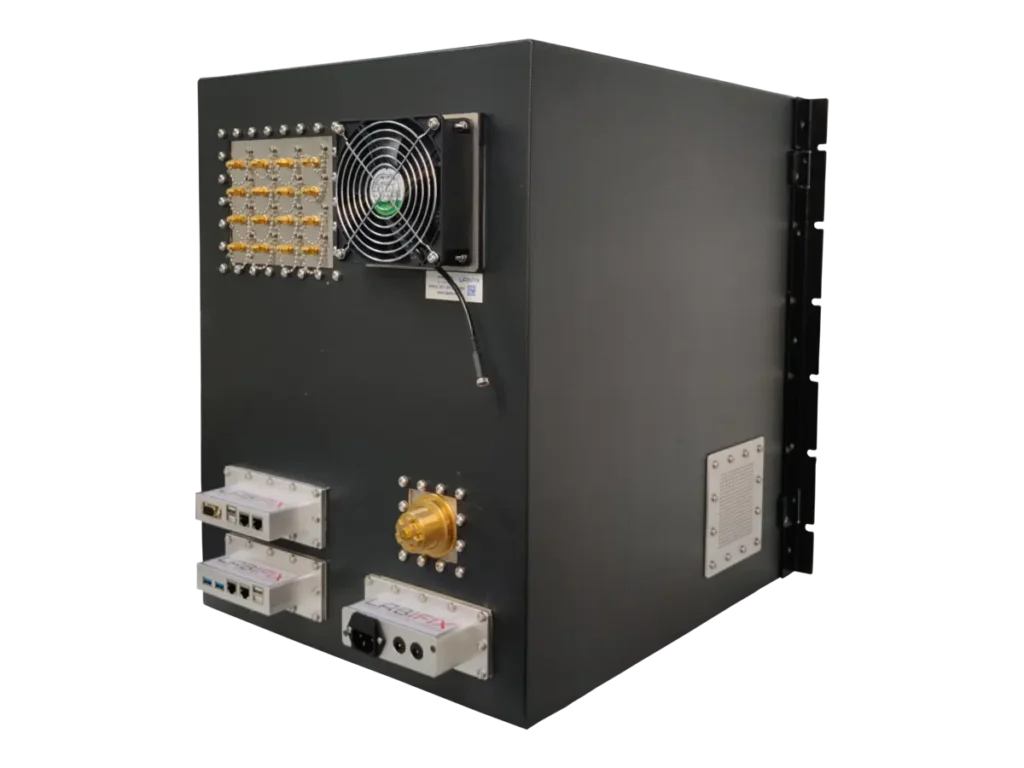

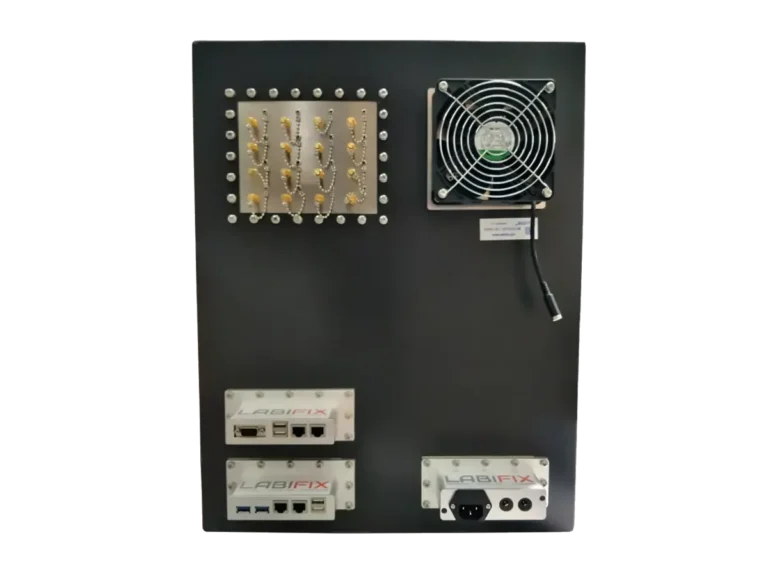

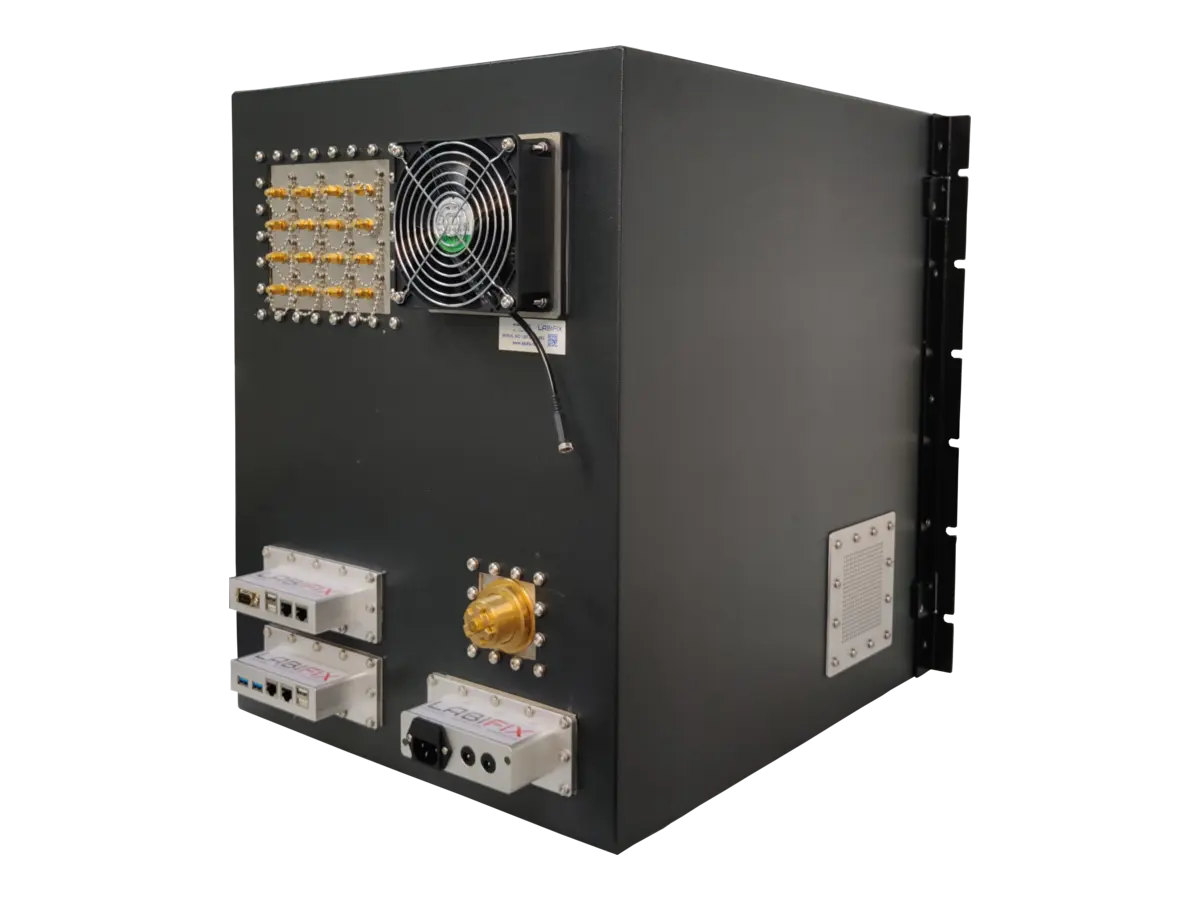

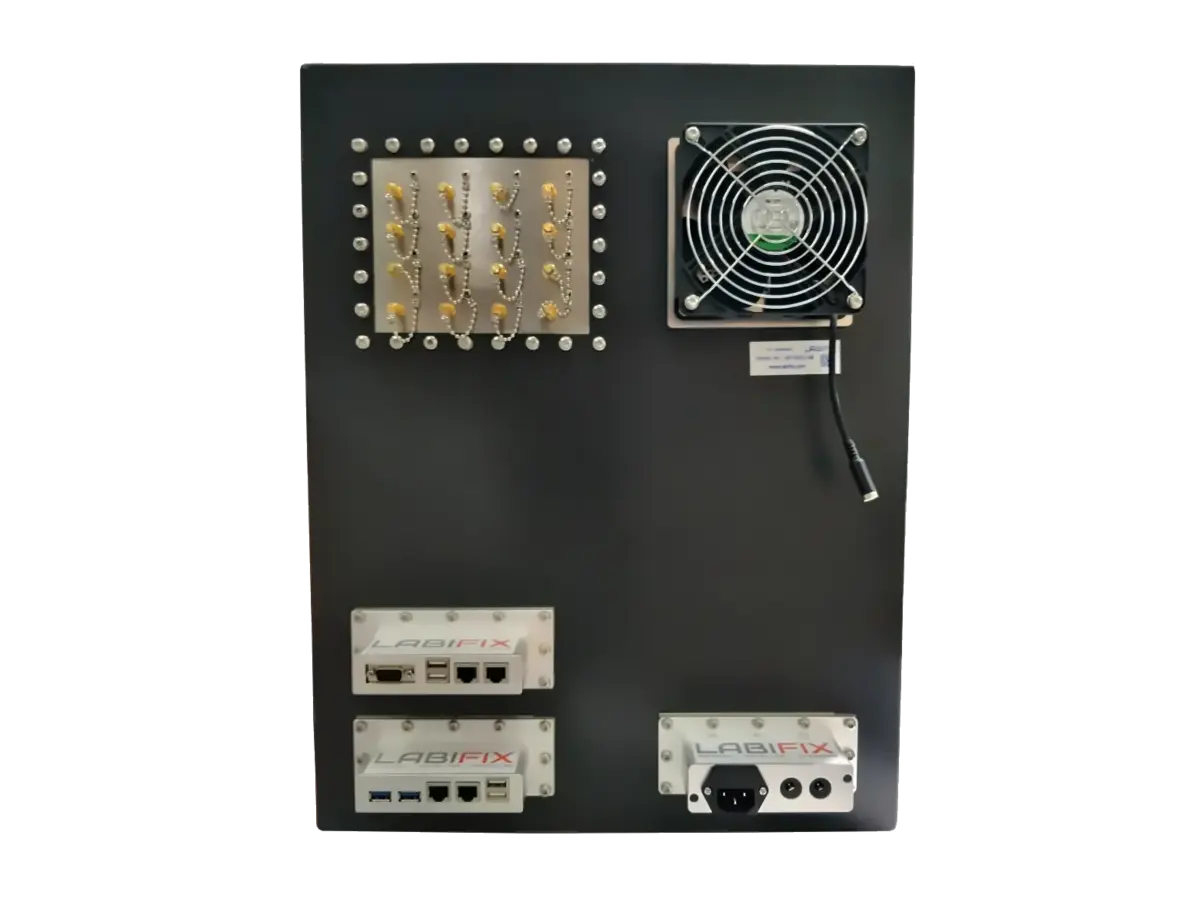

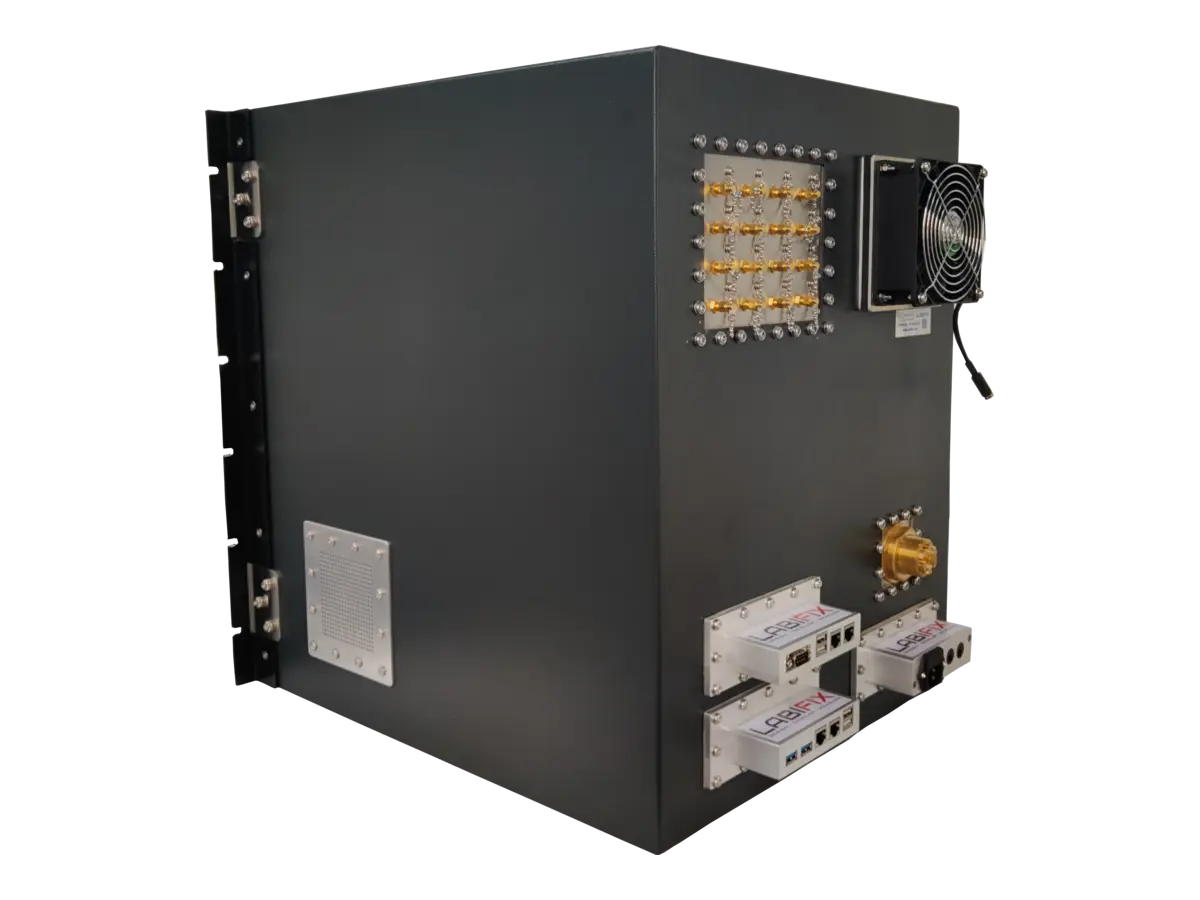

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX4200 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)22"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 22" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

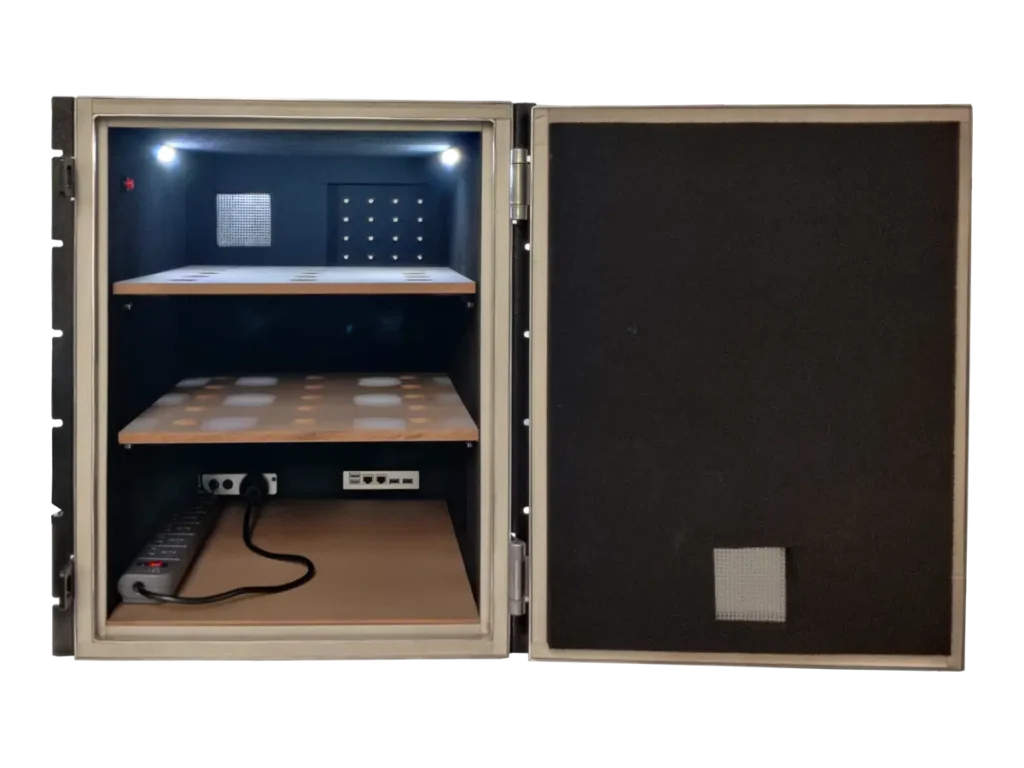

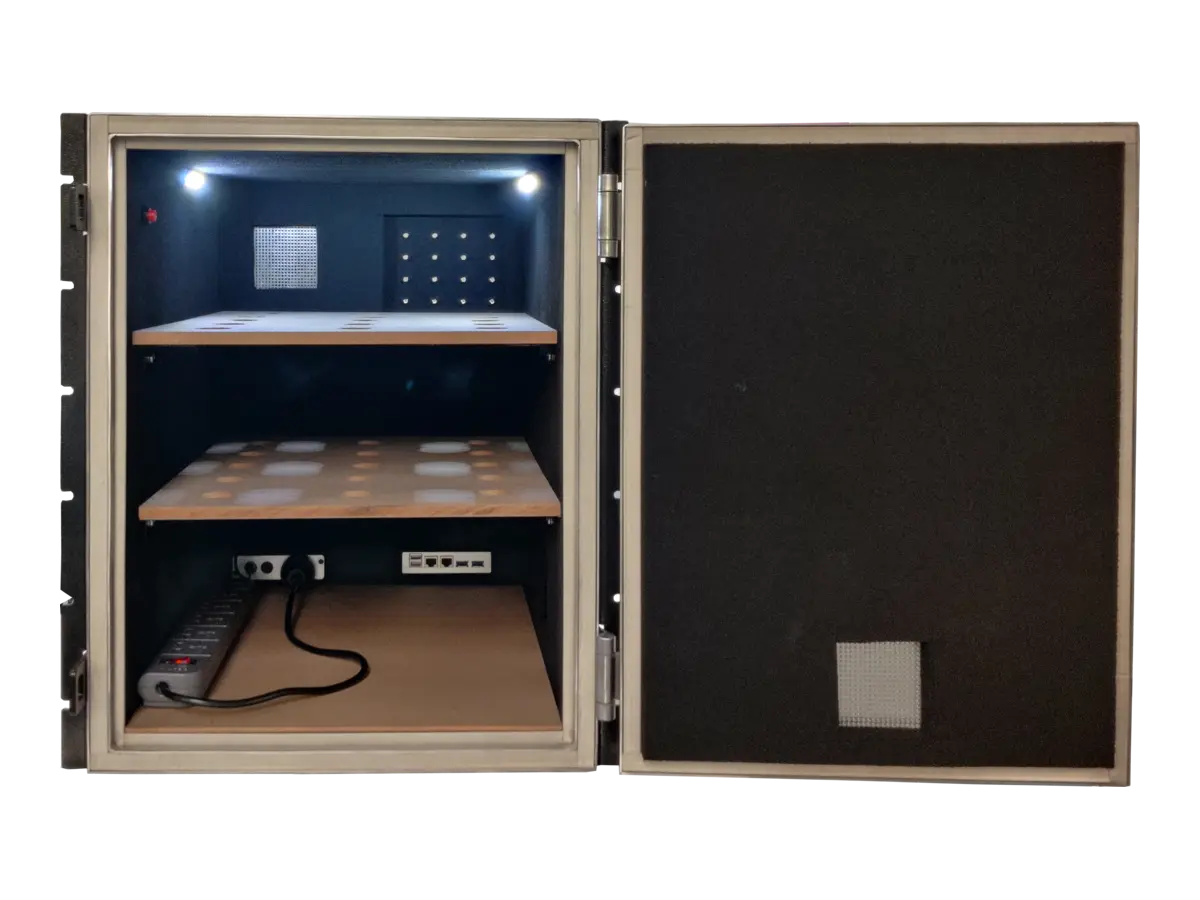

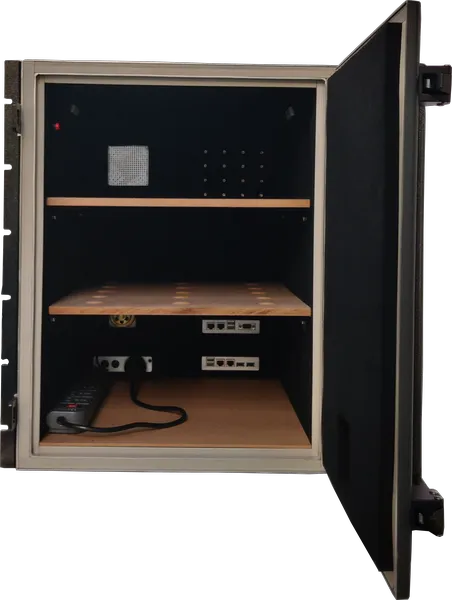

LBX4200 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)20"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 20" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
